Secondary Clutch Assembly 17-26 Can-am Commander Maverick Sport X3 MAX 900 1000R 420686738

Description

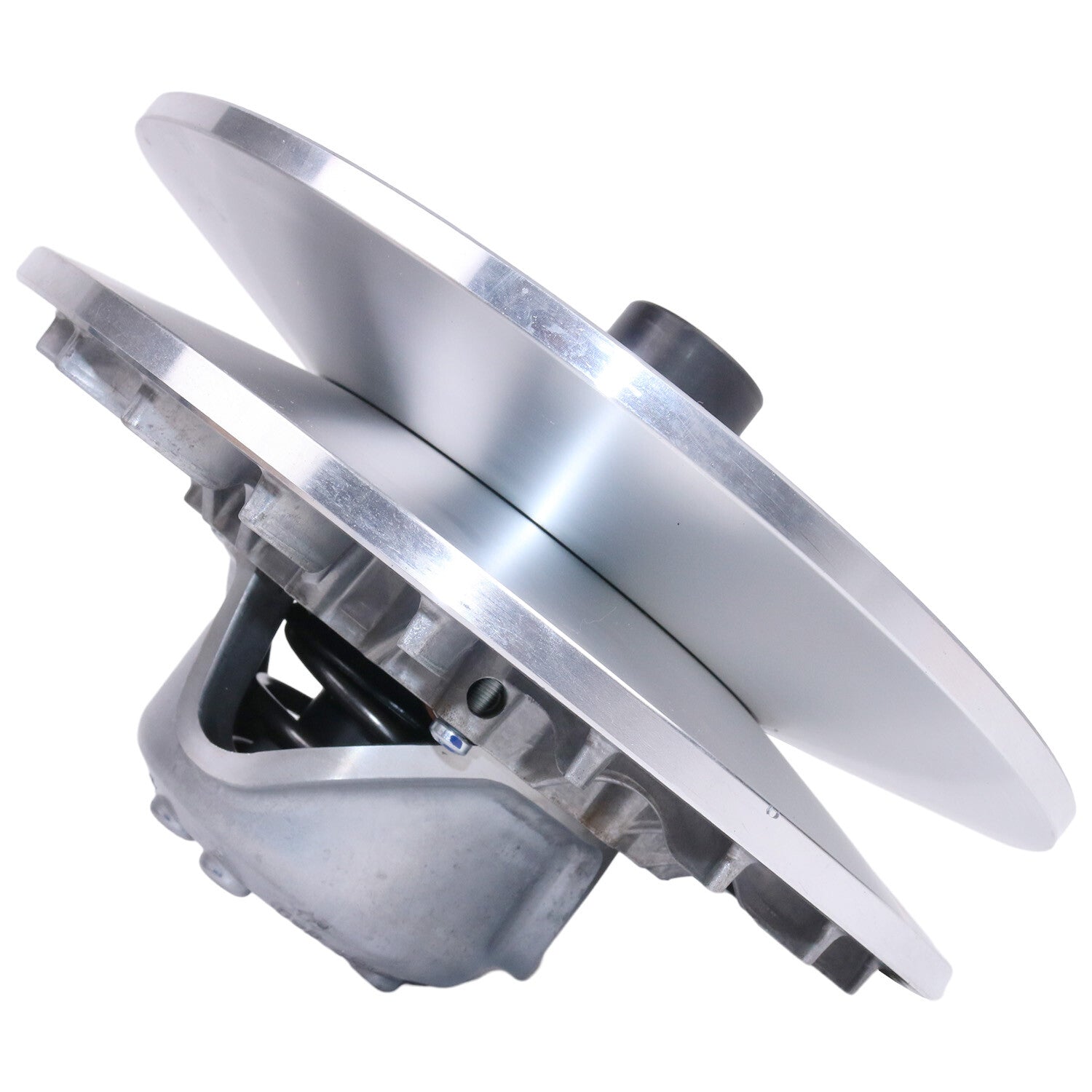

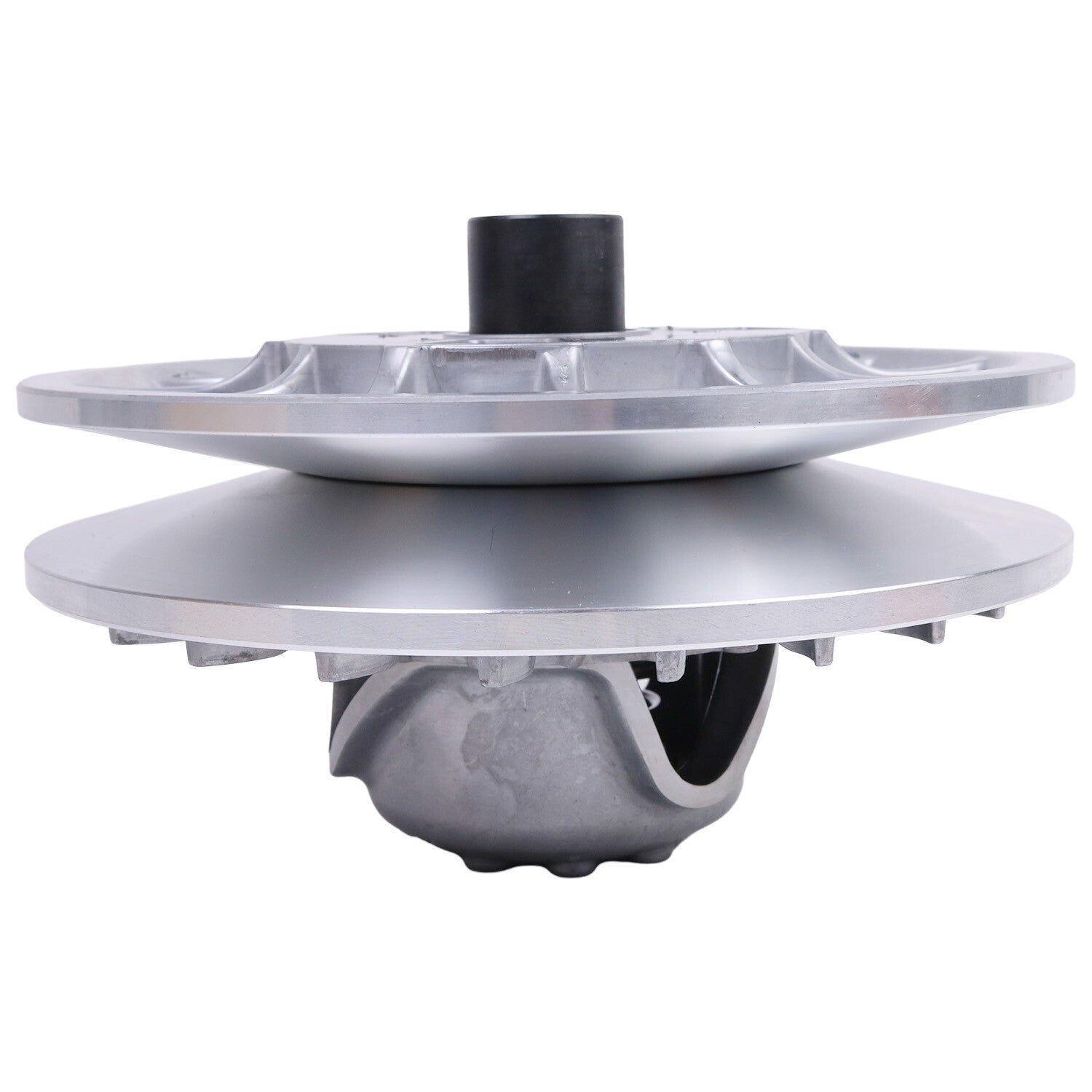

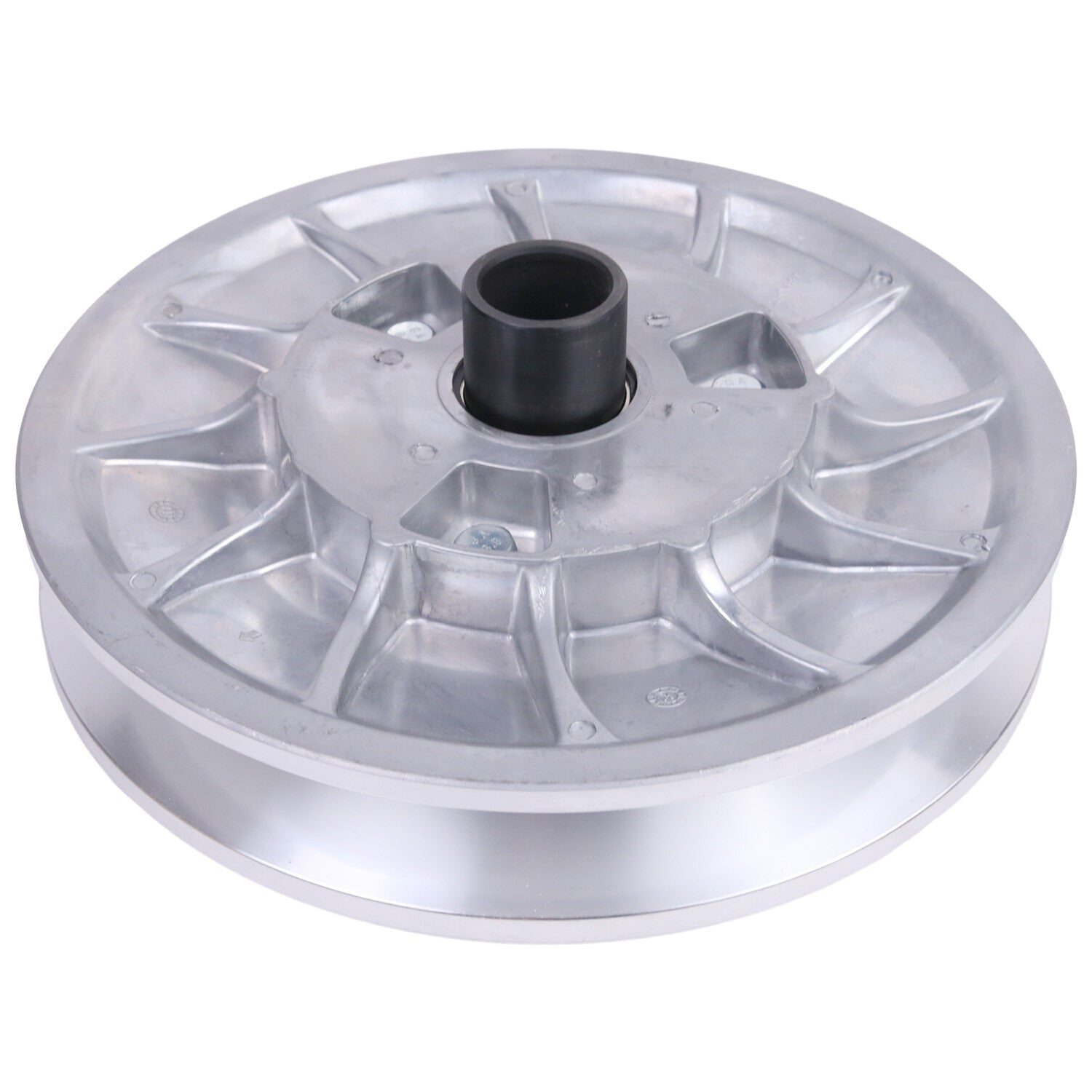

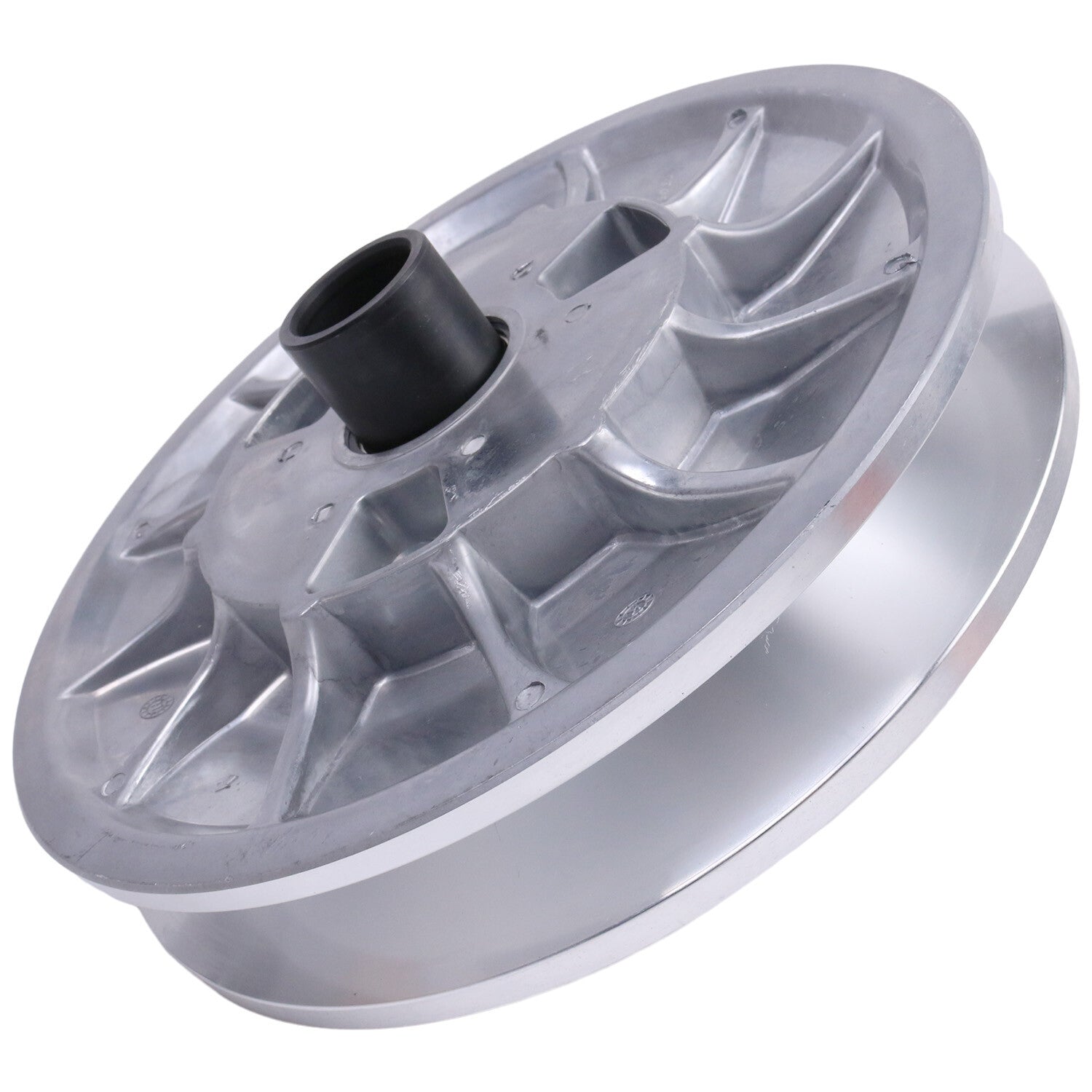

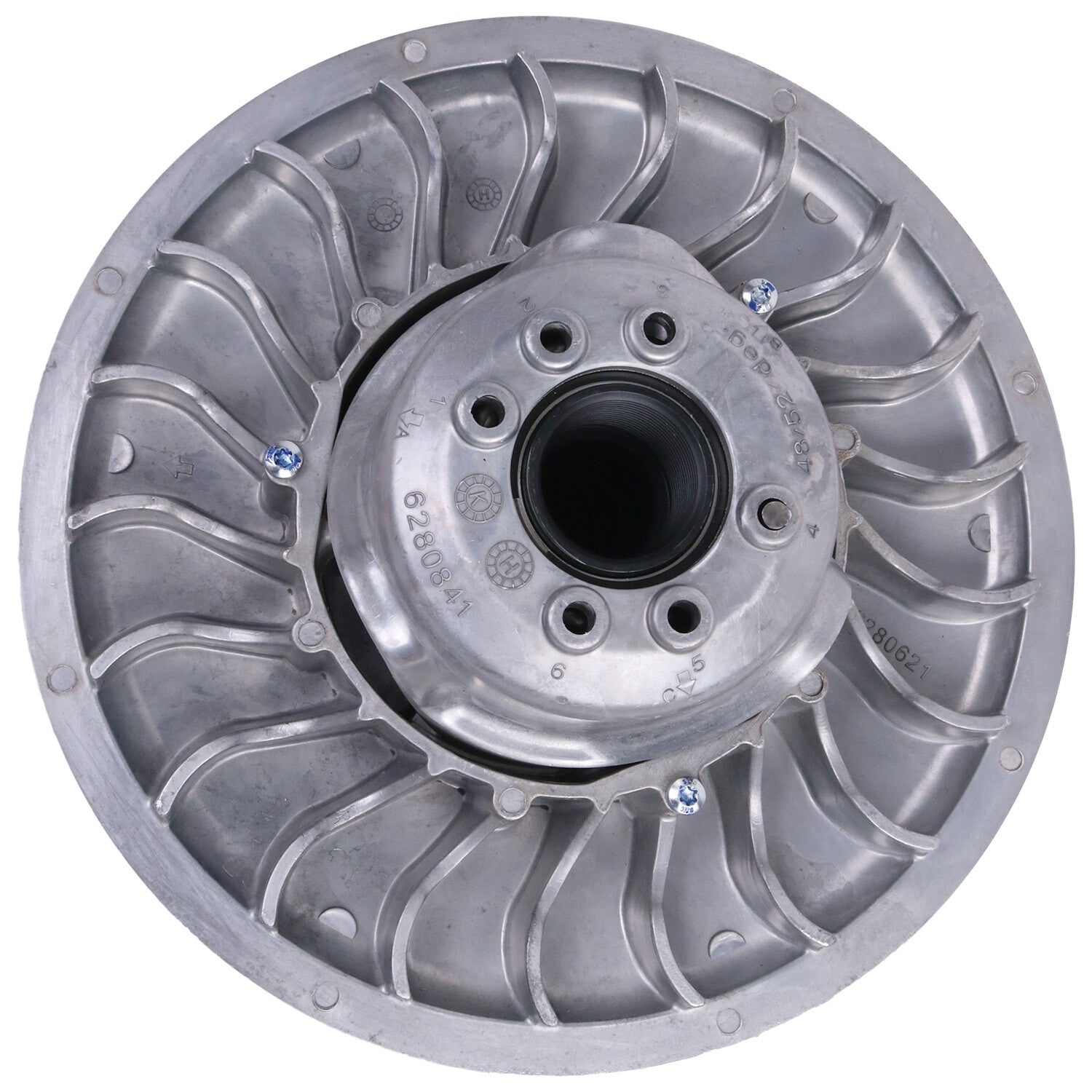

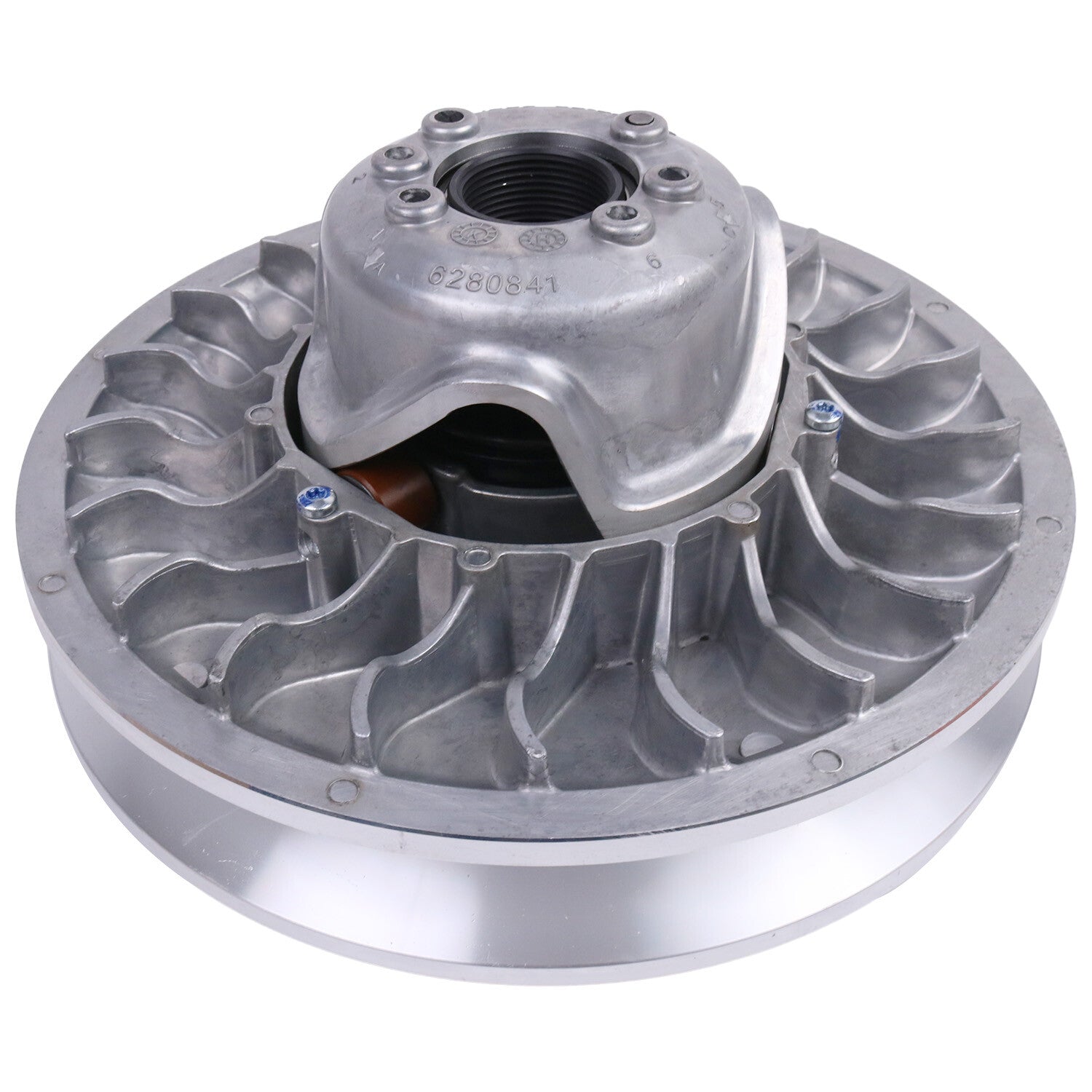

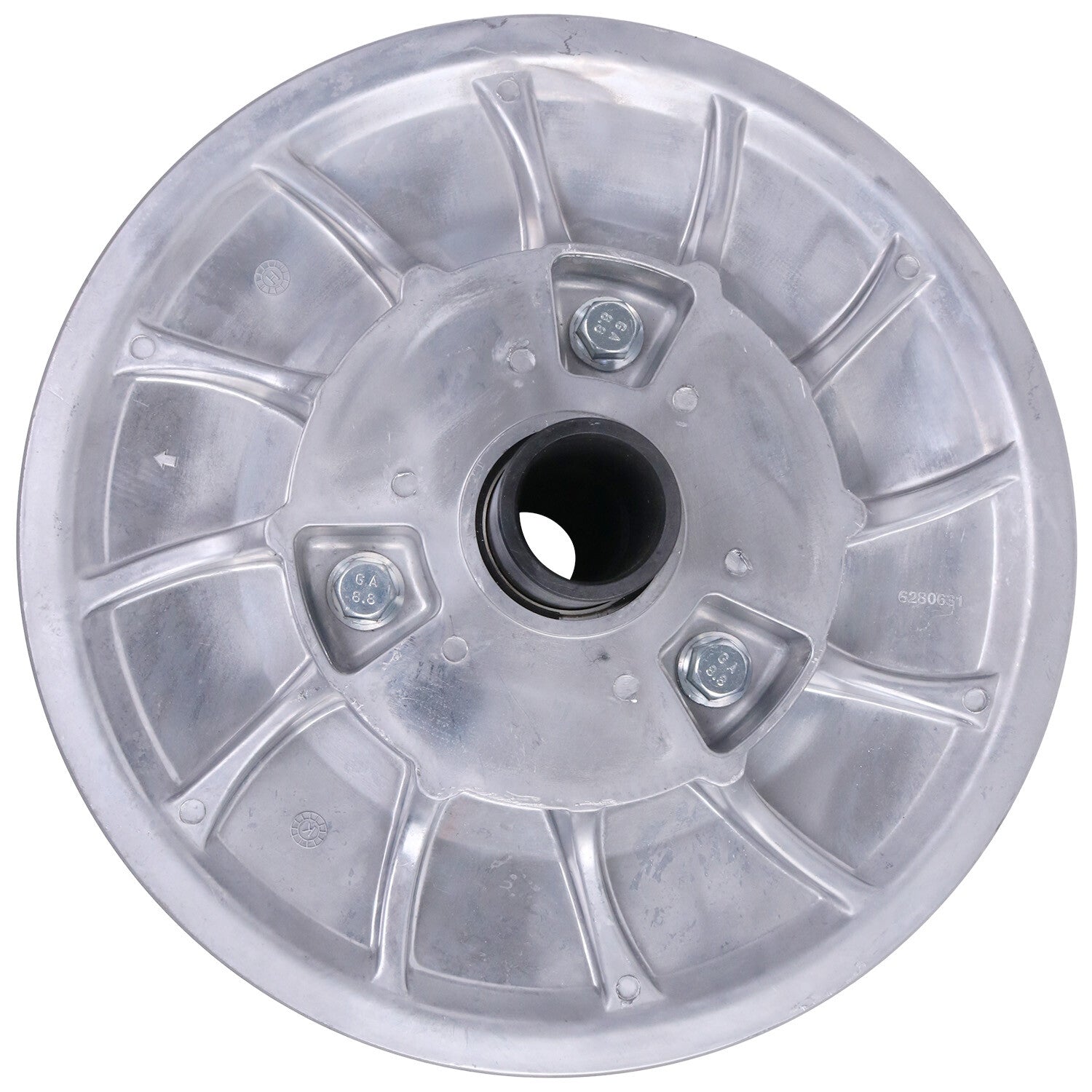

This is the complete driven (secondary) clutch assembly for Can-Am Maverick X3 CVT systems. It is supplied as a ready-to-install assembly and uses the genuine fixed outer half pulley (fixed flange) OEM 420280626 within the unit.

Features

  • Complete secondary clutch (driven pulley) supplied pre-assembled
  • Includes fixed outer half pulley, sliding pulley, cam (helix), spring, rollers and pins
  • Direct OEM geometry for correct belt ratio control and back-shift
  • One assembly required per vehicle

Specifications

  • OEM complete assembly number: 420686738 (Driven Pulley)
  • Included fixed outer half pulley (fixed flange): 420280626
  • Included sliding pulley (movable sheave): 420280636
  • Cam (helix) used by application: 420280706 (37/50) or 420280846 (48/52)
  • Secondary spring used by application: 420638124 (Turbo/Turbo R) or 420638126 (Turbo RR)
  • Rollers: 417127016 (three required)
  • Roller pin: 420629192
  • CVT position: Driven (secondary) clutch
  • Quantity per vehicle: 1

Cross-Reference OEM Part Numbers

  • 420686738 – Driven Pulley (complete secondary clutch assembly)
  • 420280626 – Outer Half Pulley Ass’y (fixed flange), secondary clutch
  • 420280636 – Sliding Pulley Ass’y (movable sheave), secondary clutch
  • 420280706 – Cam 37/50 Ass’y
  • 420280846 – Cam 48/52 Ass’y
  • 420638124 – Compression Spring (Turbo/Turbo R applications)
  • 420638126 – Compression Spring (Turbo RR applications)
  • 417127016 – Pulley Roller
  • 420629192 – Roller Pin
  • 422280652 – Drive Belt (commonly paired across Maverick X3 turbo models; belt not included)

Vehicle Fitments

Commander

  • 1000R EFI DPS (2021-2026)
  • 1000R EFI XMR (2022-2026)
  • 1000R EFI XT (2021-2026)
  • 1000R EFI XTP (2021-2026)

Commander MAX

  • 1000R EFI DPS (2021-2026)
  • 1000R EFI XMR (2024-2026)
  • 1000R EFI XT (2021-2026)
  • 1000R EFI XTP (2022-2026)

Maverick

  • Turbo (2019)
  • Turbo DS (2021-2026)
  • Turbo RS (2024-2026)
  • Turbo STD (2020)
  • Turbo X (2026)
  • Turbo XMR (2020-2021)
  • Turbo XRC (2020-2021)
  • Turbo R (2019)
  • Turbo R DS (2021)
  • Turbo R RS (2021)
  • Turbo R STD (2020)
  • Turbo R XDS (2020)
  • Turbo R XRS (2020)
  • Turbo RR DS (2020, 2022-2026)
  • Turbo RR RS (2022-2026)
  • Turbo RR STD (2020)
  • Turbo RR XDS (2020-2024)
  • Turbo RR XDS SAS (2025-2026)
  • Turbo RR XDS STD (2025-2026)
  • Turbo RR XMR (2020-2023, 2025-2026)
  • Turbo RR XRC (2020-2026)
  • Turbo RR XRS (2020-2022)
  • Turbo RR XRS SAS (2025-2026)
  • Turbo RR XRS Smart Shock (2023-2024)
  • Turbo RR XRS STD (2023-2026)

Maverick MAX

  • Turbo (2019-2020)
  • Turbo DS (2021-2026)
  • Turbo RS (2024-2026)
  • Turbo X (2026)
  • Turbo R (2019)
  • Turbo R DS (2021)
  • Turbo R RS (2021)
  • Turbo R STD (2020)
  • Turbo R XDS (2020)
  • Turbo R XRS (2020)
  • Turbo RR DS (2020, 2022-2026)
  • Turbo RR RS (2022-2026)
  • Turbo RR STD (2020)
  • Turbo RR XDS (2020-2024)
  • Turbo RR XDS SAS (2025-2026)
  • Turbo RR XDS STD (2025-2026)
  • Turbo RR XMR (2020-2026)
  • Turbo RR XRC (2024-2026)
  • Turbo RR XRS (2020-2022)
  • Turbo RR XRS SAS (2025-2026)
  • Turbo RR XRS Smart Shock (2023-2024)
  • Turbo RR XRS STD (2023-2026)

Maverick Sport

  • 1000R DPS (2019-2026)
  • 1000R XMR (2019-2026)
  • 1000R XRC (2019-2026)
  • 1000R XXC (2020-2023)

Maverick Sport MAX

  • 1000R (2020)
  • 1000R DPS (2019, 2021-2026)

Maverick X3

  • X3 (2017)
  • 900HO (2018)
  • Turbo STD (2018)
  • Turbo XMR (2018)
  • Turbo XRC (2018)
  • Turbo R STD (2018)
  • Turbo R XDS DPS (2018)
  • Turbo R XMR (2018)
  • Turbo R XRC (2018)
  • Turbo R XRS DPS (2018)
  • Turbo R XRS DPS with Smart-Lok (2018)

Maverick X3 MAX

  • X3 MAX (2017)
  • Turbo STD (2018)
  • Turbo R STD (2018)
  • Turbo R XDS DPS (2018)
  • Turbo R XRS DPS (2018)
  • Turbo R XRS DPS with Smart-Lok (2018)

Secondary Clutch Assembly 17-26 Can-am Commander Maverick Sport X3 MAX 900 1000R 420686738

Product form

This is the complete driven (secondary) clutch assembly for Can-Am Maverick X3 CVT systems. It is supplied as a ready-to-install... Read more

3 in stock 1-2 business days

£476.00 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    SKU: 04-7813.DR

    • Free shipping on all orders above £75
    • No hassle returns within 30 days

    Description

    This is the complete driven (secondary) clutch assembly for Can-Am Maverick X3 CVT systems. It is supplied as a ready-to-install assembly and uses the genuine fixed outer half pulley (fixed flange) OEM 420280626 within the unit.

    Features

    • Complete secondary clutch (driven pulley) supplied pre-assembled
    • Includes fixed outer half pulley, sliding pulley, cam (helix), spring, rollers and pins
    • Direct OEM geometry for correct belt ratio control and back-shift
    • One assembly required per vehicle

    Specifications

    • OEM complete assembly number: 420686738 (Driven Pulley)
    • Included fixed outer half pulley (fixed flange): 420280626
    • Included sliding pulley (movable sheave): 420280636
    • Cam (helix) used by application: 420280706 (37/50) or 420280846 (48/52)
    • Secondary spring used by application: 420638124 (Turbo/Turbo R) or 420638126 (Turbo RR)
    • Rollers: 417127016 (three required)
    • Roller pin: 420629192
    • CVT position: Driven (secondary) clutch
    • Quantity per vehicle: 1

    Cross-Reference OEM Part Numbers

    • 420686738 – Driven Pulley (complete secondary clutch assembly)
    • 420280626 – Outer Half Pulley Ass’y (fixed flange), secondary clutch
    • 420280636 – Sliding Pulley Ass’y (movable sheave), secondary clutch
    • 420280706 – Cam 37/50 Ass’y
    • 420280846 – Cam 48/52 Ass’y
    • 420638124 – Compression Spring (Turbo/Turbo R applications)
    • 420638126 – Compression Spring (Turbo RR applications)
    • 417127016 – Pulley Roller
    • 420629192 – Roller Pin
    • 422280652 – Drive Belt (commonly paired across Maverick X3 turbo models; belt not included)

    Vehicle Fitments

    Commander

    • 1000R EFI DPS (2021-2026)
    • 1000R EFI XMR (2022-2026)
    • 1000R EFI XT (2021-2026)
    • 1000R EFI XTP (2021-2026)

    Commander MAX

    • 1000R EFI DPS (2021-2026)
    • 1000R EFI XMR (2024-2026)
    • 1000R EFI XT (2021-2026)
    • 1000R EFI XTP (2022-2026)

    Maverick

    • Turbo (2019)
    • Turbo DS (2021-2026)
    • Turbo RS (2024-2026)
    • Turbo STD (2020)
    • Turbo X (2026)
    • Turbo XMR (2020-2021)
    • Turbo XRC (2020-2021)
    • Turbo R (2019)
    • Turbo R DS (2021)
    • Turbo R RS (2021)
    • Turbo R STD (2020)
    • Turbo R XDS (2020)
    • Turbo R XRS (2020)
    • Turbo RR DS (2020, 2022-2026)
    • Turbo RR RS (2022-2026)
    • Turbo RR STD (2020)
    • Turbo RR XDS (2020-2024)
    • Turbo RR XDS SAS (2025-2026)
    • Turbo RR XDS STD (2025-2026)
    • Turbo RR XMR (2020-2023, 2025-2026)
    • Turbo RR XRC (2020-2026)
    • Turbo RR XRS (2020-2022)
    • Turbo RR XRS SAS (2025-2026)
    • Turbo RR XRS Smart Shock (2023-2024)
    • Turbo RR XRS STD (2023-2026)

    Maverick MAX

    • Turbo (2019-2020)
    • Turbo DS (2021-2026)
    • Turbo RS (2024-2026)
    • Turbo X (2026)
    • Turbo R (2019)
    • Turbo R DS (2021)
    • Turbo R RS (2021)
    • Turbo R STD (2020)
    • Turbo R XDS (2020)
    • Turbo R XRS (2020)
    • Turbo RR DS (2020, 2022-2026)
    • Turbo RR RS (2022-2026)
    • Turbo RR STD (2020)
    • Turbo RR XDS (2020-2024)
    • Turbo RR XDS SAS (2025-2026)
    • Turbo RR XDS STD (2025-2026)
    • Turbo RR XMR (2020-2026)
    • Turbo RR XRC (2024-2026)
    • Turbo RR XRS (2020-2022)
    • Turbo RR XRS SAS (2025-2026)
    • Turbo RR XRS Smart Shock (2023-2024)
    • Turbo RR XRS STD (2023-2026)

    Maverick Sport

    • 1000R DPS (2019-2026)
    • 1000R XMR (2019-2026)
    • 1000R XRC (2019-2026)
    • 1000R XXC (2020-2023)

    Maverick Sport MAX

    • 1000R (2020)
    • 1000R DPS (2019, 2021-2026)

    Maverick X3

    • X3 (2017)
    • 900HO (2018)
    • Turbo STD (2018)
    • Turbo XMR (2018)
    • Turbo XRC (2018)
    • Turbo R STD (2018)
    • Turbo R XDS DPS (2018)
    • Turbo R XMR (2018)
    • Turbo R XRC (2018)
    • Turbo R XRS DPS (2018)
    • Turbo R XRS DPS with Smart-Lok (2018)

    Maverick X3 MAX

    • X3 MAX (2017)
    • Turbo STD (2018)
    • Turbo R STD (2018)
    • Turbo R XDS DPS (2018)
    • Turbo R XRS DPS (2018)
    • Turbo R XRS DPS with Smart-Lok (2018)
