Secondary Drive Clutch 03-22 Can-am 330 400 450 500 650 Outlander Bombardier

Description

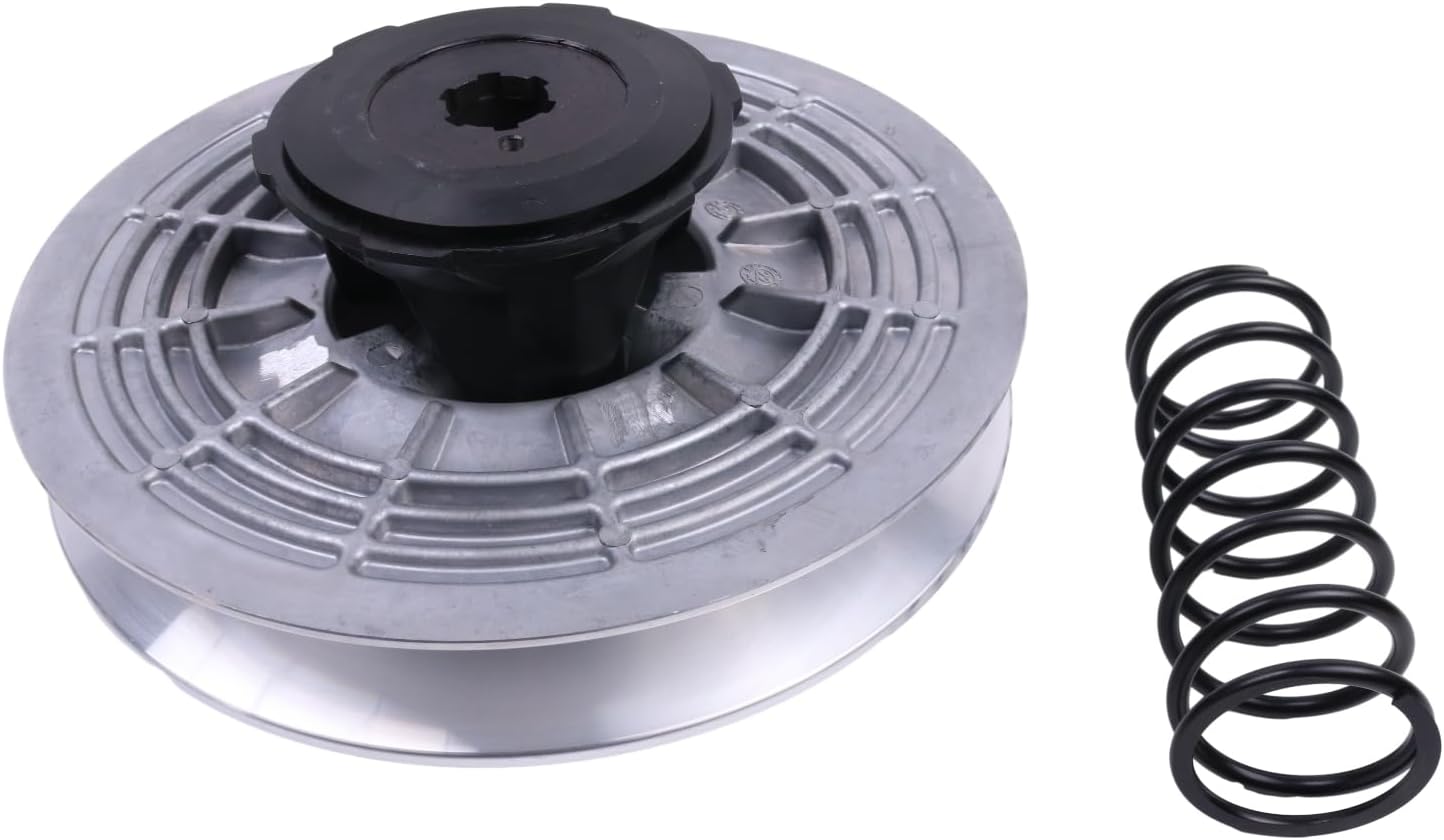

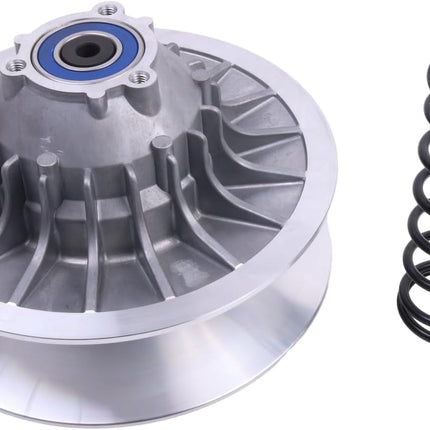

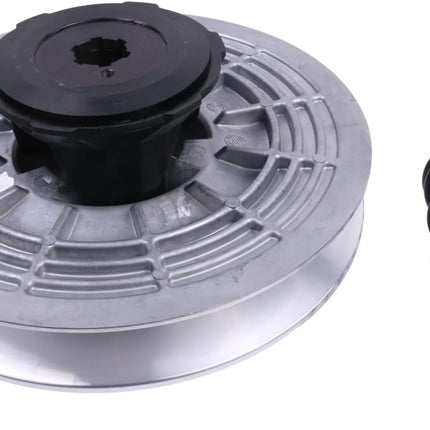

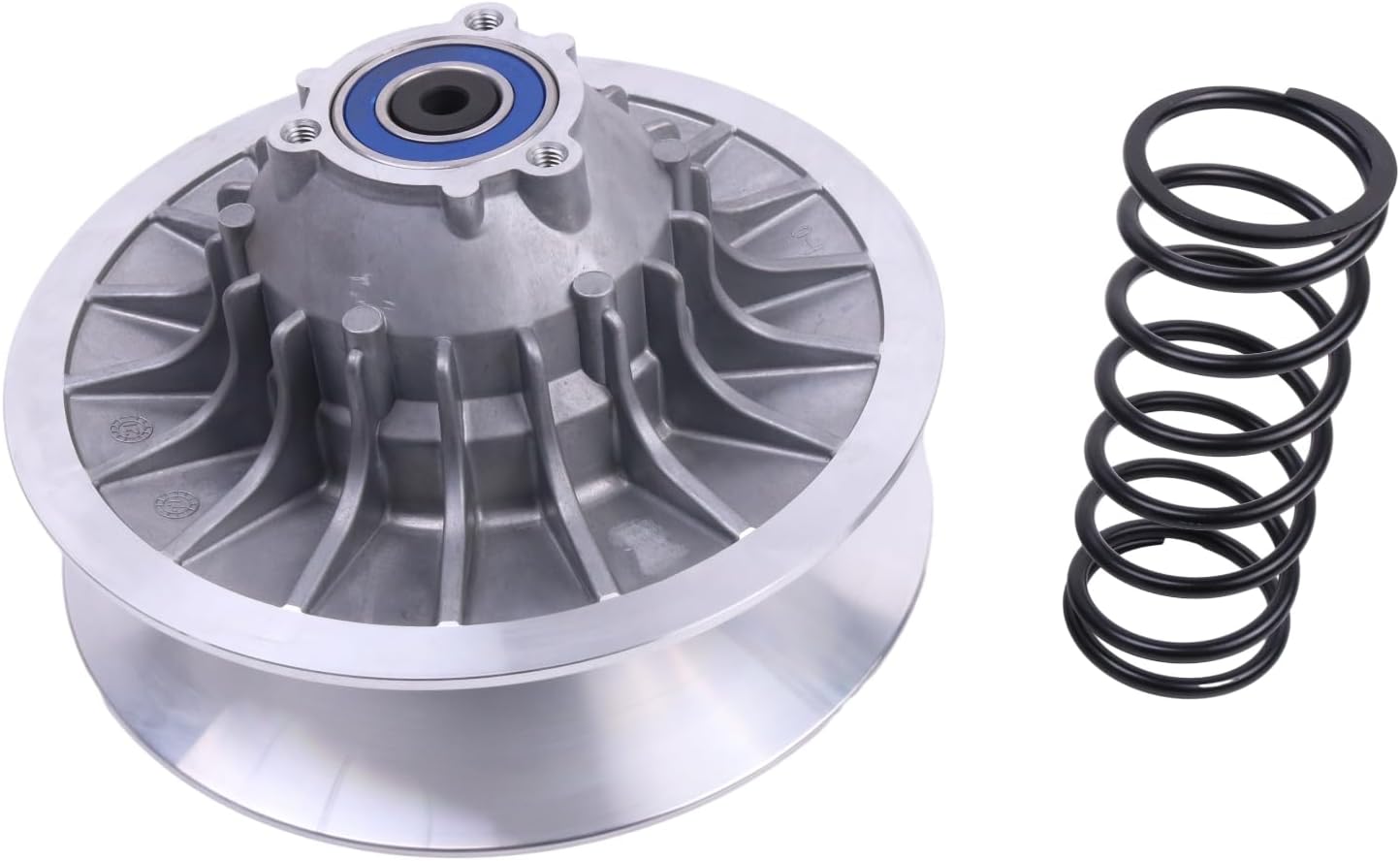

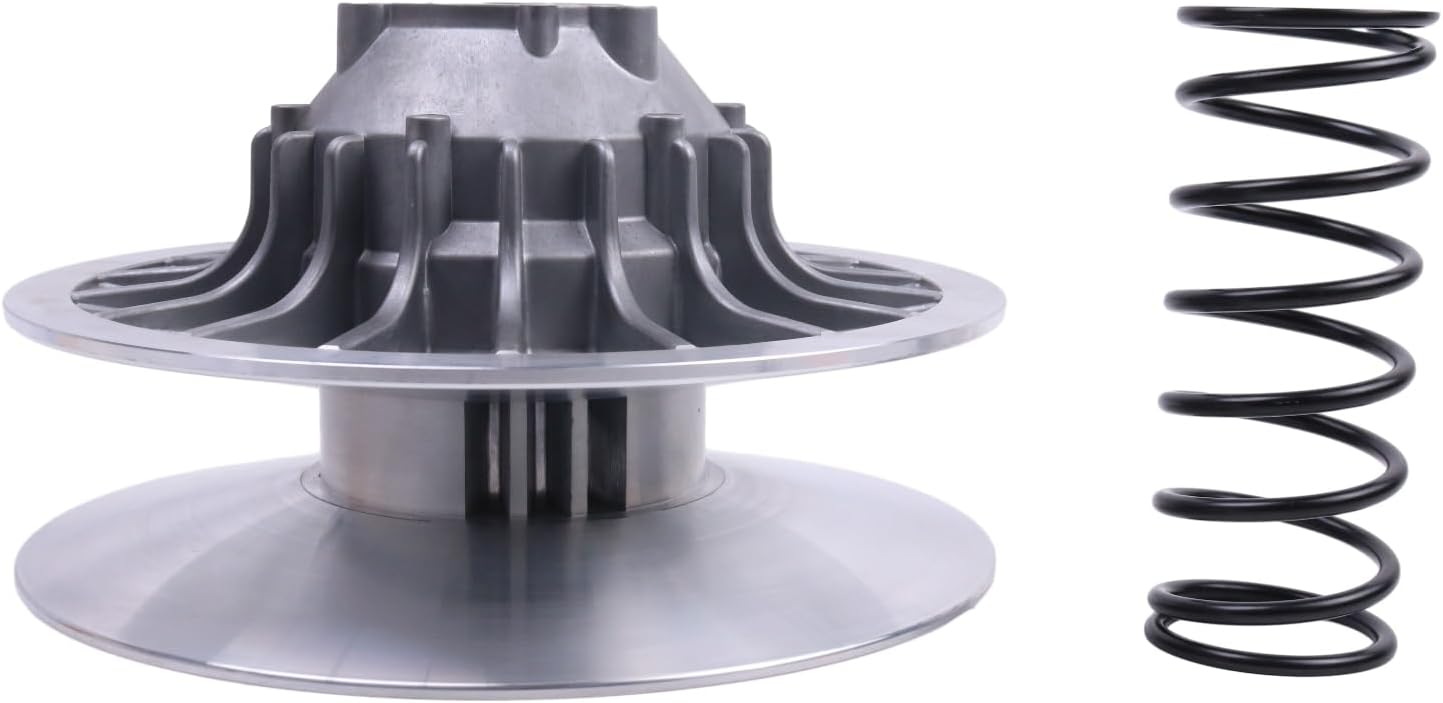

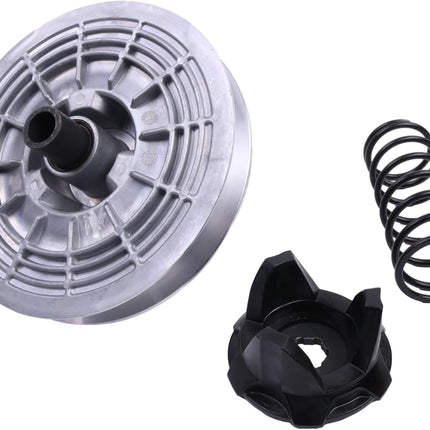

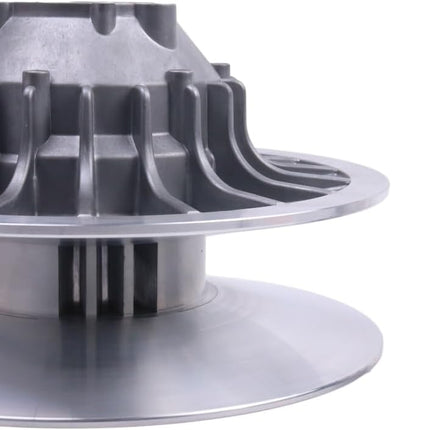

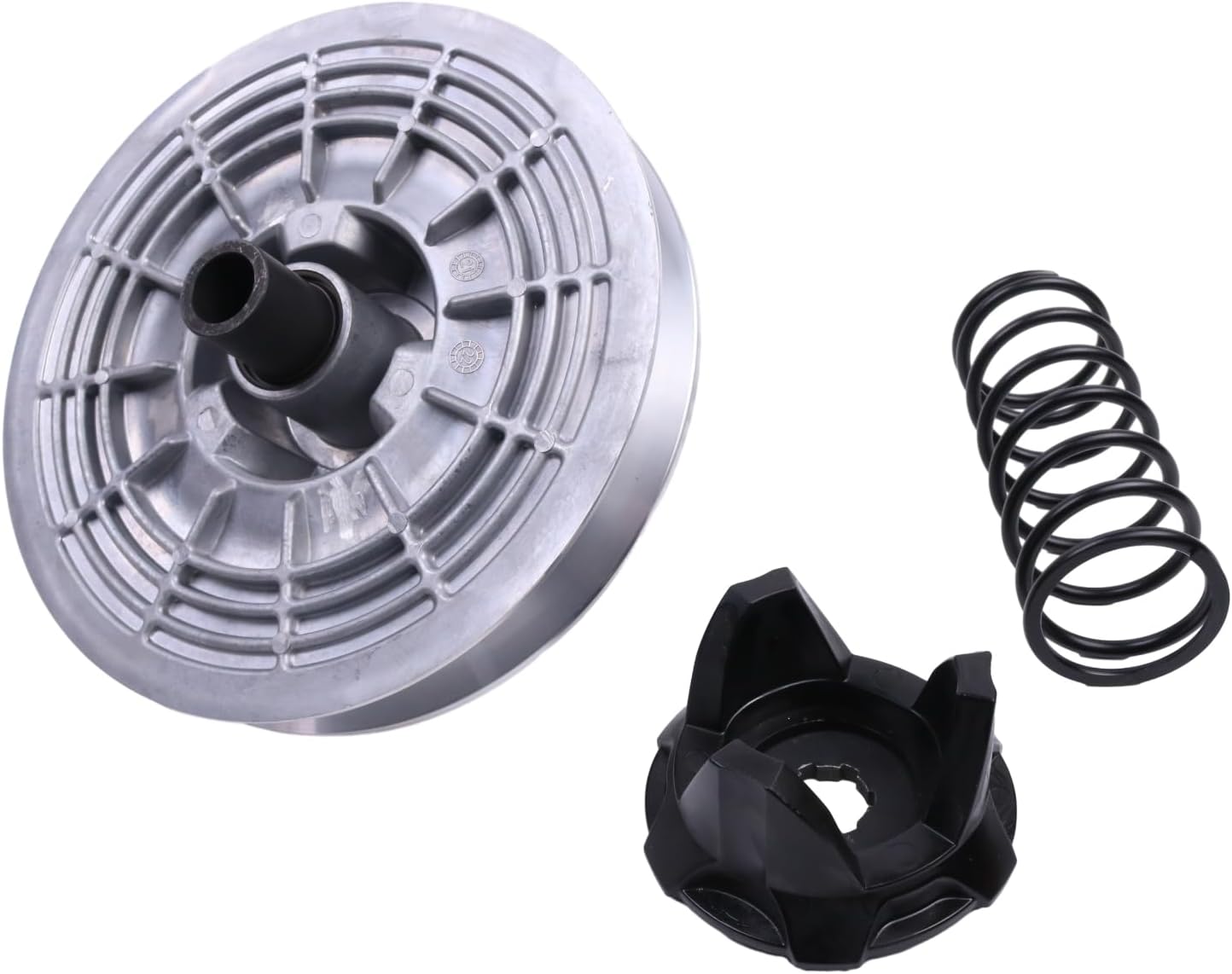

This secondary driven clutch assembly is designed for Can-Am/Bombardier CVT models listed below. It corresponds to the original secondary clutch components and is supplied with the correct torque-sensing cam (helix) and driven-pulley compression spring.

Features

  • Complete secondary driven clutch, supplied assembled with cam (helix) and compression spring
  • Direct-fit geometry to maintain correct belt ratio control and backshift characteristics
  • Compatible with all listed model packages (EFI, XT, MAX, L, 6×6 and base where noted)
  • Ready to install using standard workshop procedures and OEM torque specifications

Specifications

  • Type: CVT secondary (driven) pulley assembly
  • Cam/helix: OEM 420280250
  • Compression spring (driven pulley): OEM 420238340
  • Major secondary clutch halves referenced: Outer half assembly 420280176; Inner half assembly 420280235
  • Construction: Two-sheave torque-sensing design with cam plate and compression spring

Cross-Reference OEM Part Numbers

  • 420280176 – Outer half assembly (secondary clutch)
  • 420280235 – Inner half assembly (secondary clutch)
  • 420280250 – Cam/helix (secondary clutch)
  • 420238340 – Compression spring, driven pulley
  • 420280173 – Outer half assembly (superseded/alternative reference)
  • 420280178 – Outer half assembly (superseded/alternative reference)
  • 420248233 – Inner half assembly (superseded/alternative reference)

Vehicle Fitments

  • 2003–2014 Outlander 400 (all packages including EFI, XT, MAX, base, etc.)
  • 2015–2022 Outlander 450 (all packages including L, 6×6, XT, MAX, base, etc.)
  • 2003–2005 Outlander 330
  • 2002–2005 Bombardier Quest models 500 & 650, including Quest XT & Quest MAX
  • 2005 Traxter 500, 650 & 650 XT – CVT model only

Secondary Drive Clutch 03-22 Can-am 330 400 450 500 650 Outlander Bombardier

Product form

This secondary driven clutch assembly is designed for Can-Am/Bombardier CVT models listed below. It corresponds to the original secondary clutch... Read more

6 in stock 1-2 business days

£315.07 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    SKU: 04-7815.DR

    • Free shipping on all orders above £75
    • No hassle returns within 30 days

    Description

    This secondary driven clutch assembly is designed for Can-Am/Bombardier CVT models listed below. It corresponds to the original secondary clutch components and is supplied with the correct torque-sensing cam (helix) and driven-pulley compression spring.

    Features

    • Complete secondary driven clutch, supplied assembled with cam (helix) and compression spring
    • Direct-fit geometry to maintain correct belt ratio control and backshift characteristics
    • Compatible with all listed model packages (EFI, XT, MAX, L, 6×6 and base where noted)
    • Ready to install using standard workshop procedures and OEM torque specifications

    Specifications

    • Type: CVT secondary (driven) pulley assembly
    • Cam/helix: OEM 420280250
    • Compression spring (driven pulley): OEM 420238340
    • Major secondary clutch halves referenced: Outer half assembly 420280176; Inner half assembly 420280235
    • Construction: Two-sheave torque-sensing design with cam plate and compression spring

    Cross-Reference OEM Part Numbers

    • 420280176 – Outer half assembly (secondary clutch)
    • 420280235 – Inner half assembly (secondary clutch)
    • 420280250 – Cam/helix (secondary clutch)
    • 420238340 – Compression spring, driven pulley
    • 420280173 – Outer half assembly (superseded/alternative reference)
    • 420280178 – Outer half assembly (superseded/alternative reference)
    • 420248233 – Inner half assembly (superseded/alternative reference)

    Vehicle Fitments

    • 2003–2014 Outlander 400 (all packages including EFI, XT, MAX, base, etc.)
    • 2015–2022 Outlander 450 (all packages including L, 6×6, XT, MAX, base, etc.)
    • 2003–2005 Outlander 330
    • 2002–2005 Bombardier Quest models 500 & 650, including Quest XT & Quest MAX
    • 2005 Traxter 500, 650 & 650 XT – CVT model only
