Stator 07-17 Kawasaki Kfx Ksf 50 21003-Y003

Description

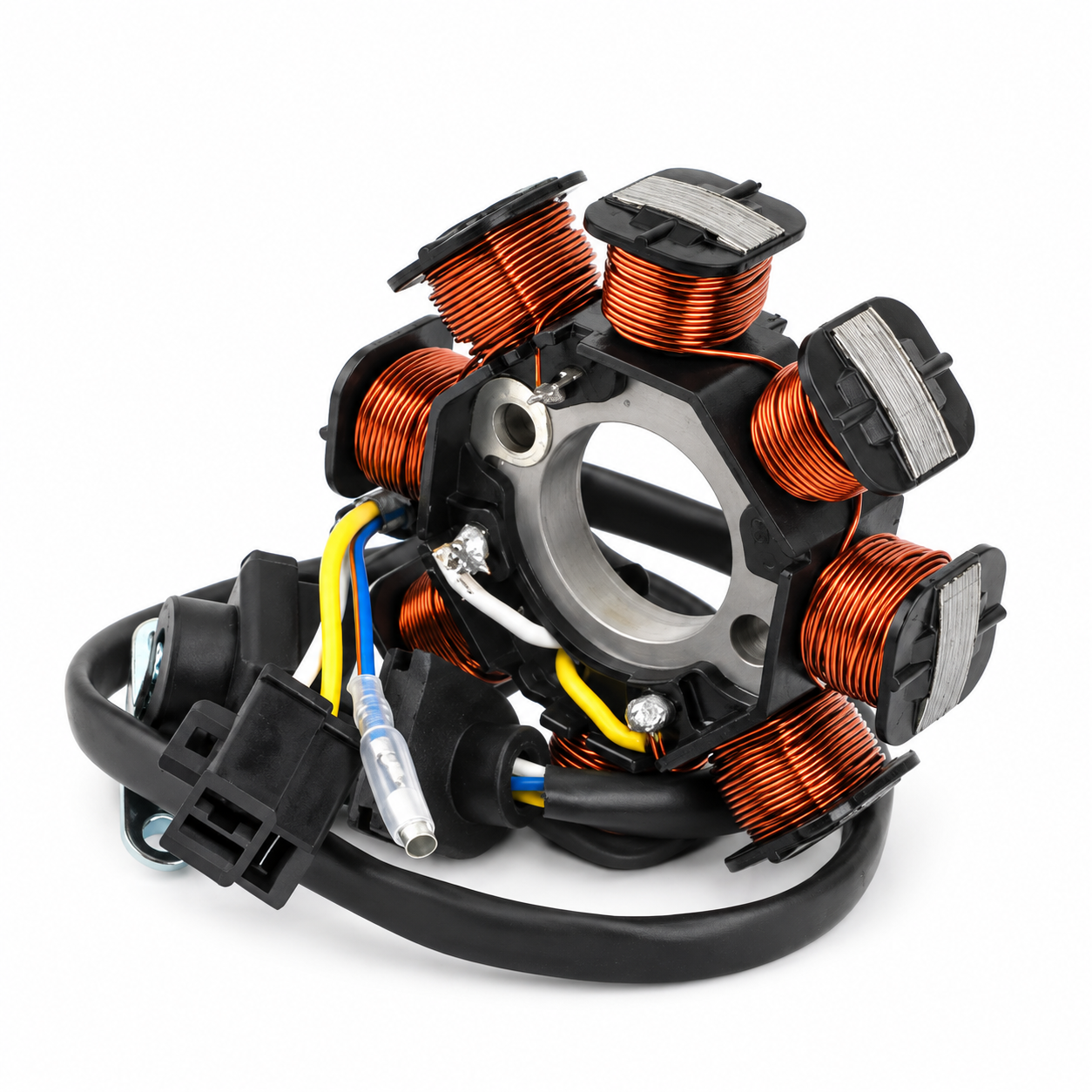

Magneto generator engine stator designed as a direct replacement for selected Kawasaki KFX50 and KSF50 ATV models. It mounts in the original fitting positions and generates electrical power for the vehicle’s ignition and electrical systems. Manufactured to OEM specifications, it is designed to match the original equipment in fit and appearance while supporting increased electrical loads.

Features

  • Meets or exceeds OEM-quality requirements
  • Direct OEM-style replacement
  • Uses the original mounting locations
  • Designed to handle increased electrical power loads
  • Manufactured using high-grade materials for reliable performance
  • High-grade copper windings with heat resistance up to 200°C
  • Pickup pulsar coil included
  • Electrical connectors included
  • Plug-and-play design for straightforward installation
  • Manufactured to match the original equipment in appearance
  • Tested before supply
  • Designed as a cost-effective replacement
  • Supplied as a quality replacement part with a satisfaction guarantee

Specifications

  • Type: Generator stator coil
  • Internal diameter: 29 mm / 1.14 inches
  • External diameter: 87.9 mm / 3.46 inches
  • Pole thickness: 24.2 mm / 0.94 inches
  • Pole width: 22.2 mm / 0.87 inches
  • Number of wires: 3
  • Number of pins: 3
  • Number of plugs: 2
  • Number of fixing holes: 2
  • Number of poles: 8

Cross-Reference OEM Part Numbers

  • 21003-Y003

Vehicle Fitments

  • Kawasaki KFX50 / KSF50: 2007-2009
  • Kawasaki KFX50 / KSF50: 2013-2017

Installation & Ordering Notes

  • Check the product image against the original component before ordering to ensure the correct part is selected
  • Installation is straightforward, but professional fitting is recommended if you are unsure of the correct installation procedure
