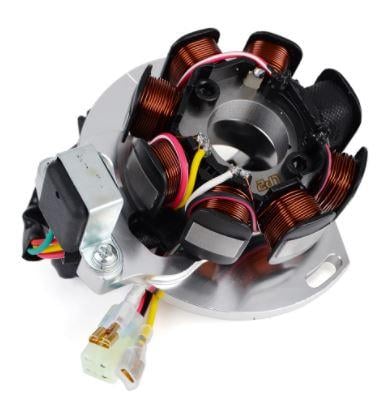

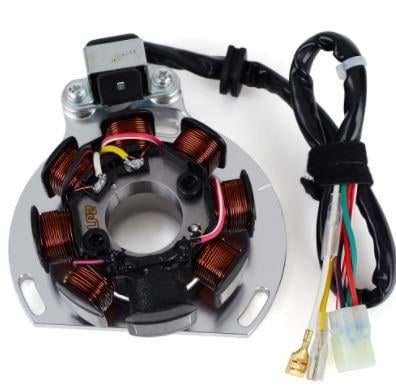

Stator Coil 05-16 Husaberg Husqvarna KTM Te Exc Sx Sm Xc Xc-w Mxc 125 200 250 300 54839204000

Description

This heavy-duty stator coil is a direct replacement for the Kokusan 2K-3 ignition system fitted to selected KTM, Husqvarna and Husaberg off-road motorcycles. It is designed to restore the stator function using the original mounting locations and electrical connections, with an OEM-style fit and appearance.

Features

  • Direct OEM-style replacement using the original mounting locations.
  • Supplied with the required rubbers and OEM-style plug connections.
  • Designed to handle increased electrical power loads.
  • Manufactured to OEM specifications and designed to match the original equipment in appearance.
  • Meets or exceeds OEM quality requirements.
  • 100% factory-tested before dispatch.
  • Intended as a cost-effective, high-quality replacement part.
  • Supplied with a satisfaction guarantee.
  • Designed for straightforward installation; professional installation is recommended if you are unsure.

Specifications

  • Type: Heavy-duty three-phase stator coil.
  • Ignition system type: Kokusan 2K-3.
  • Number of poles: 8.
  • Number of wires: 6.
  • Connection configuration: 4 wires in one connector block plus 2 individual wires with female spade terminals.
  • Approximate diameter: 84 mm.

Cross-Reference OEM Part Numbers

  • 54839204000
  • XQ-460

Vehicle Fitments

  • Husaberg

  • TE 125 (2012-2014)

  • Husqvarna

  • TE 125 (2015-2016)
  • TE 125 HQV / Limited Edition (2014)

  • KTM

  • 125 EXC (2005-2016)
  • 125 EXC Champion Edition (2010)
  • 125 EXC Six Days (2005-2016)
  • 125 Factory Edition (2011; 2015)
  • 125 SX Tyla Rattray (2005)
  • 200 EXC (2005-2012)
  • 200 SM (2005)
  • 200 XC (2008-2009)
  • 200 XC-W (2008-2012)
  • 250 EXC (2005-2007)
  • 250 EXC Six Days (2005-2007)
  • 300 EXC (2005-2007)
  • 300 EXC Six Days (2005-2007)
  • 300 MXC (2005)
  • 300 XC (2006-2007)
  • 300 XC-W (2006-2007)
  • Important Notes
  • Compare the product image with the existing stator before ordering to confirm the correct stator and connector arrangement.
  • Electrical parts are not returnable.

Stator Coil 05-16 Husaberg Husqvarna KTM Te Exc Sx Sm Xc Xc-w Mxc 125 200 250 300 54839204000

Product form

This heavy-duty stator coil is a direct replacement for the Kokusan 2K-3 ignition system fitted to selected KTM, Husqvarna and... Read more

3 in stock 1-2 business days

£118.42 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    SKU: 44-7983.DR

    • Free shipping on all orders above £75
    • No hassle returns within 30 days

    Description

    This heavy-duty stator coil is a direct replacement for the Kokusan 2K-3 ignition system fitted to selected KTM, Husqvarna and Husaberg off-road motorcycles. It is designed to restore the stator function using the original mounting locations and electrical connections, with an OEM-style fit and appearance.

    Features

    • Direct OEM-style replacement using the original mounting locations.
    • Supplied with the required rubbers and OEM-style plug connections.
    • Designed to handle increased electrical power loads.
    • Manufactured to OEM specifications and designed to match the original equipment in appearance.
    • Meets or exceeds OEM quality requirements.
    • 100% factory-tested before dispatch.
    • Intended as a cost-effective, high-quality replacement part.
    • Supplied with a satisfaction guarantee.
    • Designed for straightforward installation; professional installation is recommended if you are unsure.

    Specifications

    • Type: Heavy-duty three-phase stator coil.
    • Ignition system type: Kokusan 2K-3.
    • Number of poles: 8.
    • Number of wires: 6.
    • Connection configuration: 4 wires in one connector block plus 2 individual wires with female spade terminals.
    • Approximate diameter: 84 mm.

    Cross-Reference OEM Part Numbers

    • 54839204000
    • XQ-460

    Vehicle Fitments

    • Husaberg

    • TE 125 (2012-2014)

    • Husqvarna

    • TE 125 (2015-2016)
    • TE 125 HQV / Limited Edition (2014)

    • KTM

    • 125 EXC (2005-2016)
    • 125 EXC Champion Edition (2010)
    • 125 EXC Six Days (2005-2016)
    • 125 Factory Edition (2011; 2015)
    • 125 SX Tyla Rattray (2005)
    • 200 EXC (2005-2012)
    • 200 SM (2005)
    • 200 XC (2008-2009)
    • 200 XC-W (2008-2012)
    • 250 EXC (2005-2007)
    • 250 EXC Six Days (2005-2007)
    • 300 EXC (2005-2007)
    • 300 EXC Six Days (2005-2007)
    • 300 MXC (2005)
    • 300 XC (2006-2007)
    • 300 XC-W (2006-2007)
    • Important Notes
    • Compare the product image with the existing stator before ordering to confirm the correct stator and connector arrangement.
    • Electrical parts are not returnable.
