Stator Coil 08-16 Yamaha Fx Cruiser Sho Ho Fzr Fzs Vxr Vxs Ar Sx 190 242 Limited S 1800 6S5-81410-00

Description

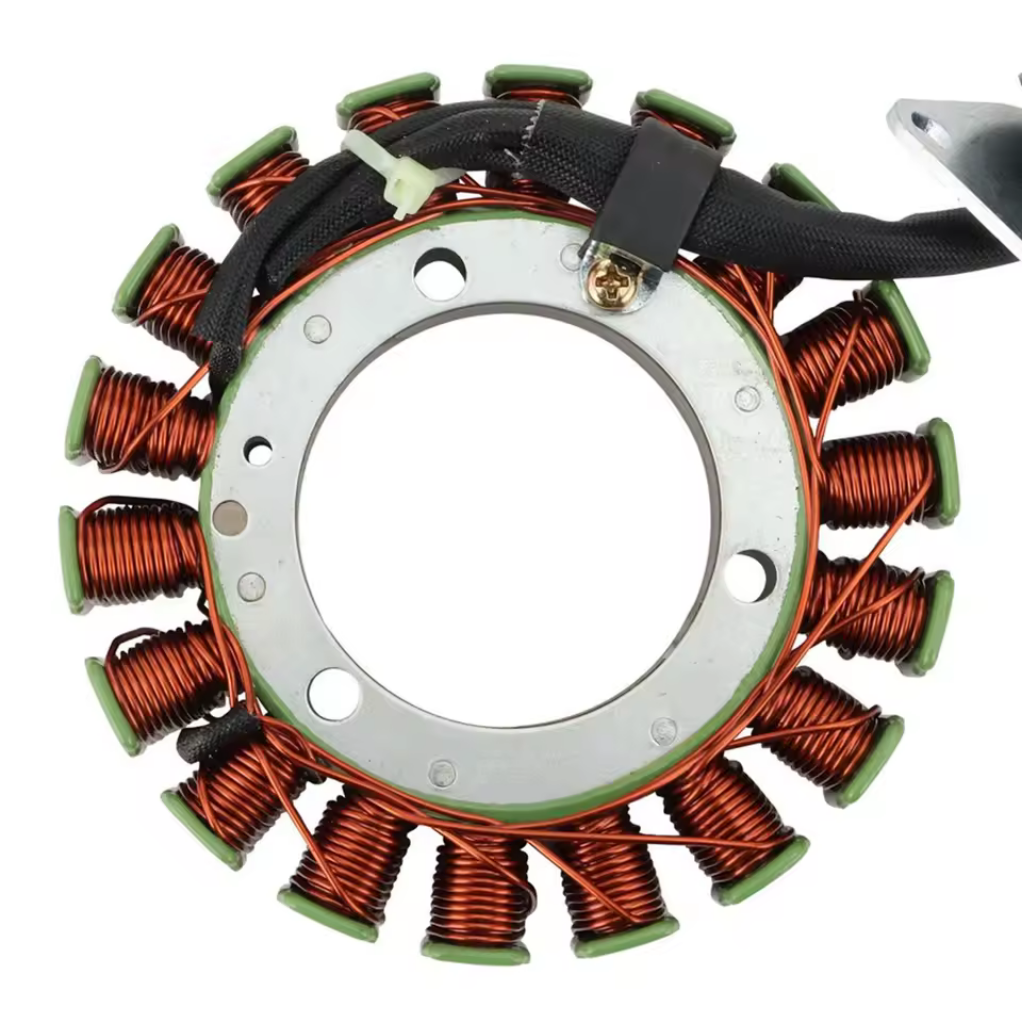

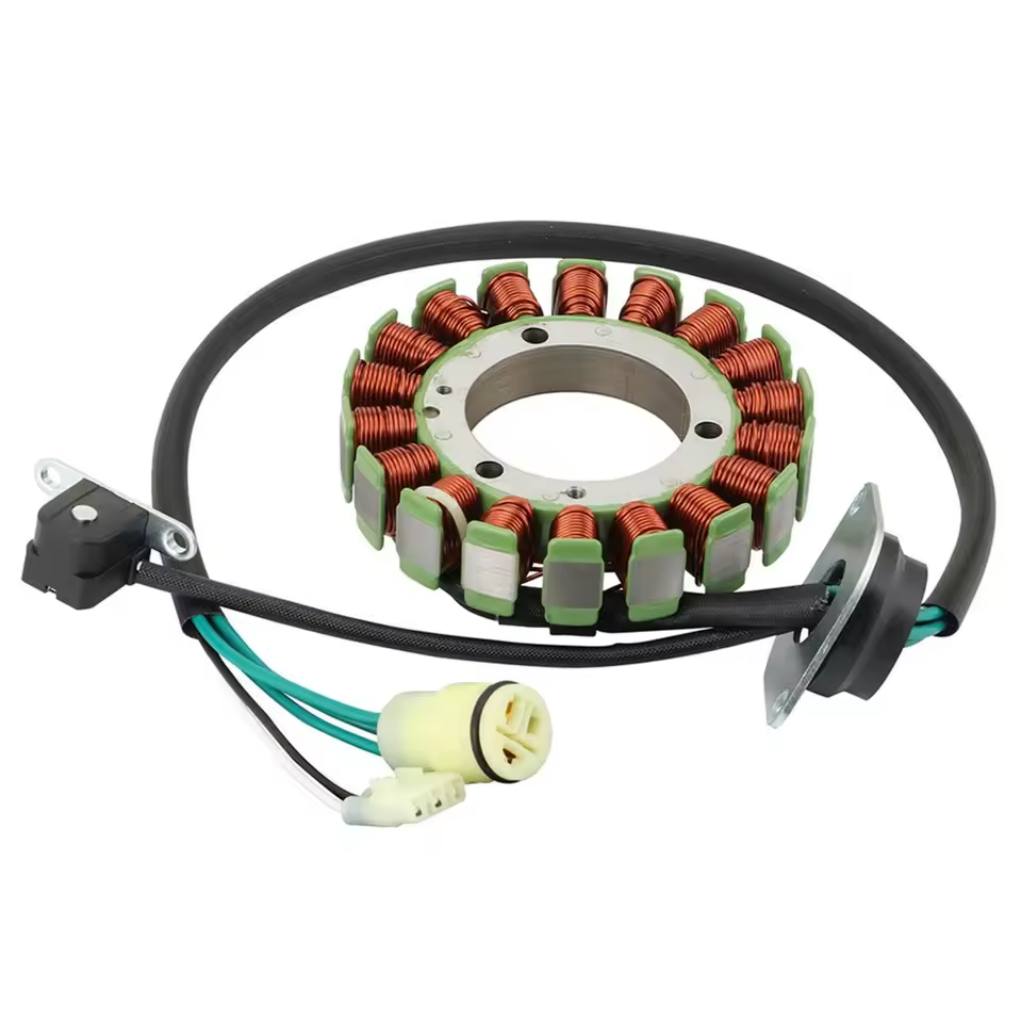

This stator coil is designed for selected Yamaha 1.8-litre WaveRunner personal watercraft and jet boat applications. It forms part of the engine generator system, producing AC electrical output as the engine turns to support battery charging and the vehicle electrical system. The assembly is configured as a direct replacement for compatible Yamaha applications using the specified original stator.

Features

  • Aftermarket replacement for the original Yamaha stator/generator assembly
  • Direct plug-in configuration for compatible applications
  • Designed to restore generator and charging-system operation when replacing a failed stator
  • Incorporates alternator and pickup-coil electrical circuits

Specifications

  • Stator inner diameter: 53 mm
  • Stator outer diameter: 115 mm
  • Stator thickness: 14 mm

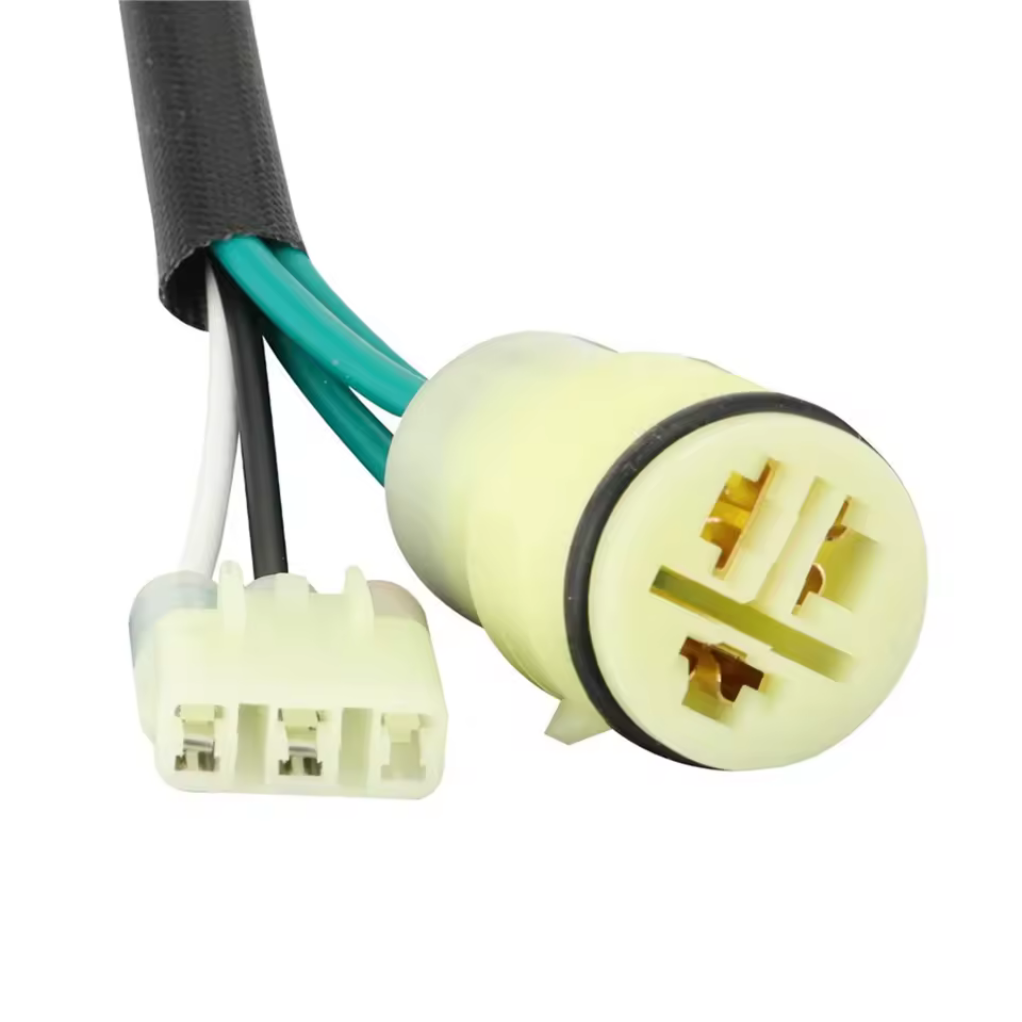

  • Number of wires: 5
  • Number of plugs: 2
  • Number of pins: 5
  • Stator-to-grommet wire length: 50 mm
  • Grommet-to-plug wire length: 600 mm
  • Pickup-coil wire to grommet length: 150 mm
  • Alternator resistance: 0.4 Ω ±20% between green wires
  • Pickup-coil resistance: 520 Ω ±20% between black and white wires

Cross-Reference OEM Part Numbers

  • Yamaha 6S5-81410-00
  • Yamaha 6S5-81410-00-00

Vehicle Fitments

Yamaha

  • AR190 (2012-2013)
  • SX190 (2012-2013)
  • 242 Limited (2010-2012)
  • 242 Limited S (2010-2012)
  • WaveRunner FX 1800 HO (2009-2013)
  • WaveRunner FX 1800 SHO (2008-2013)
  • WaveRunner FX Cruiser 1800 HO (2009-2014)
  • WaveRunner FX Cruiser 1800 SHO (2008-2014)
  • WaveRunner FZR 1800 (2009-2012)
  • WaveRunner FZS 1800 (2009-2012)
  • WaveRunner VXR 1800 (2011-2016)
  • WaveRunner VXS 1800 (2011-2016)
