Stator Coil 88-00 Honda Trx 300 Fourtrax 12-POLE 31120-HC4-014 31120-HC4-004

Description

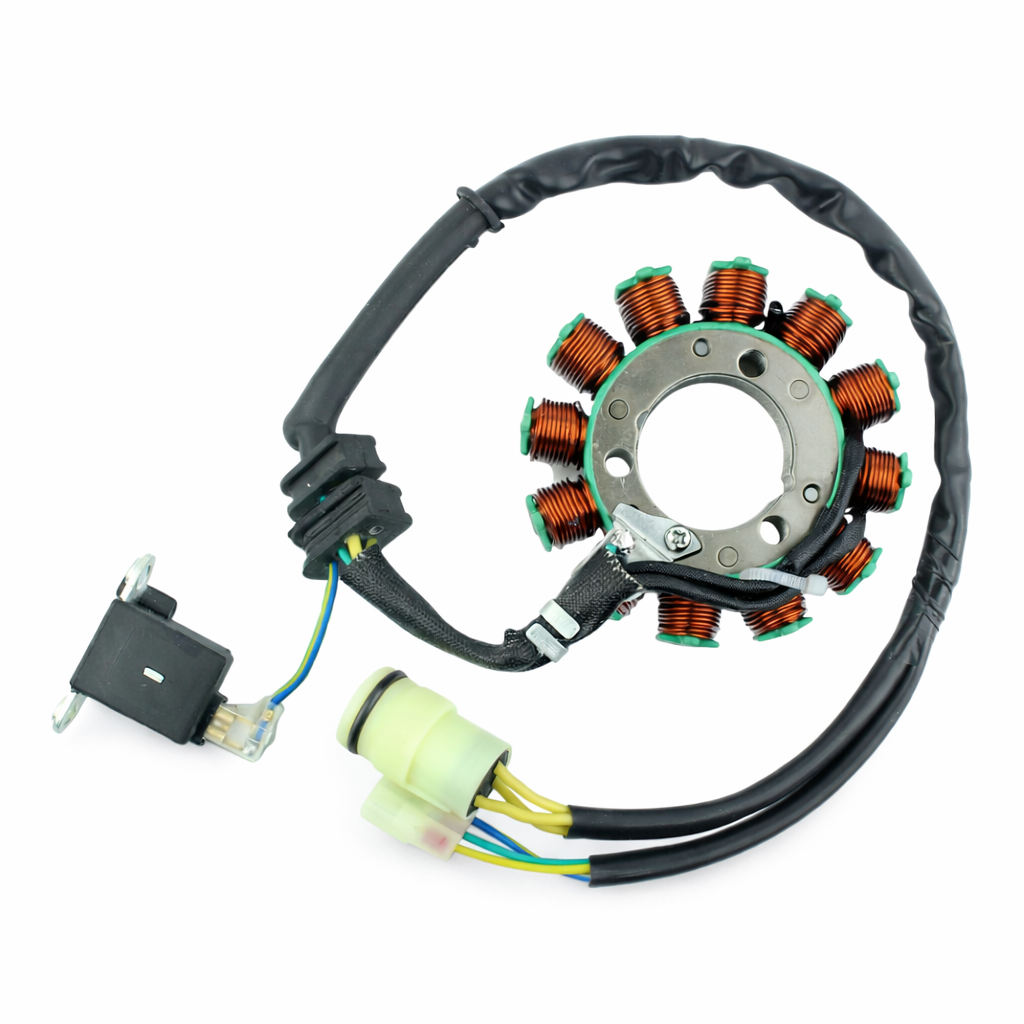

Replacement stator coil for Honda TRX300 Fourtrax and TRX300FW Fourtrax 300 models, designed for the 12-pole charging system and suitable for use in place of OEM part numbers 31120-HC4-014 and 31120-HC4-004. This unit is intended as a direct replacement for the Honda magneto stator assembly on compatible machines and is supplied for applications requiring the 12-pole version rather than the 18-pole type.

Features

  • Compatible replacement for Honda TRX300 Fourtrax 300 models from 1988 to 2000
  • Compatible replacement for Honda TRX300FW Fourtrax 300 models from 1988 to 2000
  • Designed exclusively for 12-pole configuration
  • Not compatible with the 18-pole version
  • Premium copper windings
  • Pick-up coil included

Specifications

  • 12-pole stator
  • Length: 96.7 mm
  • Width: 96.7 mm
  • Height: 13.5 mm
  • Approximate internal diameter: 34 mm
  • Approximate external diameter: 88 mm
  • Approximate thickness from other source data: 15 mm

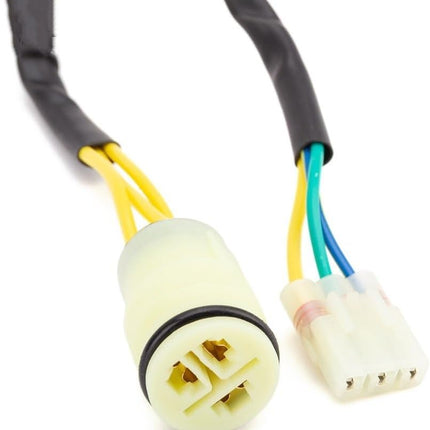

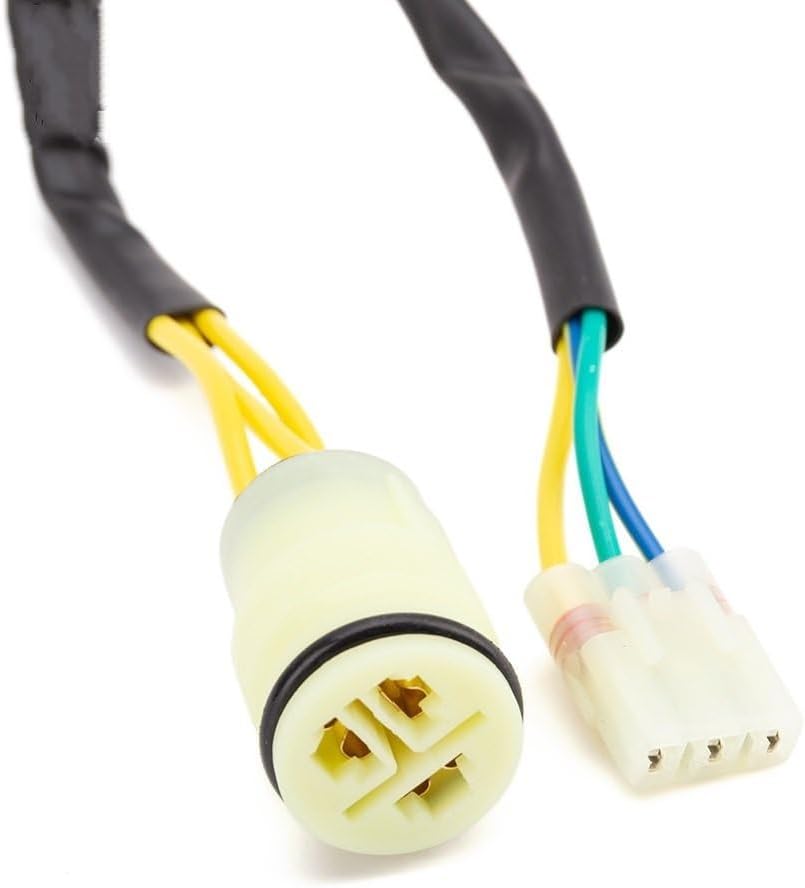

  • Typical wiring configuration: 6 wires and 6 pins
  • Copper windings rated to withstand temperatures up to 200°C

Cross-Reference OEM Part Numbers

  • 31120-HC4-003
  • 31120-HC4-004
  • 31120-HC4-014
  • 31120-HC4-750

Vehicle Fitments

  • Honda TRX300 Fourtrax 300, 1988-2000
  • Honda TRX300FW Fourtrax 300 4x4, 1988-2000

Stator Coil 88-00 Honda Trx 300 Fourtrax 12-POLE 31120-HC4-014 31120-HC4-004

Product form

Replacement stator coil for Honda TRX300 Fourtrax and TRX300FW Fourtrax 300 models, designed for the 12-pole charging system and suitable... Read more

7 in stock 1-2 business days

£64.80 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    SKU: 44-6389.12
    Barcode: 0120000068234

    • Free shipping on all orders above £75
    • No hassle returns within 30 days

    Description

    Replacement stator coil for Honda TRX300 Fourtrax and TRX300FW Fourtrax 300 models, designed for the 12-pole charging system and suitable for use in place of OEM part numbers 31120-HC4-014 and 31120-HC4-004. This unit is intended as a direct replacement for the Honda magneto stator assembly on compatible machines and is supplied for applications requiring the 12-pole version rather than the 18-pole type.

    Features

    • Compatible replacement for Honda TRX300 Fourtrax 300 models from 1988 to 2000
    • Compatible replacement for Honda TRX300FW Fourtrax 300 models from 1988 to 2000
    • Designed exclusively for 12-pole configuration
    • Not compatible with the 18-pole version
    • Premium copper windings
    • Pick-up coil included

    Specifications

    • 12-pole stator
    • Length: 96.7 mm
    • Width: 96.7 mm
    • Height: 13.5 mm
    • Approximate internal diameter: 34 mm
    • Approximate external diameter: 88 mm
    • Approximate thickness from other source data: 15 mm
    • Typical wiring configuration: 6 wires and 6 pins
    • Copper windings rated to withstand temperatures up to 200°C

    Cross-Reference OEM Part Numbers

    • 31120-HC4-003
    • 31120-HC4-004
    • 31120-HC4-014
    • 31120-HC4-750

    Vehicle Fitments

    • Honda TRX300 Fourtrax 300, 1988-2000
    • Honda TRX300FW Fourtrax 300 4x4, 1988-2000
