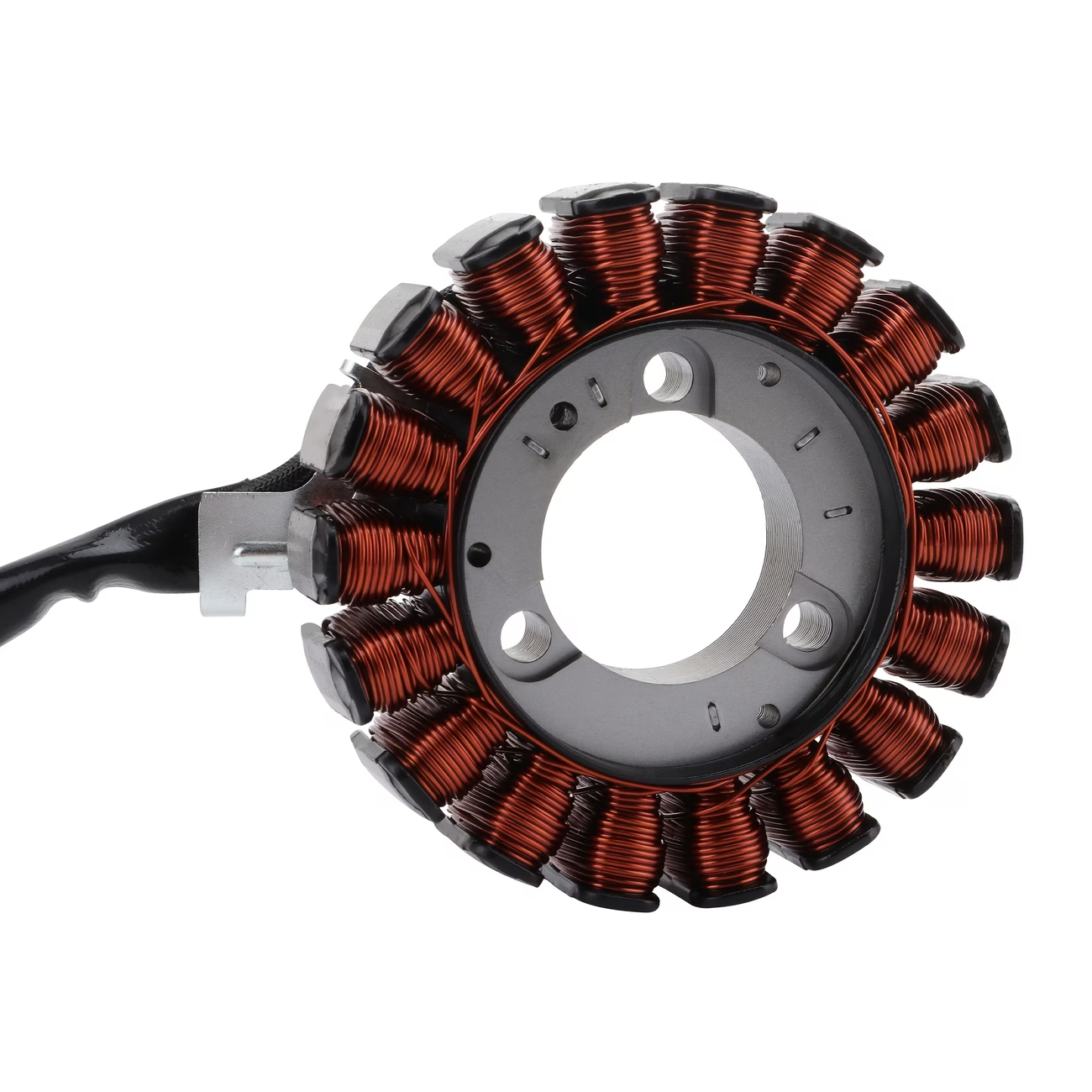

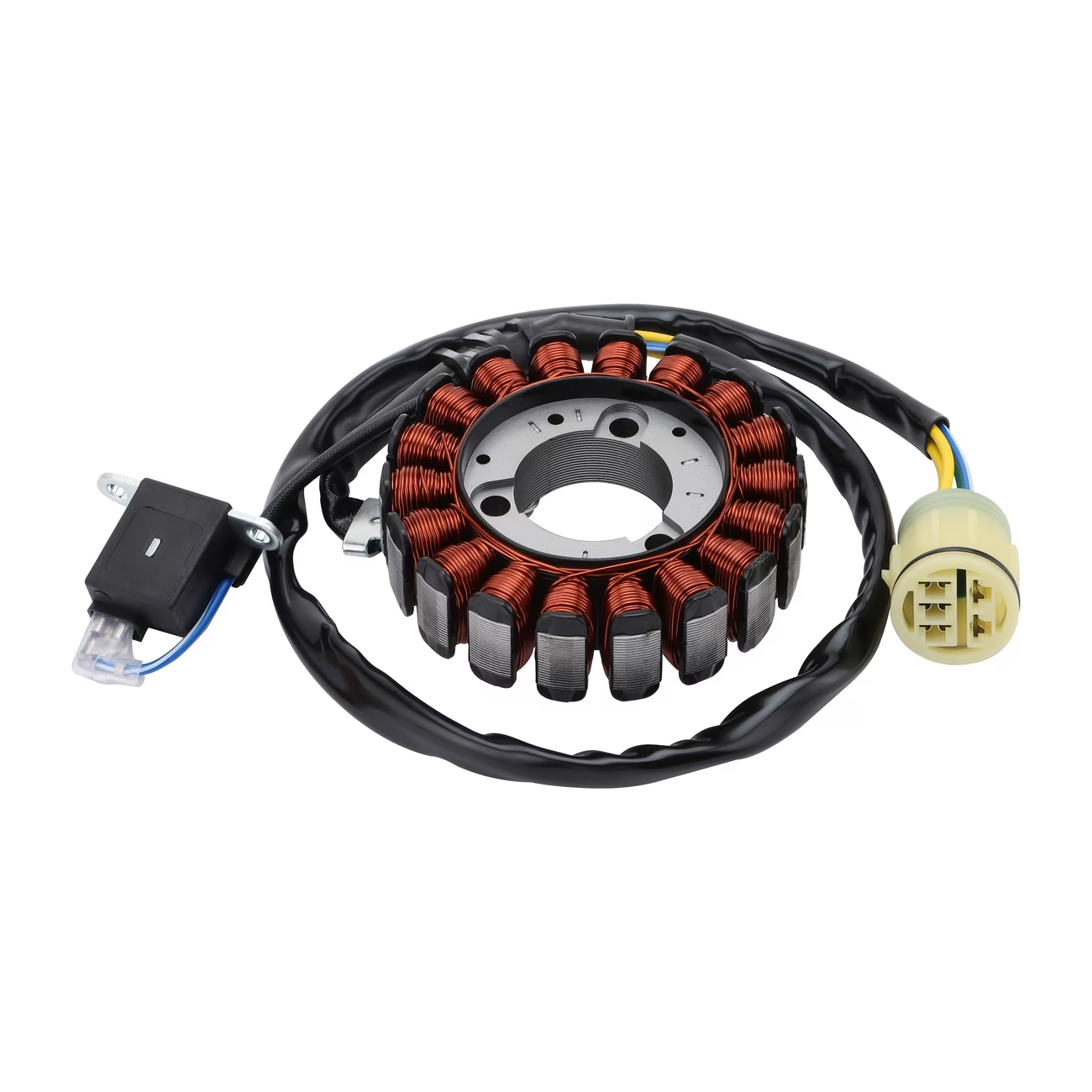

Stator Coil Honda TRX350 Fourtrax Ranger 2000-2006 31120-HN5-671 31120-HN5-M02

Description

This stator coil is a replacement for the Honda TRX350 models listed below. It generates electrical power while the engine runs and is designed to fit in place of the original stator. Its windings are sealed in epoxy, and the coil is factory tested before dispatch.

Features

  • Direct OEM-equivalent replacement
  • Designed to handle increased electrical loads

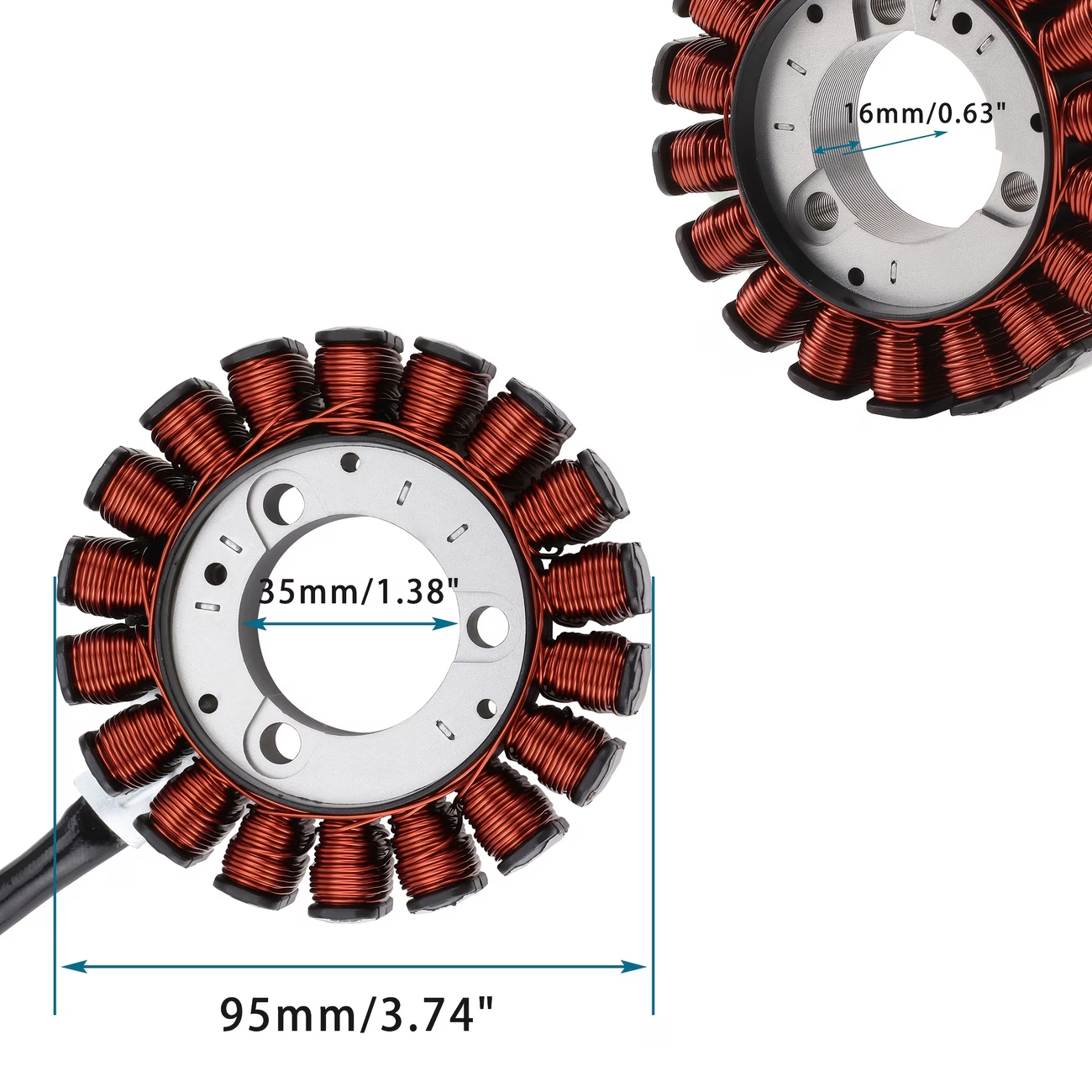

Specifications

  • Inner diameter: 35 mm
  • Outer diameter: 94.8 mm
  • Width/length: 16 mm
  • Posts: 18
  • Mounting holes: 3 × 6 mm
  • Windings sealed in epoxy

Cross-Reference OEM Part Numbers

  • Honda: 31120-HN5-671, 31120-HN5-672, 31120-HN5-M01, 31120-HN5-M02
  • Arrowhead: AHA4044
  • All Balls: 75-1001

Vehicle Fitments

HONDA

  • TRX FE 2A RANCHER ES 350cc (2001–2003)
  • TRX FE A RANCHER ES 350cc (2000–2006)
  • TRX350FE Rancher 4x4 ES (2000–2006)
  • TRX FM 2A RANCHER 350cc (2001)
  • TRX FM A RANCHER 350cc (2000–2006)
  • TRX350FM Rancher (2000–2006)
  • TRX TE A RANCHER ES 350cc (2000–2006)
  • TRX350TE Rancher ES (2000–2006)
  • TRX TM A RANCHER 350cc (2000–2006)
  • TRX350TM Rancher (2000–2006)

Stator Coil Honda TRX350 Fourtrax Ranger 2000-2006 31120-HN5-671 31120-HN5-M02

Product form

This stator coil is a replacement for the Honda TRX350 models listed below. It generates electrical power while the engine... Read more

Out of stock

£74.34 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    SKU: 44-6363.AA1
    Barcode: 0120000123094

    • Free shipping on all orders above £75
    • No hassle returns within 30 days

    Description

    This stator coil is a replacement for the Honda TRX350 models listed below. It generates electrical power while the engine runs and is designed to fit in place of the original stator. Its windings are sealed in epoxy, and the coil is factory tested before dispatch.

    Features

    • Direct OEM-equivalent replacement
    • Designed to handle increased electrical loads

    Specifications

    • Inner diameter: 35 mm
    • Outer diameter: 94.8 mm
    • Width/length: 16 mm
    • Posts: 18
    • Mounting holes: 3 × 6 mm
    • Windings sealed in epoxy

    Cross-Reference OEM Part Numbers

    • Honda: 31120-HN5-671, 31120-HN5-672, 31120-HN5-M01, 31120-HN5-M02
    • Arrowhead: AHA4044
    • All Balls: 75-1001

    Vehicle Fitments

    HONDA

    • TRX FE 2A RANCHER ES 350cc (2001–2003)
    • TRX FE A RANCHER ES 350cc (2000–2006)
    • TRX350FE Rancher 4x4 ES (2000–2006)
    • TRX FM 2A RANCHER 350cc (2001)
    • TRX FM A RANCHER 350cc (2000–2006)
    • TRX350FM Rancher (2000–2006)
    • TRX TE A RANCHER ES 350cc (2000–2006)
    • TRX350TE Rancher ES (2000–2006)
    • TRX TM A RANCHER 350cc (2000–2006)
    • TRX350TM Rancher (2000–2006)
