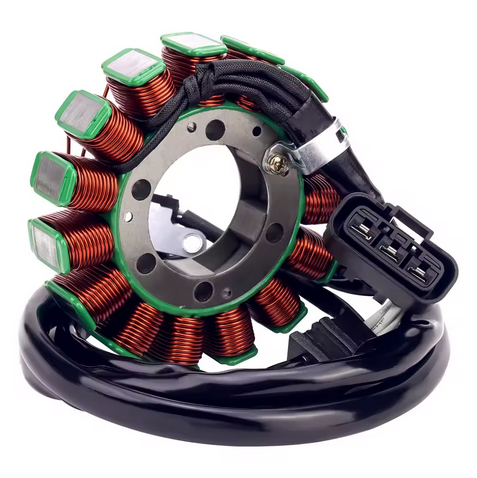

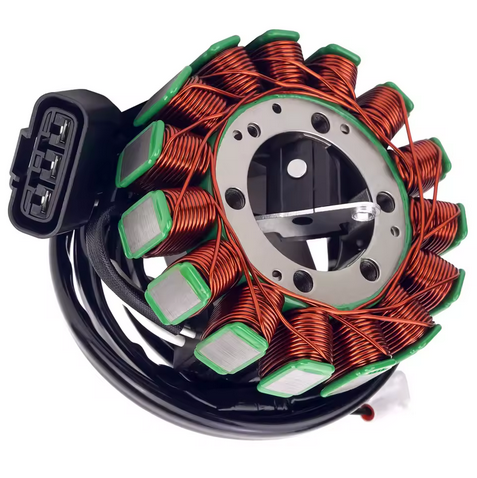

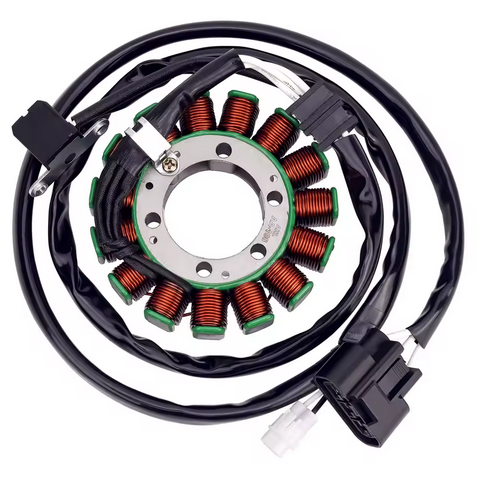

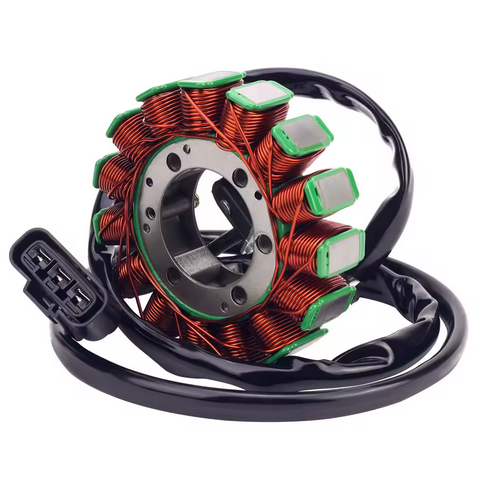

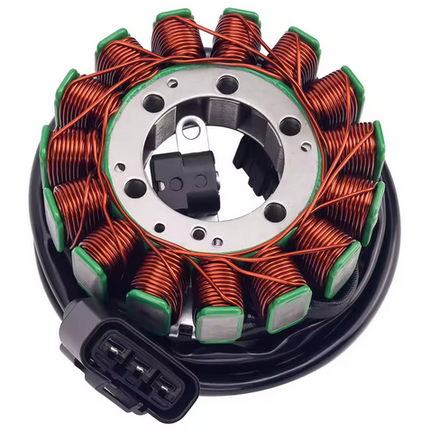

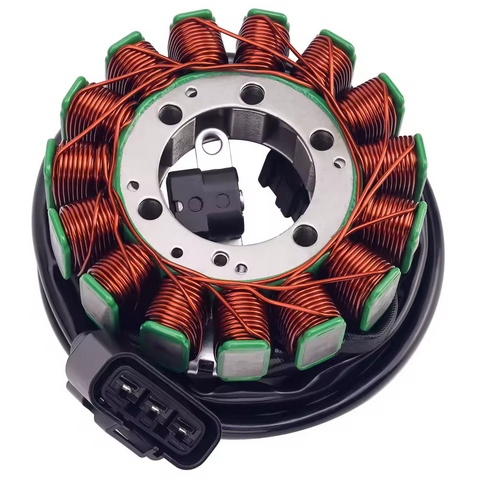

Stator Coil 07-15 Yamaha Yfm Grizzly 550 700 4X4 45mm ID 106mm OD 27mm 28P-81410-00-00

Description

This stator coil is a direct OEM-style replacement engineered for precise fitment and reliable electrical performance. Built to handle increased power loads and manufactured to OEM specifications, it uses stock mounting points and is fully factory tested prior to dispatch.

Features

  • Meets or exceeds OEM quality standards
  • Direct OEM replacement
  • Uses stock mounting locations
  • Designed to handle increased power loads
  • Matches original equipment in appearance
  • 100% factory tested before shipping
  • Electrical parts are non-returnable and not covered by warranty
  • Reference image before ordering to avoid mistakes

Specifications

  • Interior diameter: 45mm
  • Exterior diameter: 106mm
  • Thickness: 27mm
  • Length of wires stator to grommet: 100mm
  • Length of wires grommet to plug: 550mm, 1100mm
  • Length of pickup coil's wire to grommet: 80mm
  • Number of wires: 5
  • Number of plugs: 2
  • Number of pins: 5

Cross-Reference OEM Part Numbers

  • 28P-81410-00-00
  • 28P-81410-01-00
  • 3B4-81410-00-00

Vehicle Fitments

  • Yamaha YFM 550 DE Grizzly 4x4 2014
  • Yamaha YFM 550 DH Grizzly 4x4 Hunter 2014
  • Yamaha YFM 550 FG Grizzly 4x4 2009, 2010–2013
  • Yamaha YFM 550 FGH Grizzly 4x4 Hunter 2009–2013
  • Yamaha YFM 550 FGP Grizzly EPS 4x4 2009–2013
  • Yamaha YFM 550 FGPH Grizzly EPS 4x4 Hunter 2009–2013
  • Yamaha YFM 550 FGPSE Grizzly 4x4 EPS SE 2009
  • Yamaha YFM 550 PE Grizzly EPS 4x4 2014
  • Yamaha YFM 550 PH Grizzly EPS 4x4 Hunter 2014
  • Yamaha YFM 700 D Grizzly 4x4 2014–2015
  • Yamaha YFM 700 DH Grizzly 4x4 Hunter 2014
  • Yamaha YFM 700 FG Grizzly 4x4 2007–2013
  • Yamaha YFM 700 FGH Grizzly 4x4 Hunter 2009–2013
  • Yamaha YFM 700 FGP Grizzly EPS 4x4 2008–2013
  • Yamaha YFM 700 FGPDU Grizzly 4x4 Ducks 2007–2009
  • Yamaha YFM 700 FGPH Grizzly EPS 4x4 Hunter 2007–2013
  • Yamaha YFM 700 FGPOH Grizzly 4x4 Outdoorsman Edition 2007
  • Yamaha YFM 700 FGPSE Grizzly EPS 4x4 SE 2007–2013
  • Yamaha YFM 700 PE Grizzly EPS 4x4 2014
  • Yamaha YFM 700 PF Grizzly EPS 4x4 2015
  • Yamaha YFM 700 PH Grizzly EPS 4x4 Hunter 2009–2015
  • Yamaha YFM 700 PS Grizzly EPS 4x4 SE 2014–2015

Stator Coil 07-15 Yamaha Yfm Grizzly 550 700 4X4 45mm ID 106mm OD 27mm 28P-81410-00-00

Product form

This stator coil is a direct OEM-style replacement engineered for precise fitment and reliable electrical performance. Built to handle increased... Read more

3 in stock 1-2 business days

£123.00 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    SKU: 44-9782.AAA

    • Free shipping on all orders above £75
    • No hassle returns within 30 days

    Description

    This stator coil is a direct OEM-style replacement engineered for precise fitment and reliable electrical performance. Built to handle increased power loads and manufactured to OEM specifications, it uses stock mounting points and is fully factory tested prior to dispatch.

    Features

    • Meets or exceeds OEM quality standards
    • Direct OEM replacement
    • Uses stock mounting locations
    • Designed to handle increased power loads
    • Matches original equipment in appearance
    • 100% factory tested before shipping
    • Electrical parts are non-returnable and not covered by warranty
    • Reference image before ordering to avoid mistakes

    Specifications

    • Interior diameter: 45mm
    • Exterior diameter: 106mm
    • Thickness: 27mm
    • Length of wires stator to grommet: 100mm
    • Length of wires grommet to plug: 550mm, 1100mm
    • Length of pickup coil's wire to grommet: 80mm
    • Number of wires: 5
    • Number of plugs: 2
    • Number of pins: 5

    Cross-Reference OEM Part Numbers

    • 28P-81410-00-00
    • 28P-81410-01-00
    • 3B4-81410-00-00

    Vehicle Fitments

    • Yamaha YFM 550 DE Grizzly 4x4 2014
    • Yamaha YFM 550 DH Grizzly 4x4 Hunter 2014
    • Yamaha YFM 550 FG Grizzly 4x4 2009, 2010–2013
    • Yamaha YFM 550 FGH Grizzly 4x4 Hunter 2009–2013
    • Yamaha YFM 550 FGP Grizzly EPS 4x4 2009–2013
    • Yamaha YFM 550 FGPH Grizzly EPS 4x4 Hunter 2009–2013
    • Yamaha YFM 550 FGPSE Grizzly 4x4 EPS SE 2009
    • Yamaha YFM 550 PE Grizzly EPS 4x4 2014
    • Yamaha YFM 550 PH Grizzly EPS 4x4 Hunter 2014
    • Yamaha YFM 700 D Grizzly 4x4 2014–2015
    • Yamaha YFM 700 DH Grizzly 4x4 Hunter 2014
    • Yamaha YFM 700 FG Grizzly 4x4 2007–2013
    • Yamaha YFM 700 FGH Grizzly 4x4 Hunter 2009–2013
    • Yamaha YFM 700 FGP Grizzly EPS 4x4 2008–2013
    • Yamaha YFM 700 FGPDU Grizzly 4x4 Ducks 2007–2009
    • Yamaha YFM 700 FGPH Grizzly EPS 4x4 Hunter 2007–2013
    • Yamaha YFM 700 FGPOH Grizzly 4x4 Outdoorsman Edition 2007
    • Yamaha YFM 700 FGPSE Grizzly EPS 4x4 SE 2007–2013
    • Yamaha YFM 700 PE Grizzly EPS 4x4 2014
    • Yamaha YFM 700 PF Grizzly EPS 4x4 2015
    • Yamaha YFM 700 PH Grizzly EPS 4x4 Hunter 2009–2015
    • Yamaha YFM 700 PS Grizzly EPS 4x4 SE 2014–2015
