Stator Magneto 96-11 Bayou Klf 220 250 18 Coil 4 Wire 21003-1287

Description

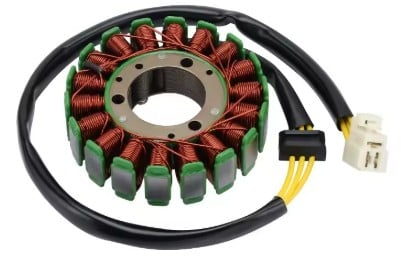

This magneto stator coil is a direct replacement for the original generator stator fitted to selected Kawasaki Bayou 220 and Bayou 250 ATVs. It supplies electrical power to the vehicle’s charging and ignition systems and is manufactured to meet or exceed OEM quality standards while matching the original component’s appearance and mounting configuration.

Features

  • Direct OEM-style replacement
  • Installs in the original mounting locations
  • Designed to accommodate increased electrical power loads
  • Reliable charging and ignition-system performance
  • Cost-effective alternative to the original component
  • Quality-assured replacement covered by a satisfaction guarantee

Specifications

  • Component type: Magneto generator stator coil
  • Construction: High-grade stator laminations
  • Windings: High-grade copper
  • Winding temperature resistance: Up to 200°C
  • Manufactured to OEM specifications

Package Contents

  • 1 x magneto stator coil
  • Connector
  • Rubber grommet

Cross-Reference OEM Part Numbers

  • Kawasaki: 21003-1287

Vehicle Fitments

Kawasaki

  • Bayou 220 KLF220-A9 (1996)
  • Bayou 220 KLF220-A10 (1997)
  • Bayou 220 KLF220-A11 (1998)
  • Bayou 220 KLF220-A12 (1999)
  • Bayou 220 KLF220-A13 (2000)
  • Bayou 220 KLF220-A14 (2001)
  • Bayou 220 KLF220-A15 (2002)
  • Bayou 250 KLF250-A1 (2003)
  • Bayou 250 KLF250-A2 (2004)
  • Bayou 250 KLF250-A3 (2005)
  • Bayou 250 KLF250A6F (2006)
  • Bayou 250 KLF250A7F (2007)
  • Bayou 250 KLF250A8F (2008)
  • Bayou 250 KLF250A9F (2009)
  • Bayou 250 KLF250AAF (2010)
  • Bayou 250 KLF250ABF (2011)

Installation Notes

  • Compare the product image, connector and mounting points with the original component before ordering
  • Designed for straightforward direct-fit installation
  • Professional installation is recommended when suitable mechanical or electrical experience is unavailable
