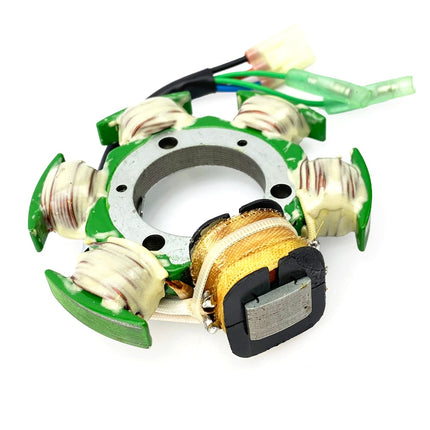

Stator Yamaha 800, WC-01422, Pwc, Jet Ski, 63M-85510-00

Description

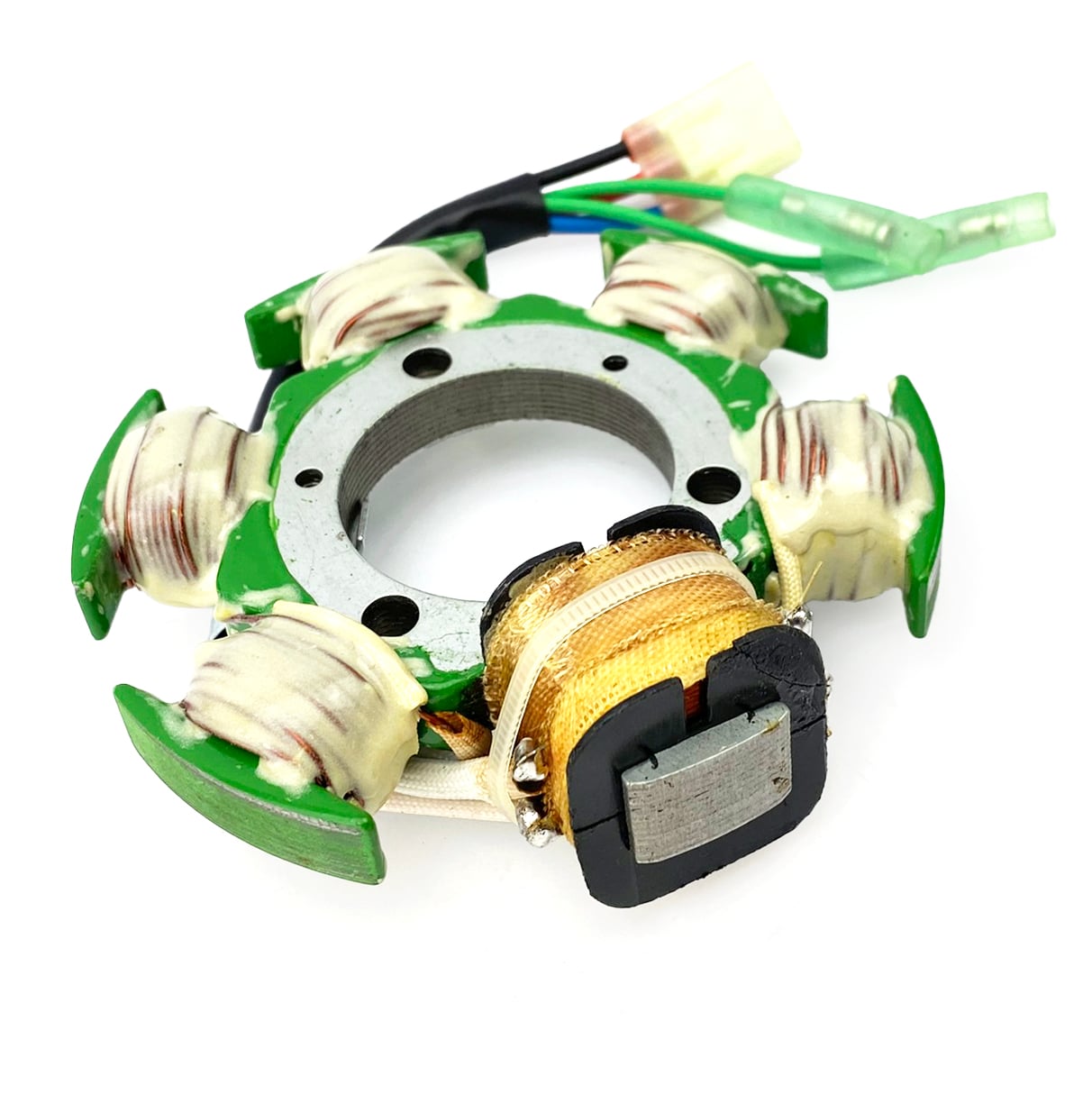

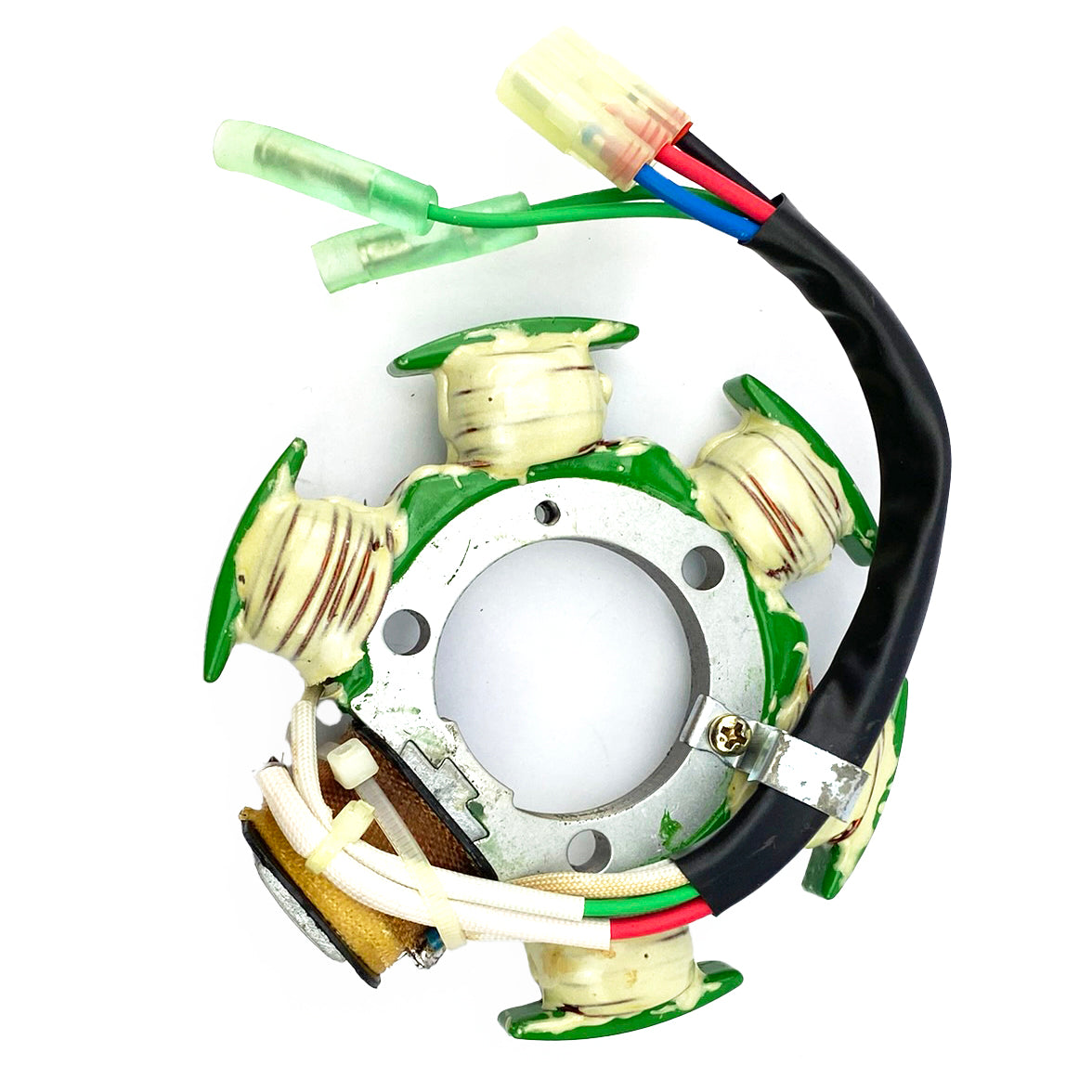

This generator stator assembly is designed for the Yamaha two-stroke WaveRunner 800 models listed, restoring charging output and ignition trigger signals within the magneto assembly. Supplied as a complete unit, it includes the pickup (pulsar) coil, pre-terminated connectors and grommet for straightforward installation.

Features

  • Direct replacement for the original stator assembly

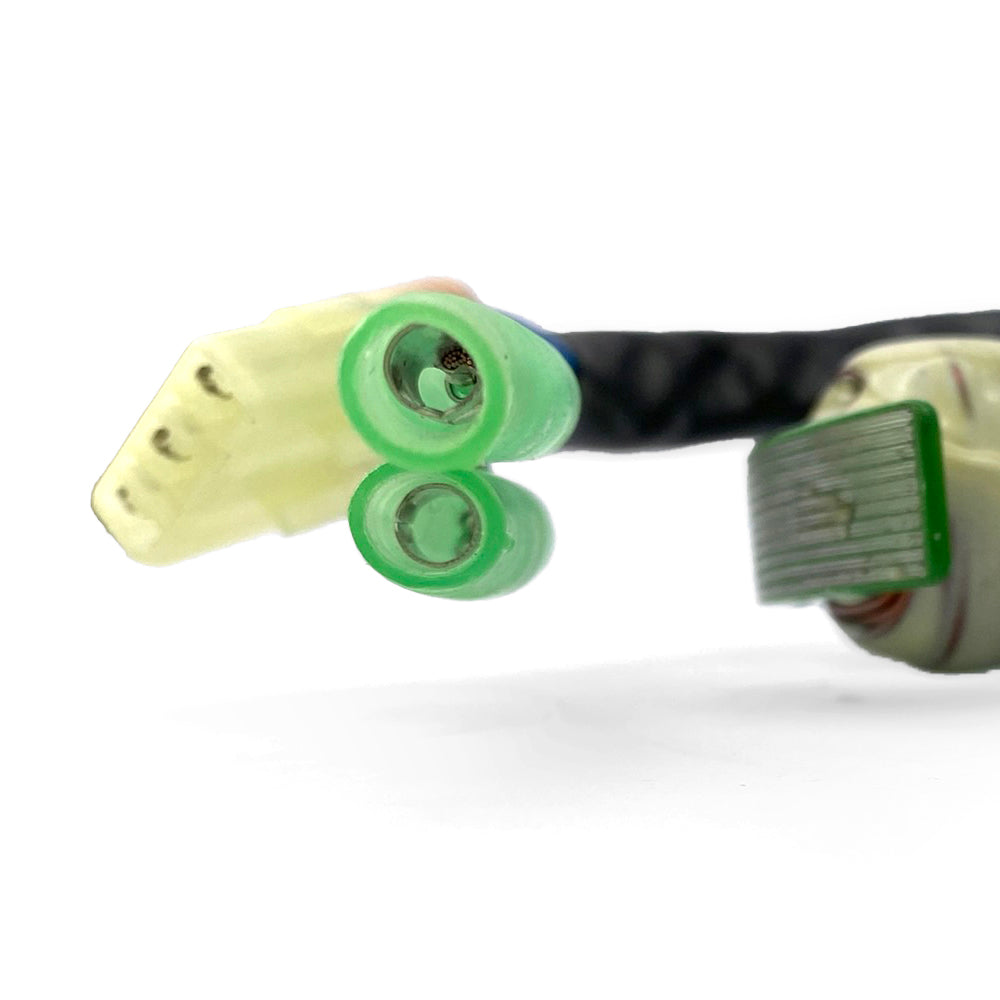

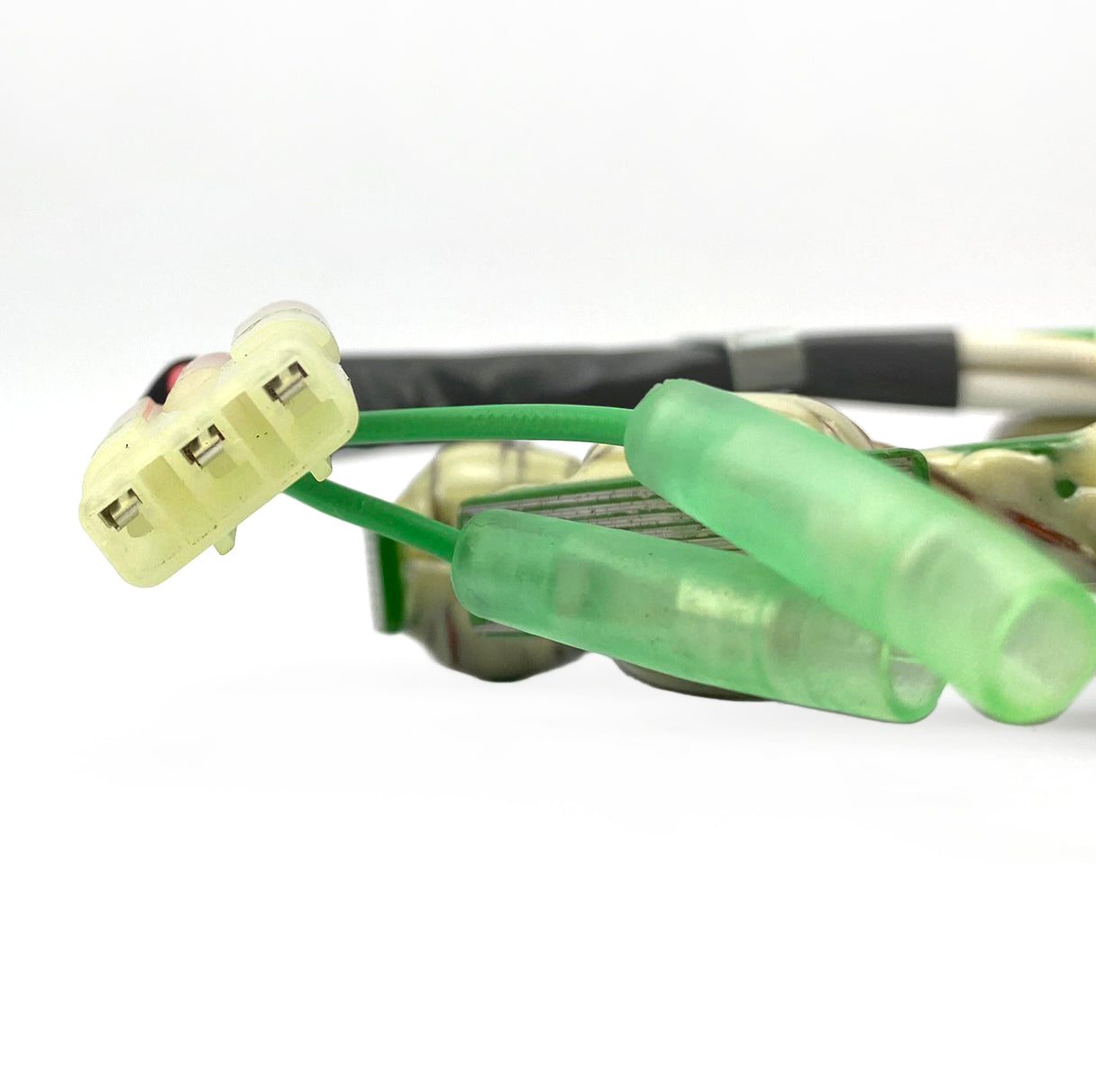

  • Plug-and-play connection with pre-installed connectors
  • Pickup (pulsar) coil included
  • Rubber wiring grommet included
  • High-temperature copper windings

Specifications

  • Type: Generator stator coil assembly
  • Internal diameter: 42 mm
  • External diameter: 104 mm
  • Thickness: 16 mm
  • Number of wires: 11
  • Number of plugs: 6
  • Number of pins: 11
  • Wire lengths: stator to grommet 45 mm; grommet to plugs 1485 mm; pickup coil to grommet 80 mm
  • Resistance (±20%): Alternator White–White 1.2 Ω; Pickup White/Black–White/Red 524 Ω; Source Blue–Brown 344 Ω

Cross-Reference OEM Part Numbers

  • 63M-85510-00
  • 63M-85510-00-00
  • 63M-85510-01-00
  • 66E-85510-00-00

Vehicle Fitments

  • GP-R 800 (2003–2005)
  • XL 800 (2000–2001)
  • XLT 800 (2002–2004)

Stator Yamaha 800, WC-01422, Pwc, Jet Ski, 63M-85510-00

Product form

This generator stator assembly is designed for the Yamaha two-stroke WaveRunner 800 models listed, restoring charging output and ignition trigger... Read more

Out of stock

£0.00 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    SKU: 44-W0002
    Barcode: 0120000021017

    • Free shipping on all orders above £75
    • No hassle returns within 30 days

    Description

    This generator stator assembly is designed for the Yamaha two-stroke WaveRunner 800 models listed, restoring charging output and ignition trigger signals within the magneto assembly. Supplied as a complete unit, it includes the pickup (pulsar) coil, pre-terminated connectors and grommet for straightforward installation.

    Features

    • Direct replacement for the original stator assembly
    • Plug-and-play connection with pre-installed connectors
    • Pickup (pulsar) coil included
    • Rubber wiring grommet included
    • High-temperature copper windings

    Specifications

    • Type: Generator stator coil assembly
    • Internal diameter: 42 mm
    • External diameter: 104 mm
    • Thickness: 16 mm
    • Number of wires: 11
    • Number of plugs: 6
    • Number of pins: 11
    • Wire lengths: stator to grommet 45 mm; grommet to plugs 1485 mm; pickup coil to grommet 80 mm
    • Resistance (±20%): Alternator White–White 1.2 Ω; Pickup White/Black–White/Red 524 Ω; Source Blue–Brown 344 Ω

    Cross-Reference OEM Part Numbers

    • 63M-85510-00
    • 63M-85510-00-00
    • 63M-85510-01-00
    • 66E-85510-00-00

    Vehicle Fitments

    • GP-R 800 (2003–2005)
    • XL 800 (2000–2001)
    • XLT 800 (2002–2004)
