Suspension Bush M10 25mm Weld On Bracket 45x42mm Universal Fit

Description

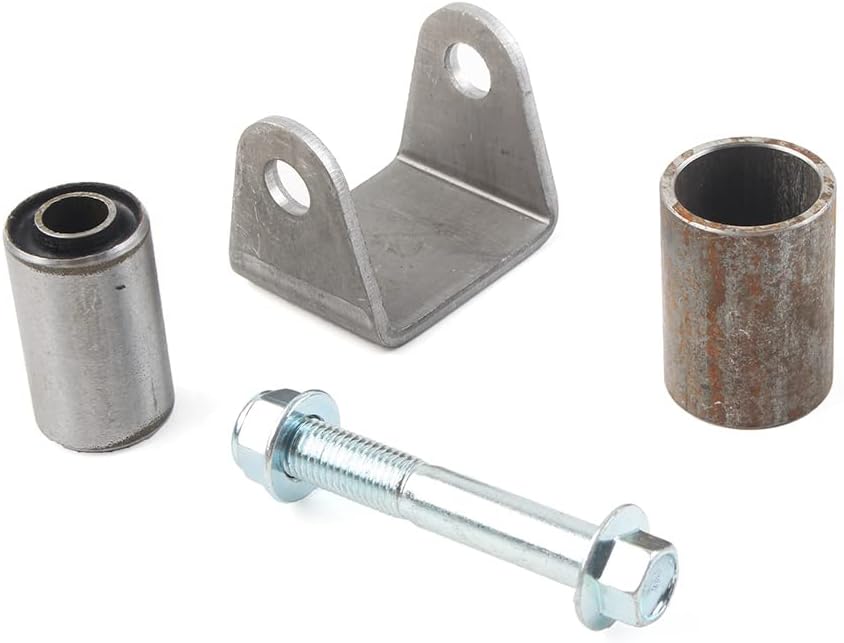

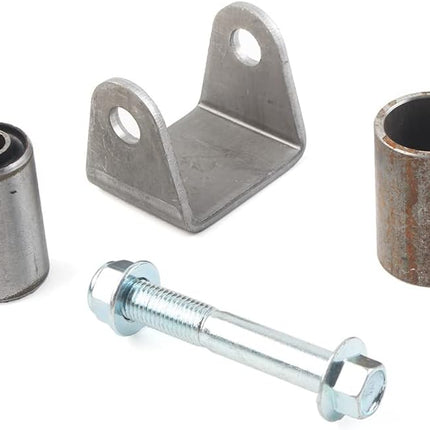

This weld-on suspension bush kit is designed for custom fabrication on go-karts, ATVs and buggies. It comprises a metal outer sleeve (bushing), a matching inner spacer/bushing, a weld-on mounting bracket, and a bolt with nut, providing a compact pivot assembly for suspension linkages and similar joints.

Features

  • Weld-on bracket and sleeve arrangement for custom chassis and suspension builds
  • Universal layout suitable for go-kart, ATV and buggy applications
  • Complete kit including outer sleeve, inner spacer, mounting bracket, bolt and nut
  • Through-bolt design for a secure, serviceable pivot point

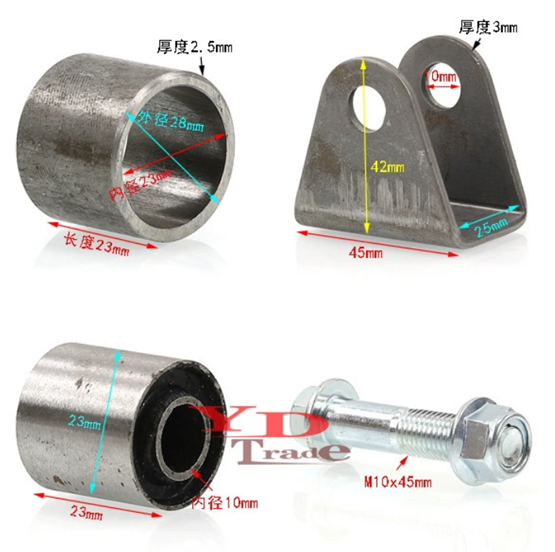

Specifications

Part 1: Bushing

  • Outer diameter: 23 mm
  • Inner diameter: 10 mm
  • Length: 23 mm

Part 2: Mounting Bracket

  • Thickness: 3 mm
  • Height: 42 mm
  • Width (between plates): 25 mm
  • Base width: 45 mm
  • Hole diameter: 10 mm

Part 3: Spacer

  • Outer diameter: 28 mm
  • Inner diameter: 23 mm
  • Length: 23 mm
  • Wall thickness: 2.5 mm

Part 4: Bolt & Nut

  • Bolt size: M10 × 45 mm

Suspension Bush M10 25mm Weld On Bracket 45x42mm Universal Fit

Product form

This weld-on suspension bush kit is designed for custom fabrication on go-karts, ATVs and buggies. It comprises a metal outer... Read more

Out of stock

£0.00 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    SKU: 42-2204.D
    Barcode: 0120000061433

    • Free shipping on all orders above £75
    • No hassle returns within 30 days

    Description

    This weld-on suspension bush kit is designed for custom fabrication on go-karts, ATVs and buggies. It comprises a metal outer sleeve (bushing), a matching inner spacer/bushing, a weld-on mounting bracket, and a bolt with nut, providing a compact pivot assembly for suspension linkages and similar joints.

    Features

    • Weld-on bracket and sleeve arrangement for custom chassis and suspension builds
    • Universal layout suitable for go-kart, ATV and buggy applications
    • Complete kit including outer sleeve, inner spacer, mounting bracket, bolt and nut
    • Through-bolt design for a secure, serviceable pivot point

    Specifications

    Part 1: Bushing

    • Outer diameter: 23 mm
    • Inner diameter: 10 mm
    • Length: 23 mm

    Part 2: Mounting Bracket

    • Thickness: 3 mm
    • Height: 42 mm
    • Width (between plates): 25 mm
    • Base width: 45 mm
    • Hole diameter: 10 mm

    Part 3: Spacer

    • Outer diameter: 28 mm
    • Inner diameter: 23 mm
    • Length: 23 mm
    • Wall thickness: 2.5 mm

    Part 4: Bolt & Nut

    • Bolt size: M10 × 45 mm
