Description

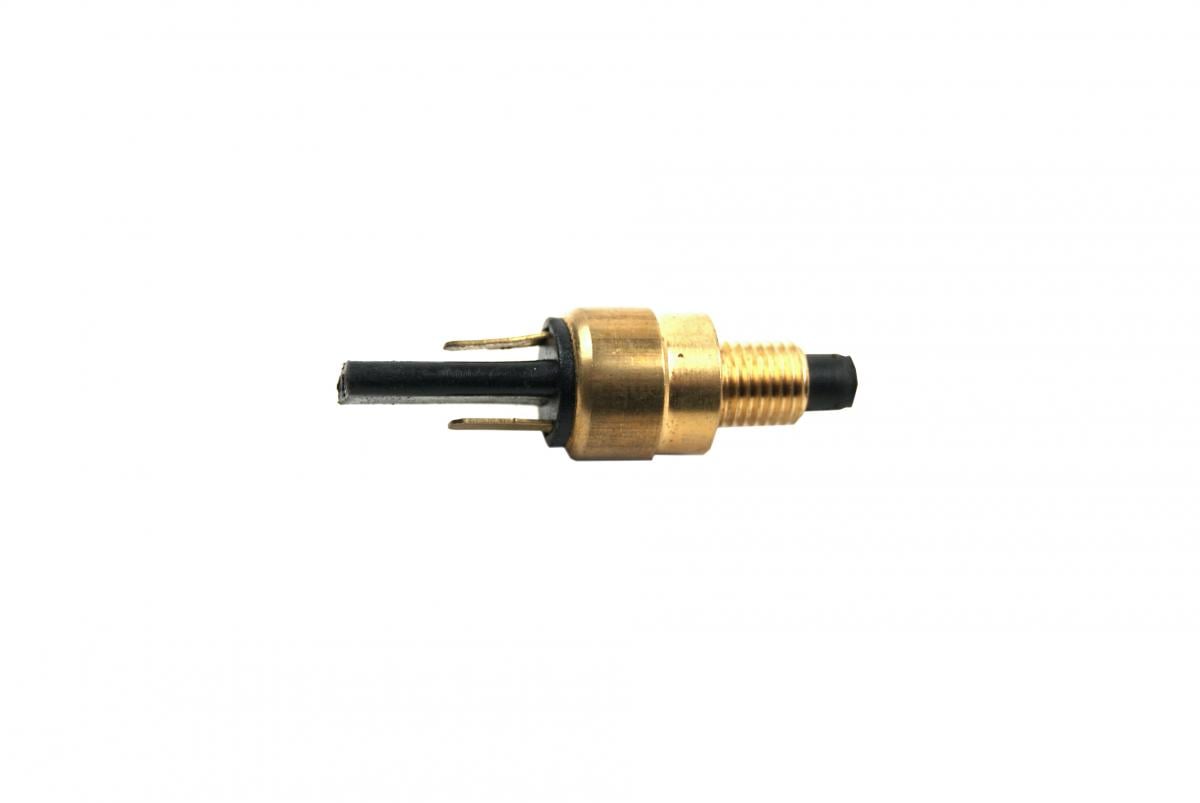

STOP SWITCH BRAKE LIGHT FRONT / REAR
Husqvarna 79-91, KTM, THOMOS, PEUGEOT, Puch
Gilera Runner 50/125/180/200
Yamaha MBK
USED on Magura levers.
Fits: 73-80 Sportster, 73-81 FL Shovel, 73-81 FX Shovel
- Small and neat plunger limit switch, the best way to get your brake light working.
- Used on drum and disc callipers.
- 2 Small Spade connectors, [no wires]
- Screws into a 1/4 UNF thread usually already present in Brembo and Magura master cylinder units.
- Will fit onto jap bikes with a simple modification.
- Also many road bikes.
APROX. SIZE: Overall Lenght 37mm, [1/4" UNF / M6.25x0.6P - Thread 7mm Long]

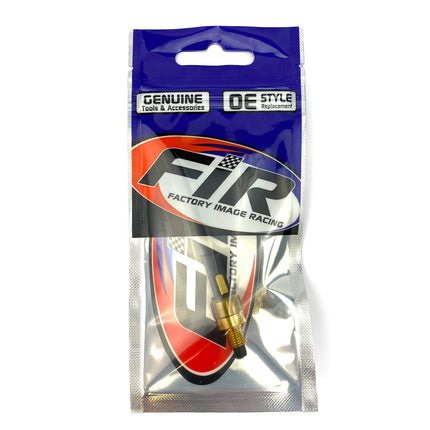

Part No. 44-709.EACH [FACTORY IMAGE RACING] (radhouse.co.uk)
Cross reference numbers ONLY.
15-17-328-01
Aprilia
Scarabeo 2T 50 (93-98)
Scarabeo 4T 50 (09-)
Scarabeo 4T 100 (09-)
Atlantic 125 (10-)
Atlantic 300 (10-)
Shiver 750 (10)
GUZZI MOTO
V35 Florida 350 (86-90)
V65 Florida 650 (85-92)
V65 GT 650 (88-89)
T5 Polizia 850 (85-93)
California III 1000 (87-93)
GT 1000 (87-91)
Quota 1000 (92-97)
Paggio.
Ape 50 (96-10)
Free 50 (92-03)
Liberty 50 (97-05)
Typhoon 50 (01-)
Vespa ET2 50 (97-05)
Zip 50 (92-).
Free 100 (92-03)
Beverly 125 (01-03)
Hexagon 125 (94-00)
Liberty 125 (98-02)
Typhoon 125 (09-)
Vespa ET4 125 (96-02)
X9 125 (00-01)
Beverly Cruiser 250 (07-09)
Hexagon 250 (94-00)
X9 250 (00-01)
X9 500 (00-01)
