Name: Tie Rod End Kit Kawasaki Suzuki Yamaha 51-1028
Brand: Factory Image Racing
SKU: 17-7027.FIR
Price: 33.54 GBP
Availability: InStock

Tie Rod End Kit Kawasaki Suzuki Yamaha 51-1028

Factory Image Racing
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

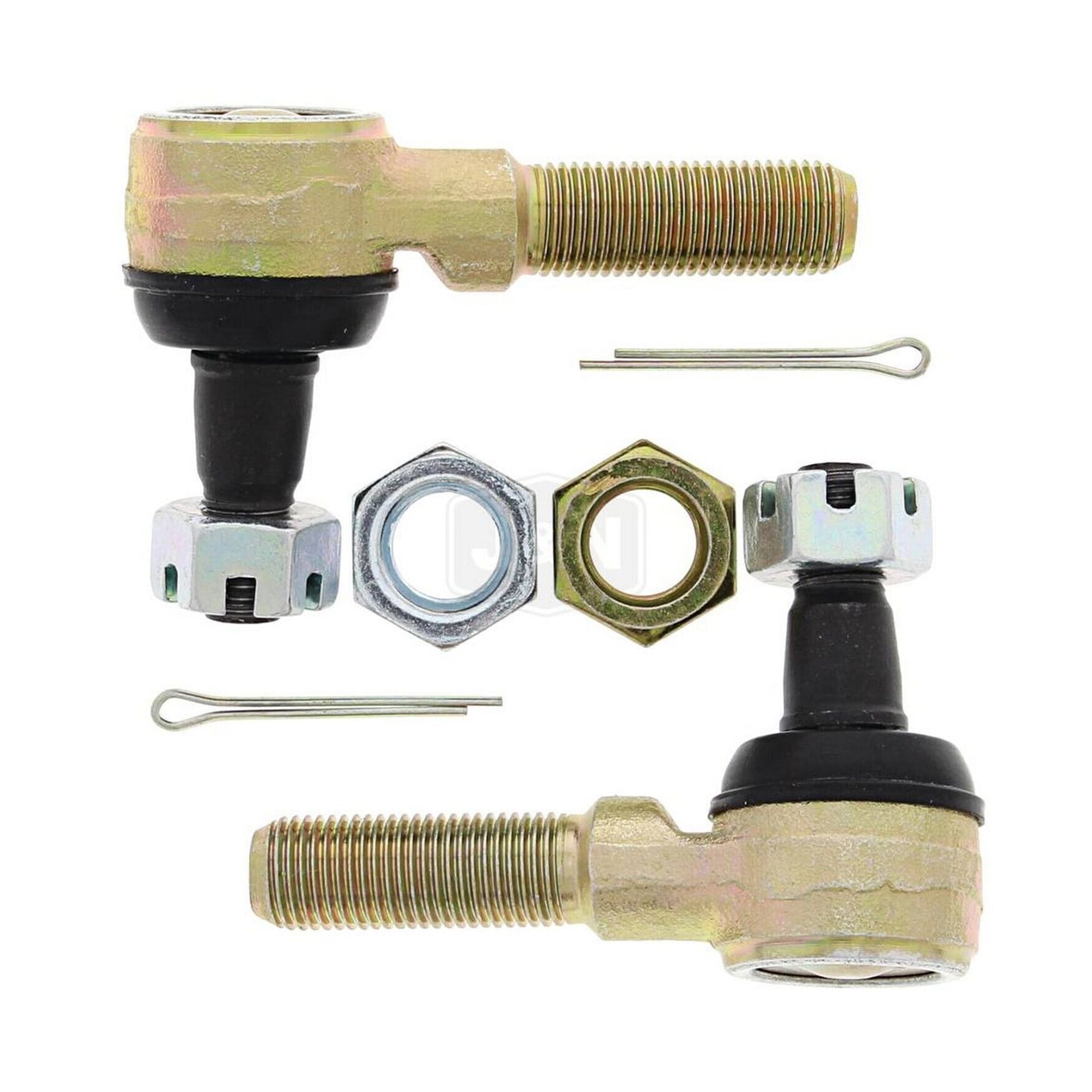

The Factory Image Racing Tie Rod End Kit is a replacement steering linkage kit for selected ATV and quad applications. It is used to replace loose or worn tie-rod ends and helps restore correct steering connection between the tie rod and steering assembly. The kit includes the tie rod ends required for one tie rod, with one left-hand thread end and one right-hand thread end.

Features

Replaces loose or worn tie-rod ends
Includes both inner and outer ends for one tie rod
Suitable for ATV and quad steering applications
Designed to work with original equipment tie rods
Sold as a pair for one-side tie rod replacement

Specifications

Kit type: Tie rod end kit
Quantity per kit: 2 tie rod ends
Thread configuration: 1 left-hand thread and 1 right-hand thread

Cross-Reference OEM Part Numbers

All Balls: 51-1028
251-1028
Part number: 17-7027
Part number: 17-7027.AB

Vehicle Fitments

Arctic Cat

150 Utility (2009-2013)
250 2x4 (2006-2009)
250 DVX (2006-2008)
300 2x4 / Utility (2010-2016)
300 DVX (2009-2015)
400 DVX (2004-2008)

Can-Am

DS 450 (2010-2015)
DS 450 EFI XXC (2009-2012)
DS 450 STD/X (2008-2009)

CF-Moto

X5 Terralander 500 (2011-2014)
CF500 (2007-2016)
X6 Terralander 625 EFI (2011-2014)
X8 Terralander 800 (2012-2014)
CF800 (2015-2016)

Honda

TRX250R FourTrax (1986-1989)

Kawasaki

KVF300 Brute Force (2012-2018)
KFX400 / KSF400A KFX (2004-2006)
KFX450R / KSF450B KFX450R (2008-2014)

Suzuki

LT-F250 Ozark (2004-2014)
LT-Z250 Quad Sport Z (2004-2009)
LT-A400F Eiger 4WD (2005-2007)
LT-F400 Eiger 2WD (2007)
LT-F400F Eiger 4WD (2005-2007)
LT-Z400 Quad Sport Z (2004-2014)
LT-A500F Vinson (2004-2007)
LT-A500X (2009-2010)
LT-A500XP Power Steering (2011-2017)
LT-F500F Vinson (2004-2007)
LT-R450 Quad Racer (2006-2011)
LTA-750 X King Quad (2011-2012, 2015)
LTA-750 XP King Quad Power Steering (2011-2015)

Yamaha

YFS200 Blaster (1988-2006)
YFB250FW Timberwolf 4x4 (1994-2000)
YFM350 Raptor (2004-2013)
YFM350 Warrior (1987-2004)
YFM350FGW Grizzly 4WD (2012-2014)
YFM350FW Big Bear 4x4 (1987-1999)
YFM350FX Wolverine 4x4 (1995-2005)
YFM350U Big Bear 2x4 (1996-1999)
YFZ350 Banshee (1987-2009)
YFM400 Kodiak 2WD (2000-2001)
YFM400 Kodiak 4WD (1993-2002)
YFM450 Grizzly EPS (2013-2014)
YFM450 Grizzly IRS (2013-2014)
YFZ450 (2004-2013)
YFZ450R (2009-2018)
YFZ450X (2010-2011)
YFM550 Grizzly (2009-2014)
YFM550 Grizzly EPS (2009-2014)
YFM600 Grizzly (1998-2001)
YFM660 Grizzly (2002-2008)
YFM660R Raptor (2001-2005)
YFM700 Grizzly (2007-2013)
YFM700 Grizzly EPS (2008-2013)
YFM700R Raptor (2006-2018)

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
YAMAHA	YFM R RAPTOR 660	2001-2005
YAMAHA	YFB TIMBERWOLF FW 250	1994-2000
YAMAHA	YFS BLASTER 200	1988-2006
YAMAHA	YFM WARRIOR 350	1987-2004
SUZUKI	LT R 450	2006-2011
KAWASAKI	KFX R 450	2008-2014
YAMAHA	YFM RAPTOR 350	2004-2013
YAMAHA	YFM R RAPTOR 700	2006-2018
SUZUKI	LT A VINSON F 500	2004-2007
YAMAHA	YFM KODIAK 400	2000-2001
SUZUKI	LT Z 400	2009-2014
YAMAHA	YFZ X 450	2010-2011
SUZUKI	LT Z 400	2004-2008
YAMAHA	YFM GRIZZLY 600	1998-2001
ARCTIC CAT	DVX 400	2004-2008
SUZUKI	LT F EIGER 400	2007
SUZUKI	LT F VINSON 500	2004-2007
YAMAHA	YFM GRIZZLY 660	2002-2008
YAMAHA	YFZ BANSHEE 350	1987-2009
YAMAHA	YFM BIG BEAR FW 350	1998-1999
YAMAHA	YFZ R 450	2009-2018
SUZUKI	LT A XP 500	2015-2017
SUZUKI	LT A XP 500	2011-2013
YAMAHA	YFM WOLVERINE FX 350	1995-2005
CAN-AM	DS X 450	2008-2009
CAN-AM	DS STD 450	2008-2009
CAN-AM	DS EFI XXC 450	2009-2012
CAN-AM	DS 450	2010-2015
ARCTIC CAT	DVX 250	2006-2008
ARCTIC CAT	DVX 300	2009-2015
YAMAHA	YFM GRIZZLY 550	2009-2014
ARCTIC CAT	2X4 250	2006-2009
KAWASAKI	KVF BRUTE FORCE 300	2012-2018
YAMAHA	YFZ 450	2004-2005
KAWASAKI	KFX 400	2004-2006
ARCTIC CAT	UTILITY 150	2009-2013
YAMAHA	YFM GRIZZLY EPS 550	2009-2014
CF MOTO	CFORCE XS 600	2014
CF MOTO	CFORCE XL 600	2014
CF MOTO	CFORCE X6 S 600	2011-2012
CF MOTO	CFORCE X6 L 600	2011-2012
CF MOTO	CFORCE X6 600	2013
SUZUKI	LT Z 250	2004-2009
YAMAHA	YFZ 450	2006-2013
SUZUKI	LT Z 400	2003
YAMAHA	YFM GRIZZLY IRS 450	2013-2014
YAMAHA	YFM GRIZZLY EPS 450	2013-2014
SUZUKI	LT F OZARK 250	2004-2014
SUZUKI	LT F EIGER 400	2005-2007
SUZUKI	LT A EIGER F 400	2005-2007
ARCTIC CAT	2X4 300	2010-2016
YAMAHA	YFM KODIAK 400	1993-2002
YAMAHA	YFM BIG BEAR U 2X4 350	1996-1997
YAMAHA	YFM BIG BEAR FW 350	1987-1997
YAMAHA	YFM BIG BEAR U 2X4 350	1998-1999
YAMAHA	YFM GRIZZLY EPS 700	2008-2013
YAMAHA	YFM GRIZZLY 700	2007-2013
CF MOTO	CFORCE X8 X LANDER 800	2012-2014
CF MOTO	CFORCE X6 X LANDER 600	2012
CF MOTO	CFORCE X5 S EFI 500	2014
CF MOTO	CFORCE X5 S EFI 500	2011-2012
CF MOTO	CFORCE X5 S CARB 500	2014
CF MOTO	CFORCE X5 S CARB 500	2011-2013
CF MOTO	CFORCE X5 L EFI 500	2014
CF MOTO	CFORCE X5 L EFI 500	2011-2013
CF MOTO	CFORCE X5 L CARB 500	2014
CF MOTO	CFORCE X5 L CARB 500	2011-2013
CF MOTO	CFORCE 2A L 500	2007-2014
CF MOTO	CFORCE 2 S 500	2007-2014
CF MOTO	CFORCE 2 L 500	2011-2012
YAMAHA	YFM GRIZZLY FGW 350	2012-2014
YAMAHA	YFZ R 450	2017-2018
SUZUKI	LT A X KINGQUAD 750	2015
SUZUKI	LT A X 500	2010
SUZUKI	LT A X 500	2009-2010
SUZUKI	LT A KINGQUAD XP 750	2011-2015
