Top End Piston Kit 72-73 Yamaha Dt 2 3 250 70mm Standard Vintco KTY54-00

Description

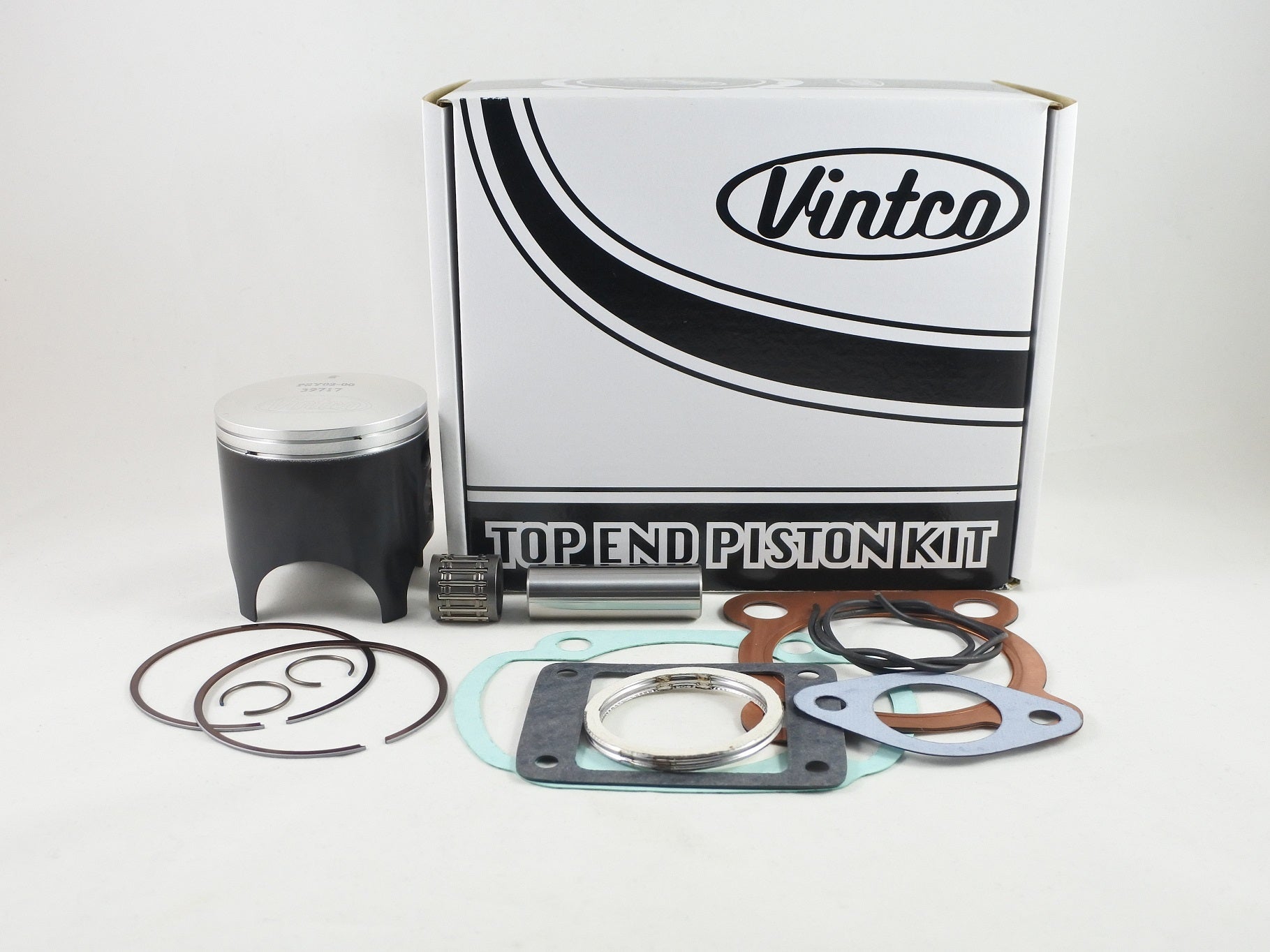

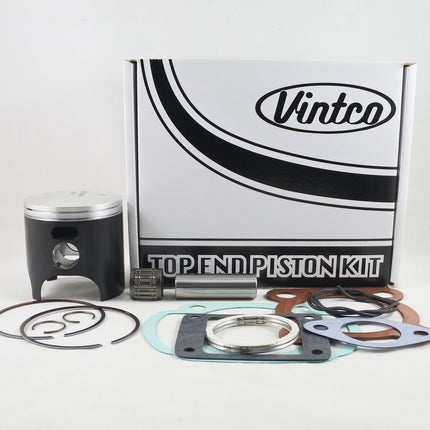

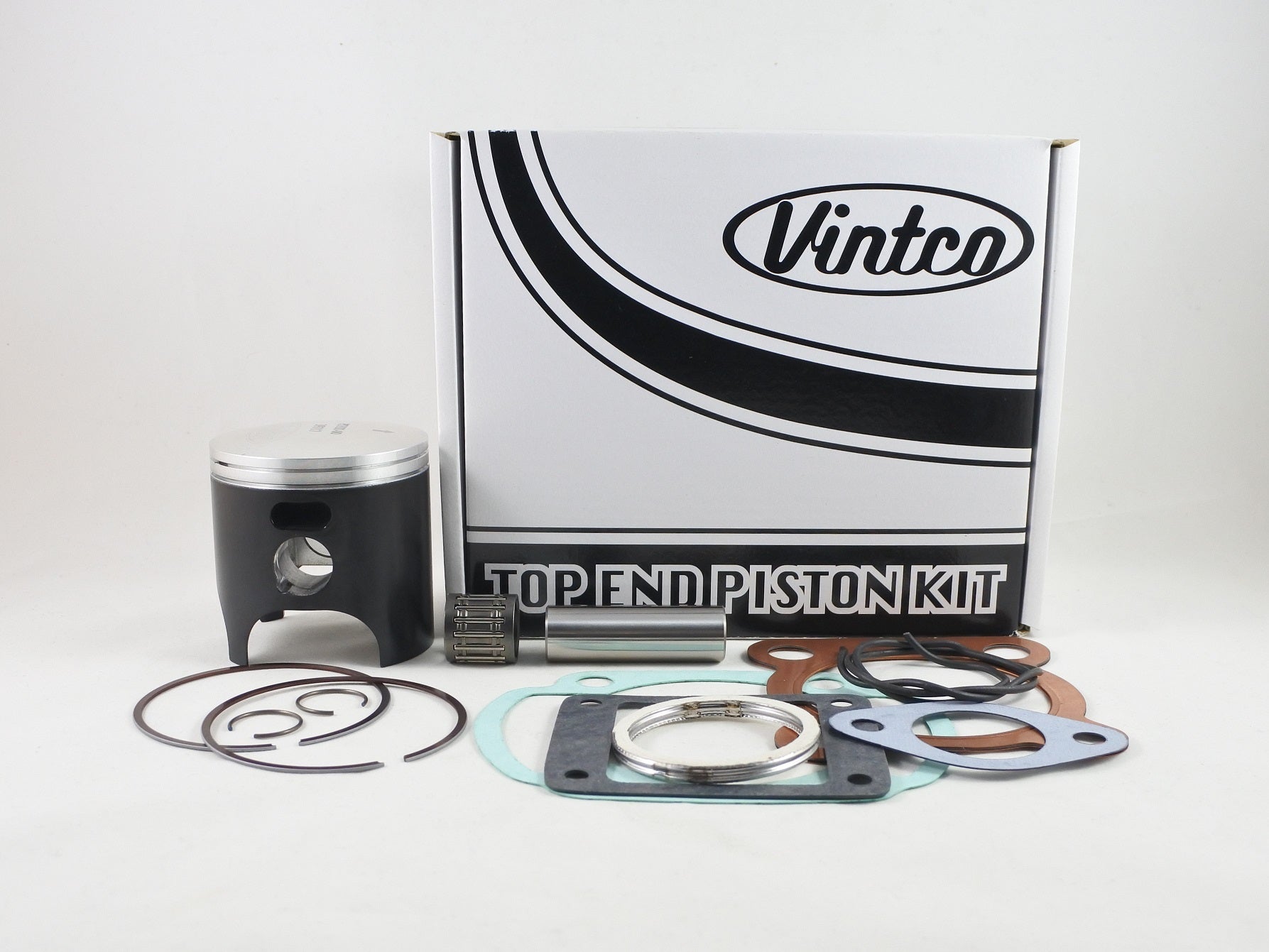

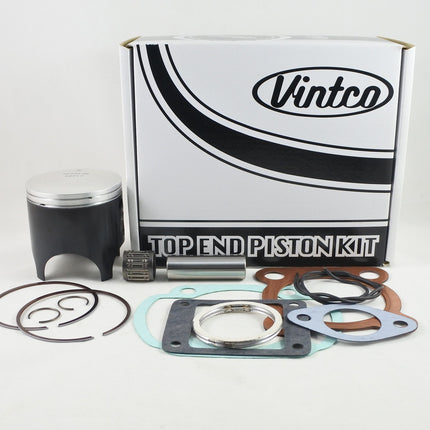

This top end piston kit is for 1972–1973 Yamaha DT2, DT3 and DT250 models. It includes a standard 70 mm forged piston made in Germany with an MOS2 coating for running-in, along with a wrist pin bearing and the required top end gaskets. Kit pricing includes a 10% saving compared with purchasing the included items separately.

Features

  • Complete top end piston kit
  • Includes piston
  • Includes cylinder head gasket
  • Includes cylinder base gasket
  • Includes 2 reed valve gaskets
  • Includes intake gasket
  • Includes 2 exhaust pipe gaskets
  • Includes wrist pin bearing
  • Kit price includes a 10% discount over individual items

Specifications

  • VintCo Part Number: KTY54-00
  • Piston size: 70 mm standard
  • Piston diameter: 69.94 mm
  • Piston-to-cylinder clearance: 0.06 mm
  • Piston construction: Forged
  • Piston coating: MOS2
  • Country of manufacture: Germany

Cross-Reference OEM Part Numbers

  • Cylinder head gasket: 214-11181-09-00
  • Cylinder base gasket: 214-11351-09-00
  • Reed valve gasket: 3TT-13621-00-00
  • Intake gasket: 275-13556-09-00
  • Exhaust pipe gasket: 214-14613-09-00
  • Exhaust pipe gasket: 248-14623-10-00

Vehicle Fitments

  • 1972 Yamaha DT2
  • 1972 Yamaha DT250
  • 1973 Yamaha DT3
  • 1973 Yamaha DT250

Top End Piston Kit 72-73 Yamaha Dt 2 3 250 70mm Standard Vintco KTY54-00

Product form

This top end piston kit is for 1972–1973 Yamaha DT2, DT3 and DT250 models. It includes a standard 70 mm... Read more

Out of stock

£262.69 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    SKU: VIN-KTY54-00
    Barcode: 0120000103454

    • Free shipping on all orders above £75
    • No hassle returns within 30 days

    Description

    This top end piston kit is for 1972–1973 Yamaha DT2, DT3 and DT250 models. It includes a standard 70 mm forged piston made in Germany with an MOS2 coating for running-in, along with a wrist pin bearing and the required top end gaskets. Kit pricing includes a 10% saving compared with purchasing the included items separately.

    Features

    • Complete top end piston kit
    • Includes piston
    • Includes cylinder head gasket
    • Includes cylinder base gasket
    • Includes 2 reed valve gaskets
    • Includes intake gasket
    • Includes 2 exhaust pipe gaskets
    • Includes wrist pin bearing
    • Kit price includes a 10% discount over individual items

    Specifications

    • VintCo Part Number: KTY54-00
    • Piston size: 70 mm standard
    • Piston diameter: 69.94 mm
    • Piston-to-cylinder clearance: 0.06 mm
    • Piston construction: Forged
    • Piston coating: MOS2
    • Country of manufacture: Germany

    Cross-Reference OEM Part Numbers

    • Cylinder head gasket: 214-11181-09-00
    • Cylinder base gasket: 214-11351-09-00
    • Reed valve gasket: 3TT-13621-00-00
    • Intake gasket: 275-13556-09-00
    • Exhaust pipe gasket: 214-14613-09-00
    • Exhaust pipe gasket: 248-14623-10-00

    Vehicle Fitments

    • 1972 Yamaha DT2
    • 1972 Yamaha DT250
    • 1973 Yamaha DT3
    • 1973 Yamaha DT250
