Top End Piston Kit 73-74 Yamaha MX 360 81.5mm 1.5mm Over Vintco KTY72-1.5

Description

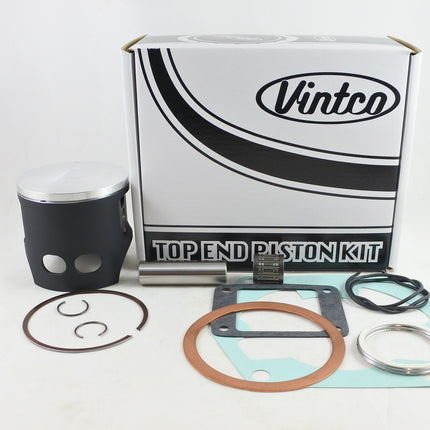

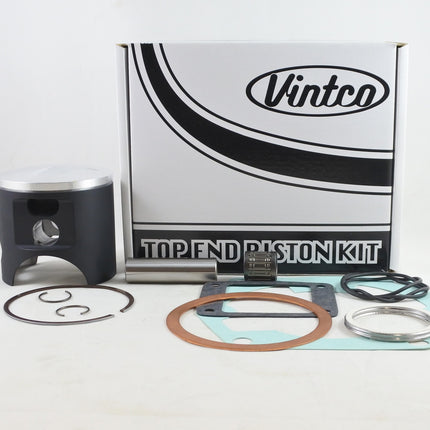

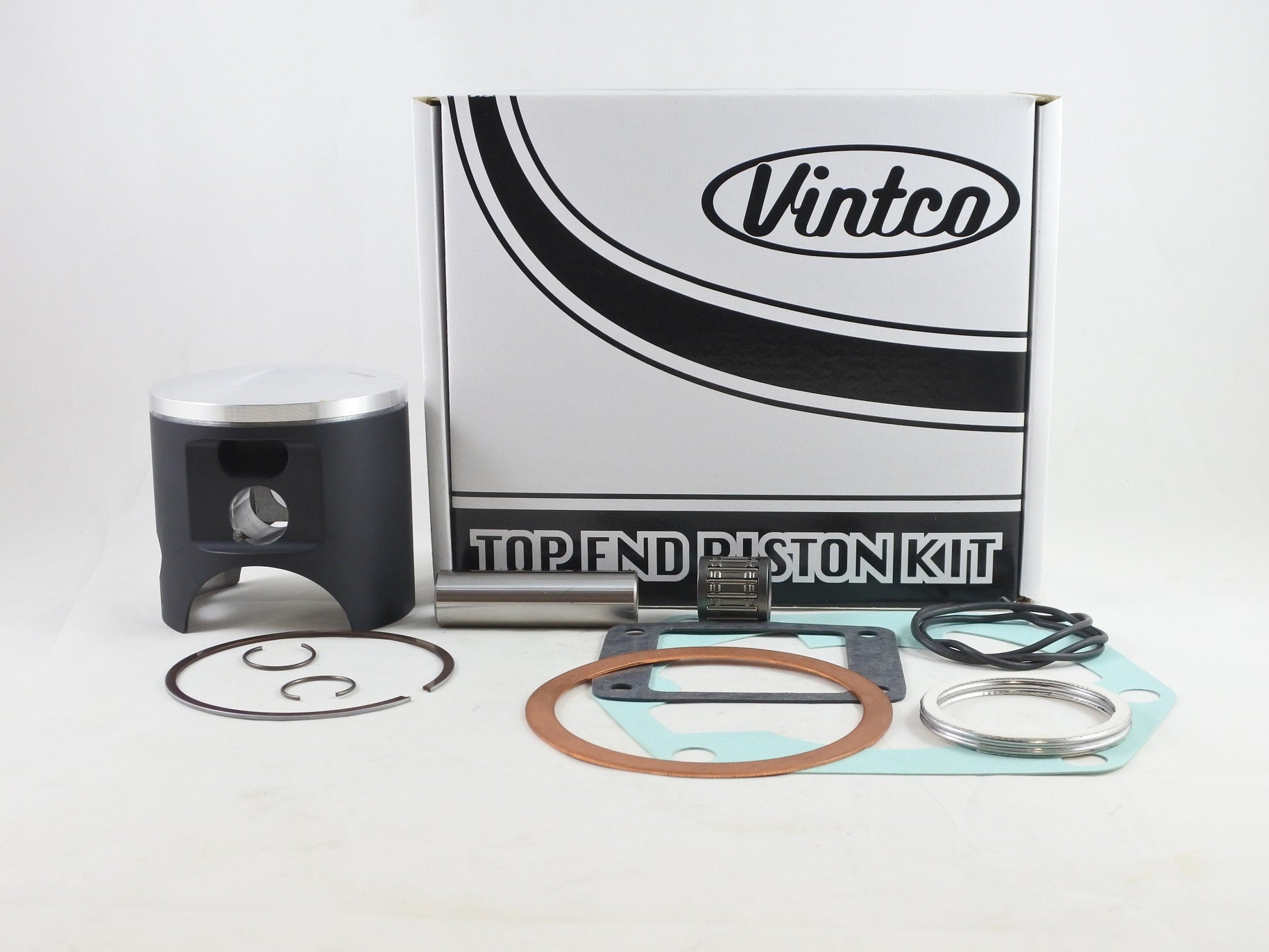

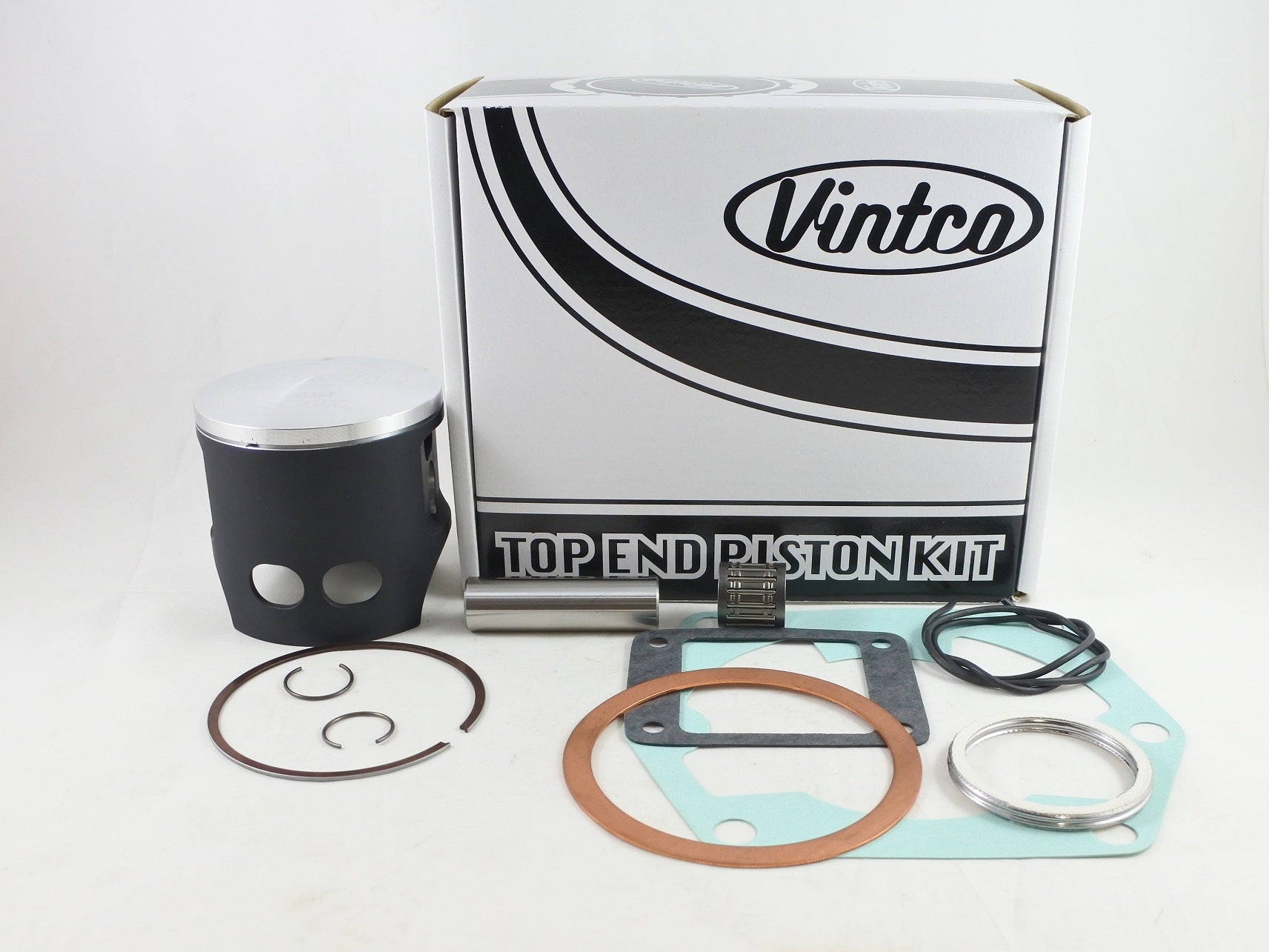

VintCo top end piston kit KTY72-1.5 is a complete rebuild kit for 1973-1974 Yamaha MX360 models, supplied in 81.5 mm (+1.5 mm oversize). The kit includes a piston assembly with piston, rings, pin and clips, a wrist pin bearing, and a full top-end gasket set comprising the head, base, intake and exhaust gaskets. Components are produced using modern materials and manufacturing methods to provide OEM-equivalent or better fit and performance. Purchasing the kit saves 10% compared with buying the parts individually, and additional size options are available.

Features

  • Complete top end rebuild kit
  • Includes piston, rings, pin and clips
  • Includes wrist pin bearing
  • Includes cylinder head gasket
  • Includes cylinder base gasket
  • Includes intake gasket
  • Includes exhaust pipe gasket
  • Supplied with OEM cross-reference part numbers for exact fitment
  • Intended for Yamaha MX360 top-end rebuilds
  • Purchasing as a kit saves 10% compared with buying the components individually
  • Additional size options are available

Specifications

  • VintCo Part Number: KTY72-1.5
  • Product type: Top End Piston Kit
  • Piston size: 81.5 mm
  • Oversize: +1.5 mm
  • Piston measurement: 81.44 mm
  • Clearance: 0.06 mm
  • Piston construction: Forged
  • Piston coating: MoS2
  • Country of manufacture: Germany

Cross-Reference OEM Part Numbers

  • Cylinder Head Gasket: 90430-83065-00
  • Cylinder Base Gasket: 365-11351-09-00
  • Intake Gasket: 363-13621-01-00
  • Exhaust Pipe Gasket: 214-14613-09-00
  • Exhaust Pipe Gasket: 248-14623-10-00

Vehicle Fitments

  • 1973 Yamaha MX360
  • 1974 Yamaha MX360

Top End Piston Kit 73-74 Yamaha MX 360 81.5mm 1.5mm Over Vintco KTY72-1.5

Product form

VintCo top end piston kit KTY72-1.5 is a complete rebuild kit for 1973-1974 Yamaha MX360 models, supplied in 81.5 mm... Read more

Out of stock

£277.84 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    SKU: VIN-KTY72-1.5
    Barcode: 0120000104161

    • Free shipping on all orders above £75
    • No hassle returns within 30 days

    Description

    VintCo top end piston kit KTY72-1.5 is a complete rebuild kit for 1973-1974 Yamaha MX360 models, supplied in 81.5 mm (+1.5 mm oversize). The kit includes a piston assembly with piston, rings, pin and clips, a wrist pin bearing, and a full top-end gasket set comprising the head, base, intake and exhaust gaskets. Components are produced using modern materials and manufacturing methods to provide OEM-equivalent or better fit and performance. Purchasing the kit saves 10% compared with buying the parts individually, and additional size options are available.

    Features

    • Complete top end rebuild kit
    • Includes piston, rings, pin and clips
    • Includes wrist pin bearing
    • Includes cylinder head gasket
    • Includes cylinder base gasket
    • Includes intake gasket
    • Includes exhaust pipe gasket
    • Supplied with OEM cross-reference part numbers for exact fitment
    • Intended for Yamaha MX360 top-end rebuilds
    • Purchasing as a kit saves 10% compared with buying the components individually
    • Additional size options are available

    Specifications

    • VintCo Part Number: KTY72-1.5
    • Product type: Top End Piston Kit
    • Piston size: 81.5 mm
    • Oversize: +1.5 mm
    • Piston measurement: 81.44 mm
    • Clearance: 0.06 mm
    • Piston construction: Forged
    • Piston coating: MoS2
    • Country of manufacture: Germany

    Cross-Reference OEM Part Numbers

    • Cylinder Head Gasket: 90430-83065-00
    • Cylinder Base Gasket: 365-11351-09-00
    • Intake Gasket: 363-13621-01-00
    • Exhaust Pipe Gasket: 214-14613-09-00
    • Exhaust Pipe Gasket: 248-14623-10-00

    Vehicle Fitments

    • 1973 Yamaha MX360
    • 1974 Yamaha MX360
