Top End Piston Kit 74-76 Yamaha Dt 250 71mm 1.0mm Over Vintco KTY40-1.0

Description

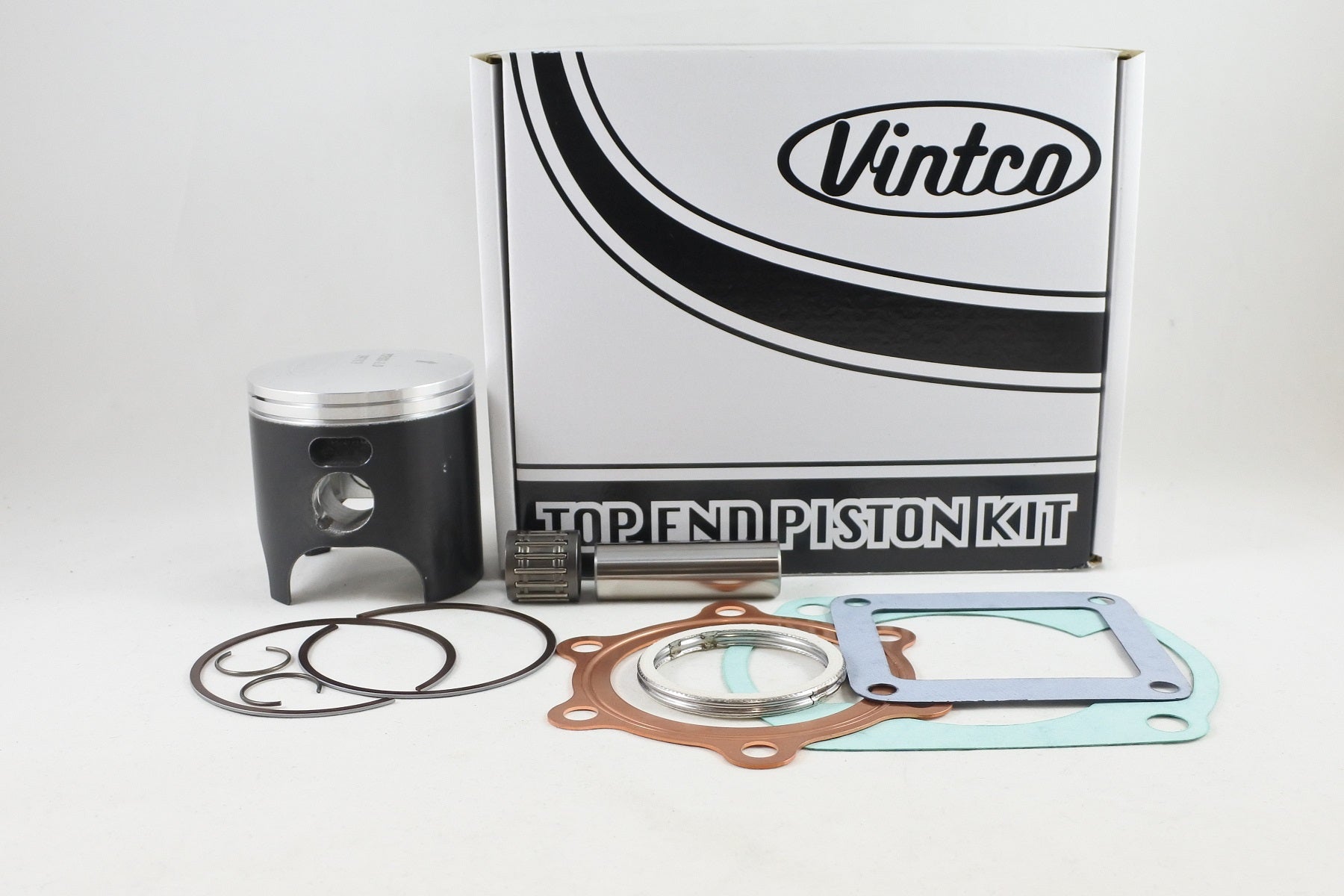

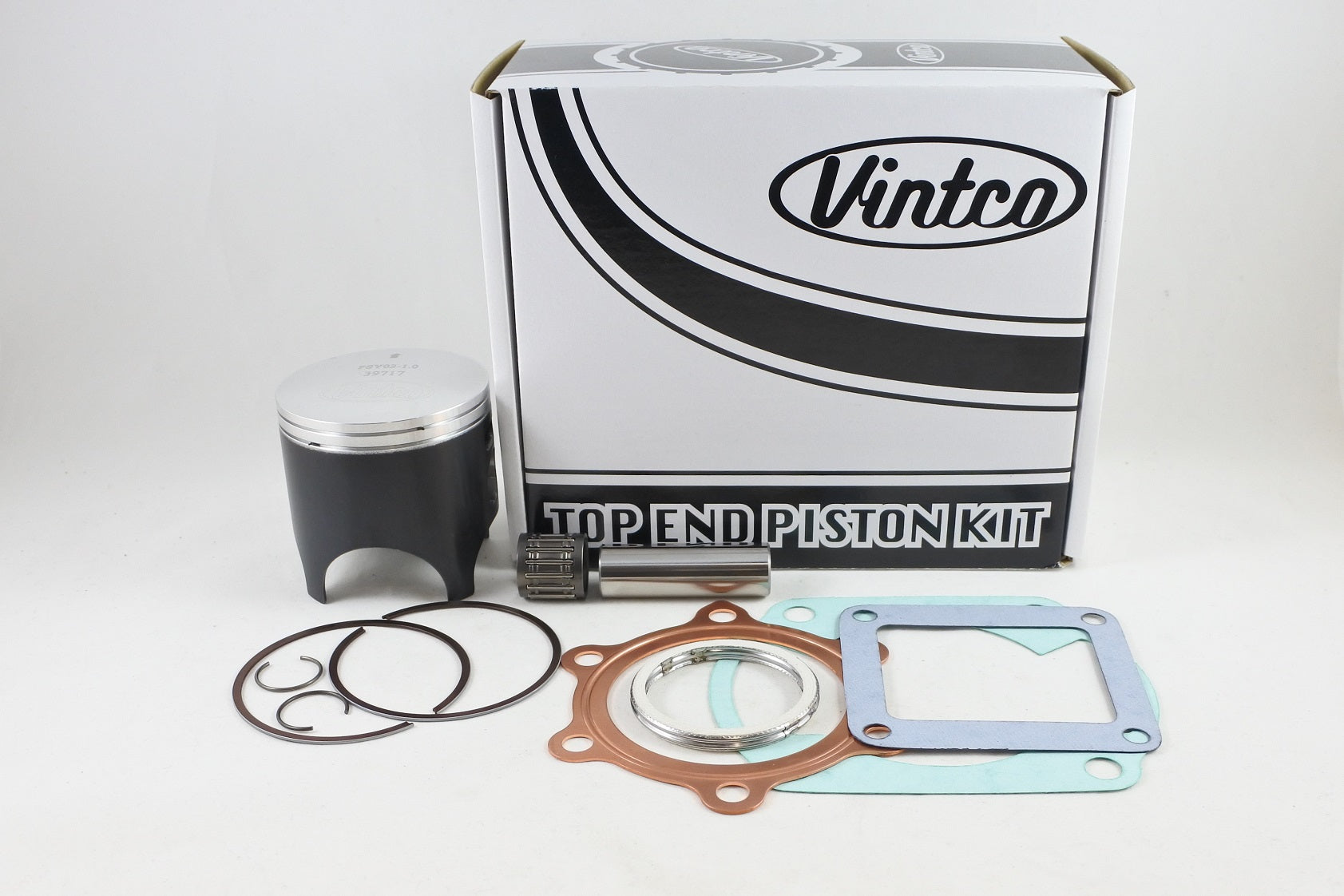

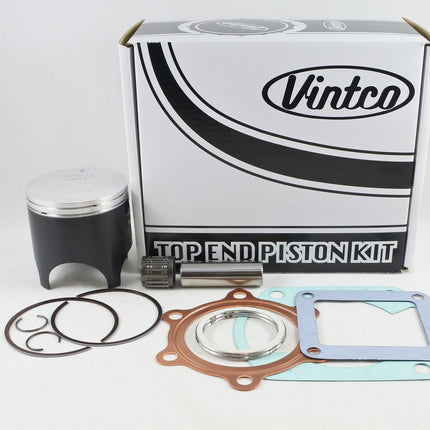

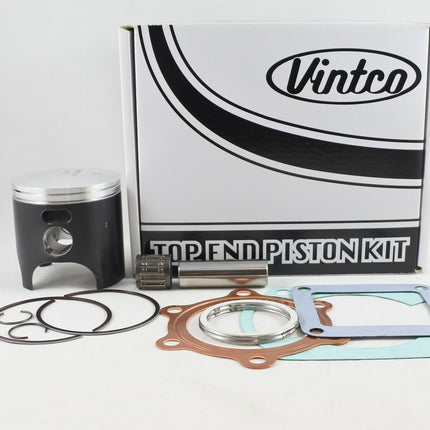

This top end piston kit is for 1974-1976 Yamaha DT250 models and supplies the main components required for a top end rebuild. The kit includes a forged piston made in Germany with a MoS2 coating for running-in, together with a cylinder head gasket, cylinder base gasket, intake gasket, exhaust pipe gasket and wrist pin bearing.

Features

  • Complete top end piston kit for compatible Yamaha DT250 models
  • Includes piston, cylinder head gasket, cylinder base gasket, intake gasket, exhaust pipe gasket and wrist pin bearing
  • Intended for top end rebuild work
  • Kit price includes a 10% reduction compared with purchasing the items individually

Specifications

  • VintCo Part Number: KTY40-1.0
  • Nominal piston size: 71 mm
  • Oversize: 1.0 mm
  • Actual piston size: 70.94 mm
  • Piston clearance: 0.06 mm
  • Piston construction: Forged
  • Coating: MoS2
  • Country of manufacture: Germany

Cross-Reference OEM Part Numbers

  • Cylinder Head Gasket: 434-11181-00-00
  • Cylinder Base Gasket: 364-11351-01-00
  • Intake Gasket: 363-13621-01-00
  • Exhaust Pipe Gasket: 214-14613-09-00

Vehicle Fitments

  • 1974 Yamaha DT250
  • 1975 Yamaha DT250
  • 1976 Yamaha DT250

Top End Piston Kit 74-76 Yamaha Dt 250 71mm 1.0mm Over Vintco KTY40-1.0

Product form

This top end piston kit is for 1974-1976 Yamaha DT250 models and supplies the main components required for a top... Read more

Out of stock

£226.29 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    SKU: VIN-KTY40-1.0
    Barcode: 0120000103508

    • Free shipping on all orders above £75
    • No hassle returns within 30 days

    Description

    This top end piston kit is for 1974-1976 Yamaha DT250 models and supplies the main components required for a top end rebuild. The kit includes a forged piston made in Germany with a MoS2 coating for running-in, together with a cylinder head gasket, cylinder base gasket, intake gasket, exhaust pipe gasket and wrist pin bearing.

    Features

    • Complete top end piston kit for compatible Yamaha DT250 models
    • Includes piston, cylinder head gasket, cylinder base gasket, intake gasket, exhaust pipe gasket and wrist pin bearing
    • Intended for top end rebuild work
    • Kit price includes a 10% reduction compared with purchasing the items individually

    Specifications

    • VintCo Part Number: KTY40-1.0
    • Nominal piston size: 71 mm
    • Oversize: 1.0 mm
    • Actual piston size: 70.94 mm
    • Piston clearance: 0.06 mm
    • Piston construction: Forged
    • Coating: MoS2
    • Country of manufacture: Germany

    Cross-Reference OEM Part Numbers

    • Cylinder Head Gasket: 434-11181-00-00
    • Cylinder Base Gasket: 364-11351-01-00
    • Intake Gasket: 363-13621-01-00
    • Exhaust Pipe Gasket: 214-14613-09-00

    Vehicle Fitments

    • 1974 Yamaha DT250
    • 1975 Yamaha DT250
    • 1976 Yamaha DT250
