Top End Piston Kit 74-77 Yamaha Ty 250 71mm 1.0mm Over Vintco KTY42-1.0

Description

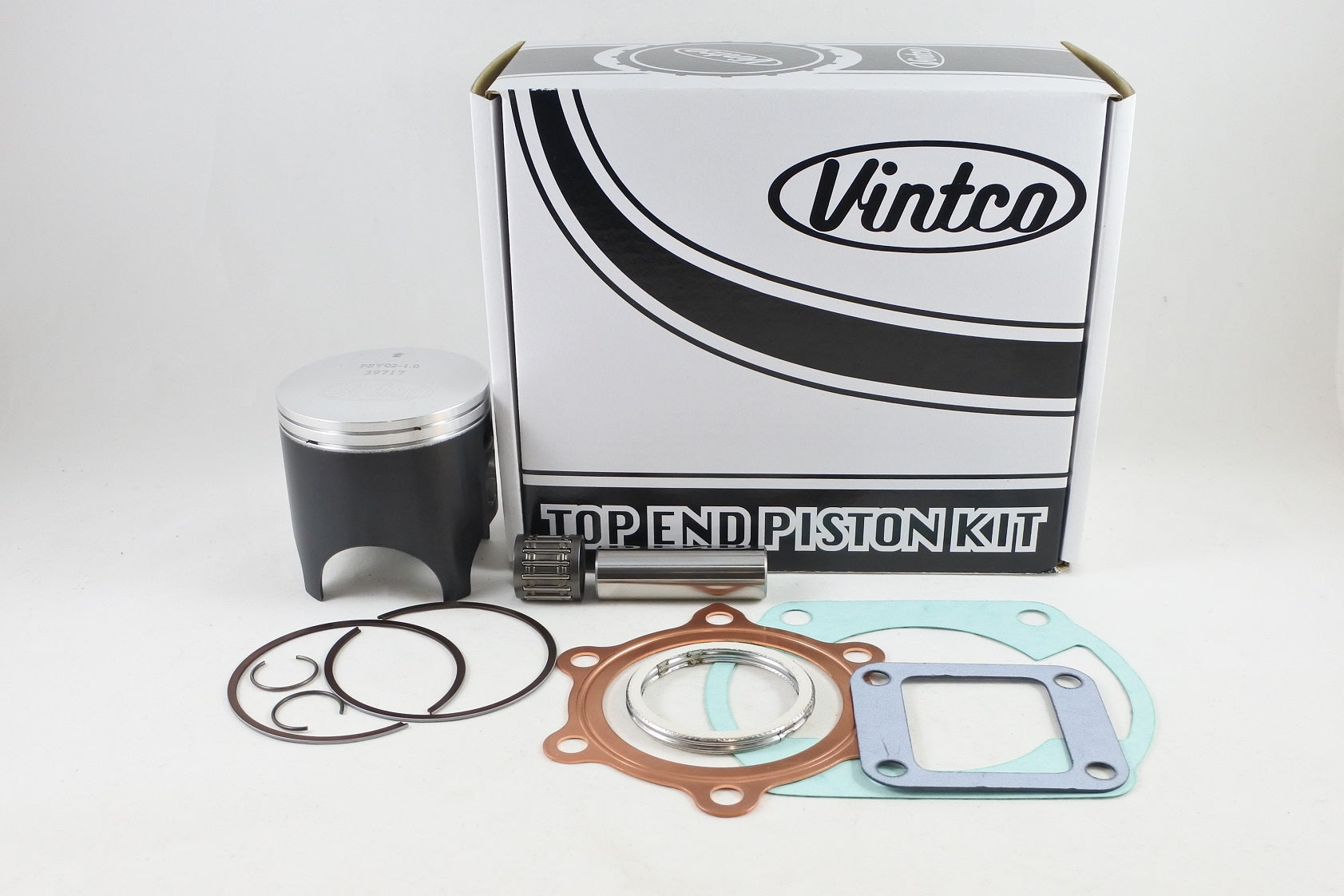

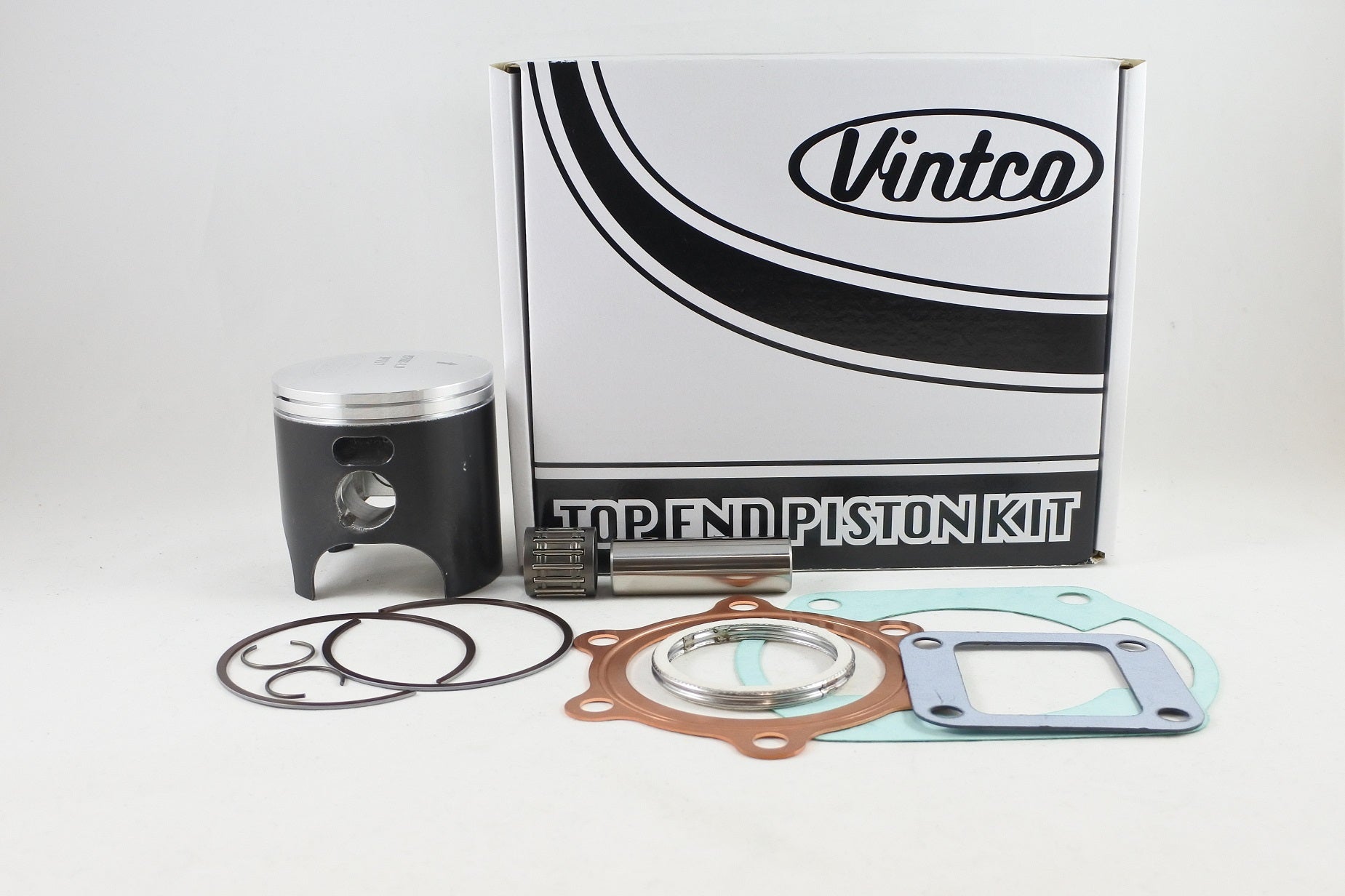

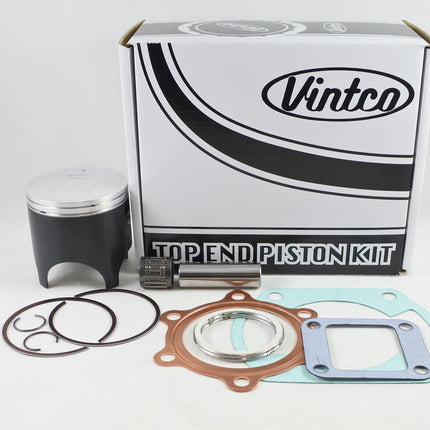

This top end piston kit is for 1974-1977 Yamaha TY250 models and includes a forged oversize piston, associated gaskets and a wrist pin bearing for top end service work. The kit is supplied at a price that includes a 10% reduction compared with purchasing the individual items separately.

Features

  • Complete top end piston kit
  • Suitable for 1974-1977 Yamaha TY250 models
  • Forged piston
  • Piston manufactured in Germany
  • MOS2 coating for break-in
  • Includes cylinder head gasket
  • Includes cylinder base gasket
  • Includes reed valve gasket
  • Includes exhaust pipe gasket
  • Includes wrist pin bearing

Specifications

  • VintCo Part Number: KTY42-1.0
  • Piston size: 71mm nominal
  • Oversize: 1.0mm
  • Piston measurement: 70.94mm
  • Clearance: 0.06mm

Cross-Reference OEM Part Numbers

  • Cylinder Head Gasket: 434-11181-00-00
  • Cylinder Base Gasket: 364-11351-01-00
  • Reed Valve Gasket: 87A-13621-00-00
  • Exhaust Pipe Gasket: 214-14613-09-00

Vehicle Fitments

  • 1974 Yamaha TY250
  • 1975 Yamaha TY250
  • 1976 Yamaha TY250
  • 1977 Yamaha TY250

Top End Piston Kit 74-77 Yamaha Ty 250 71mm 1.0mm Over Vintco KTY42-1.0

Product form

This top end piston kit is for 1974-1977 Yamaha TY250 models and includes a forged oversize piston, associated gaskets and... Read more

Out of stock

£226.29 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    SKU: VIN-KTY42-1.0
    Barcode: 0120000103782

    • Free shipping on all orders above £75
    • No hassle returns within 30 days

    Description

    This top end piston kit is for 1974-1977 Yamaha TY250 models and includes a forged oversize piston, associated gaskets and a wrist pin bearing for top end service work. The kit is supplied at a price that includes a 10% reduction compared with purchasing the individual items separately.

    Features

    • Complete top end piston kit
    • Suitable for 1974-1977 Yamaha TY250 models
    • Forged piston
    • Piston manufactured in Germany
    • MOS2 coating for break-in
    • Includes cylinder head gasket
    • Includes cylinder base gasket
    • Includes reed valve gasket
    • Includes exhaust pipe gasket
    • Includes wrist pin bearing

    Specifications

    • VintCo Part Number: KTY42-1.0
    • Piston size: 71mm nominal
    • Oversize: 1.0mm
    • Piston measurement: 70.94mm
    • Clearance: 0.06mm

    Cross-Reference OEM Part Numbers

    • Cylinder Head Gasket: 434-11181-00-00
    • Cylinder Base Gasket: 364-11351-01-00
    • Reed Valve Gasket: 87A-13621-00-00
    • Exhaust Pipe Gasket: 214-14613-09-00

    Vehicle Fitments

    • 1974 Yamaha TY250
    • 1975 Yamaha TY250
    • 1976 Yamaha TY250
    • 1977 Yamaha TY250
