Top End Piston Kit 75-76 Yamaha Dt 400 86mm 1.0mm Over Vintco KTY48-1.0

Description

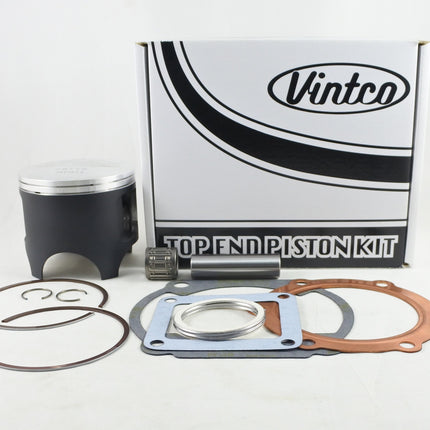

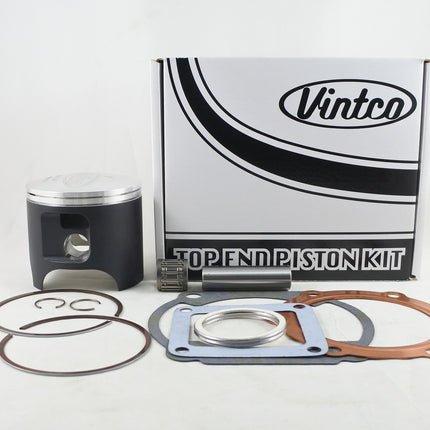

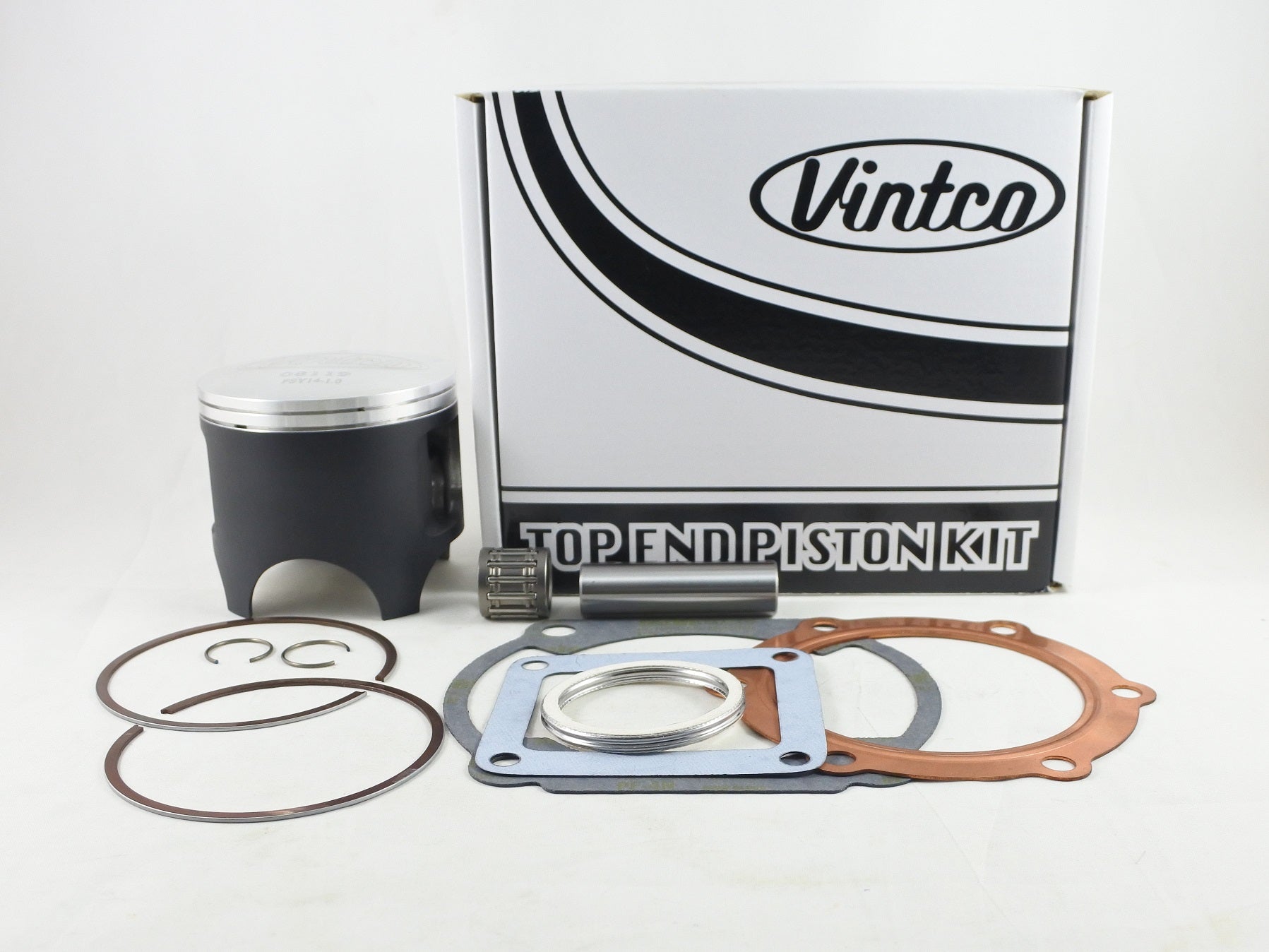

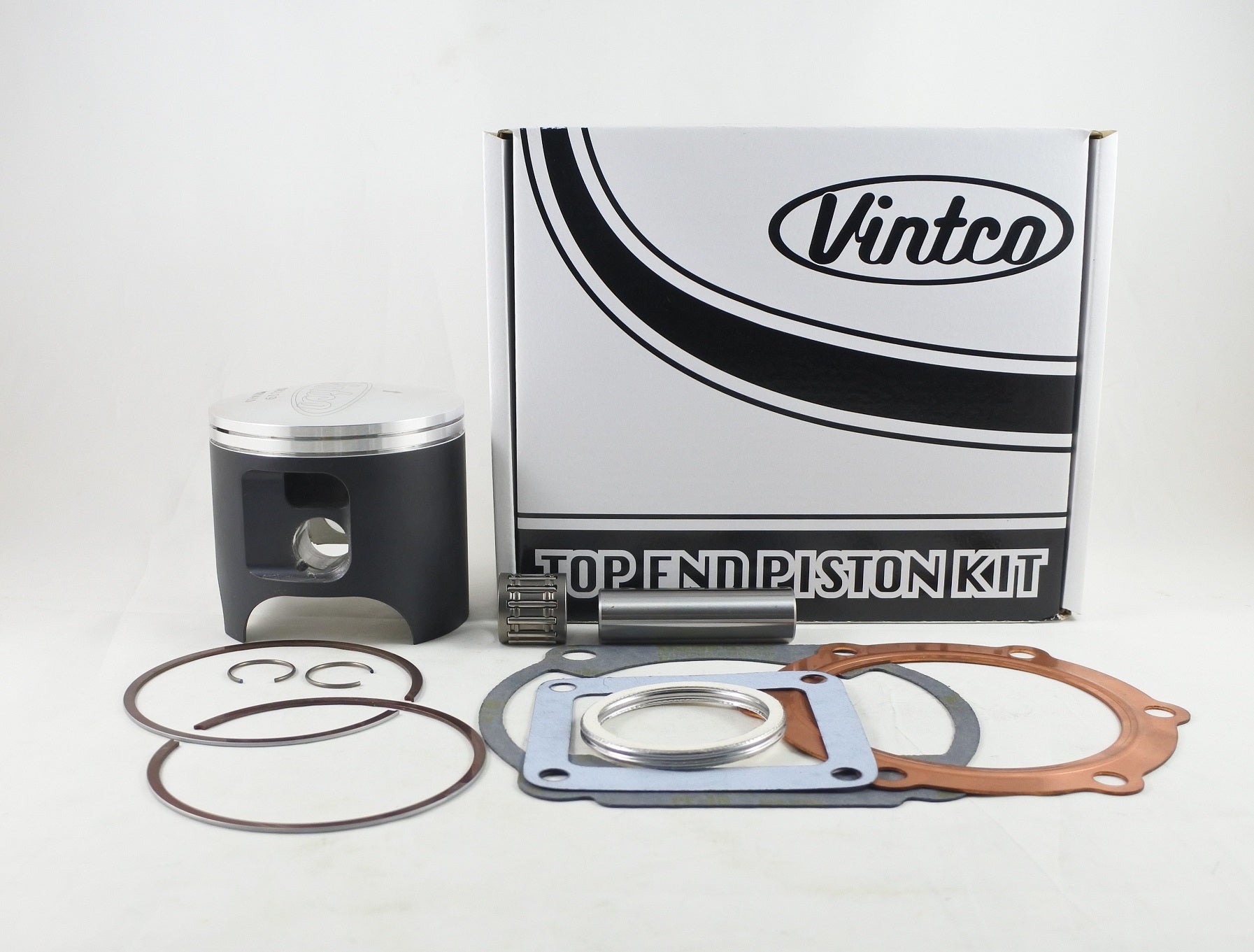

VintCo top end piston kit for 1975-1976 Yamaha DT400 models, supplied as a matched rebuild set with a forged piston made in Germany, MOS2-coated for running-in, together with a cylinder head gasket, cylinder base gasket, intake gasket, exhaust pipe gasket and wrist pin bearing. This kit is specified at 86 mm and 1.0 mm oversize.

Features

  • Complete top end piston kit for Yamaha DT400 models
  • Includes forged piston
  • Includes cylinder head gasket
  • Includes cylinder base gasket
  • Includes intake gasket
  • Includes exhaust pipe gasket
  • Includes wrist pin bearing
  • MOS2-coated piston for running-in
  • Kit price includes a 10% discount compared with the individual items

Specifications

  • VintCo Part Number: KTY48-1.0
  • Piston size: 86 mm
  • Oversize: 1.0 mm
  • Piston measurement: 85.92 mm
  • Clearance: 0.08 mm

Cross-Reference OEM Part Numbers

  • Cylinder Head Gasket: 500-11181-00-00
  • Cylinder Base Gasket: 500-11351-09-00
  • Intake Gasket: 363-13621-01-00
  • Exhaust Pipe Gasket: 214-14613-09-00

Vehicle Fitments

  • 1975 Yamaha DT400
  • 1976 Yamaha DT400

Top End Piston Kit 75-76 Yamaha Dt 400 86mm 1.0mm Over Vintco KTY48-1.0

Product form

VintCo top end piston kit for 1975-1976 Yamaha DT400 models, supplied as a matched rebuild set with a forged piston... Read more

Out of stock

£289.98 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    SKU: VIN-KTY48-1.0
    Barcode: 0120000104192

    • Free shipping on all orders above £75
    • No hassle returns within 30 days

    Description

    VintCo top end piston kit for 1975-1976 Yamaha DT400 models, supplied as a matched rebuild set with a forged piston made in Germany, MOS2-coated for running-in, together with a cylinder head gasket, cylinder base gasket, intake gasket, exhaust pipe gasket and wrist pin bearing. This kit is specified at 86 mm and 1.0 mm oversize.

    Features

    • Complete top end piston kit for Yamaha DT400 models
    • Includes forged piston
    • Includes cylinder head gasket
    • Includes cylinder base gasket
    • Includes intake gasket
    • Includes exhaust pipe gasket
    • Includes wrist pin bearing
    • MOS2-coated piston for running-in
    • Kit price includes a 10% discount compared with the individual items

    Specifications

    • VintCo Part Number: KTY48-1.0
    • Piston size: 86 mm
    • Oversize: 1.0 mm
    • Piston measurement: 85.92 mm
    • Clearance: 0.08 mm

    Cross-Reference OEM Part Numbers

    • Cylinder Head Gasket: 500-11181-00-00
    • Cylinder Base Gasket: 500-11351-09-00
    • Intake Gasket: 363-13621-01-00
    • Exhaust Pipe Gasket: 214-14613-09-00

    Vehicle Fitments

    • 1975 Yamaha DT400
    • 1976 Yamaha DT400
