Top End Piston Kit 76-76 Yamaha Dt 125 56.25mm 0.25mm Over Vintco KTY70-0.25

Description

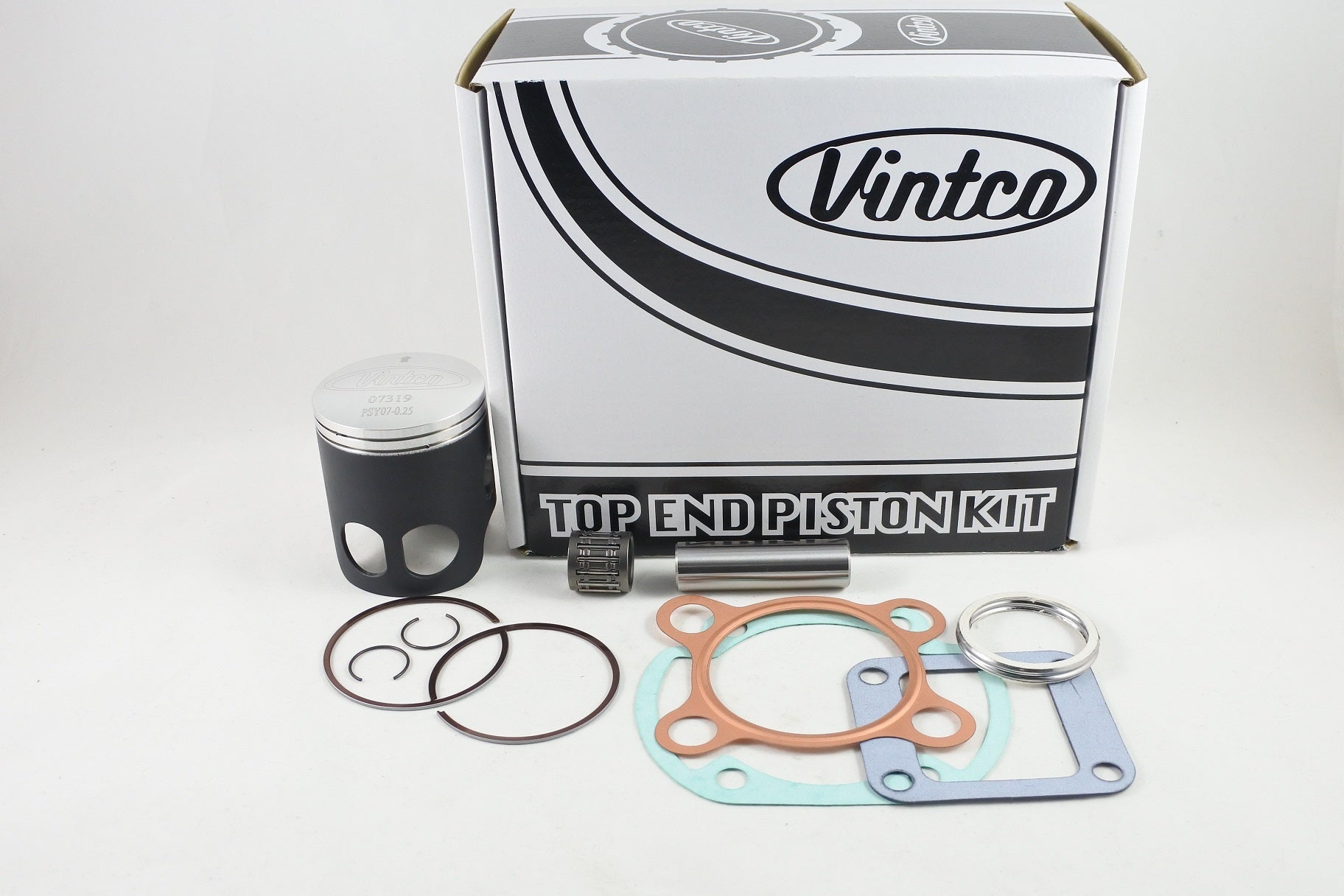

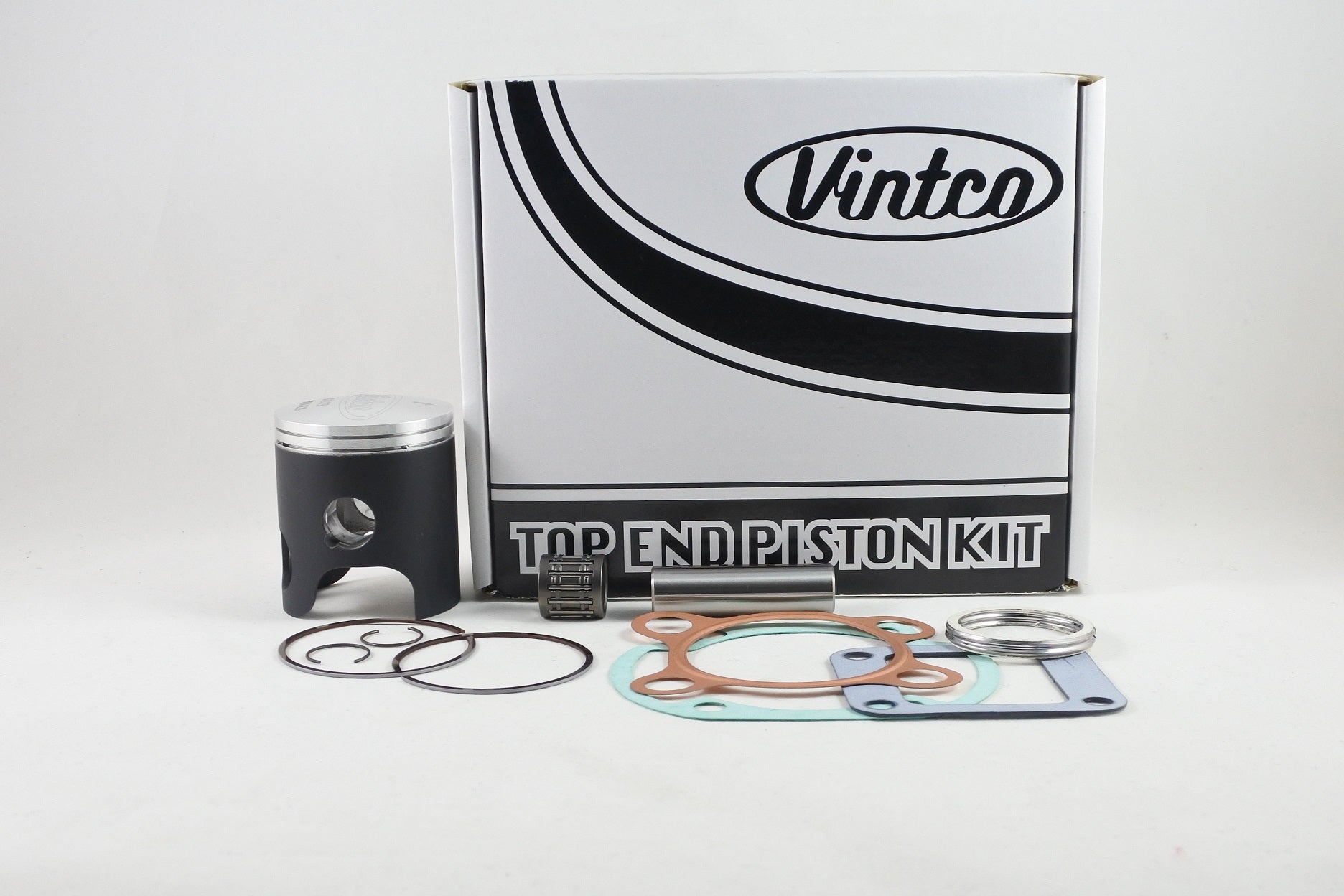

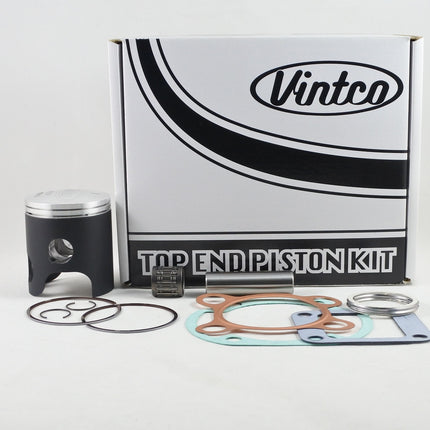

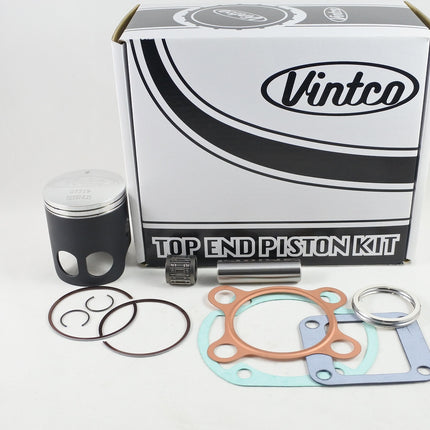

Top end piston kit for the 1976 Yamaha DT125, supplied as a complete package priced at 10% less than the individual items. The kit includes a piston, head gasket, base gasket, reed valve gasket, exhaust pipe gasket and wrist pin bearing for top-end service work.

Features

  • Complete top end piston kit for top-end service work
  • Includes piston, head gasket, base gasket, reed valve gasket, exhaust pipe gasket and wrist pin bearing
  • MOS2-coated piston surface for running-in

Specifications

  • VintCo Part Number: KTY70-0.25
  • Piston type: Forged
  • Country of manufacture: Germany
  • Oversize: 0.25 mm
  • Piston size: 56.25 mm
  • Listed size: 56.19 mm
  • Clearance: 0.06 mm

Cross-Reference OEM Part Numbers

  • Head gasket: 248-11181-00-00
  • Base gasket: 1WE-11351-00-00
  • Reed valve gasket: 87A13621-00-00
  • Exhaust pipe gasket: 3PA-14613-10-00

Vehicle Fitments

  • 1976 Yamaha DT125

Top End Piston Kit 76-76 Yamaha Dt 125 56.25mm 0.25mm Over Vintco KTY70-0.25

Product form

Top end piston kit for the 1976 Yamaha DT125, supplied as a complete package priced at 10% less than the... Read more

Out of stock

£173.71 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    SKU: VIN-KTY70-0.25
    Barcode: 0120000102686

    • Free shipping on all orders above £75
    • No hassle returns within 30 days

    Description

    Top end piston kit for the 1976 Yamaha DT125, supplied as a complete package priced at 10% less than the individual items. The kit includes a piston, head gasket, base gasket, reed valve gasket, exhaust pipe gasket and wrist pin bearing for top-end service work.

    Features

    • Complete top end piston kit for top-end service work
    • Includes piston, head gasket, base gasket, reed valve gasket, exhaust pipe gasket and wrist pin bearing
    • MOS2-coated piston surface for running-in

    Specifications

    • VintCo Part Number: KTY70-0.25
    • Piston type: Forged
    • Country of manufacture: Germany
    • Oversize: 0.25 mm
    • Piston size: 56.25 mm
    • Listed size: 56.19 mm
    • Clearance: 0.06 mm

    Cross-Reference OEM Part Numbers

    • Head gasket: 248-11181-00-00
    • Base gasket: 1WE-11351-00-00
    • Reed valve gasket: 87A13621-00-00
    • Exhaust pipe gasket: 3PA-14613-10-00

    Vehicle Fitments

    • 1976 Yamaha DT125
