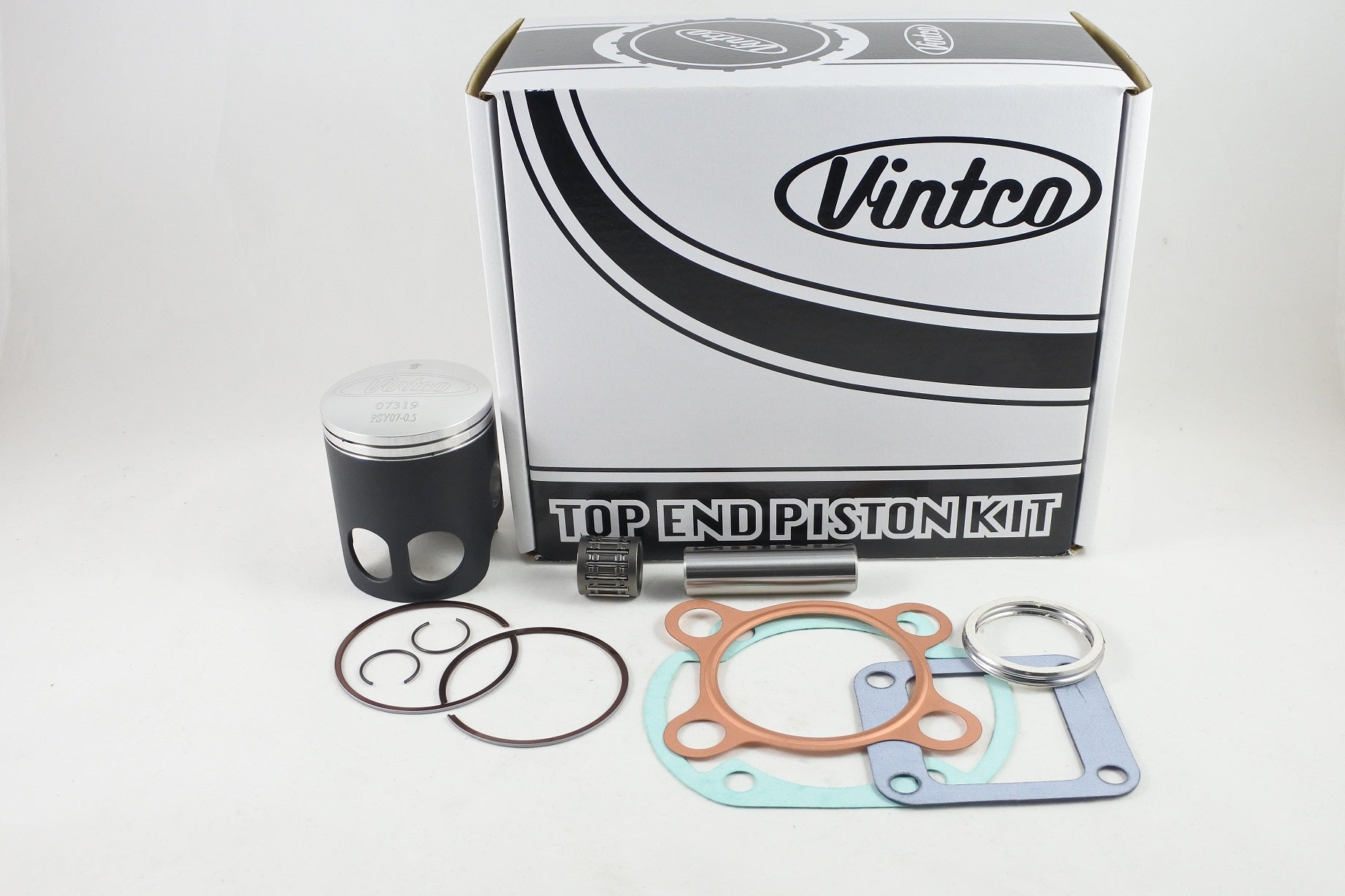

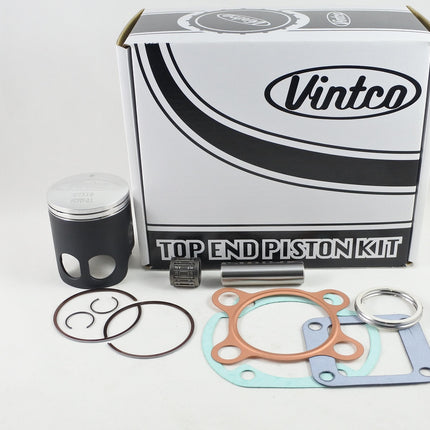

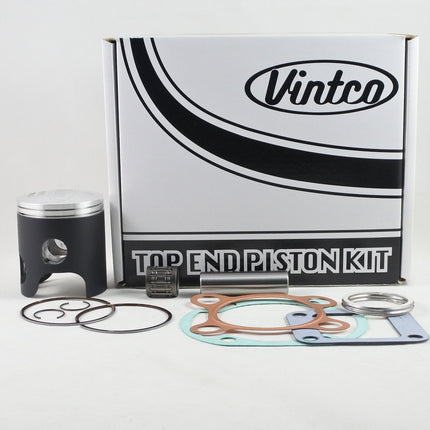

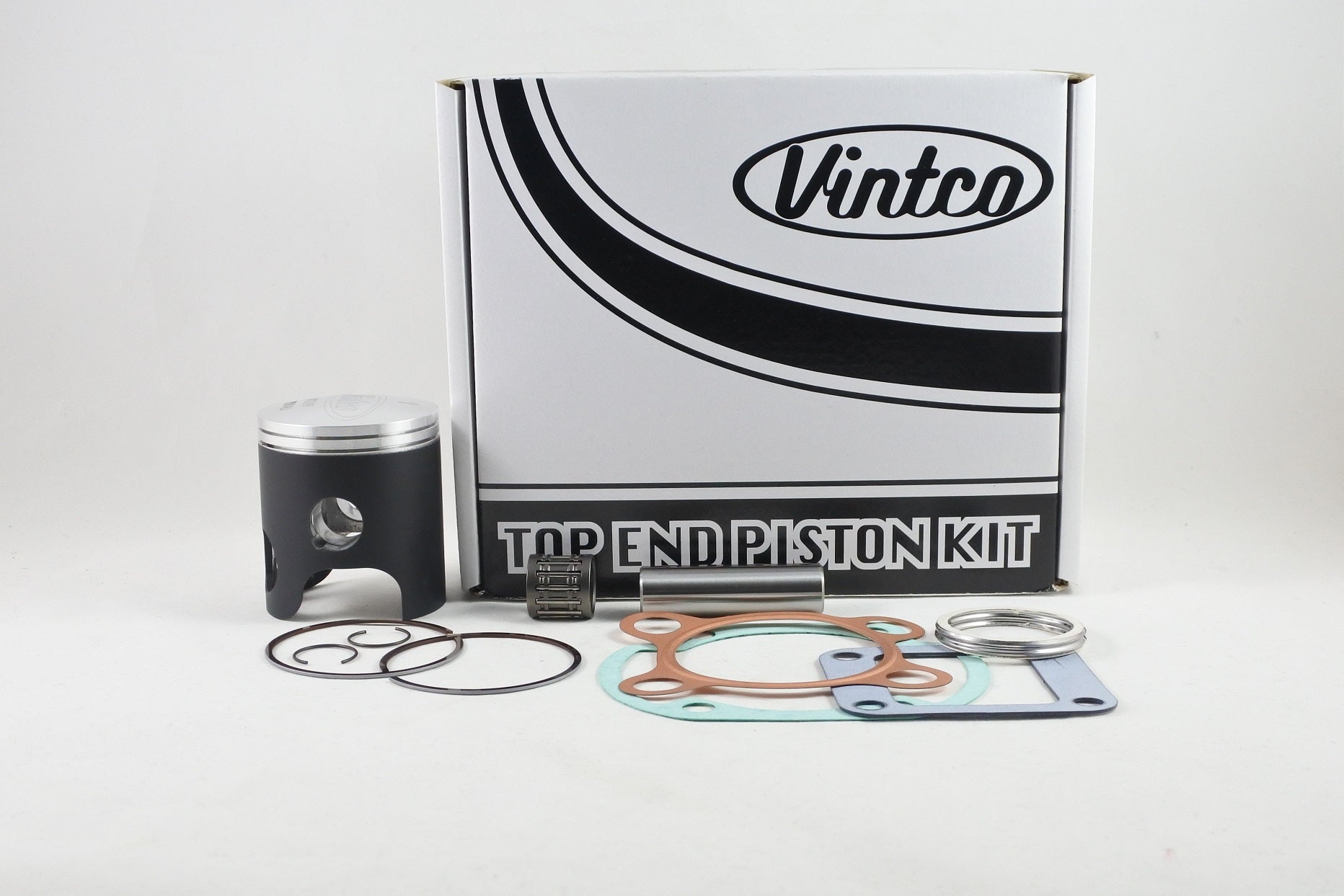

Top End Piston Kit 76-76 Yamaha Dt 125 56.5mm +0.5mm Over Vintco KTY70-0.5

Description

This top end piston kit is designed for the 1976 Yamaha DT125 and includes a forged piston made in Germany with an MOS2 coating for running-in, along with the required gaskets and a wrist pin bearing for top-end service.

Features

  • Kit price includes a 10% discount compared with individual items
  • Top end kit for Yamaha DT125
  • Forged piston
  • MOS2-coated piston for running-in
  • Includes head gasket
  • Includes base gasket
  • Includes reed valve gasket
  • Includes exhaust pipe gasket
  • Includes wrist pin bearing

Specifications

  • VintCo Part Number: KTY70-0.5
  • Size: 56.5 mm
  • Oversize: +0.5 mm
  • Piston size: 56.44 mm
  • Clearance: 0.06 mm
  • Piston origin: Germany

Cross-Reference OEM Part Numbers

  • Head gasket: 248-11181-00-00
  • Base gasket: 1WE-11351-00-00
  • Reed valve gasket: 87A13621-00-00
  • Exhaust pipe gasket: 3PA-14613-10-00

Vehicle Fitments

  • 1976 Yamaha DT125

Top End Piston Kit 76-76 Yamaha Dt 125 56.5mm +0.5mm Over Vintco KTY70-0.5

Product form

This top end piston kit is designed for the 1976 Yamaha DT125 and includes a forged piston made in Germany... Read more

Out of stock

£173.71 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    SKU: VIN-KTY70-0.5
    Barcode: 0120000102693

    • Free shipping on all orders above £75
    • No hassle returns within 30 days

    Description

    This top end piston kit is designed for the 1976 Yamaha DT125 and includes a forged piston made in Germany with an MOS2 coating for running-in, along with the required gaskets and a wrist pin bearing for top-end service.

    Features

    • Kit price includes a 10% discount compared with individual items
    • Top end kit for Yamaha DT125
    • Forged piston
    • MOS2-coated piston for running-in
    • Includes head gasket
    • Includes base gasket
    • Includes reed valve gasket
    • Includes exhaust pipe gasket
    • Includes wrist pin bearing

    Specifications

    • VintCo Part Number: KTY70-0.5
    • Size: 56.5 mm
    • Oversize: +0.5 mm
    • Piston size: 56.44 mm
    • Clearance: 0.06 mm
    • Piston origin: Germany

    Cross-Reference OEM Part Numbers

    • Head gasket: 248-11181-00-00
    • Base gasket: 1WE-11351-00-00
    • Reed valve gasket: 87A13621-00-00
    • Exhaust pipe gasket: 3PA-14613-10-00

    Vehicle Fitments

    • 1976 Yamaha DT125
