Top End Piston Kit 76-76 Yamaha Dt 125 56mm Standard Vintco KTY70-00

Description

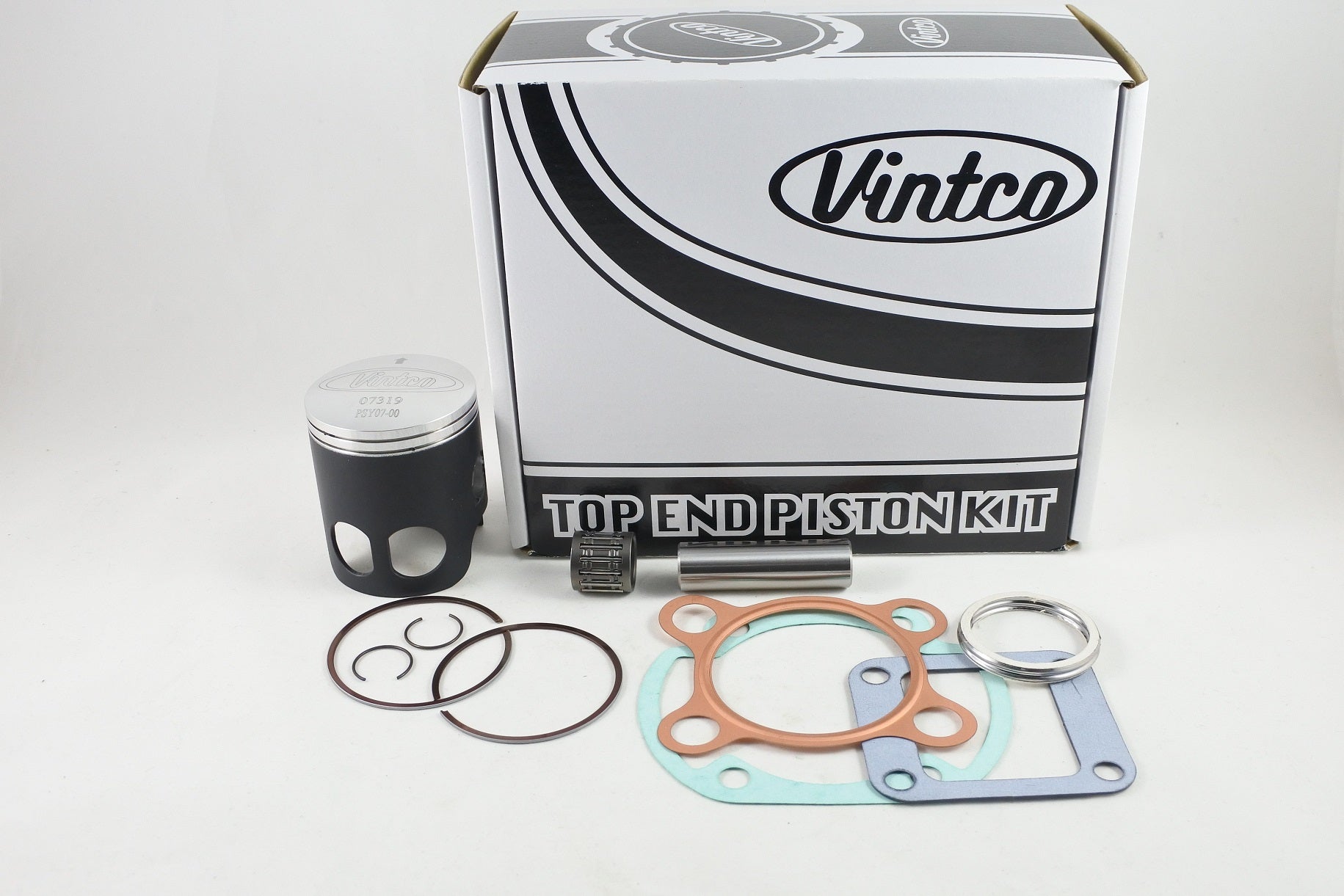

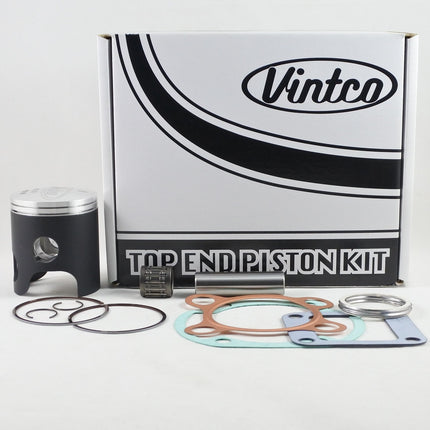

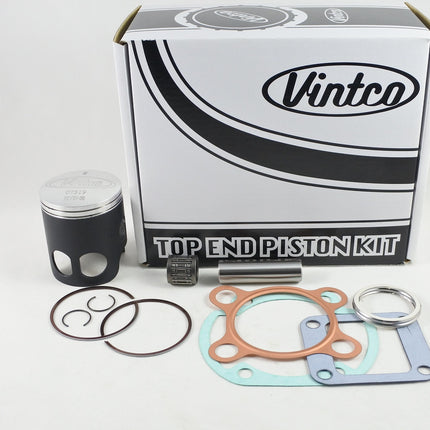

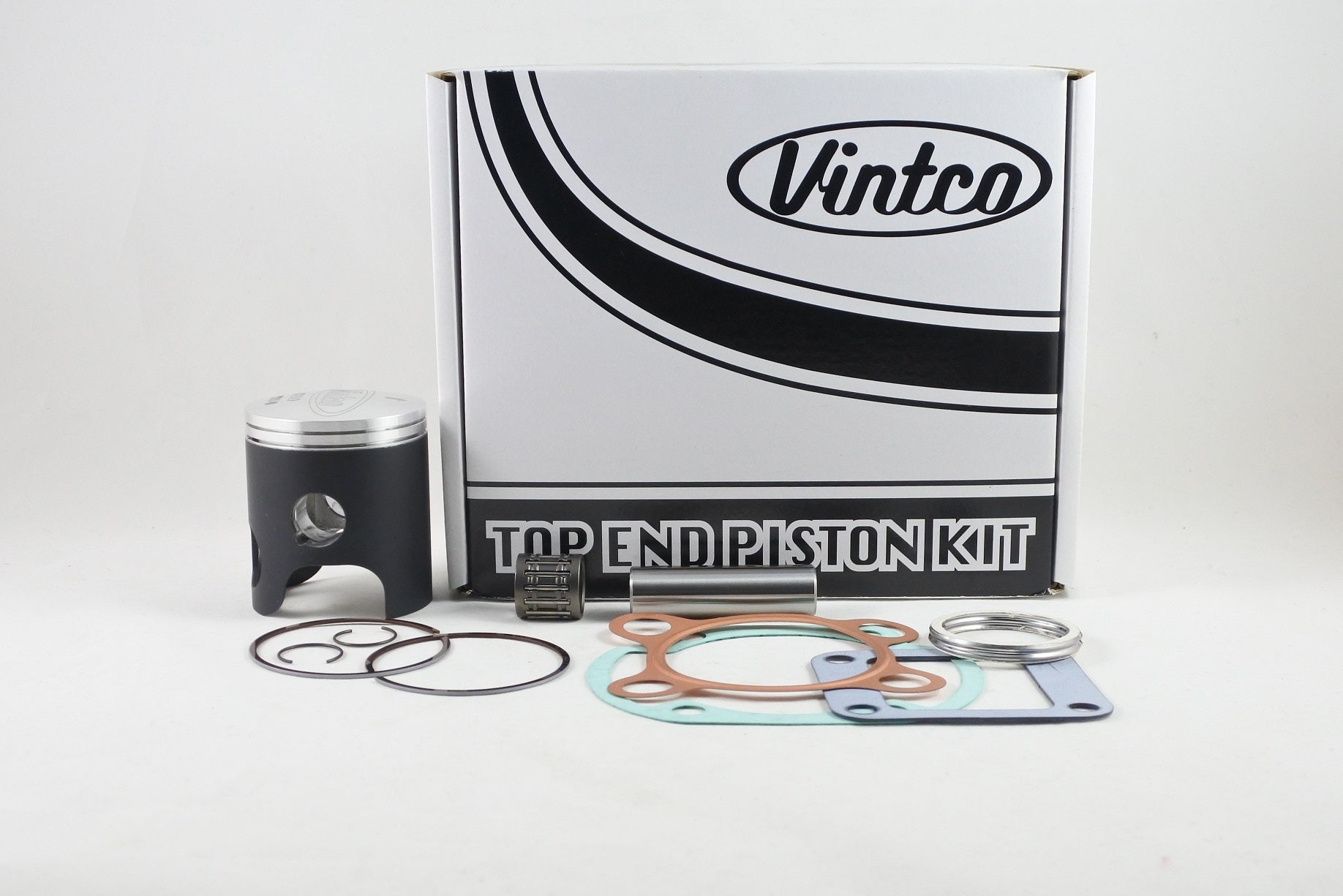

This top end piston kit is for the 1976 Yamaha DT125 and is supplied as a standard-size 56 mm assembly. The kit includes a forged piston made in Germany with an MOS2 coating for running-in, along with the required head, base, reed valve and exhaust pipe gaskets, plus a wrist pin bearing. The kit price reflects a 10% reduction compared with purchasing the individual items separately.

Features

  • Complete top end kit for standard-size rebuild work
  • Includes piston, head gasket, base gasket, reed valve gasket, exhaust pipe gasket and wrist pin bearing
  • Supplied for top end service on the specified model

Specifications

  • VintCo Part Number: KTY70-00
  • Piston size: 56 mm standard
  • Piston diameter: 55.94 mm
  • Clearance: 0.06 mm
  • Piston type: Forged
  • Coating: MOS2
  • Country of manufacture: Germany

Cross-Reference OEM Part Numbers

  • Head gasket: 248-11181-00-00
  • Base gasket: 1WE-11351-00-00
  • Reed valve gasket: 87A13621-00-00
  • Exhaust pipe gasket: 3PA-14613-10-00

Vehicle Fitments

  • 1976 Yamaha DT125

Top End Piston Kit 76-76 Yamaha Dt 125 56mm Standard Vintco KTY70-00

Product form

This top end piston kit is for the 1976 Yamaha DT125 and is supplied as a standard-size 56 mm assembly.... Read more

Out of stock

£173.71 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    SKU: VIN-KTY70-00
    Barcode: 0120000102709

    • Free shipping on all orders above £75
    • No hassle returns within 30 days

    Description

    This top end piston kit is for the 1976 Yamaha DT125 and is supplied as a standard-size 56 mm assembly. The kit includes a forged piston made in Germany with an MOS2 coating for running-in, along with the required head, base, reed valve and exhaust pipe gaskets, plus a wrist pin bearing. The kit price reflects a 10% reduction compared with purchasing the individual items separately.

    Features

    • Complete top end kit for standard-size rebuild work
    • Includes piston, head gasket, base gasket, reed valve gasket, exhaust pipe gasket and wrist pin bearing
    • Supplied for top end service on the specified model

    Specifications

    • VintCo Part Number: KTY70-00
    • Piston size: 56 mm standard
    • Piston diameter: 55.94 mm
    • Clearance: 0.06 mm
    • Piston type: Forged
    • Coating: MOS2
    • Country of manufacture: Germany

    Cross-Reference OEM Part Numbers

    • Head gasket: 248-11181-00-00
    • Base gasket: 1WE-11351-00-00
    • Reed valve gasket: 87A13621-00-00
    • Exhaust pipe gasket: 3PA-14613-10-00

    Vehicle Fitments

    • 1976 Yamaha DT125
