Top End Piston Kit 76-76 Yamaha Lb Iia 80 48.5mm +1.5mm Over Vintco KTY56-1.5

Description

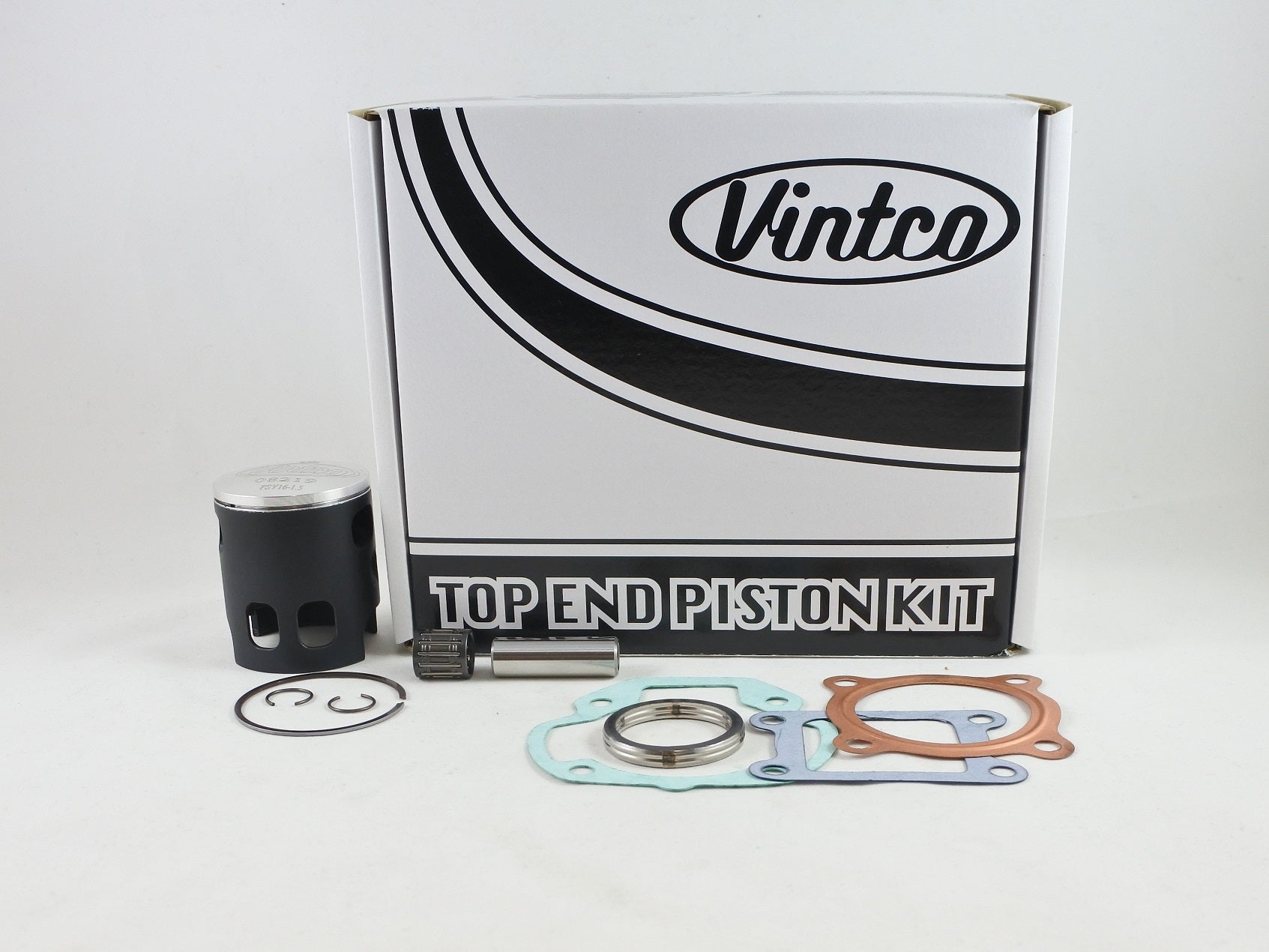

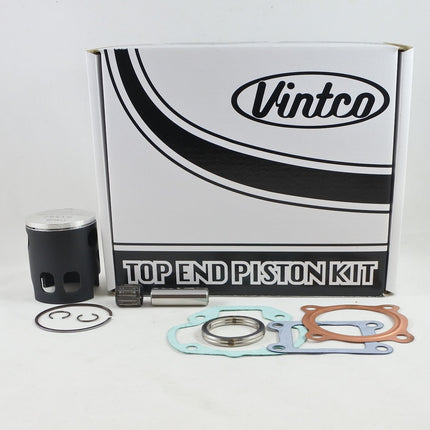

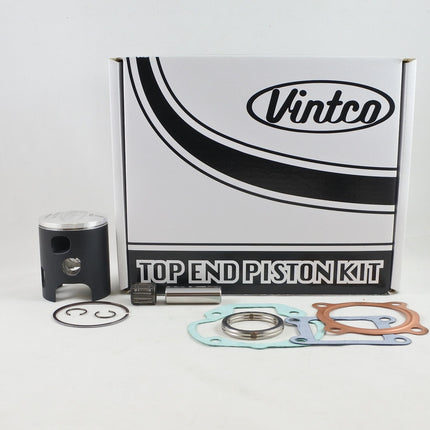

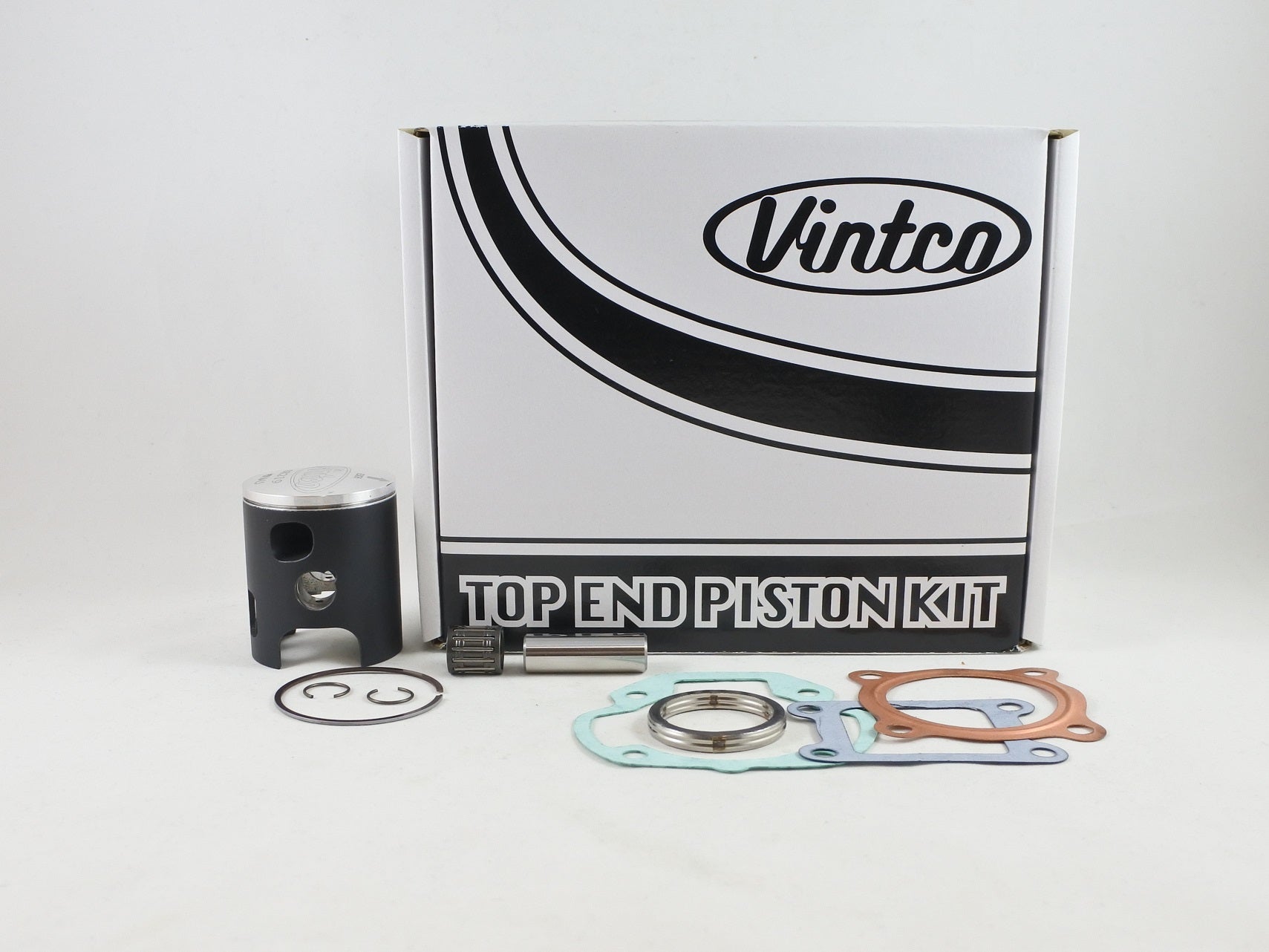

Top end piston kit for the 1976 Yamaha LB80IIA, supplied with a +1.5 mm over piston, wrist pin bearing, and the required top-end gaskets for cylinder head, cylinder base, reed valve, and exhaust pipe. The piston is forged, manufactured in Germany, and MOS2 coated for break-in. Kit pricing includes a 10% discount compared with purchasing the items individually.

Features

  • Complete top end piston kit
  • Includes forged piston
  • MOS2 coated for break-in
  • Includes cylinder head gasket
  • Includes cylinder base gasket
  • Includes reed valve gasket
  • Includes exhaust pipe gasket
  • Includes wrist pin bearing
  • Kit price includes 10% discount over individual items

Specifications

  • VintCo Part Number: KTY56-1.5
  • Piston size: 48.5 mm
  • Oversize: +1.5 mm
  • Piston diameter: 48.45 mm
  • Clearance: 0.05 mm
  • Piston manufacture: Germany

Cross-Reference OEM Part Numbers

  • Cylinder Head Gasket: 2F4-11181-00-00
  • Cylinder Base Gasket: 440-11351-01-00
  • Reed Valve Gasket: 3MT-13621-00-00
  • Exhaust Pipe Gasket: 3MT-14613-00-00

Vehicle Fitments

  • 1976 Yamaha LB80IIA

Top End Piston Kit 76-76 Yamaha Lb Iia 80 48.5mm +1.5mm Over Vintco KTY56-1.5

Product form

Top end piston kit for the 1976 Yamaha LB80IIA, supplied with a +1.5 mm over piston, wrist pin bearing, and... Read more

Out of stock

£144.38 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    SKU: VIN-KTY56-1.5
    Barcode: 0120000102228

    • Free shipping on all orders above £75
    • No hassle returns within 30 days

    Description

    Top end piston kit for the 1976 Yamaha LB80IIA, supplied with a +1.5 mm over piston, wrist pin bearing, and the required top-end gaskets for cylinder head, cylinder base, reed valve, and exhaust pipe. The piston is forged, manufactured in Germany, and MOS2 coated for break-in. Kit pricing includes a 10% discount compared with purchasing the items individually.

    Features

    • Complete top end piston kit
    • Includes forged piston
    • MOS2 coated for break-in
    • Includes cylinder head gasket
    • Includes cylinder base gasket
    • Includes reed valve gasket
    • Includes exhaust pipe gasket
    • Includes wrist pin bearing
    • Kit price includes 10% discount over individual items

    Specifications

    • VintCo Part Number: KTY56-1.5
    • Piston size: 48.5 mm
    • Oversize: +1.5 mm
    • Piston diameter: 48.45 mm
    • Clearance: 0.05 mm
    • Piston manufacture: Germany

    Cross-Reference OEM Part Numbers

    • Cylinder Head Gasket: 2F4-11181-00-00
    • Cylinder Base Gasket: 440-11351-01-00
    • Reed Valve Gasket: 3MT-13621-00-00
    • Exhaust Pipe Gasket: 3MT-14613-00-00

    Vehicle Fitments

    • 1976 Yamaha LB80IIA
