Top End Piston Kit 80-81 Yamaha It 175 67.5mm 1.5mm Over Vintco KTY28-1.5

Description

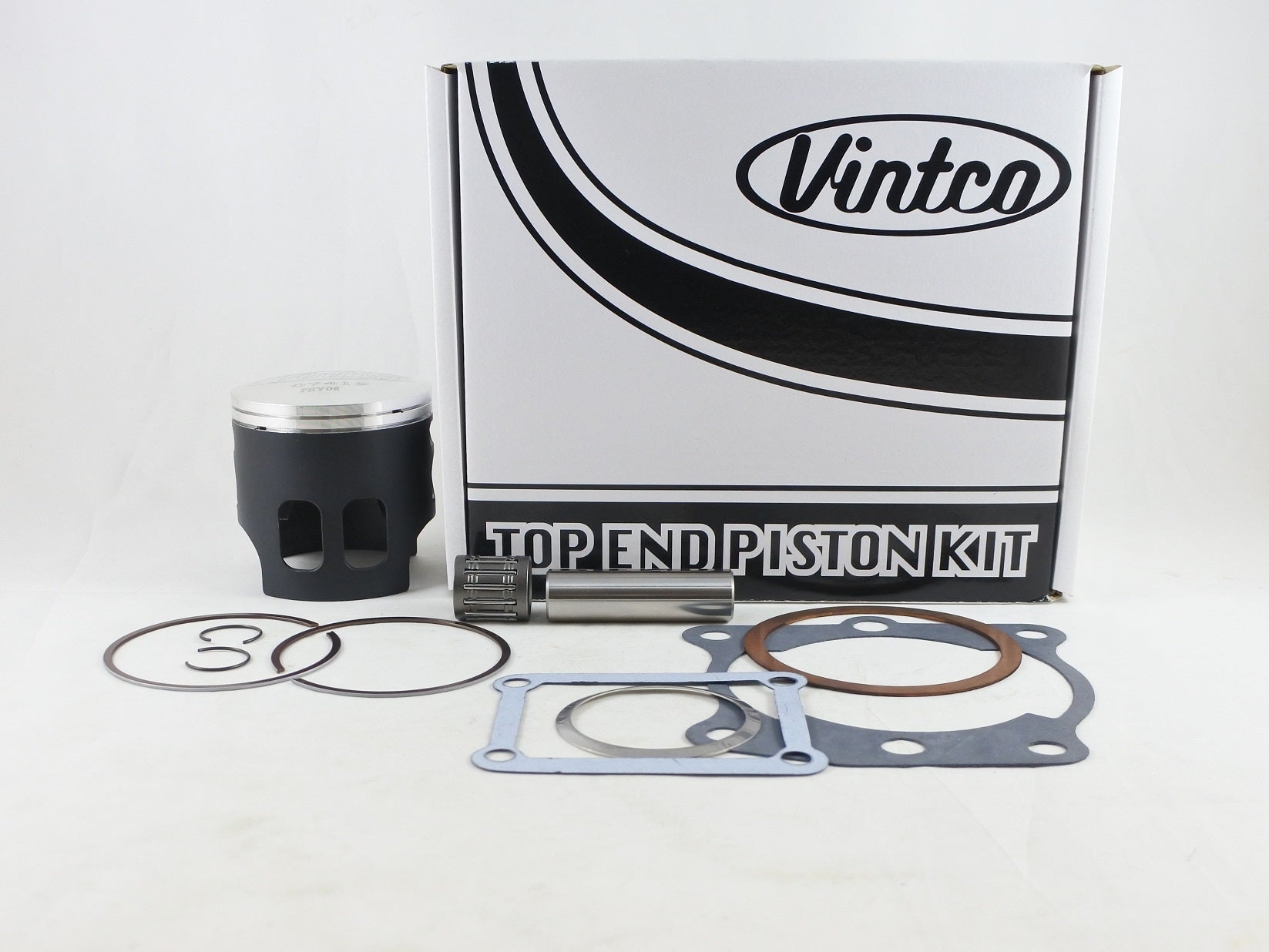

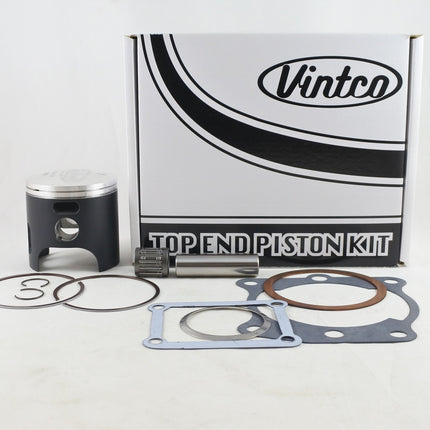

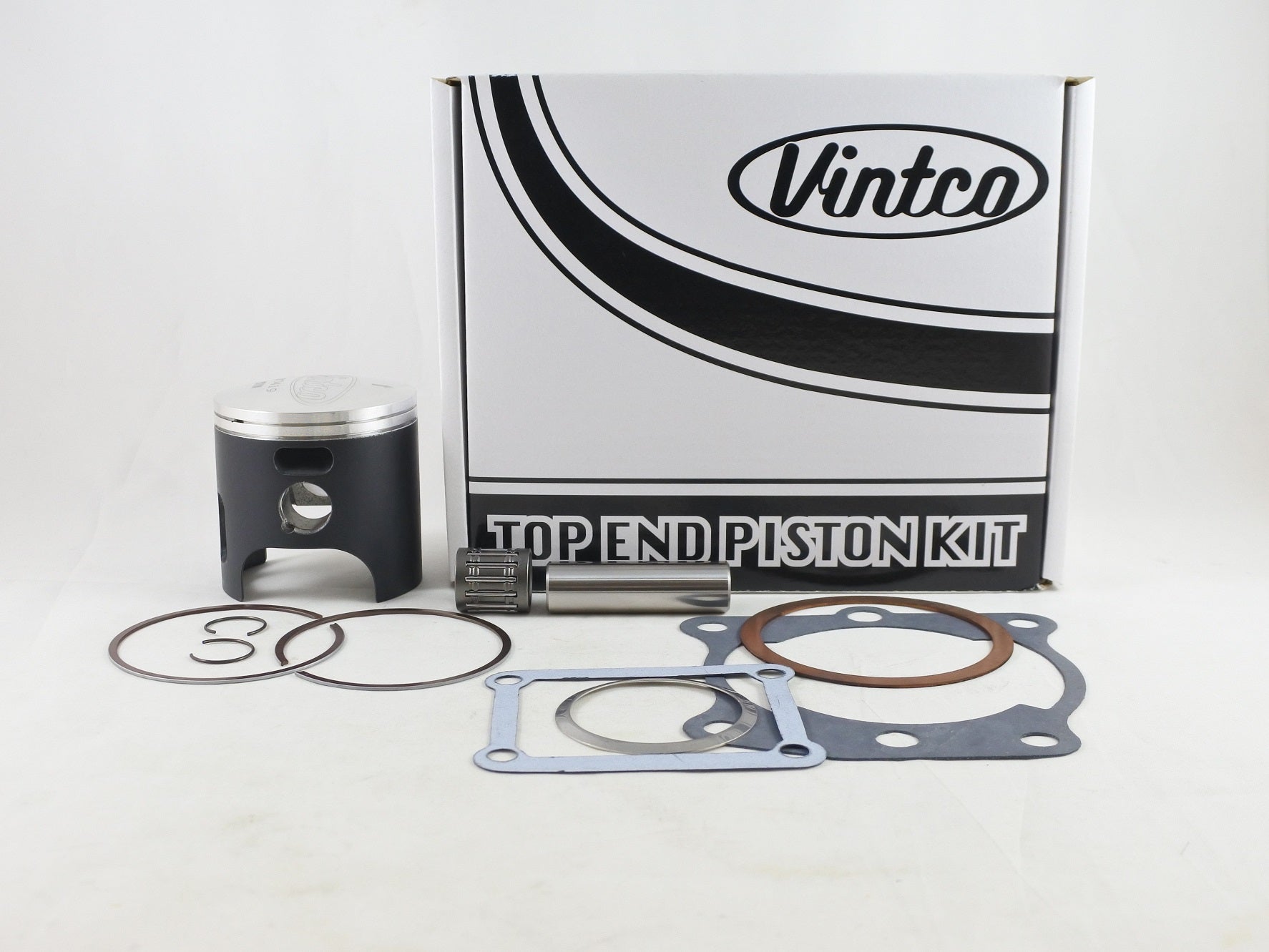

Top end piston kit for the 1980-1981 Yamaha IT175, supplied as a complete set with a forged piston, gasket set and wrist pin bearing. This 67.5 mm, 1.5 mm oversize kit is intended for top end servicing and includes a piston made in Germany with an MOS2 coating for break-in, along with the required cylinder head, cylinder base, intake and exhaust pipe gaskets.

Features

  • Complete top end piston kit
  • Forged piston
  • Piston made in Germany
  • MOS2 coated for break-in
  • Includes cylinder head gasket
  • Includes cylinder base gasket
  • Includes intake gasket
  • Includes exhaust pipe gasket
  • Includes wrist pin bearing
  • Kit pricing includes a 10% discount compared with the individual items

Specifications

  • VintCo Part Number: KTY28-1.5
  • Nominal piston size: 67.5 mm
  • Oversize: 1.5 mm over
  • Measured piston size: 67.44 mm
  • Clearance: 0.06 mm

Cross-Reference OEM Part Numbers

  • Cylinder Head Gasket: 3R6-11181-00-00
  • Cylinder Base Gasket: 3R3-11351-01-00
  • Intake Gasket: 3R3-13621-01-00
  • Exhaust Pipe Gasket: 3R6-14613-01-00

Vehicle Fitments

  • 1980 Yamaha IT175
  • 1981 Yamaha IT175

Top End Piston Kit 80-81 Yamaha It 175 67.5mm 1.5mm Over Vintco KTY28-1.5

Product form

Top end piston kit for the 1980-1981 Yamaha IT175, supplied as a complete set with a forged piston, gasket set... Read more

Out of stock

£269.76 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    SKU: VIN-KTY28-1.5
    Barcode: 0120000103348

    • Free shipping on all orders above £75
    • No hassle returns within 30 days

    Description

    Top end piston kit for the 1980-1981 Yamaha IT175, supplied as a complete set with a forged piston, gasket set and wrist pin bearing. This 67.5 mm, 1.5 mm oversize kit is intended for top end servicing and includes a piston made in Germany with an MOS2 coating for break-in, along with the required cylinder head, cylinder base, intake and exhaust pipe gaskets.

    Features

    • Complete top end piston kit
    • Forged piston
    • Piston made in Germany
    • MOS2 coated for break-in
    • Includes cylinder head gasket
    • Includes cylinder base gasket
    • Includes intake gasket
    • Includes exhaust pipe gasket
    • Includes wrist pin bearing
    • Kit pricing includes a 10% discount compared with the individual items

    Specifications

    • VintCo Part Number: KTY28-1.5
    • Nominal piston size: 67.5 mm
    • Oversize: 1.5 mm over
    • Measured piston size: 67.44 mm
    • Clearance: 0.06 mm

    Cross-Reference OEM Part Numbers

    • Cylinder Head Gasket: 3R6-11181-00-00
    • Cylinder Base Gasket: 3R3-11351-01-00
    • Intake Gasket: 3R3-13621-01-00
    • Exhaust Pipe Gasket: 3R6-14613-01-00

    Vehicle Fitments

    • 1980 Yamaha IT175
    • 1981 Yamaha IT175
