Top End Piston Kit 80-81 Yamaha It 175 67mm 1.0mm Over Vintco KTY28-1.0

Description

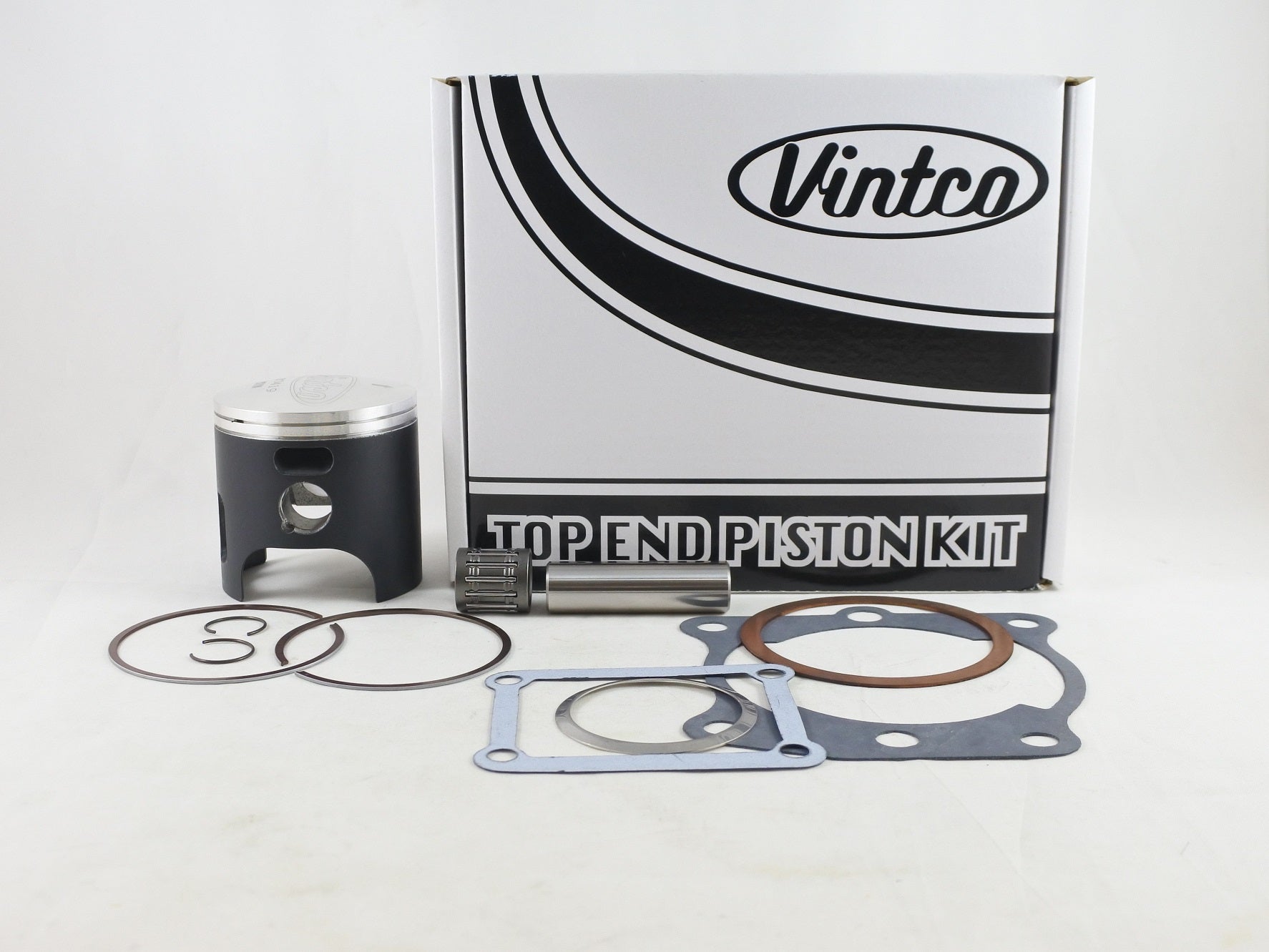

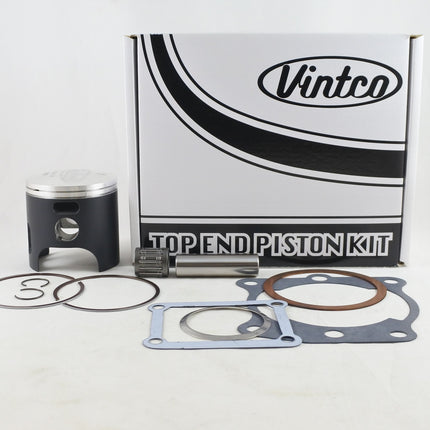

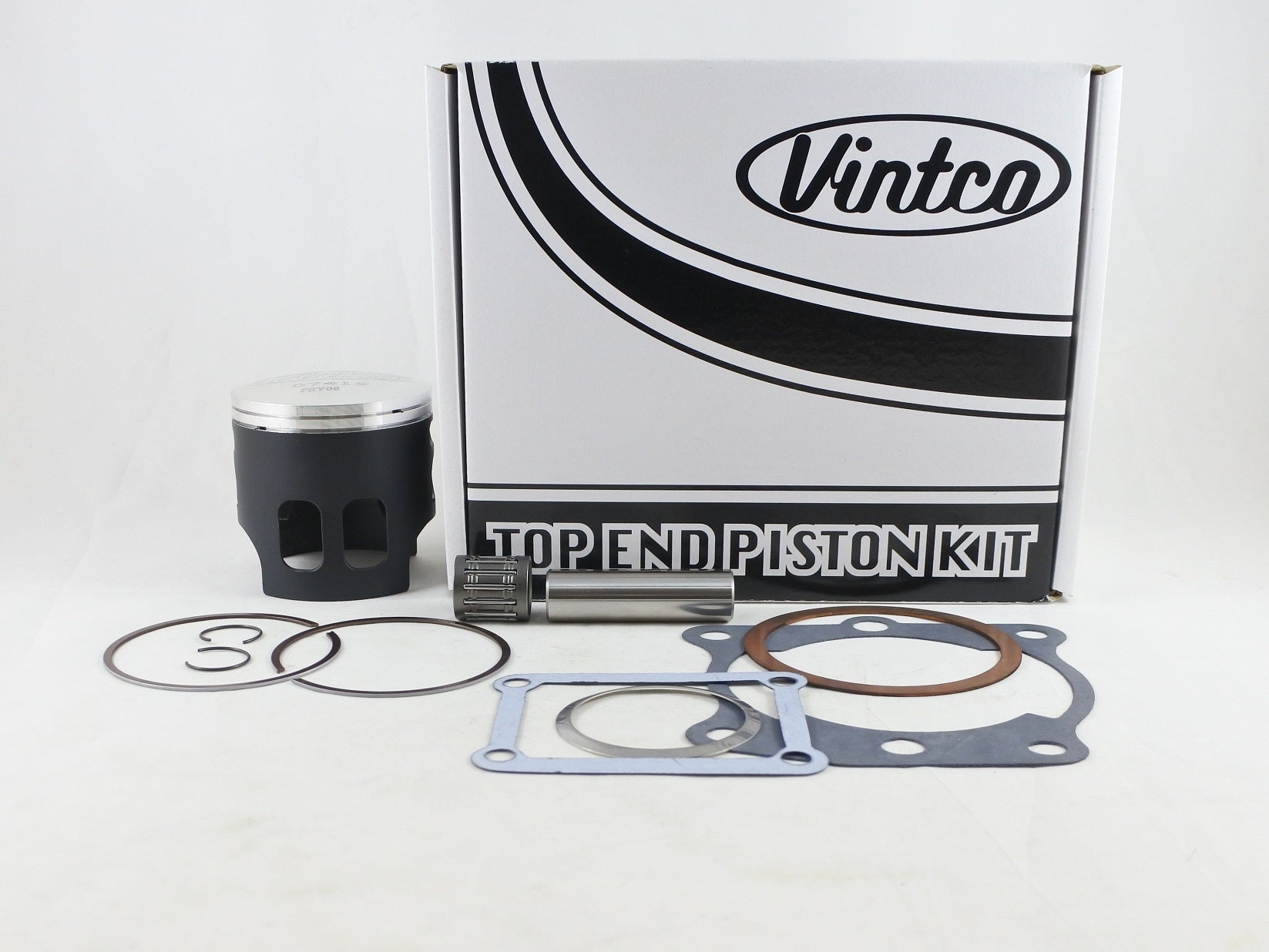

This top end piston kit is designed for 1980-1981 Yamaha IT175 models and is supplied in a 67 mm, 1.0 mm oversize configuration for top end service work. The kit includes a forged piston made in Germany with MOS2 coating for running-in, together with cylinder head, cylinder base, intake and exhaust pipe gaskets, plus a wrist pin bearing. Kit pricing is 10% lower than the combined price of the individual items.

Features

  • Complete top end piston kit
  • Includes piston, wrist pin bearing and gasket set
  • Includes cylinder head gasket
  • Includes cylinder base gasket
  • Includes intake gasket
  • Includes exhaust pipe gasket
  • Suitable for top end service on Yamaha IT175 models

Specifications

  • VintCo Part Number: KTY28-1.0
  • Piston size: 67 mm
  • Oversize: 1.0 mm over
  • Piston measurement: 66.94 mm
  • Clearance: 0.06 mm
  • Piston construction: Forged
  • Coating: MOS2
  • Country of manufacture: Germany

Cross-Reference OEM Part Numbers

  • Cylinder head gasket: 3R6-11181-00-00
  • Cylinder base gasket: 3R3-11351-01-00
  • Intake gasket: 3R3-13621-01-00
  • Exhaust pipe gasket: 3R6-14613-01-00

Vehicle Fitments

  • 1980 Yamaha IT175
  • 1981 Yamaha IT175

Top End Piston Kit 80-81 Yamaha It 175 67mm 1.0mm Over Vintco KTY28-1.0

Product form

This top end piston kit is designed for 1980-1981 Yamaha IT175 models and is supplied in a 67 mm, 1.0... Read more

Out of stock

£269.76 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    SKU: VIN-KTY28-1.0
    Barcode: 0120000103331

    • Free shipping on all orders above £75
    • No hassle returns within 30 days

    Description

    This top end piston kit is designed for 1980-1981 Yamaha IT175 models and is supplied in a 67 mm, 1.0 mm oversize configuration for top end service work. The kit includes a forged piston made in Germany with MOS2 coating for running-in, together with cylinder head, cylinder base, intake and exhaust pipe gaskets, plus a wrist pin bearing. Kit pricing is 10% lower than the combined price of the individual items.

    Features

    • Complete top end piston kit
    • Includes piston, wrist pin bearing and gasket set
    • Includes cylinder head gasket
    • Includes cylinder base gasket
    • Includes intake gasket
    • Includes exhaust pipe gasket
    • Suitable for top end service on Yamaha IT175 models

    Specifications

    • VintCo Part Number: KTY28-1.0
    • Piston size: 67 mm
    • Oversize: 1.0 mm over
    • Piston measurement: 66.94 mm
    • Clearance: 0.06 mm
    • Piston construction: Forged
    • Coating: MOS2
    • Country of manufacture: Germany

    Cross-Reference OEM Part Numbers

    • Cylinder head gasket: 3R6-11181-00-00
    • Cylinder base gasket: 3R3-11351-01-00
    • Intake gasket: 3R3-13621-01-00
    • Exhaust pipe gasket: 3R6-14613-01-00

    Vehicle Fitments

    • 1980 Yamaha IT175
    • 1981 Yamaha IT175
