Top End Piston Kit 83-83 Yamaha It 250 69mm 1.0mm Over Vintco KTY45-1.0

Description

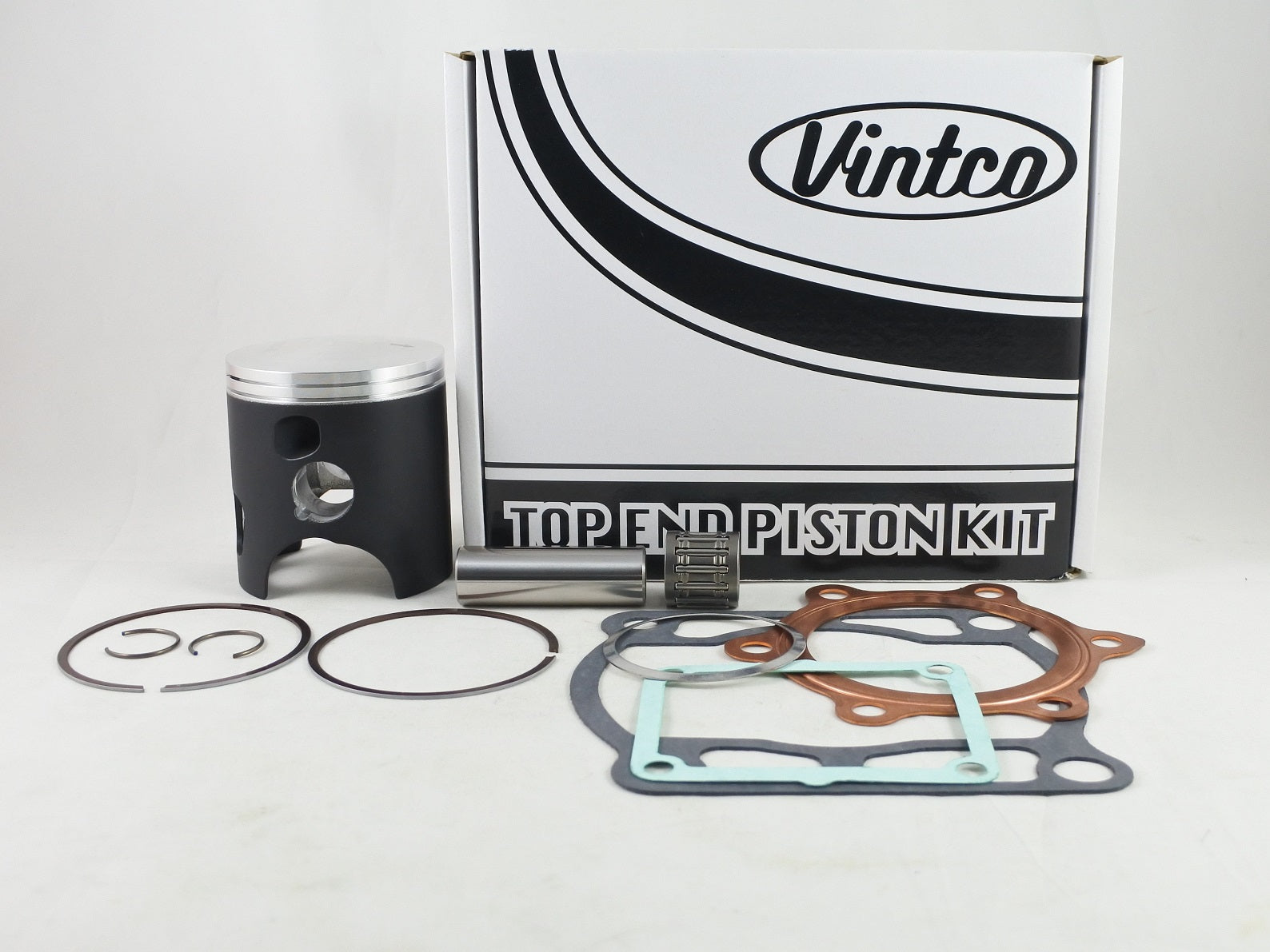

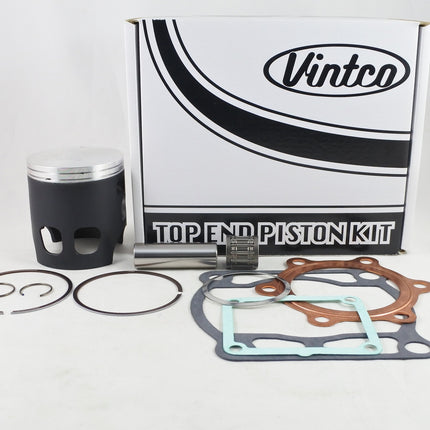

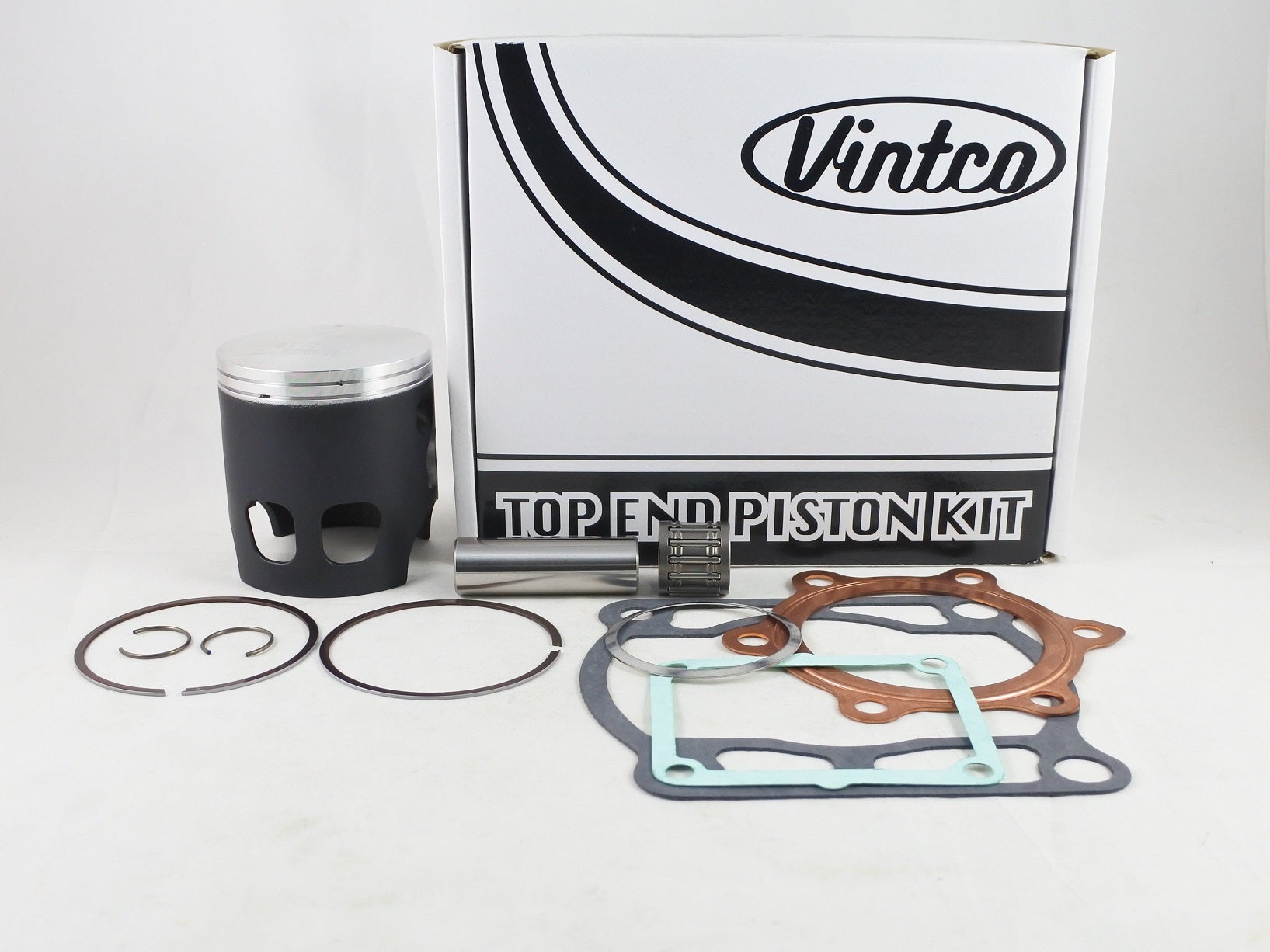

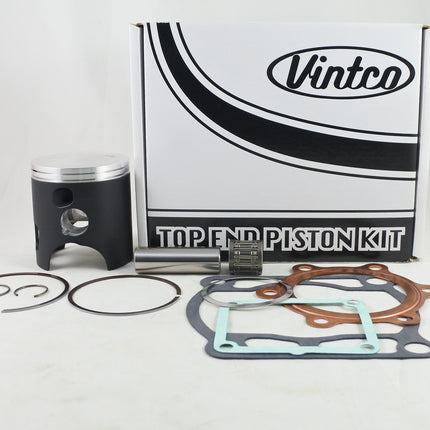

VintCo top end piston kit KTY45-1.0 is a 69 mm, 1.0 mm oversize kit for the 1983 Yamaha IT250. It includes a forged piston made in Germany with an MOS2 coating for break-in, along with the main sealing components and a wrist pin bearing required for top end service.

Features

  • Supplied as a complete top end piston kit
  • Includes forged piston
  • MOS2-coated piston for break-in
  • Includes cylinder head gasket
  • Includes cylinder base gasket
  • Includes intake gasket
  • Includes exhaust pipe gasket
  • Includes wrist pin bearing
  • Kit pricing is listed at 10% less than purchasing the included items individually

Specifications

  • VintCo Part Number: KTY45-1.0
  • Nominal piston size: 69 mm
  • Oversize: 1.0 mm over
  • Piston measurement: 68.94 mm
  • Recommended clearance: 0.06 mm
  • Country of manufacture: Germany

Cross-Reference OEM Part Numbers

  • Cylinder head gasket: 25Y-11181-00-00
  • Cylinder base gasket: 3R4-11351-01-00
  • Intake gasket: 80L-13621-01-00
  • Exhaust pipe gasket: 3R4-14613-00-00

Vehicle Fitments

  • 1983 Yamaha IT250

Top End Piston Kit 83-83 Yamaha It 250 69mm 1.0mm Over Vintco KTY45-1.0

Product form

VintCo top end piston kit KTY45-1.0 is a 69 mm, 1.0 mm oversize kit for the 1983 Yamaha IT250. It... Read more

Out of stock

£237.40 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    SKU: VIN-KTY45-1.0
    Barcode: 0120000103706

    • Free shipping on all orders above £75
    • No hassle returns within 30 days

    Description

    VintCo top end piston kit KTY45-1.0 is a 69 mm, 1.0 mm oversize kit for the 1983 Yamaha IT250. It includes a forged piston made in Germany with an MOS2 coating for break-in, along with the main sealing components and a wrist pin bearing required for top end service.

    Features

    • Supplied as a complete top end piston kit
    • Includes forged piston
    • MOS2-coated piston for break-in
    • Includes cylinder head gasket
    • Includes cylinder base gasket
    • Includes intake gasket
    • Includes exhaust pipe gasket
    • Includes wrist pin bearing
    • Kit pricing is listed at 10% less than purchasing the included items individually

    Specifications

    • VintCo Part Number: KTY45-1.0
    • Nominal piston size: 69 mm
    • Oversize: 1.0 mm over
    • Piston measurement: 68.94 mm
    • Recommended clearance: 0.06 mm
    • Country of manufacture: Germany

    Cross-Reference OEM Part Numbers

    • Cylinder head gasket: 25Y-11181-00-00
    • Cylinder base gasket: 3R4-11351-01-00
    • Intake gasket: 80L-13621-01-00
    • Exhaust pipe gasket: 3R4-14613-00-00

    Vehicle Fitments

    • 1983 Yamaha IT250
