Top End Piston Kit 83-83 Yamaha YZ 125 56.5mm 0.5mm Over Vintco KTY64-0.5

Description

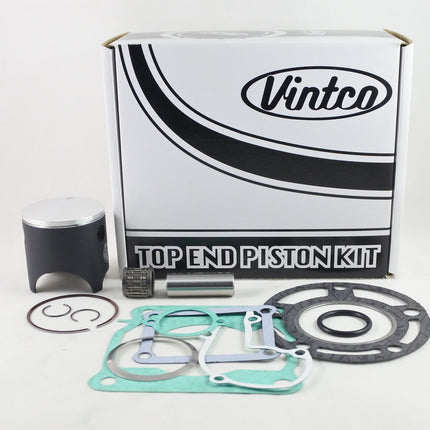

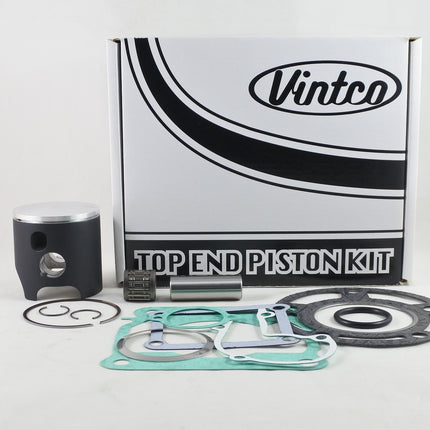

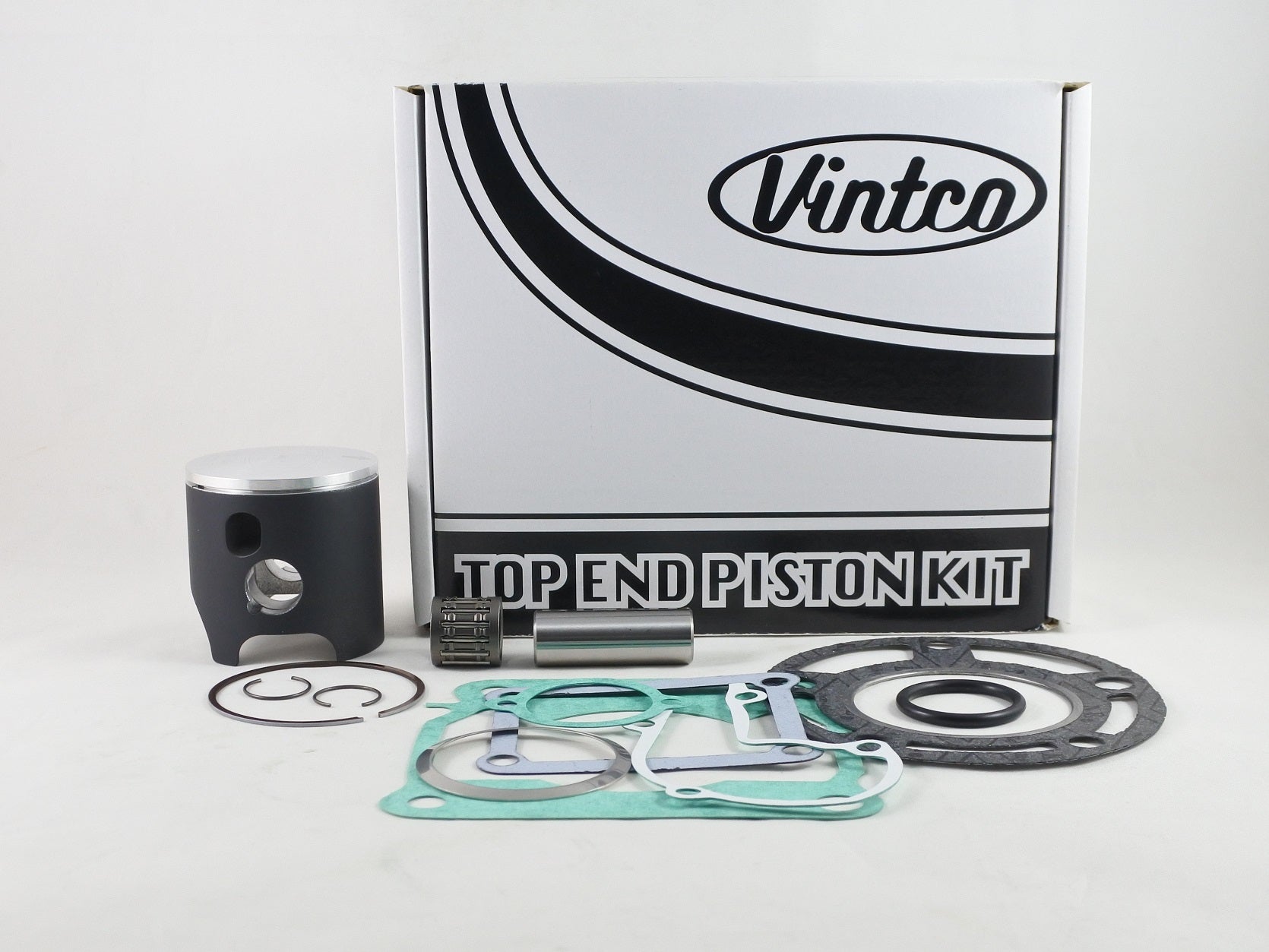

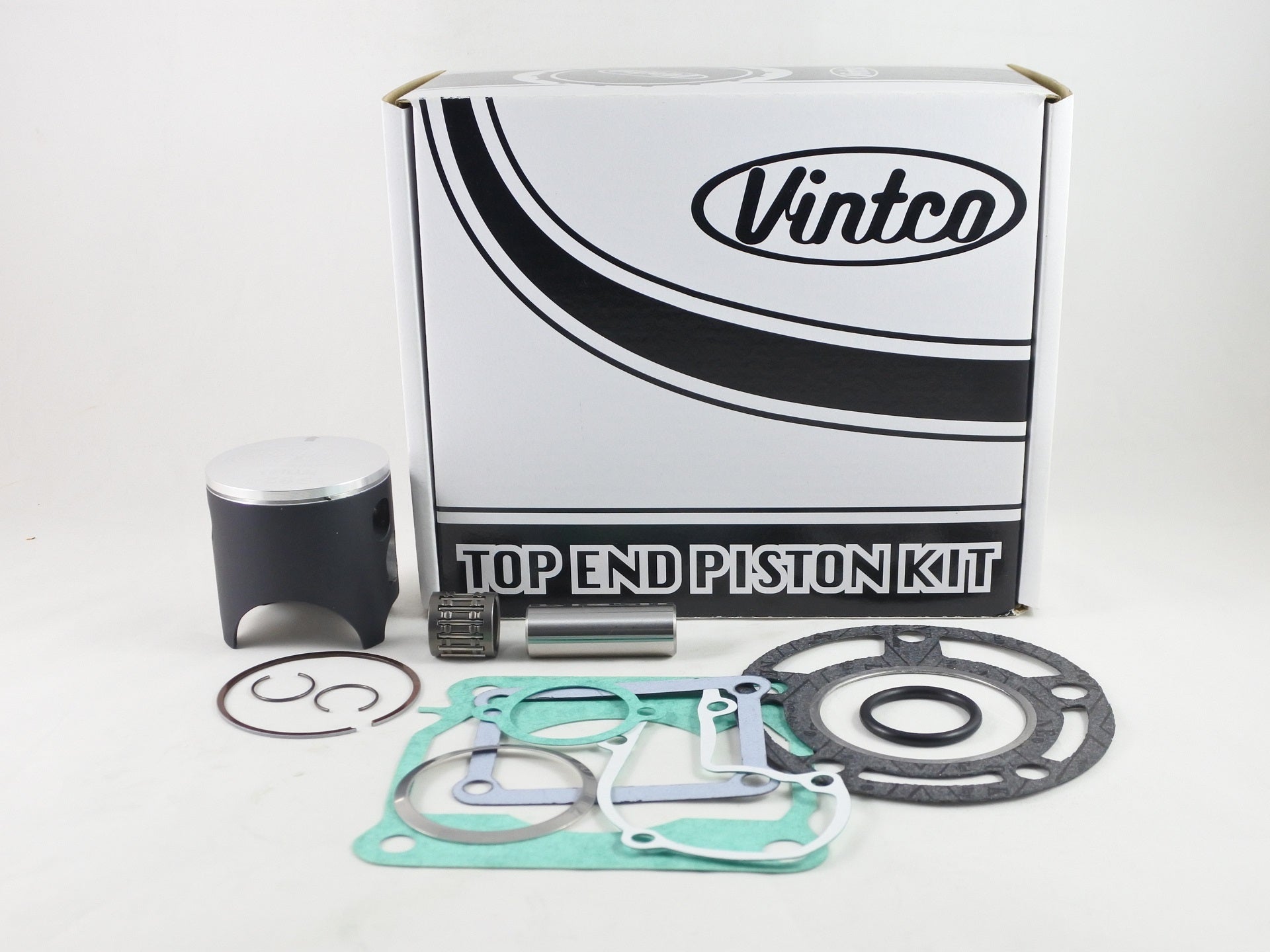

This VintCo top end piston kit is for the 1983 Yamaha YZ125 and is supplied with a 56.5 mm piston in 0.5 mm oversize, together with the related top end gaskets, O-ring and wrist pin bearing required for assembly. The kit price includes a 10% discount compared with purchasing the items individually.

Features

  • Complete top end piston kit for top end rebuild work
  • Forged piston with MOS2 coating for running-in
  • Includes head gasket
  • Includes base gasket
  • Includes intake gasket
  • Includes exhaust pipe gasket
  • Includes O-ring
  • Includes holder gasket
  • Includes power valve gasket
  • Includes wrist pin bearing

Specifications

  • VintCo Part Number: KTY64-0.5
  • Product type: Top end piston kit
  • Piston diameter: 56.5 mm
  • Oversize: 0.5 mm over
  • Standard size: 56.44 mm
  • Clearance: 0.06 mm
  • Piston construction: Forged
  • Piston coating: MOS2
  • Country of manufacture: Germany

Cross-Reference OEM Part Numbers

  • Head gasket: 24X-11181-01-00
  • Base gasket: 24X11351-01-00
  • Intake gasket: 3R3-13621-01-00
  • Exhaust pipe gasket: 3R3-14613-00-00
  • O-ring: 93210-270A8-00
  • Holder gasket: 5X4-1131N-10-00
  • Power valve gasket: 5X4-11993-01-00

Vehicle Fitments

  • 1983 Yamaha YZ125
