Top End Piston Kit 83-83 Yamaha YZ 125 57mm 1.0mm Over Vintco KTY64-1.0

Description

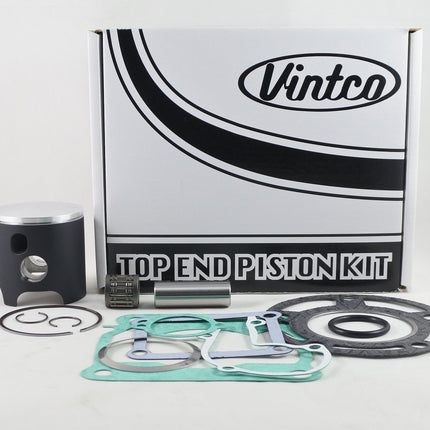

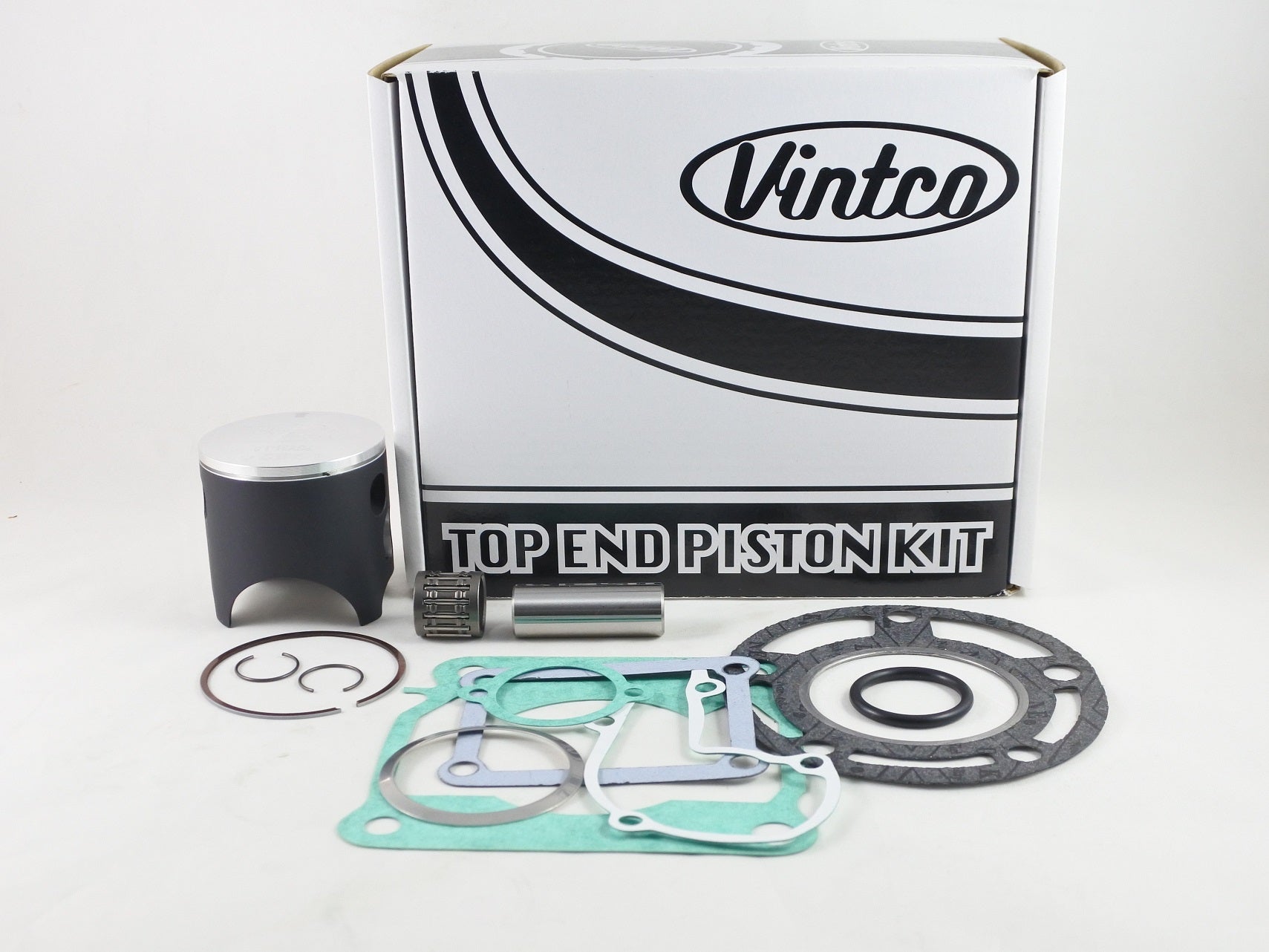

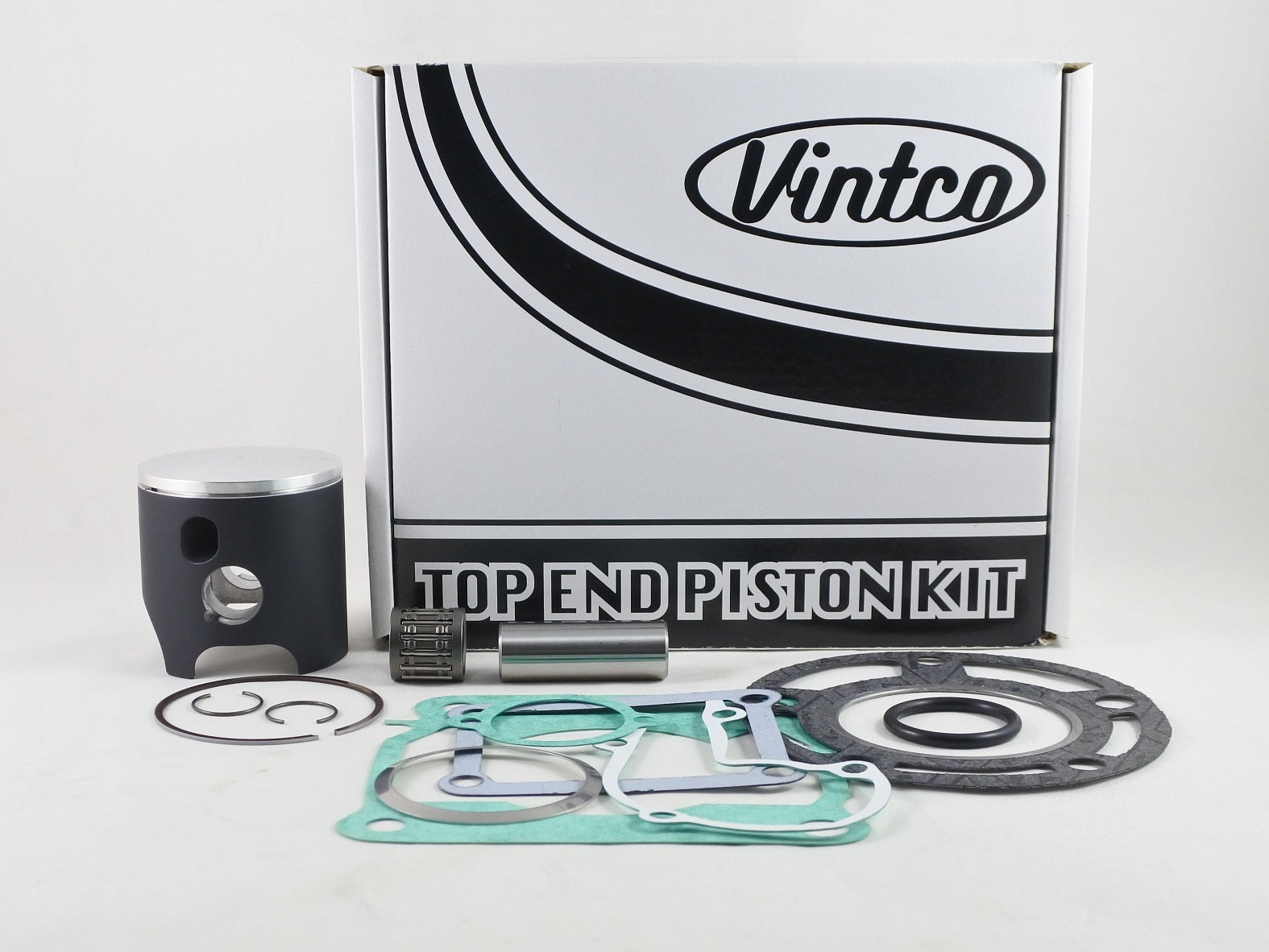

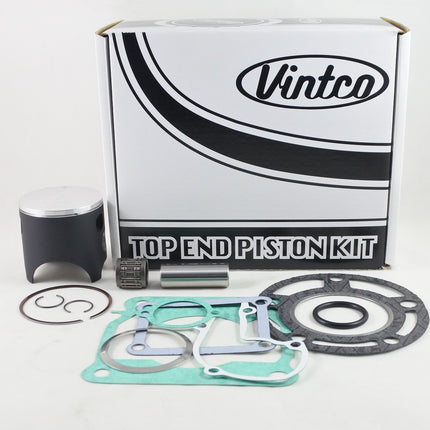

This top end piston kit is for the 1983 Yamaha YZ125 and includes a 57 mm piston in 1.0 mm oversize for top end service work. The kit contains a forged piston made in Germany with MOS2 coating for running-in, together with the required head, base, intake, exhaust pipe, holder and power valve gaskets, an O-ring, and a wrist pin bearing. Kit price includes a 10% discount compared with purchasing the items individually.

Features

  • Top end piston kit for engine top end service
  • Includes forged piston
  • MOS2-coated piston for running-in
  • Includes head gasket
  • Includes base gasket
  • Includes intake gasket
  • Includes exhaust pipe gasket
  • Includes holder gasket
  • Includes power valve gasket
  • Includes O-ring
  • Includes wrist pin bearing
  • Kit price includes 10% discount over individual items
  • Made in Germany

Specifications

  • VintCo Part Number: KTY64-1.0
  • Piston size: 57 mm
  • Oversize: 1.0 mm over
  • Standard size: 56.94 mm
  • Clearance: 0.06 mm

Cross-Reference OEM Part Numbers

  • Head Gasket: 24X-11181-01-00
  • Base Gasket: 24X11351-01-00
  • Intake Gasket: 3R3-13621-01-00
  • Exhaust Pipe Gasket: 3R3-14613-00-00
  • O-Ring: 93210-270A8-00
  • Holder Gasket: 5X4-1131N-10-00
  • Power Valve Gasket: 5X4-11993-01-00

Vehicle Fitments

  • 1983 Yamaha YZ125

Top End Piston Kit 83-83 Yamaha YZ 125 57mm 1.0mm Over Vintco KTY64-1.0

Product form

This top end piston kit is for the 1983 Yamaha YZ125 and includes a 57 mm piston in 1.0 mm... Read more

Out of stock

£191.91 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    SKU: VIN-KTY64-1.0
    Barcode: 0120000103065

    • Free shipping on all orders above £75
    • No hassle returns within 30 days

    Description

    This top end piston kit is for the 1983 Yamaha YZ125 and includes a 57 mm piston in 1.0 mm oversize for top end service work. The kit contains a forged piston made in Germany with MOS2 coating for running-in, together with the required head, base, intake, exhaust pipe, holder and power valve gaskets, an O-ring, and a wrist pin bearing. Kit price includes a 10% discount compared with purchasing the items individually.

    Features

    • Top end piston kit for engine top end service
    • Includes forged piston
    • MOS2-coated piston for running-in
    • Includes head gasket
    • Includes base gasket
    • Includes intake gasket
    • Includes exhaust pipe gasket
    • Includes holder gasket
    • Includes power valve gasket
    • Includes O-ring
    • Includes wrist pin bearing
    • Kit price includes 10% discount over individual items
    • Made in Germany

    Specifications

    • VintCo Part Number: KTY64-1.0
    • Piston size: 57 mm
    • Oversize: 1.0 mm over
    • Standard size: 56.94 mm
    • Clearance: 0.06 mm

    Cross-Reference OEM Part Numbers

    • Head Gasket: 24X-11181-01-00
    • Base Gasket: 24X11351-01-00
    • Intake Gasket: 3R3-13621-01-00
    • Exhaust Pipe Gasket: 3R3-14613-00-00
    • O-Ring: 93210-270A8-00
    • Holder Gasket: 5X4-1131N-10-00
    • Power Valve Gasket: 5X4-11993-01-00

    Vehicle Fitments

    • 1983 Yamaha YZ125
