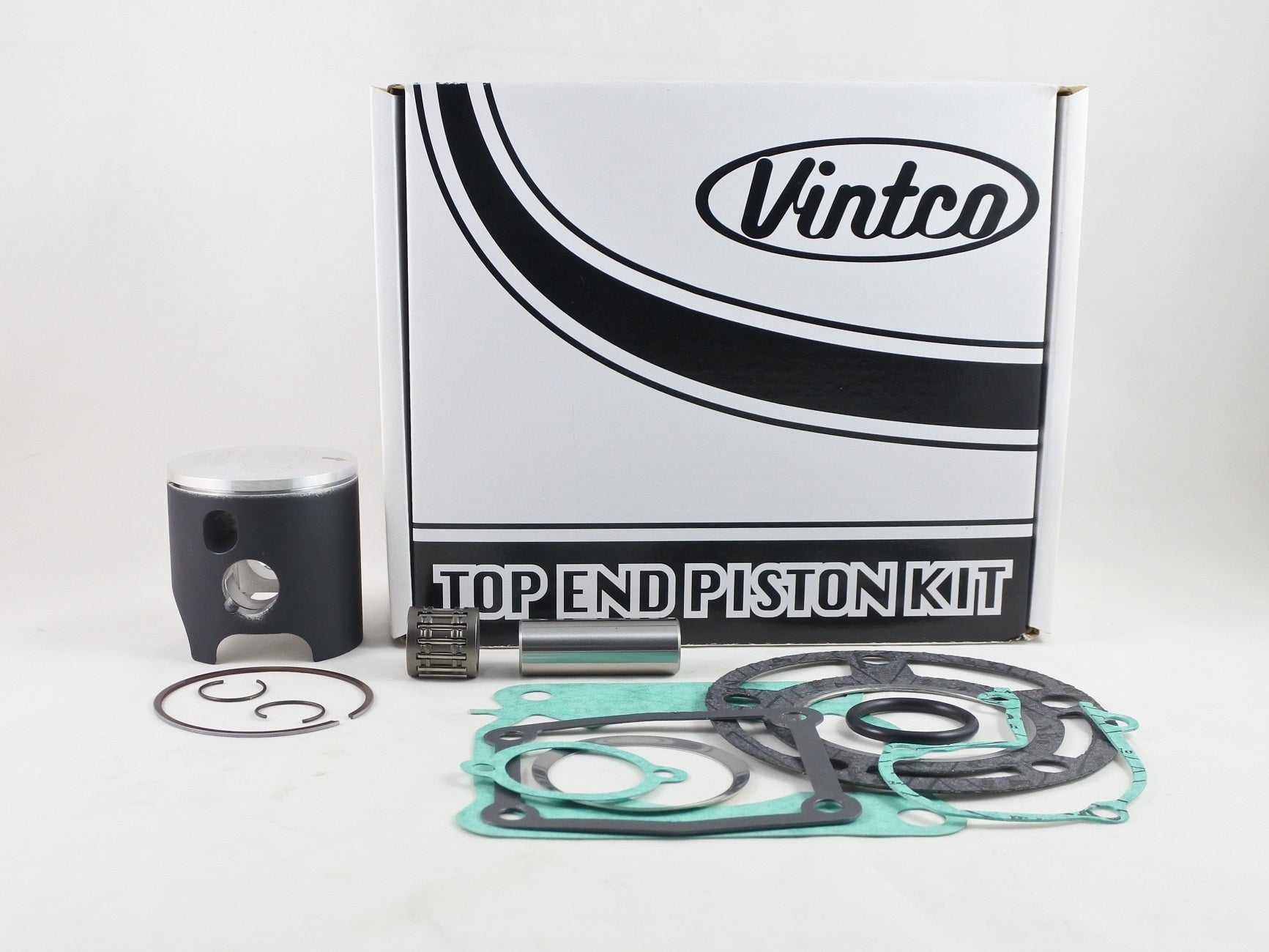

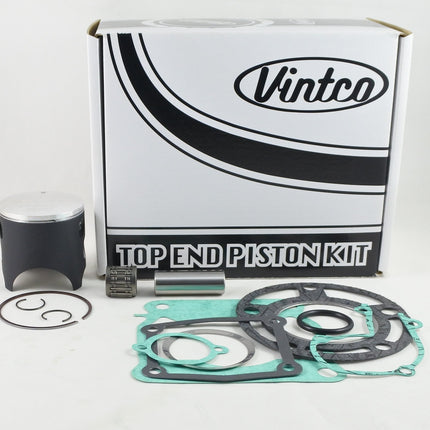

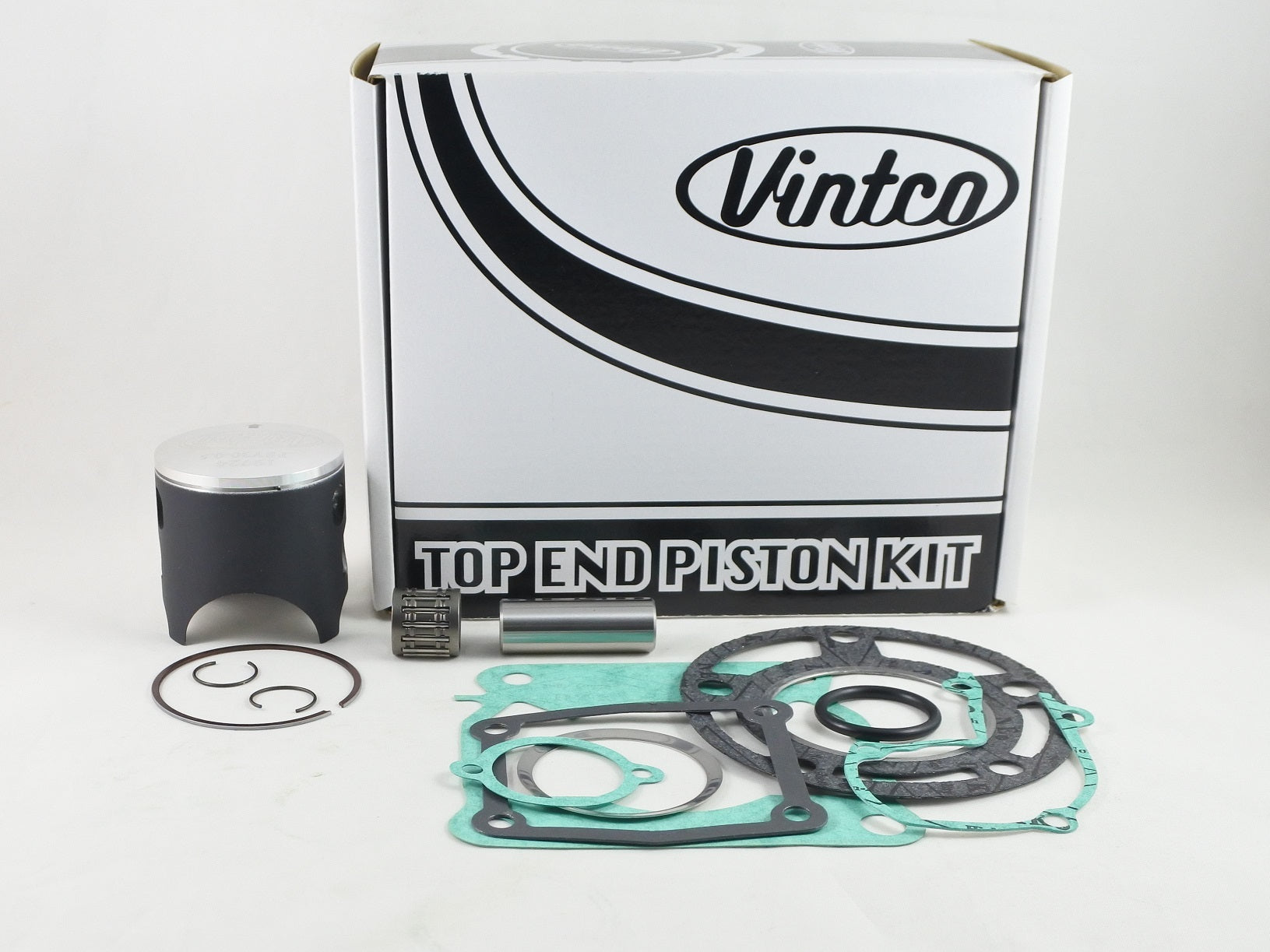

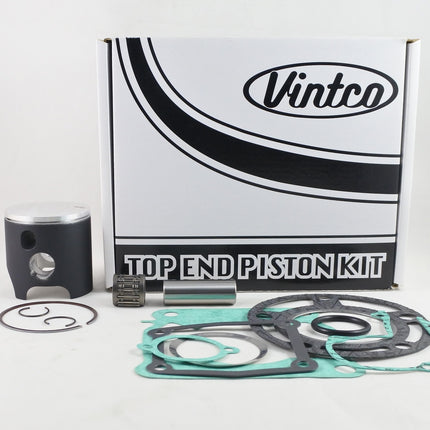

Top End Piston Kit 84-84 Yamaha YZ 125 56.5mm 0.5mm Over Vintco KTY65-0.5

Description

This top end piston kit is designed for the 1984 Yamaha YZ125 and includes a 56.5 mm piston in 0.5 mm oversize configuration, together with the associated top-end gaskets, O-ring and wrist pin bearing for top-end service. The kit uses a forged piston made in Germany with an MOS2 coating for break-in, and the kit price is 10% lower than the combined price of the included items when purchased individually.

Features

  • Complete top end kit
  • Forged piston made in Germany
  • MOS2-coated piston for break-in
  • Includes cylinder head gasket
  • Includes cylinder base gasket
  • Includes intake gasket
  • Includes exhaust pipe gasket
  • Includes holder gasket
  • Includes O-ring
  • Includes YPVS housing gasket
  • Includes wrist pin bearing
  • Kit pricing is 10% lower than purchasing the included items individually

Specifications

  • VintCo Part Number: KTY65-0.5
  • Piston diameter: 56.5 mm
  • Oversize: 0.5 mm
  • Standard size: 56.44 mm
  • Piston clearance: 0.06 mm

Cross-Reference OEM Part Numbers

  • Cylinder Head Gasket: 55Y-11181-01-00
  • Cylinder Base Gasket: 24X-11351-01-00
  • Intake Gasket: 39W-13621-01-00
  • Exhaust Pipe Gasket: 3R3-14613-00-00
  • Holder Gasket: 5X4-1131N-10-00
  • O-Ring: 93210-270A8-00
  • YPVS Housing Gasket: 5X4-11993-01-00

Vehicle Fitments

  • 1984 Yamaha YZ125

Top End Piston Kit 84-84 Yamaha YZ 125 56.5mm 0.5mm Over Vintco KTY65-0.5

Product form

This top end piston kit is designed for the 1984 Yamaha YZ125 and includes a 56.5 mm piston in 0.5... Read more

Out of stock

£191.91 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    SKU: VIN-KTY65-0.5
    Barcode: 0120000103072

    • Free shipping on all orders above £75
    • No hassle returns within 30 days

    Description

    This top end piston kit is designed for the 1984 Yamaha YZ125 and includes a 56.5 mm piston in 0.5 mm oversize configuration, together with the associated top-end gaskets, O-ring and wrist pin bearing for top-end service. The kit uses a forged piston made in Germany with an MOS2 coating for break-in, and the kit price is 10% lower than the combined price of the included items when purchased individually.

    Features

    • Complete top end kit
    • Forged piston made in Germany
    • MOS2-coated piston for break-in
    • Includes cylinder head gasket
    • Includes cylinder base gasket
    • Includes intake gasket
    • Includes exhaust pipe gasket
    • Includes holder gasket
    • Includes O-ring
    • Includes YPVS housing gasket
    • Includes wrist pin bearing
    • Kit pricing is 10% lower than purchasing the included items individually

    Specifications

    • VintCo Part Number: KTY65-0.5
    • Piston diameter: 56.5 mm
    • Oversize: 0.5 mm
    • Standard size: 56.44 mm
    • Piston clearance: 0.06 mm

    Cross-Reference OEM Part Numbers

    • Cylinder Head Gasket: 55Y-11181-01-00
    • Cylinder Base Gasket: 24X-11351-01-00
    • Intake Gasket: 39W-13621-01-00
    • Exhaust Pipe Gasket: 3R3-14613-00-00
    • Holder Gasket: 5X4-1131N-10-00
    • O-Ring: 93210-270A8-00
    • YPVS Housing Gasket: 5X4-11993-01-00

    Vehicle Fitments

    • 1984 Yamaha YZ125
