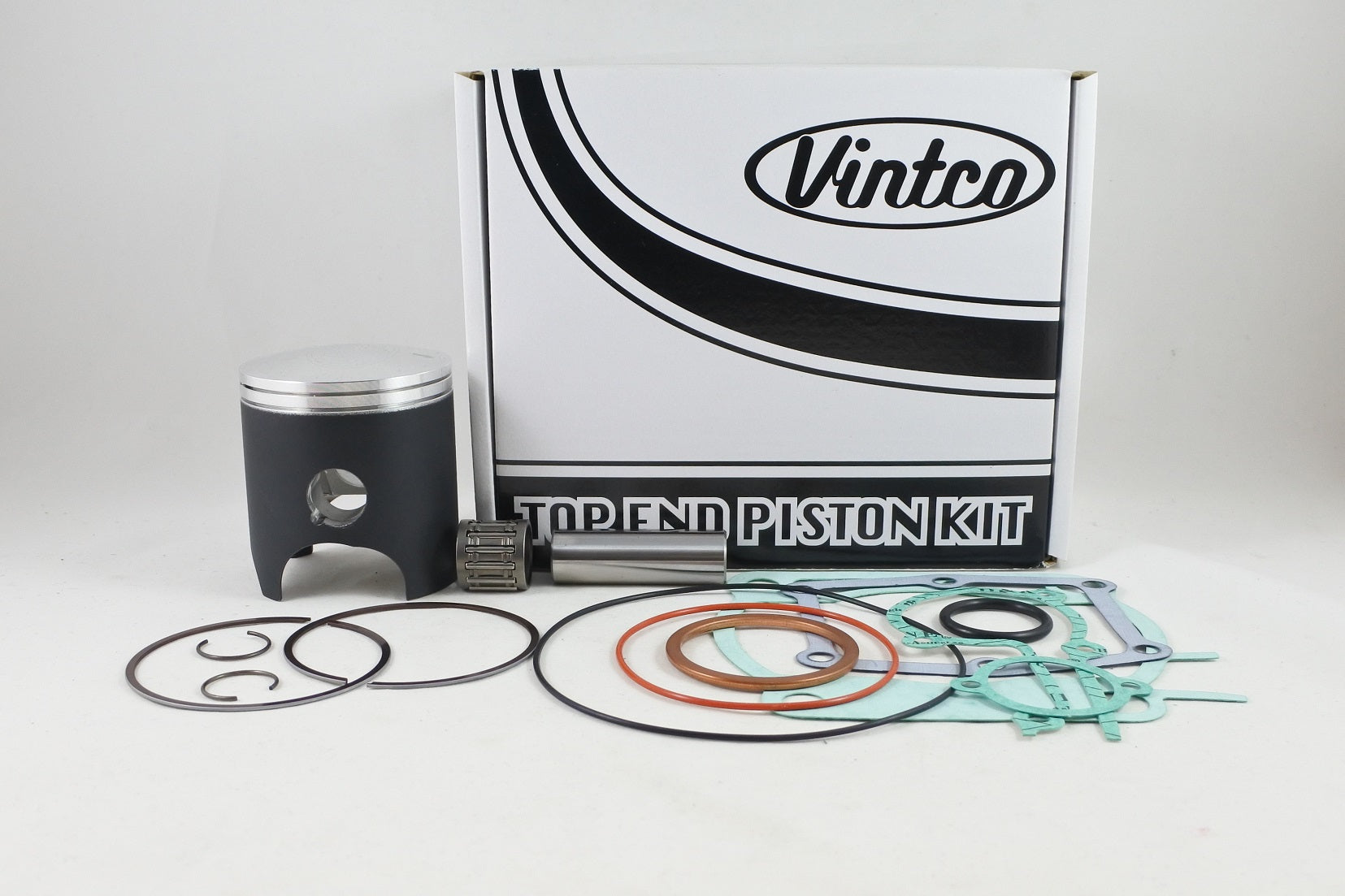

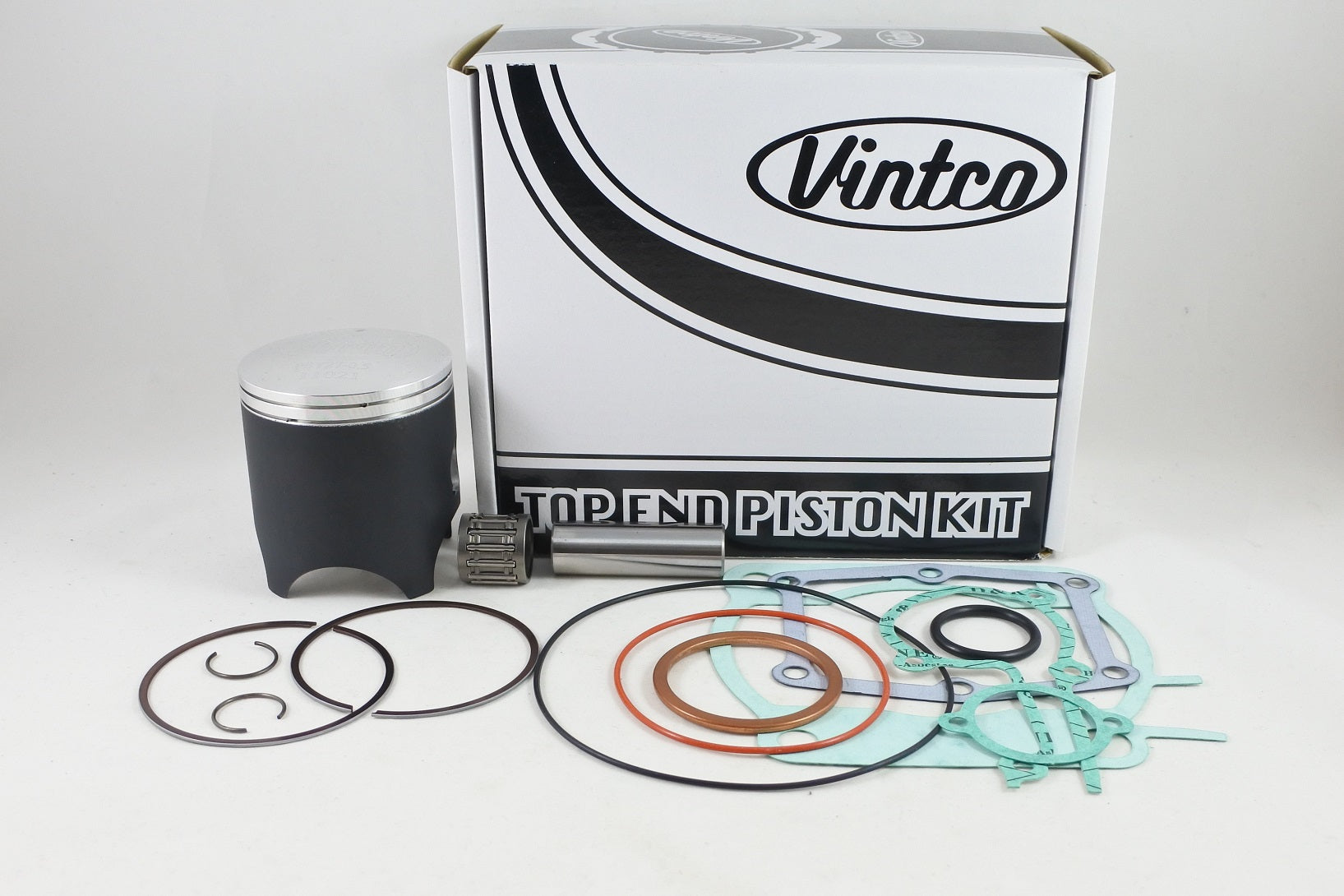

Top End Piston Kit 86-86 Yamaha YZ 250 68.5mm 0.5mm Over Vintco KTY38-0.5

Description

This top end piston kit is for the 1986 Yamaha YZ250 and includes a forged piston and associated top end sealing components required for a rebuild. Kit pricing reflects a 10% reduction compared with purchasing the included items individually, and the kit also includes a wrist pin bearing.

Features

  • Complete top end piston kit for rebuild work
  • Includes forged piston
  • MOS2-coated piston for running-in
  • Includes head gaskets
  • Includes base gasket
  • Includes intake gasket
  • Includes exhaust pipe gasket
  • Includes holder gasket
  • Includes O-ring
  • Includes YPVS housing gasket
  • Includes wrist pin bearing

Specifications

  • VintCo Part Number: KTY38-0.5
  • Listed piston size: 68.5 mm
  • Oversize: 0.5 mm
  • Piston measurement: 68.44 mm
  • Clearance: 0.06 mm
  • Piston construction: Forged
  • Country of manufacture: Germany

Cross-Reference OEM Part Numbers

  • Head Gasket: 93211-17405-00
  • Head Gasket: 93210-77363-00
  • Base Gasket: 1LU-11351-01-00
  • Intake Gasket: 39X-13621-11-00
  • Exhaust Pipe Gasket: 24Y-14613-10-00
  • Holder Gasket: 5X4-1131N-10-00
  • O-ring: 93210-270A8-00
  • YPVS Housing Gasket: 1LU-11993-01-00

Vehicle Fitments

  • 1986 Yamaha YZ250

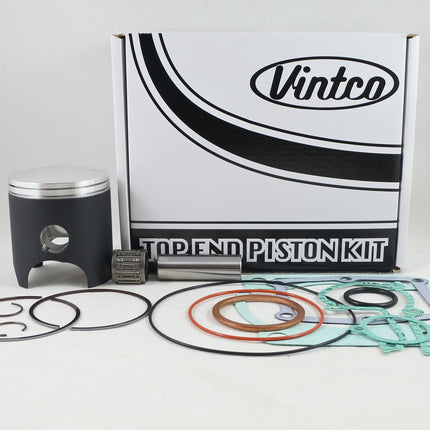

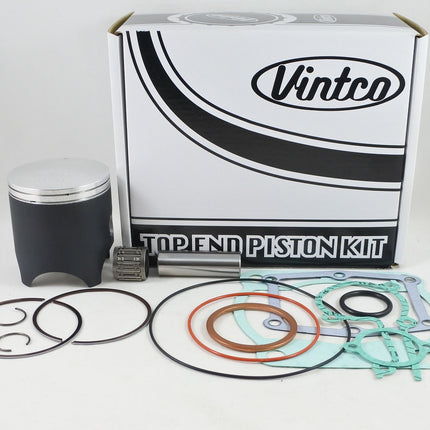

Top End Piston Kit 86-86 Yamaha YZ 250 68.5mm 0.5mm Over Vintco KTY38-0.5

Product form

This top end piston kit is for the 1986 Yamaha YZ250 and includes a forged piston and associated top end... Read more

Out of stock

£224.27 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    SKU: VIN-KTY38-0.5
    Barcode: 0120000104055

    • Free shipping on all orders above £75
    • No hassle returns within 30 days

    Description

    This top end piston kit is for the 1986 Yamaha YZ250 and includes a forged piston and associated top end sealing components required for a rebuild. Kit pricing reflects a 10% reduction compared with purchasing the included items individually, and the kit also includes a wrist pin bearing.

    Features

    • Complete top end piston kit for rebuild work
    • Includes forged piston
    • MOS2-coated piston for running-in
    • Includes head gaskets
    • Includes base gasket
    • Includes intake gasket
    • Includes exhaust pipe gasket
    • Includes holder gasket
    • Includes O-ring
    • Includes YPVS housing gasket
    • Includes wrist pin bearing

    Specifications

    • VintCo Part Number: KTY38-0.5
    • Listed piston size: 68.5 mm
    • Oversize: 0.5 mm
    • Piston measurement: 68.44 mm
    • Clearance: 0.06 mm
    • Piston construction: Forged
    • Country of manufacture: Germany

    Cross-Reference OEM Part Numbers

    • Head Gasket: 93211-17405-00
    • Head Gasket: 93210-77363-00
    • Base Gasket: 1LU-11351-01-00
    • Intake Gasket: 39X-13621-11-00
    • Exhaust Pipe Gasket: 24Y-14613-10-00
    • Holder Gasket: 5X4-1131N-10-00
    • O-ring: 93210-270A8-00
    • YPVS Housing Gasket: 1LU-11993-01-00

    Vehicle Fitments

    • 1986 Yamaha YZ250
