Top End Piston Kit 86-87 Yamaha YZ 125 56.5mm Over Vintco KTY66-0.5

Description

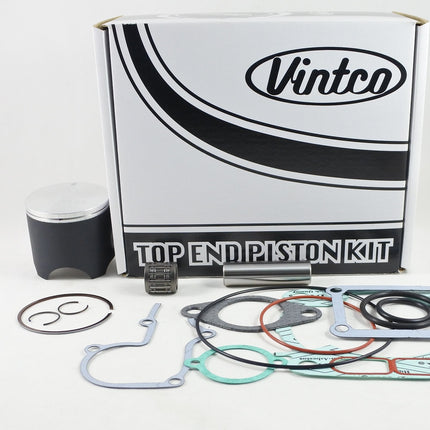

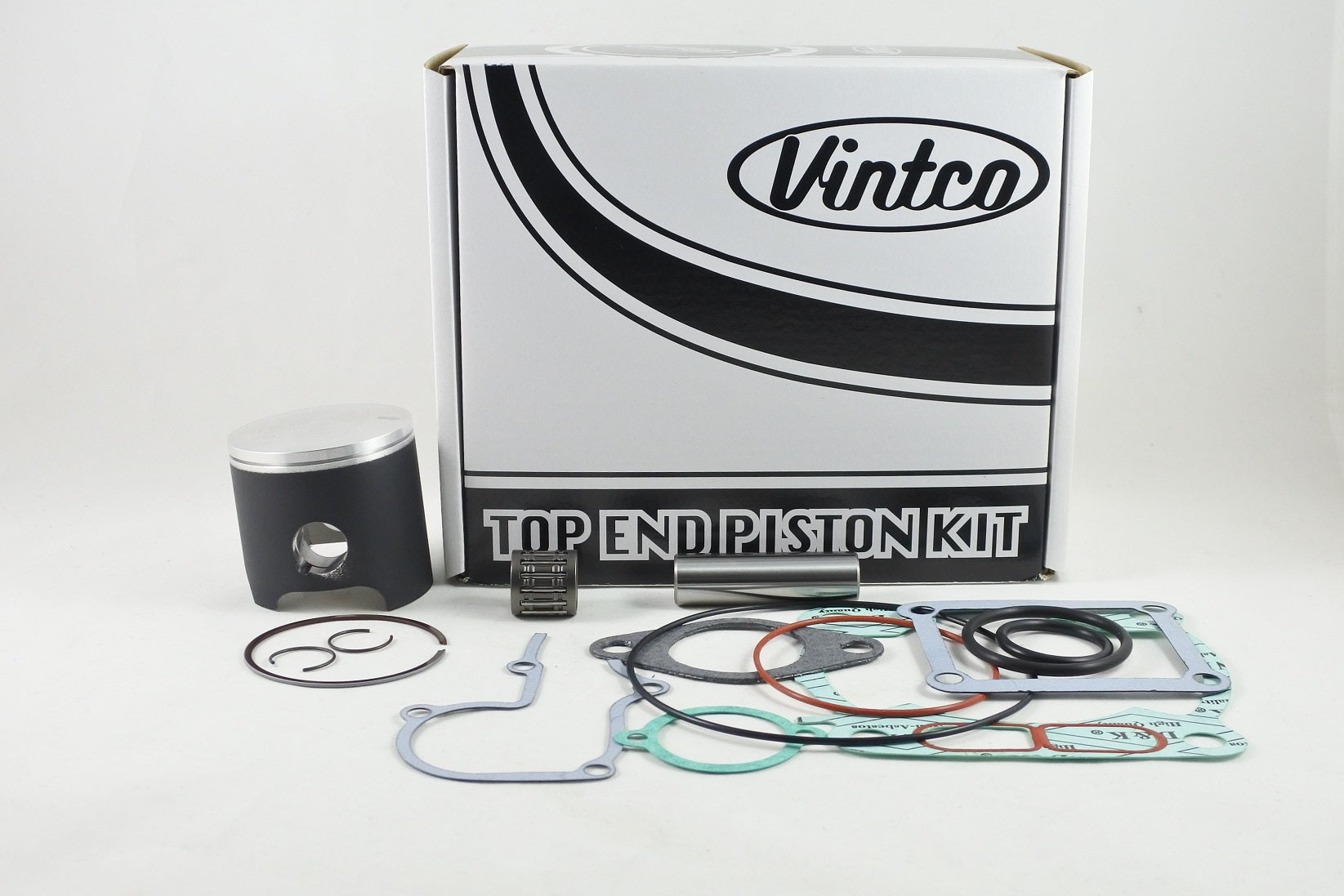

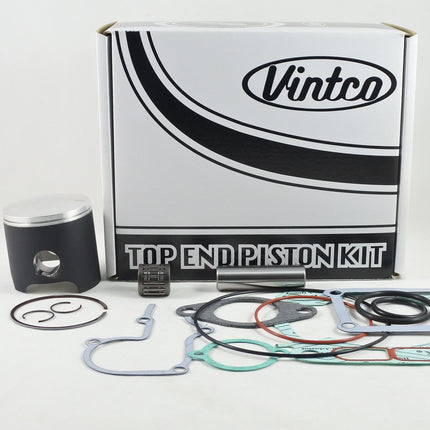

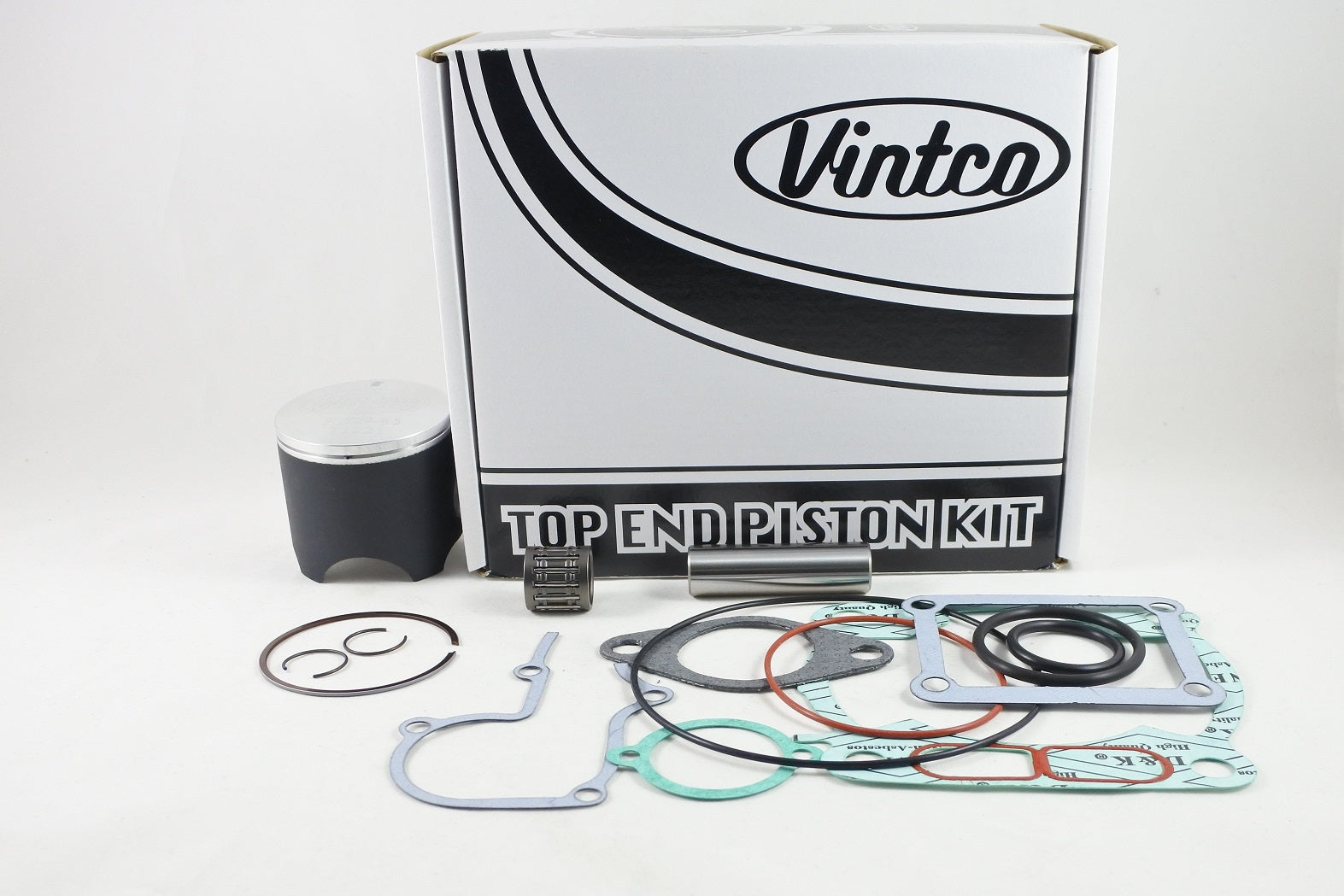

This VintCo top end piston kit is designed for 1986-1987 Yamaha YZ125 models and provides the parts required for a complete top end rebuild in 56.5 mm (+0.5 mm oversize) form. The kit includes a piston, rings, pin, clips, a wrist pin bearing, and a full top-end gasket set with head, base, intake, exhaust, holder and power valve gaskets, plus an O-ring. Components are manufactured using modern materials and production methods for OEM-equivalent fit and performance, and the kit is priced at 10% less than purchasing the components individually.

Features

  • Complete top end rebuild kit for 1986-1987 Yamaha YZ125 models
  • Includes piston, rings, pin and clips
  • Includes wrist pin bearing
  • Includes head gaskets, base gasket, intake gasket, exhaust pipe gaskets, holder gasket, power valve gasket and O-ring
  • Intended to provide OEM-equivalent fit and performance
  • Kit pricing is 10% lower than buying the parts individually

Specifications

  • VintCo Part Number: KTY66-0.5
  • Piston diameter: 56.5 mm
  • Oversize: +0.5 mm
  • Standard size: 56.44 mm
  • Clearance: 0.06 mm
  • Piston type: Forged
  • Piston coating: MOS2
  • Country of manufacture: Germany

Cross-Reference OEM Part Numbers

  • Head gasket: 93211-07720-00
  • Head gasket: 93210-65721-00
  • Base gasket: 1LX-11351-10-00
  • Intake gasket: 4TP-13621-00-00
  • Exhaust pipe gasket: 1LX-14613-01-00
  • Exhaust pipe gasket: 93210-42728-00
  • O-ring: 93210-270A8-00
  • Holder gasket: 5X4-1131N-10-00
  • Power valve gasket: 3LX-11993-01-00

Vehicle Fitments

  • 1986 Yamaha YZ125
  • 1987 Yamaha YZ125

Top End Piston Kit 86-87 Yamaha YZ 125 56.5mm Over Vintco KTY66-0.5

Product form

This VintCo top end piston kit is designed for 1986-1987 Yamaha YZ125 models and provides the parts required for a... Read more

Out of stock

£191.80 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    SKU: VIN-KTY66-0.5
    Barcode: 0120000103102

    • Free shipping on all orders above £75
    • No hassle returns within 30 days

    Description

    This VintCo top end piston kit is designed for 1986-1987 Yamaha YZ125 models and provides the parts required for a complete top end rebuild in 56.5 mm (+0.5 mm oversize) form. The kit includes a piston, rings, pin, clips, a wrist pin bearing, and a full top-end gasket set with head, base, intake, exhaust, holder and power valve gaskets, plus an O-ring. Components are manufactured using modern materials and production methods for OEM-equivalent fit and performance, and the kit is priced at 10% less than purchasing the components individually.

    Features

    • Complete top end rebuild kit for 1986-1987 Yamaha YZ125 models
    • Includes piston, rings, pin and clips
    • Includes wrist pin bearing
    • Includes head gaskets, base gasket, intake gasket, exhaust pipe gaskets, holder gasket, power valve gasket and O-ring
    • Intended to provide OEM-equivalent fit and performance
    • Kit pricing is 10% lower than buying the parts individually

    Specifications

    • VintCo Part Number: KTY66-0.5
    • Piston diameter: 56.5 mm
    • Oversize: +0.5 mm
    • Standard size: 56.44 mm
    • Clearance: 0.06 mm
    • Piston type: Forged
    • Piston coating: MOS2
    • Country of manufacture: Germany

    Cross-Reference OEM Part Numbers

    • Head gasket: 93211-07720-00
    • Head gasket: 93210-65721-00
    • Base gasket: 1LX-11351-10-00
    • Intake gasket: 4TP-13621-00-00
    • Exhaust pipe gasket: 1LX-14613-01-00
    • Exhaust pipe gasket: 93210-42728-00
    • O-ring: 93210-270A8-00
    • Holder gasket: 5X4-1131N-10-00
    • Power valve gasket: 3LX-11993-01-00

    Vehicle Fitments

    • 1986 Yamaha YZ125
    • 1987 Yamaha YZ125
