Top End Piston Kit 88-92 Yamaha YZ 80 48mm Standard Vintco KTY63-00

Description

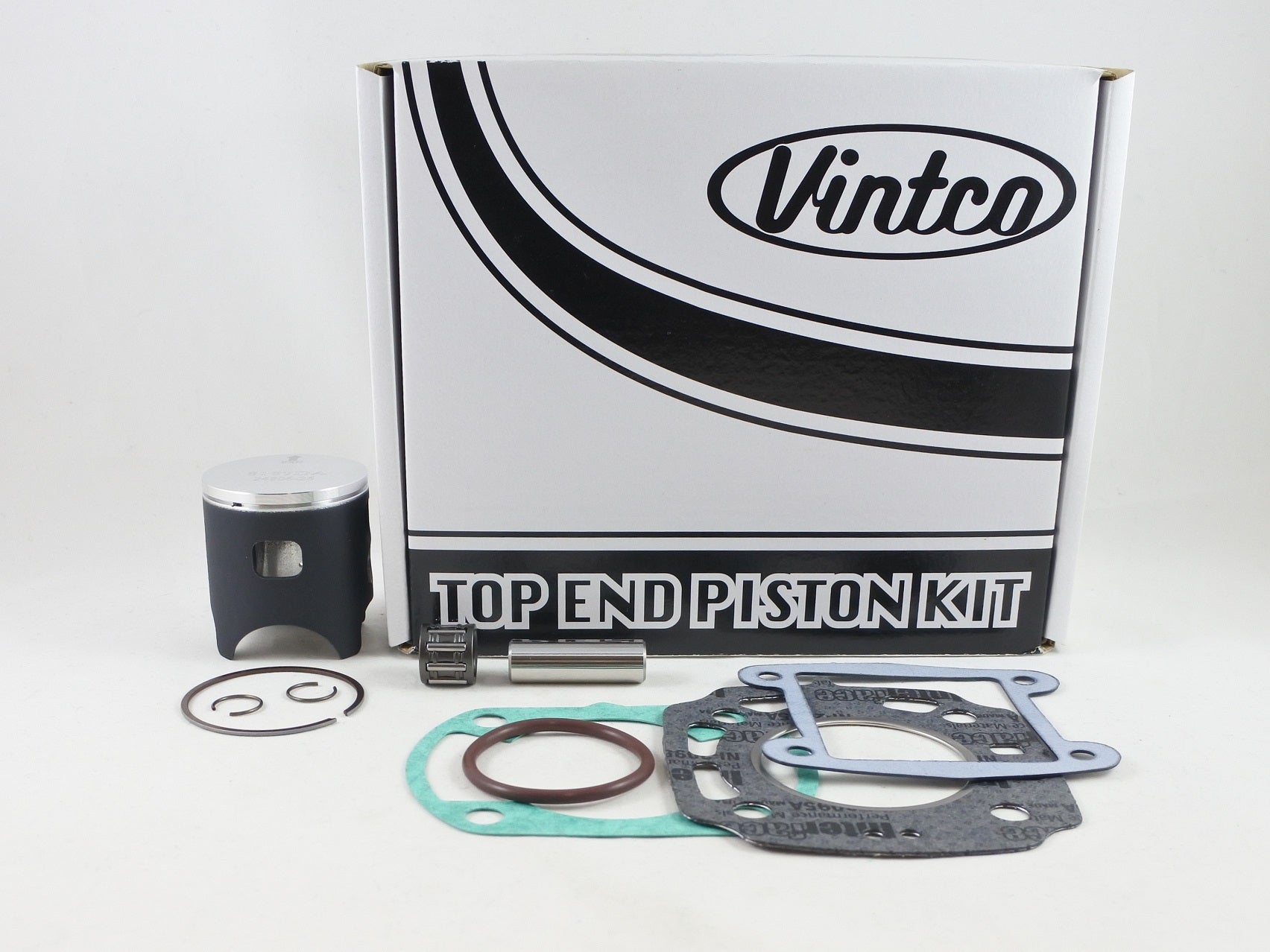

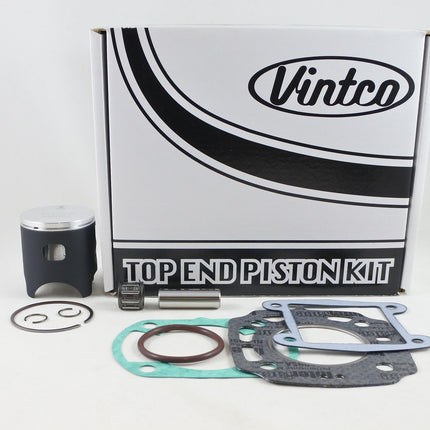

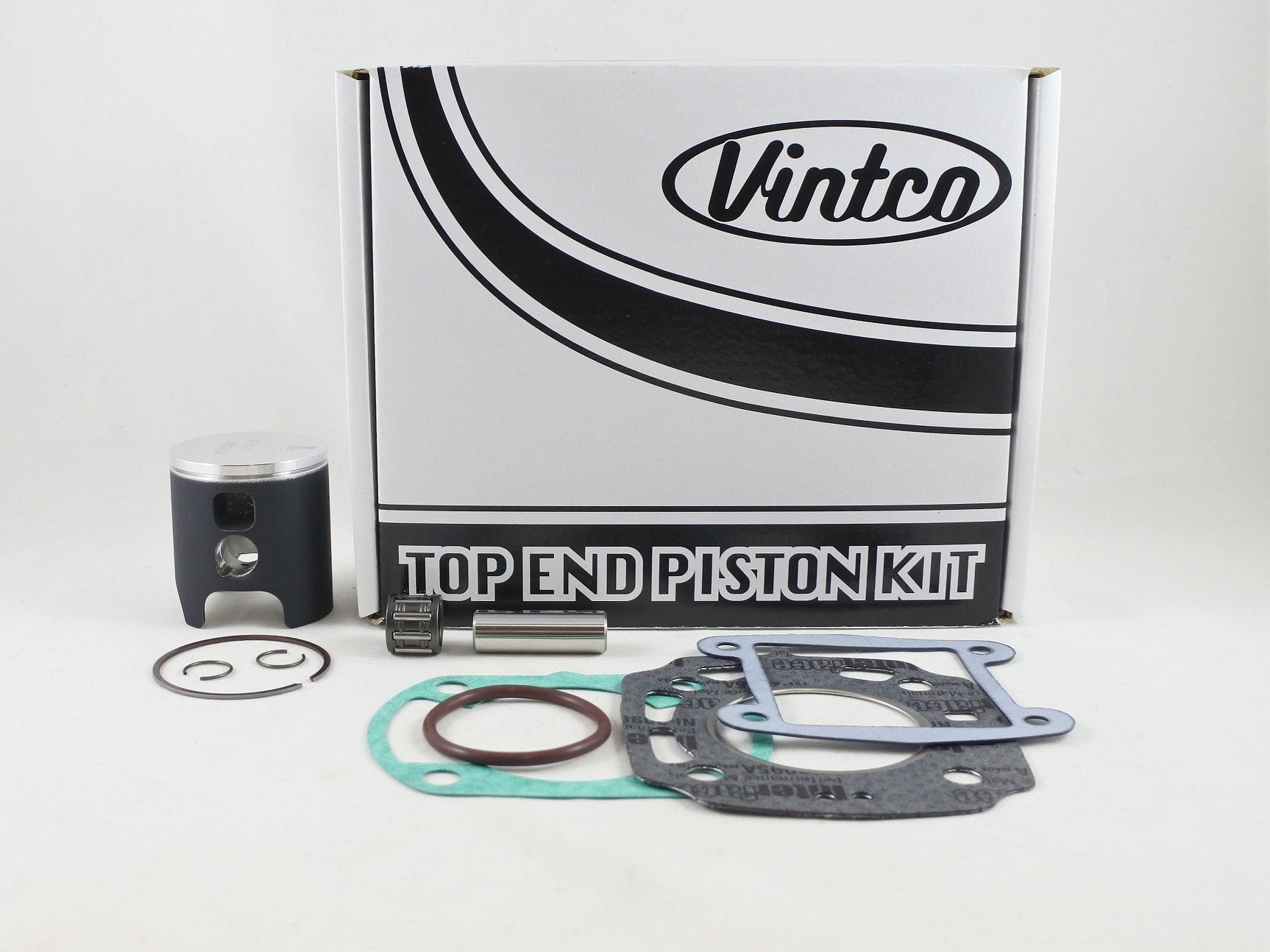

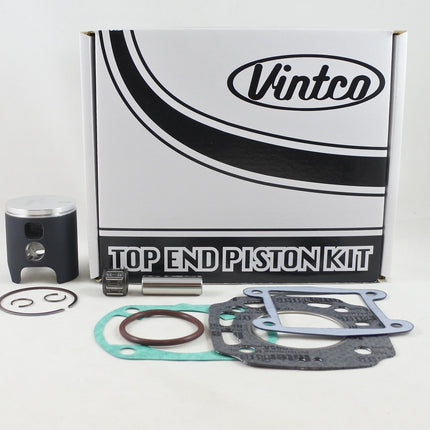

VintCo KTY63-00 is a standard 48 mm top end piston kit for 1988-1992 Yamaha YZ80 models. It includes a forged piston manufactured in Germany, a wrist pin bearing, and the required gaskets for top end service, including cylinder head, cylinder base, reed valve and exhaust pipe gaskets. The kit price represents a 10% reduction compared with purchasing the items individually.

Features

  • Complete top end piston kit for standard-size rebuilds
  • Includes piston, wrist pin bearing, cylinder head gasket, cylinder base gasket, reed valve gasket and exhaust pipe gasket
  • Coated piston to assist initial running-in
  • Suitable for top end service on Yamaha YZ80 models

Specifications

  • VintCo Part Number: KTY63-00
  • Size: Standard
  • Nominal bore: 48 mm
  • Piston diameter: 47.95 mm
  • Clearance: 0.05 mm
  • Piston construction: Forged
  • Piston coating: MOS2
  • Country of manufacture: Germany

Cross-Reference OEM Part Numbers

  • Cylinder Head Gasket: 1LR-11181-01-00
  • Cylinder Base Gasket: 4V0-11351-10-00
  • Reed Valve Gasket: 3JM-13621-00-00
  • Exhaust Pipe Gasket: 93210-40745-00

Vehicle Fitments

  • 1988 Yamaha YZ80
  • 1989 Yamaha YZ80
  • 1990 Yamaha YZ80
  • 1991 Yamaha YZ80
  • 1992 Yamaha YZ80
