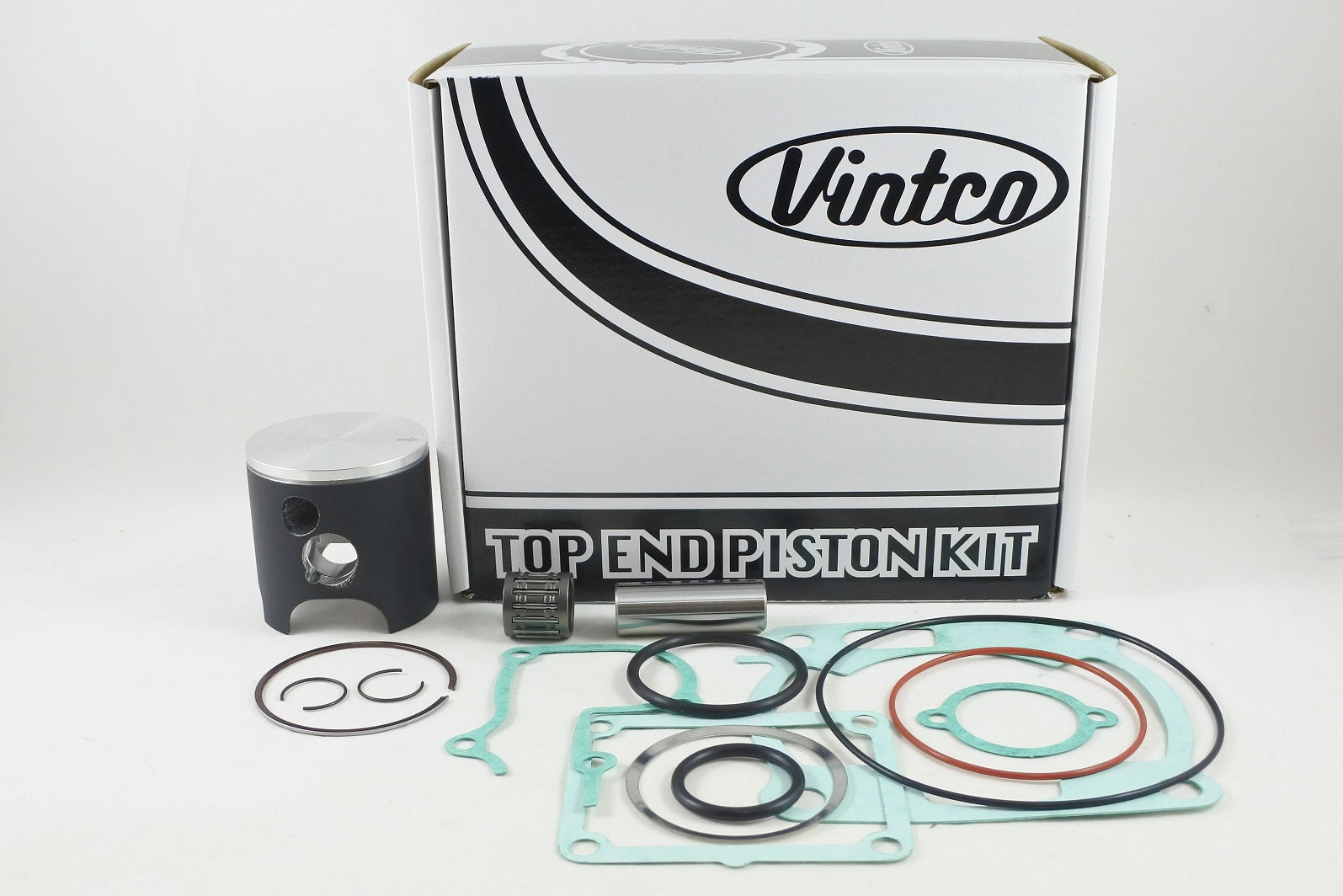

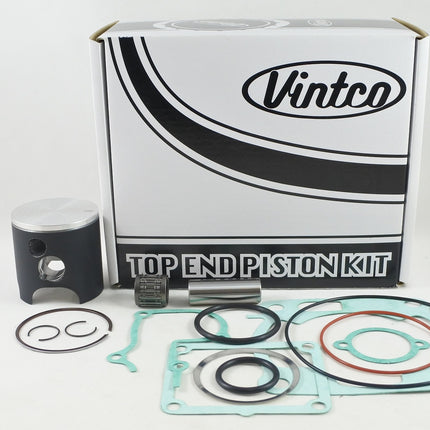

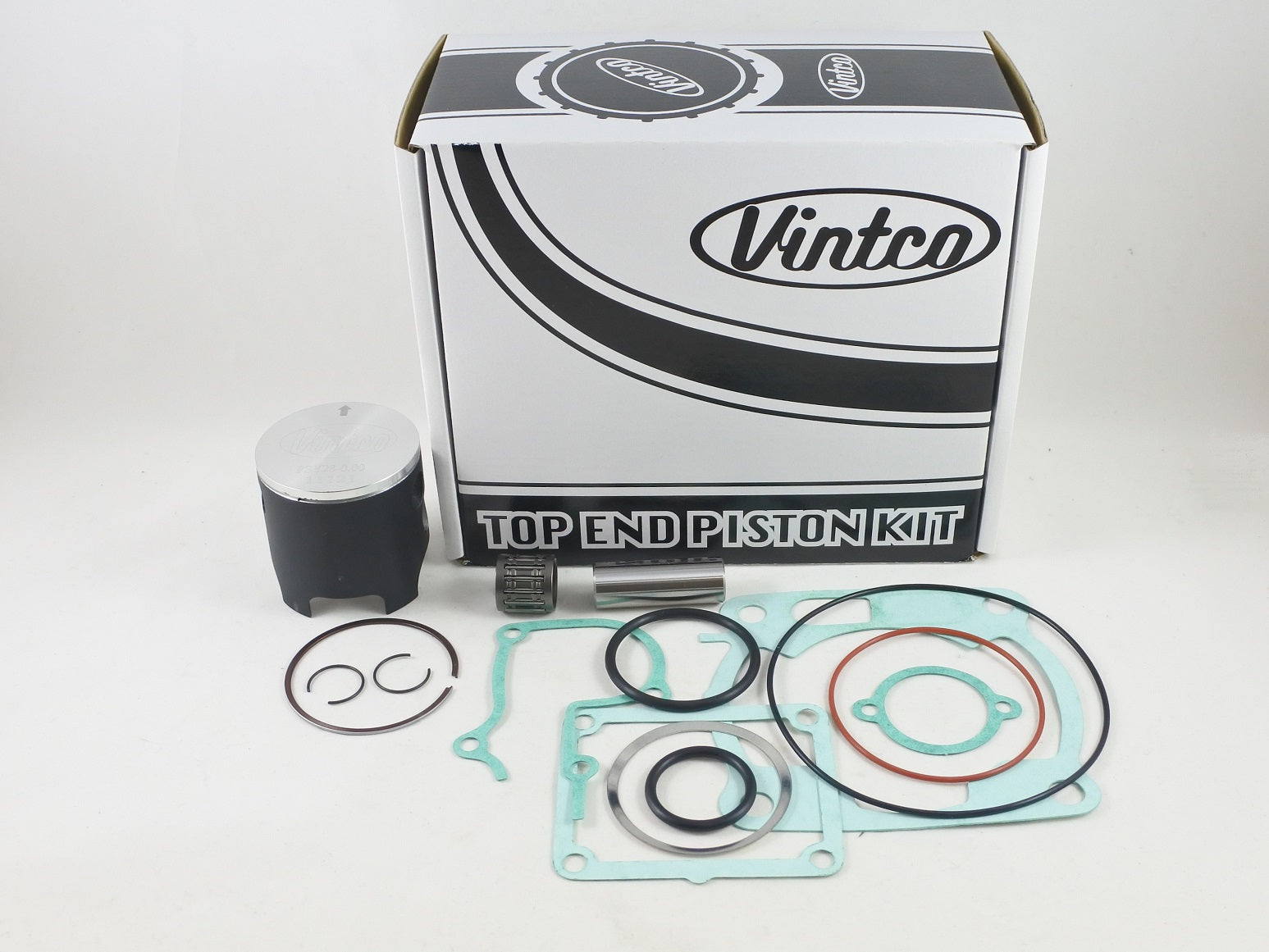

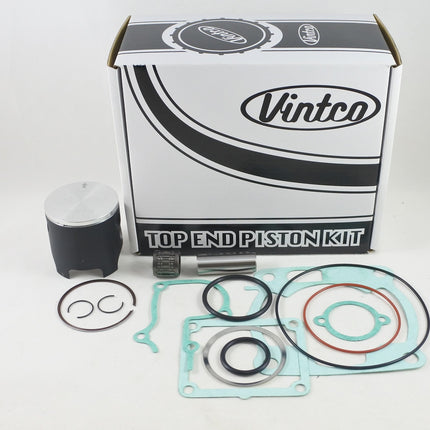

Top End Piston Kit 90-90 Yamaha YZ125 56.02mm Standard Vintco KTY30-00

Description

VintCo KTY30-00 is a complete top end piston kit for the 1990 Yamaha YZ125, supplied for a standard 56.02mm application. The kit includes a piston, rings, pin and clips, a wrist pin bearing, and a full top-end gasket set for the head, base, intake, exhaust pipe, O-ring, holder and power valve positions. It is intended to make top end rebuilds straightforward and cost-effective, using modern materials and manufacturing methods to provide OEM-equivalent or better fit and performance, with kit pricing 10% lower than purchasing the parts individually.

Features

  • Complete top end rebuild kit
  • Includes piston, rings, pin and clips
  • Includes wrist pin bearing
  • Includes head gasket, base gasket, intake gasket and exhaust pipe gasket
  • Includes O-ring, holder gasket and power valve gasket
  • Intended to simplify rebuild work
  • Uses modern materials and manufacturing techniques
  • Provides OEM-equivalent or better fit and performance
  • Piston coating assists break-in
  • Kit pricing is 10% lower than buying the items individually

Specifications

  • VintCo Part Number: KTY30-00
  • Standard size: 56.02mm
  • Standard measurement: 55.96mm
  • Clearance: 0.06mm
  • Piston construction: Forged
  • Piston coating: MOS2
  • Country of manufacture: Germany

Cross-Reference OEM Part Numbers

  • Head gasket: 93211-07720-00
  • Head gasket: 93210-657-21-00
  • Base gasket: 93210-657-21-00
  • Intake gasket: 80L-13621-01-00
  • Exhaust pipe gasket: 3R3-14613-00-00
  • Exhaust pipe gasket: 93210-45742-00
  • O-ring: 93210-270A8-00
  • Holder gasket: 5X4-1131N-10-00
  • Power valve gasket: 3JD-1199310-00

Vehicle Fitments

  • 1990 Yamaha YZ125

Top End Piston Kit 90-90 Yamaha YZ125 56.02mm Standard Vintco KTY30-00

Product form

VintCo KTY30-00 is a complete top end piston kit for the 1990 Yamaha YZ125, supplied for a standard 56.02mm application.... Read more

Out of stock

£191.91 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    SKU: VIN-KTY30-00
    Barcode: 0120000103195

    • Free shipping on all orders above £75
    • No hassle returns within 30 days

    Description

    VintCo KTY30-00 is a complete top end piston kit for the 1990 Yamaha YZ125, supplied for a standard 56.02mm application. The kit includes a piston, rings, pin and clips, a wrist pin bearing, and a full top-end gasket set for the head, base, intake, exhaust pipe, O-ring, holder and power valve positions. It is intended to make top end rebuilds straightforward and cost-effective, using modern materials and manufacturing methods to provide OEM-equivalent or better fit and performance, with kit pricing 10% lower than purchasing the parts individually.

    Features

    • Complete top end rebuild kit
    • Includes piston, rings, pin and clips
    • Includes wrist pin bearing
    • Includes head gasket, base gasket, intake gasket and exhaust pipe gasket
    • Includes O-ring, holder gasket and power valve gasket
    • Intended to simplify rebuild work
    • Uses modern materials and manufacturing techniques
    • Provides OEM-equivalent or better fit and performance
    • Piston coating assists break-in
    • Kit pricing is 10% lower than buying the items individually

    Specifications

    • VintCo Part Number: KTY30-00
    • Standard size: 56.02mm
    • Standard measurement: 55.96mm
    • Clearance: 0.06mm
    • Piston construction: Forged
    • Piston coating: MOS2
    • Country of manufacture: Germany

    Cross-Reference OEM Part Numbers

    • Head gasket: 93211-07720-00
    • Head gasket: 93210-657-21-00
    • Base gasket: 93210-657-21-00
    • Intake gasket: 80L-13621-01-00
    • Exhaust pipe gasket: 3R3-14613-00-00
    • Exhaust pipe gasket: 93210-45742-00
    • O-ring: 93210-270A8-00
    • Holder gasket: 5X4-1131N-10-00
    • Power valve gasket: 3JD-1199310-00

    Vehicle Fitments

    • 1990 Yamaha YZ125
