Top End Piston Kit 92-92 Yamaha YZ 125 56mm Standard Vintco KTY32-00

Description

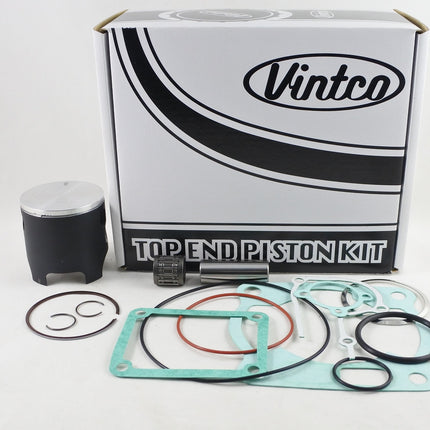

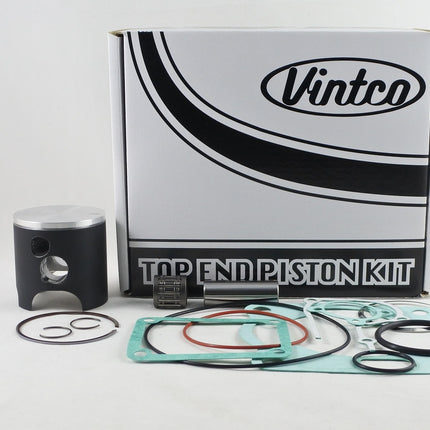

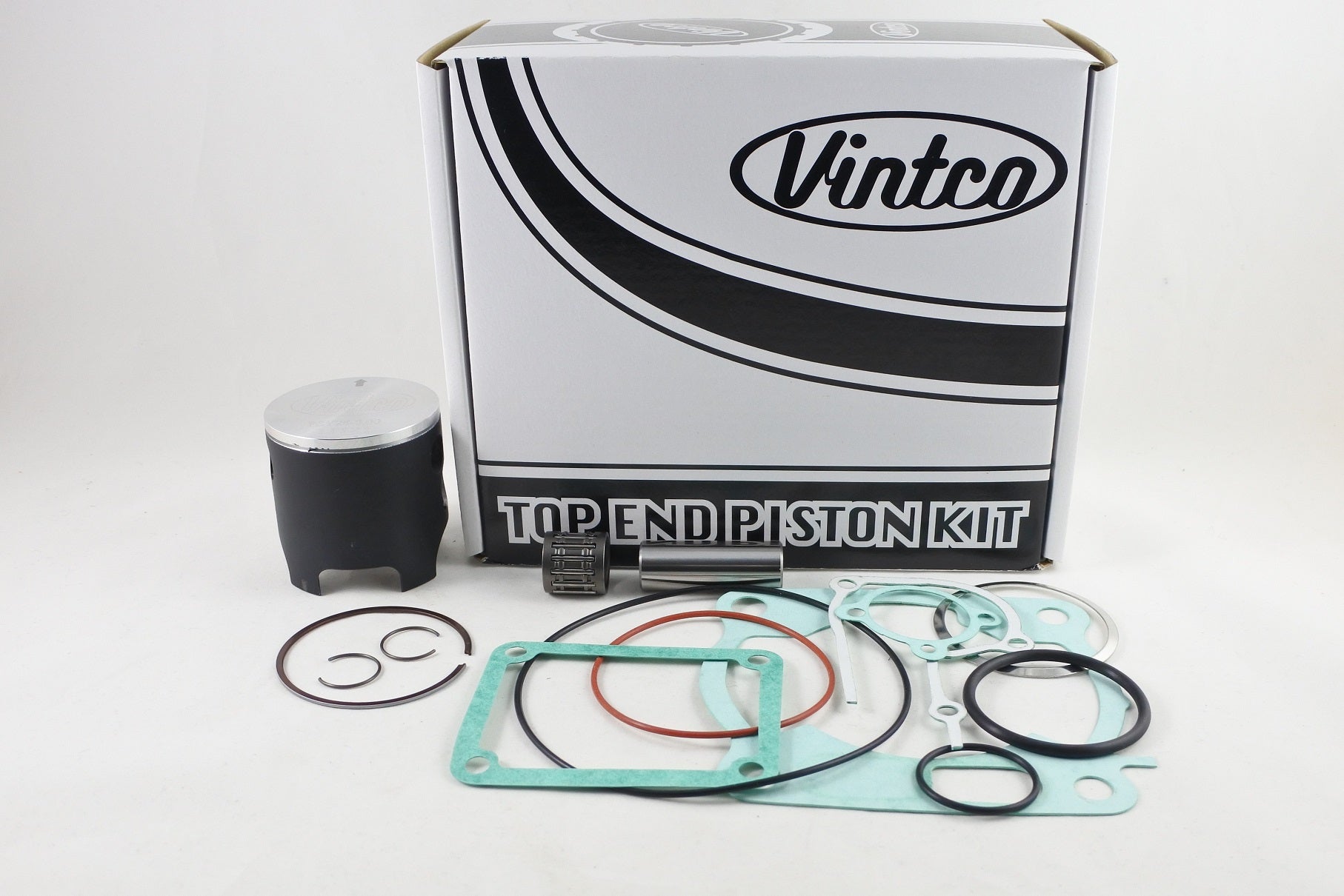

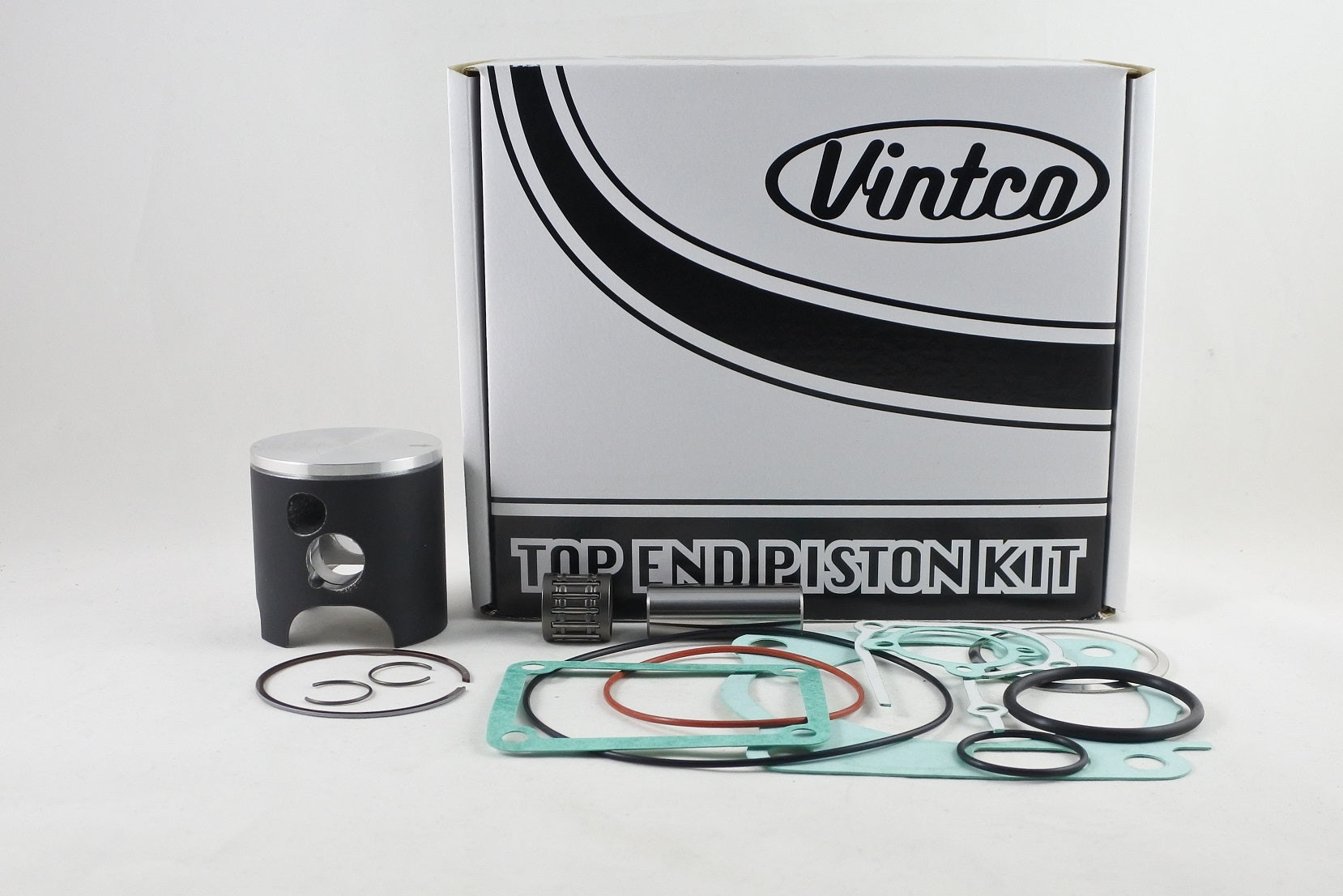

Top end piston kit for the 1992 Yamaha YZ125, supplied in a standard 56 mm size for top-end service work. The kit includes a forged piston made in Germany with an MOS2 coating for running-in, together with the required gaskets, two O-rings and a wrist pin bearing. Kit pricing includes a 10% discount compared with purchasing the items individually.

Features

  • Complete top end piston kit for top-end rebuild work
  • Includes forged piston
  • Includes head gaskets
  • Includes base gasket
  • Includes intake gasket
  • Includes exhaust pipe gaskets
  • Includes holder gasket
  • Includes two O-rings
  • Includes YPVS housing gasket
  • Includes wrist pin bearing

Specifications

  • VintCo Part Number: KTY32-00
  • Piston size: 56 mm standard
  • Piston measured size: 55.96 mm
  • Piston clearance: 0.06 mm
  • Piston construction: Forged
  • Piston coating: MOS2
  • Country of manufacture: Germany

Cross-Reference OEM Part Numbers

  • Head Gasket: 93211-07720-00
  • Head Gasket: 93210-65721-00
  • Base Gasket: 1LX-11351-10-00
  • Intake Gasket: 2K&-13621-10-00
  • Exhaust Pipe Gasket: 3R3-14613-00-00
  • Exhaust Pipe Gasket: 93210-45742-00
  • Holder Gasket: 4DB-1131N-00-00
  • O-Ring: 93210-27672-00
  • YPVS Housing Gasket: 4DB-11993-01-00

Vehicle Fitments

  • 1992 Yamaha YZ125
