Top End Piston Kit 93-93 Yamaha YZ 125 56mm Standard Vintco KTY33-00

Description

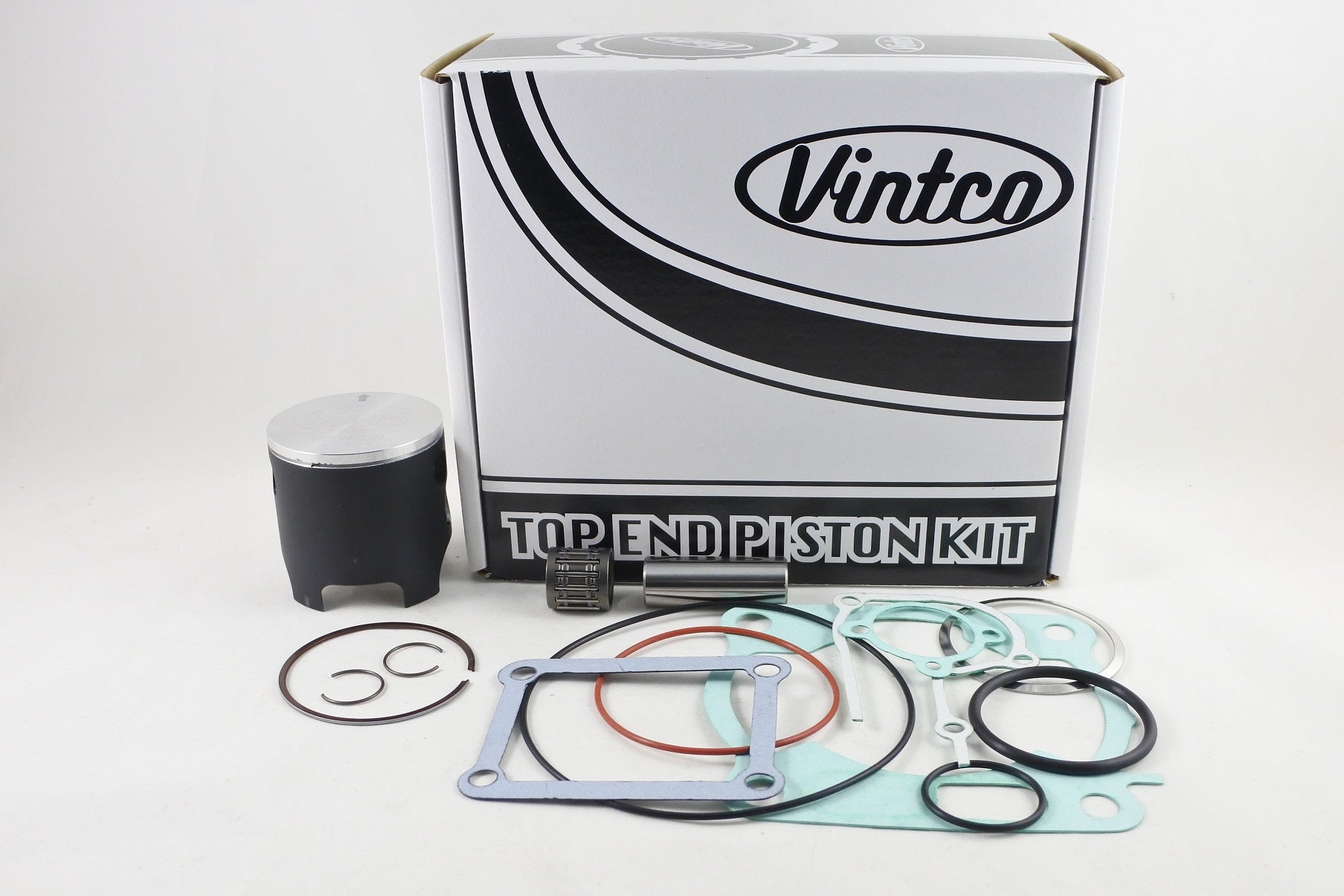

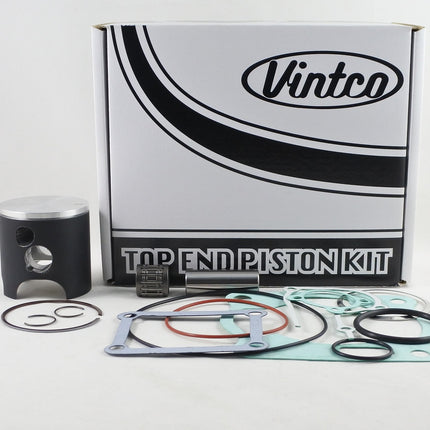

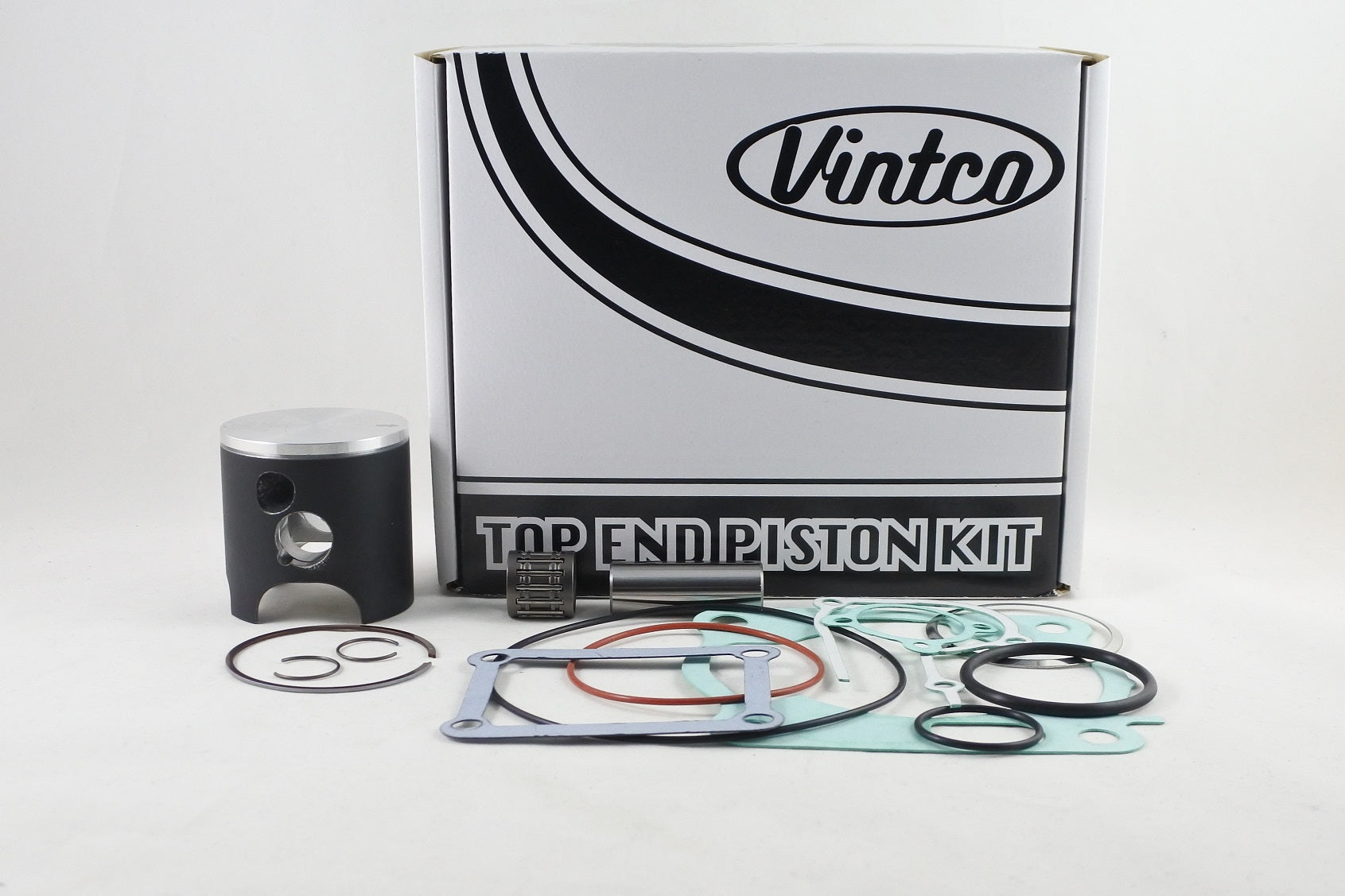

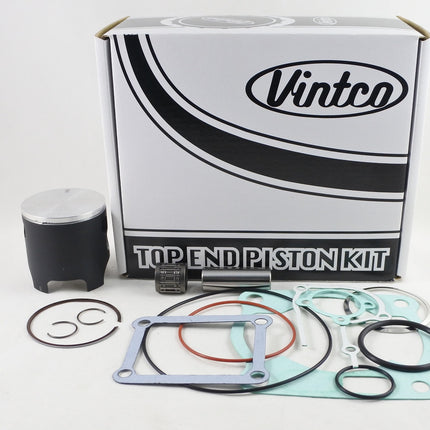

VintCo top end piston kit KTY33-00 is a complete top-end service kit for the 1993 Yamaha YZ125. It includes a standard-size forged piston with MOS2 coating for break-in, along with the associated head, base, intake, exhaust pipe, holder and YPVS housing gaskets, plus two O-rings. Kit pricing reflects a 10% reduction compared with purchasing the included items individually.

Features

  • Complete top end piston kit for top-end service work
  • Includes forged piston with MOS2 coating for break-in
  • Supplied with head gaskets
  • Supplied with base gasket
  • Supplied with intake gasket
  • Supplied with exhaust pipe gaskets
  • Supplied with holder gasket
  • Supplied with YPVS housing gasket
  • Includes two O-rings
  • Kit price includes a 10% reduction compared with individual items

Specifications

  • VintCo Part Number: KTY33-00
  • Piston size: Standard
  • Nominal size: 56 mm
  • Piston diameter: 55.96 mm
  • Clearance: 0.06 mm
  • Piston construction: Forged
  • Country of manufacture: Germany
  • Coating: MOS2

Cross-Reference OEM Part Numbers

  • Head Gasket: 93211-07720-00
  • Head Gasket: 93210-65721-00
  • Base Gasket: 1LX-11351-10-00
  • Intake Gasket: 4TP-13621-00-00
  • Exhaust Pipe Gasket: 3R3-14613-00-00
  • Exhaust Pipe Gasket: 93210-45742-00
  • Holder Gasket: 4DB-1131N-00-00
  • O-Ring: 93210-27672-00
  • YPVS Housing Gasket: 4DB-11993-01-00

Vehicle Fitments

  • 1993 Yamaha YZ125

Top End Piston Kit 93-93 Yamaha YZ 125 56mm Standard Vintco KTY33-00

Product form

VintCo top end piston kit KTY33-00 is a complete top-end service kit for the 1993 Yamaha YZ125. It includes a... Read more

Out of stock

£194.93 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    SKU: VIN-KTY33-00
    Barcode: 0120000103225

    • Free shipping on all orders above £75
    • No hassle returns within 30 days

    Description

    VintCo top end piston kit KTY33-00 is a complete top-end service kit for the 1993 Yamaha YZ125. It includes a standard-size forged piston with MOS2 coating for break-in, along with the associated head, base, intake, exhaust pipe, holder and YPVS housing gaskets, plus two O-rings. Kit pricing reflects a 10% reduction compared with purchasing the included items individually.

    Features

    • Complete top end piston kit for top-end service work
    • Includes forged piston with MOS2 coating for break-in
    • Supplied with head gaskets
    • Supplied with base gasket
    • Supplied with intake gasket
    • Supplied with exhaust pipe gaskets
    • Supplied with holder gasket
    • Supplied with YPVS housing gasket
    • Includes two O-rings
    • Kit price includes a 10% reduction compared with individual items

    Specifications

    • VintCo Part Number: KTY33-00
    • Piston size: Standard
    • Nominal size: 56 mm
    • Piston diameter: 55.96 mm
    • Clearance: 0.06 mm
    • Piston construction: Forged
    • Country of manufacture: Germany
    • Coating: MOS2

    Cross-Reference OEM Part Numbers

    • Head Gasket: 93211-07720-00
    • Head Gasket: 93210-65721-00
    • Base Gasket: 1LX-11351-10-00
    • Intake Gasket: 4TP-13621-00-00
    • Exhaust Pipe Gasket: 3R3-14613-00-00
    • Exhaust Pipe Gasket: 93210-45742-00
    • Holder Gasket: 4DB-1131N-00-00
    • O-Ring: 93210-27672-00
    • YPVS Housing Gasket: 4DB-11993-01-00

    Vehicle Fitments

    • 1993 Yamaha YZ125
