Top End Rebuild Kit Std Bore 00-02 Honda CR 125 Piston Gaskets Bearing

Description

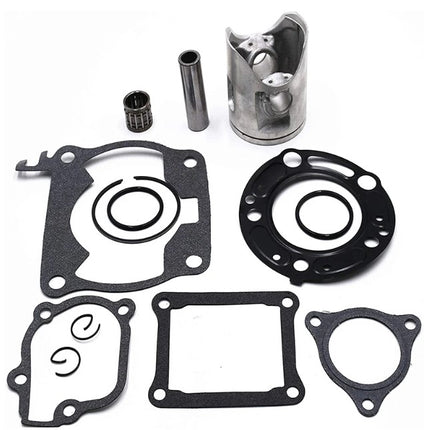

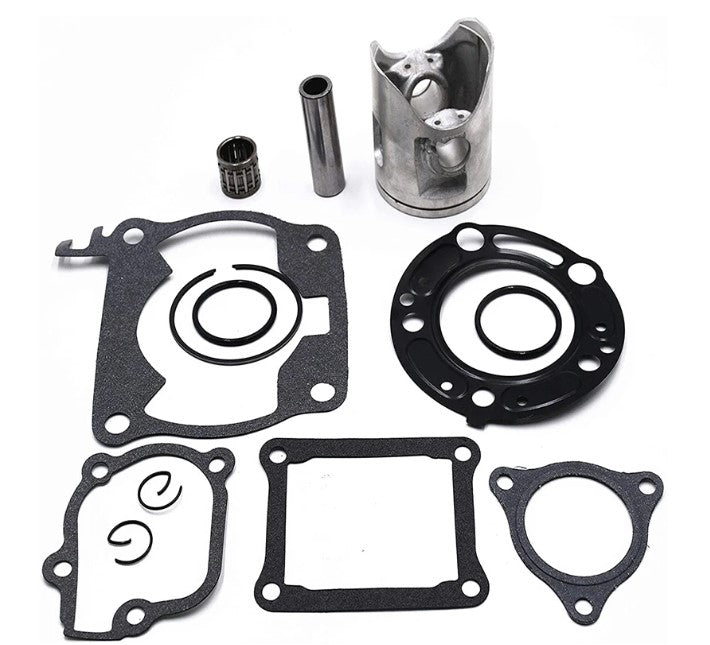

This top end kit is designed for Honda CR125 models and provides the main components required for a standard bore top end rebuild. The kit includes a piston assembly, top end gasket set and piston pin bearing, allowing worn top end parts to be replaced as direct OEM-style replacements during engine servicing or rebuild work.

Features

  • Includes standard bore piston kit with piston, rings, wrist pin and circlips
  • Includes top end gasket kit with powervalve gaskets
  • Includes piston pin bearing
  • Manufactured to exacting standards for confident engine rebuilding
  • Meets or exceeds OEM quality
  • Designed for reliability and performance using high-tech materials
  • Image should be checked before ordering to avoid selection errors
  • Supplied as a value-focused replacement kit
  • Suitable for straightforward installation
  • Professional fitting is recommended if installation is uncertain

Specifications

  • Piston size: 53.94 mm
  • Bore size: 54.00 mm
  • Piston clip size: 15 mm

Cross-Reference OEM Part Numbers

  • Piston A: 13110-KZ4-A90, 13120-KZ4-A90
  • Piston pin: 13111-KV3-000, 13111-KZ4-000, 13111-KV3-000
  • Piston ring T 1.0: 13121-KZ4-A91
  • Piston pin clip 15 mm: 94601-15000
  • Cylinder head gasket: 12251-KZ4-A91
  • Cylinder gasket: 12191-KZ4-L10
  • Exhaust joint gasket: 18291-KZ4-700
  • Right cylinder cover gasket: 12108-KZ4-A90
  • Reed valve gasket: 14132-KZ4-620

Vehicle Fitments

  • Honda CR125 2000
  • Honda CR125 2001
  • Honda CR125 2002
