Twist Throttle Grip Set 07-19 Honda Yamaha Cbr Yzf 600 1000 Rr R1 R6 Aluminum Twin Pull Cable

Description

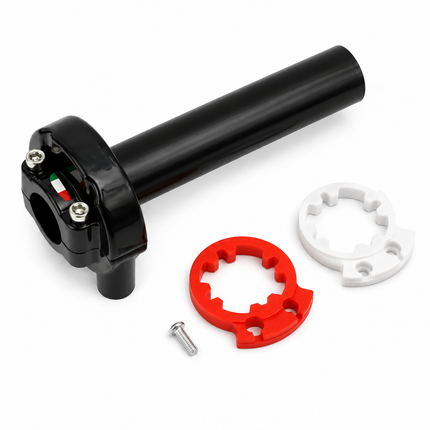

The Domino XM2 Quick-Action Twist Throttle Grip is a twin-cable push/pull throttle control designed for racing and performance motorcycle applications. It uses three interchangeable pulley rings to alter throttle response for faster, progressive sport or softer wet-condition operation, allowing the control characteristics to be matched to the riding conditions. The unit is supplied with rubber grips and requires dedicated XM2 universal or model-specific throttle cables, as standard throttle cables should not be assumed to be compatible.

Features

  • Twin-cable push/pull throttle operation
  • Three interchangeable pulley rings provide selectable throttle response
  • White pulley provides faster throttle operation for normal use
  • Red pulley provides a more progressive response for sport riding
  • Developed in collaboration with Moto2 racing teams
  • Intended for racing, performance applications and increased power demands
  • Supplied with rubber grips
  • Uses standard mounting locations where compatible
  • Designed with an OEM-style fit and appearance
  • Suitable as a replacement throttle control where compatible
  • Designed for straightforward installation

Specifications

  • Throttle support material: aluminium alloy
  • Support finish: painted
  • Colour: black
  • Screws and nuts: titanium
  • White ring opening: 55°
  • Red ring opening: 53°
  • White pulley quickness: 2.6°/mm
  • White pulley maximum stroke: 36 mm
  • Red pulley quickness: 2.7°/mm
  • Red pulley maximum stroke: 25 mm
  • Cable configuration: twin-cable push/pull
  • Throttle cables: not included

Cross-Reference OEM Part Numbers

  • 5176.03-02
  • 97.5176.04-00
  • 5430.96.04-00
  • 5405.96.04-00
  • 5408.96.04-00
  • 5424.96.04-00
  • 5434.96.04-00
  • 5427.96.04-00

Vehicle Fitments

  • Honda CBR600RR – 2007–2016 – requires XM2 throttle cables 5405.96.04-00
  • Honda CBR1000RR – 2008–2016 – requires XM2 throttle cables 5408.96.04-00
  • Yamaha YZF-R1 1000 – 2009–2014 – requires XM2 throttle cables 5424.96.04-00
  • Yamaha YZF-R1 1000 – 2015–2019 – requires XM2 throttle cables 5434.96.04-00
  • Yamaha YZF-R6 600 – 2008–2016 – requires XM2 throttle cables 5427.96.04-00
  • Other motorcycles using a twin-cable push/pull throttle system may be compatible when fitted with the appropriate XM2 universal cables 5430.96.04-00 or dedicated model-specific cables

Installation Notes

  • Dedicated XM2 universal or model-specific throttle cables are required
  • Standard throttle cables should not be assumed to fit
  • Check the product image, throttle arrangement and cable requirements before ordering to confirm suitability
  • Installation by a qualified motorcycle workshop is recommended if the correct fitting procedure is uncertain

Twist Throttle Grip Set 07-19 Honda Yamaha Cbr Yzf 600 1000 Rr R1 R6 Aluminum Twin Pull Cable

Product form

The Domino XM2 Quick-Action Twist Throttle Grip is a twin-cable push/pull throttle control designed for racing and performance motorcycle applications.... Read more

1 in stock 1-2 business days

£32.34 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    SKU: 12-A1004

    • Free shipping on all orders above £75
    • No hassle returns within 30 days

    Description

    The Domino XM2 Quick-Action Twist Throttle Grip is a twin-cable push/pull throttle control designed for racing and performance motorcycle applications. It uses three interchangeable pulley rings to alter throttle response for faster, progressive sport or softer wet-condition operation, allowing the control characteristics to be matched to the riding conditions. The unit is supplied with rubber grips and requires dedicated XM2 universal or model-specific throttle cables, as standard throttle cables should not be assumed to be compatible.

    Features

    • Twin-cable push/pull throttle operation
    • Three interchangeable pulley rings provide selectable throttle response
    • White pulley provides faster throttle operation for normal use
    • Red pulley provides a more progressive response for sport riding
    • Developed in collaboration with Moto2 racing teams
    • Intended for racing, performance applications and increased power demands
    • Supplied with rubber grips
    • Uses standard mounting locations where compatible
    • Designed with an OEM-style fit and appearance
    • Suitable as a replacement throttle control where compatible
    • Designed for straightforward installation

    Specifications

    • Throttle support material: aluminium alloy
    • Support finish: painted
    • Colour: black
    • Screws and nuts: titanium
    • White ring opening: 55°
    • Red ring opening: 53°
    • White pulley quickness: 2.6°/mm
    • White pulley maximum stroke: 36 mm
    • Red pulley quickness: 2.7°/mm
    • Red pulley maximum stroke: 25 mm
    • Cable configuration: twin-cable push/pull
    • Throttle cables: not included

    Cross-Reference OEM Part Numbers

    • 5176.03-02
    • 97.5176.04-00
    • 5430.96.04-00
    • 5405.96.04-00
    • 5408.96.04-00
    • 5424.96.04-00
    • 5434.96.04-00
    • 5427.96.04-00

    Vehicle Fitments

    • Honda CBR600RR – 2007–2016 – requires XM2 throttle cables 5405.96.04-00
    • Honda CBR1000RR – 2008–2016 – requires XM2 throttle cables 5408.96.04-00
    • Yamaha YZF-R1 1000 – 2009–2014 – requires XM2 throttle cables 5424.96.04-00
    • Yamaha YZF-R1 1000 – 2015–2019 – requires XM2 throttle cables 5434.96.04-00
    • Yamaha YZF-R6 600 – 2008–2016 – requires XM2 throttle cables 5427.96.04-00
    • Other motorcycles using a twin-cable push/pull throttle system may be compatible when fitted with the appropriate XM2 universal cables 5430.96.04-00 or dedicated model-specific cables

    Installation Notes

    • Dedicated XM2 universal or model-specific throttle cables are required
    • Standard throttle cables should not be assumed to fit
    • Check the product image, throttle arrangement and cable requirements before ordering to confirm suitability
    • Installation by a qualified motorcycle workshop is recommended if the correct fitting procedure is uncertain
