ATV Universal U-Joint Spider - Bronco AT-08529
Features:
-
Construction: High-quality product manufactured by a SO-9000 facility, ensuring durability and precision.

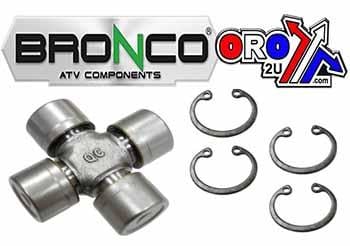

Components Included:
- Spider
- 4 bearings
- Circlips (C-clips)
- Grease zerk (90-degree)
- Cap plug
Specifications:
-
Size A: 22.05 mm
-
Size B: 55.3 mm
-
C-Clips Size: 1.1 x 23.6 mm
-
Grease Nipple: 90-degree angle
-
Plug Included: Yes
Part Number: 17-3325.BR (Available at oro2u)
Cross Reference Numbers:
- 715-9004-02
- ALLBALLS 19-1008
Applications:

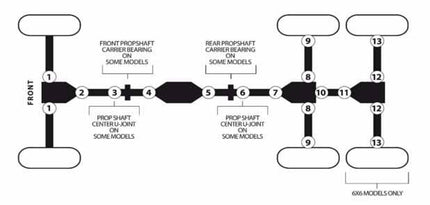

1. U-Joint for Front Prop Shaft - Front & Rear (Ref# 2, 4):
Can-Am:
Commander 1000 Series:
- DPS 2016-2018
- LTD 2016-2018
- STD 2011-2018
- XT 2016-2018
- XTP 2014-2017
Commander 800 Series:
- DPS 2013-2018
- LTD 2016
- STD 2011-2018
- XT 2011-2018
- XTP 2016
Commander MAX 1000 Series:
- DPS 2018
- LTD 2018
- STD 2015-2018
- XT 2018
Defender 1000 Series:
- 2016-2018
- DPS Built After 11/2016 (17)
- DPS Built Before 11/2016 (17)
- XMR 2018
- XT 2016-2018
- XTP 2018
Defender 800 Series:
- 2016-2018
- DPS Built After 11/2016 (17)
- DPS Built Before 11/2016 (17)
- XT 2016-2018
Maverick 1000 Series:
- STD 2013-2018
- TURBO 2016-2017
- TURBO XDS 2015-2016
- TURBO XRS 2016
- XC 2016-2017
- XDS 2015-2016
- XMR 2014-2018
- XRS 2013-2015
- XXC 2014-2017
Maverick MAX 1000 Series:
- STD 2014-2018
- TURBO 2016-2017
- TURBO XDS 2015-2017
- TURBO XRS 2016-2017
- XC/XXC 2016
Maverick Trail 1000 Series:
Maverick X3 Series:
- Various models including TURBO, TURBO R, and XDS from 2017-2018
Outlander Series:
- 450 EFI (DPS) 2016-2018
- 570 EFI (DPS) 2016-2017
- Various other models from 2006-2018
2. U-Joint for Front Axle - Inner (Ref 1):
Polaris:
- 300 4x4 (95)
- 350L 4x4 (93)
- Various models from 1993-2002 including Big Boss, Diesel, Magnum, Scrambler, Sportsman, Worker, and Xplorer series.
3. U-Joint for Front Drive Shaft - Differential Side (Ref 2):
-
Can-Am Commander Series: Similar to the applications listed under "Front Prop Shaft."
4. U-Joint for Front Drive Shaft - Engine Side (Ref 3):
-
Can-Am Commander Series: Similar to the applications listed under "Front Prop Shaft."
5. U-Joint for Rear Drive Shaft - Differential Side (Ref 5):
Can-Am Outlander Series:
- 330, 400 (2003-2015)
- Various MAX models.
6. U-Joint for Rear Drive Shaft - Engine Side (Ref 4):
-
Can-Am Outlander Series: Similar to the applications listed under "Rear Drive Shaft - Differential Side."
