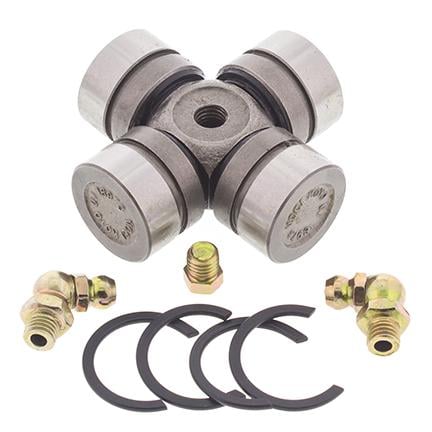

Universal Joint Kawasaki, Allballs 19-1002

Description

Universal UV Joint AllBalls 19-1002

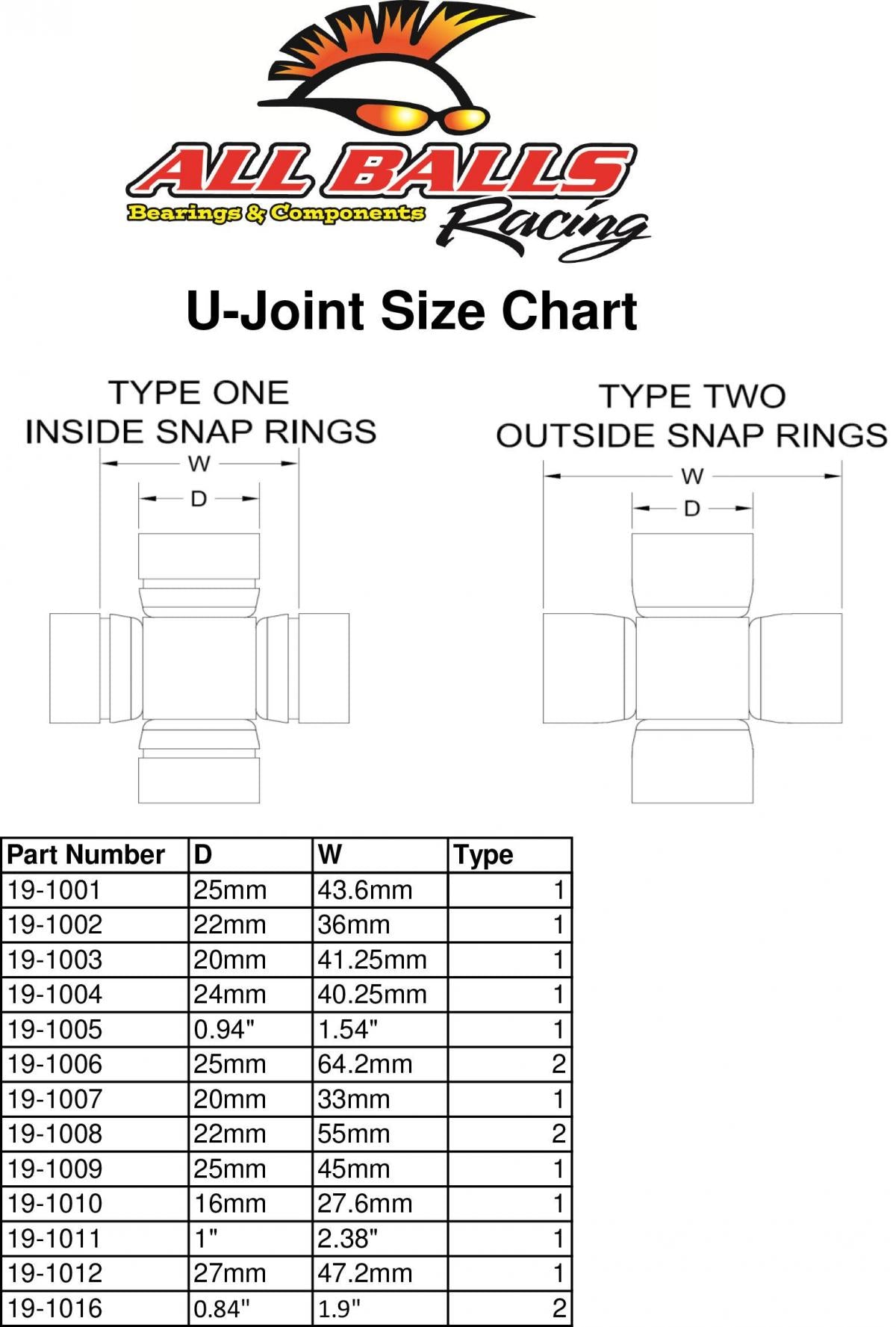

Specifications:

  • Diameter: 22mm
  • Width: 36mm (with inside snap rings)

Key Features:

  • U-Joints are cold forged from SCM-415 steel.
  • Precision ground journals case-hardened to HRC58-61.
  • Pre-greased with high-temperature Lithium Complex 3 grease.
  • Zerk and grease channels in the bearing cup evenly distribute grease.
  • Includes a cap plug to eliminate grease zerk for low-clearance applications.
  • Honda yoke assemblies upgraded from 17mm to 19mm cross diameters, featuring stainless steel clamps and high-quality neoprene rubber boots for long life and abrasion resistance.

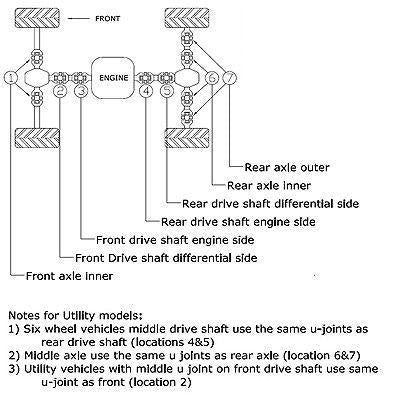

U-Joint Applications

Front Drive Shaft - Differential Side (Ref 2):

Kawasaki:

  • Mule 2510 4x4 (2000)
  • Mule 2510 Diesel (2000-2002)
  • Mule 3010 4x4 (2001-2008)
  • Mule 3010 Diesel (2001-2008)
  • Mule 4010 4x4 (2009-2018)
  • Mule 4010 4x4 Diesel (2009-2013)
  • Mule 610 4x4 (2005-2016)
  • Mule 610 4x4 VIN JK1AFEA1 9B547191 and lower (2009)
  • Mule 610 4x4 VIN JK1AFEA1 9B547192 and above (2009)
  • MULE SX (2017-2018)
  • Teryx 750 4x4 (2008-2013)

Front Drive Shaft - Engine Side (Ref 3):

Kawasaki:

  • Mule 2510 4x4 (2000)
  • Mule 2510 Diesel (2000-2002)
  • Mule 3010 4x4 (2001-2008)
  • Mule 3010 Diesel (2001-2008)
  • Mule 4010 4x4 (2009-2018)
  • Mule 4010 4x4 Diesel (2009-2013)
  • Mule 610 4x4 (2005-2016)
  • Mule 610 4x4 VIN JK1AFEA1 9B547191 and lower (2009)
  • Mule 610 4x4 VIN JK1AFEA1 9B547192 and above (2009)
  • Teryx 750 4x4 (2008-2013)

Rear Drive Shaft - Differential Side (Ref 5):

Kawasaki:

  • Mule 610 4x4 (2005-2016)
  • Mule 610 4x4 VIN JK1AFEA1 9B547191 and lower (2009)
  • Mule 610 4x4 VIN JK1AFEA1 9B547192 and above (2009)

Rear Drive Shaft - Engine Side (Ref 4):

Kawasaki:

  • KVF300A Prairie 4x4 (1999-2002)
  • KVF300B Prairie 2x4 (1999-2002)
  • KVF400A Prairie 4x4 (1997-1998)
  • KVF400B Prairie (1998)
  • KVF400C Prairie 4x4 (1999-2002)
  • KVF400D Prairie (1999-2002)
  • Mule 610 4x4 (2005-2016)
  • Mule 610 4x4 VIN JK1AFEA1 9B547191 and lower (2009)
  • Mule 610 4x4 VIN JK1AFEA1 9B547192 and above (2009)

Universal Joint Kawasaki, Allballs 19-1002

Product form

Universal UV Joint AllBalls 19-1002 Specifications: Diameter: 22mm Width: 36mm (with inside snap rings) Key Features: U-Joints are cold forged... Read more

2 in stock 1-2 business days

£35.04 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    SKU: 17-3014_AB
    Barcode: 723980402632

    • Free shipping on all orders above £75
    • No hassle returns within 30 days

    Description

    Universal UV Joint AllBalls 19-1002

    Specifications:

    • Diameter: 22mm
    • Width: 36mm (with inside snap rings)

    Key Features:

    • U-Joints are cold forged from SCM-415 steel.
    • Precision ground journals case-hardened to HRC58-61.
    • Pre-greased with high-temperature Lithium Complex 3 grease.
    • Zerk and grease channels in the bearing cup evenly distribute grease.
    • Includes a cap plug to eliminate grease zerk for low-clearance applications.
    • Honda yoke assemblies upgraded from 17mm to 19mm cross diameters, featuring stainless steel clamps and high-quality neoprene rubber boots for long life and abrasion resistance.

    U-Joint Applications

    Front Drive Shaft - Differential Side (Ref 2):

    Kawasaki:

    • Mule 2510 4x4 (2000)
    • Mule 2510 Diesel (2000-2002)
    • Mule 3010 4x4 (2001-2008)
    • Mule 3010 Diesel (2001-2008)
    • Mule 4010 4x4 (2009-2018)
    • Mule 4010 4x4 Diesel (2009-2013)
    • Mule 610 4x4 (2005-2016)
    • Mule 610 4x4 VIN JK1AFEA1 9B547191 and lower (2009)
    • Mule 610 4x4 VIN JK1AFEA1 9B547192 and above (2009)
    • MULE SX (2017-2018)
    • Teryx 750 4x4 (2008-2013)

    Front Drive Shaft - Engine Side (Ref 3):

    Kawasaki:

    • Mule 2510 4x4 (2000)
    • Mule 2510 Diesel (2000-2002)
    • Mule 3010 4x4 (2001-2008)
    • Mule 3010 Diesel (2001-2008)
    • Mule 4010 4x4 (2009-2018)
    • Mule 4010 4x4 Diesel (2009-2013)
    • Mule 610 4x4 (2005-2016)
    • Mule 610 4x4 VIN JK1AFEA1 9B547191 and lower (2009)
    • Mule 610 4x4 VIN JK1AFEA1 9B547192 and above (2009)
    • Teryx 750 4x4 (2008-2013)

    Rear Drive Shaft - Differential Side (Ref 5):

    Kawasaki:

    • Mule 610 4x4 (2005-2016)
    • Mule 610 4x4 VIN JK1AFEA1 9B547191 and lower (2009)
    • Mule 610 4x4 VIN JK1AFEA1 9B547192 and above (2009)

    Rear Drive Shaft - Engine Side (Ref 4):

    Kawasaki:

    • KVF300A Prairie 4x4 (1999-2002)
    • KVF300B Prairie 2x4 (1999-2002)
    • KVF400A Prairie 4x4 (1997-1998)
    • KVF400B Prairie (1998)
    • KVF400C Prairie 4x4 (1999-2002)
    • KVF400D Prairie (1999-2002)
    • Mule 610 4x4 (2005-2016)
    • Mule 610 4x4 VIN JK1AFEA1 9B547191 and lower (2009)
    • Mule 610 4x4 VIN JK1AFEA1 9B547192 and above (2009)
