Universal Joint Kawasaki, Allballs 19-1009 ATV704

Description

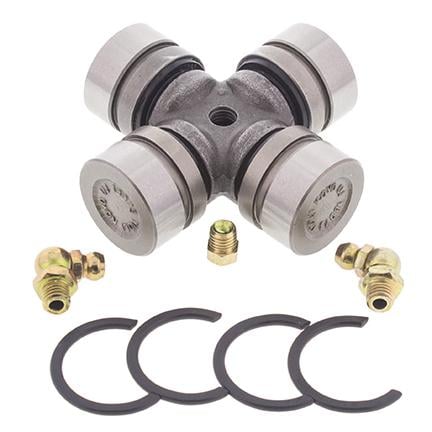

Universal UV U-Joint Kits AllBalls 19-1009

Specifications:

  • Diameter: 25mm
  • Width: 45mm (with inside snap rings)
  • Material: Cold forged from SCM-415 steel

Features:

  • Precision ground journals case-hardened to HRC58-61
  • Pre-greased with high-temperature Lithium Complex 3 grease
  • Zerk and grease channels in the bearing cup evenly distribute grease
  • Includes a cap plug to eliminate grease zerk for low-clearance applications

Honda Yoke Assemblies:

  • Upgraded cross diameters from 17mm to 19mm
  • Stainless steel clamps and high-quality neoprene rubber boots for long life and abrasion resistance

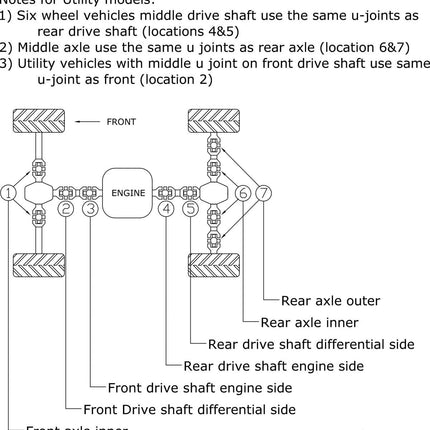

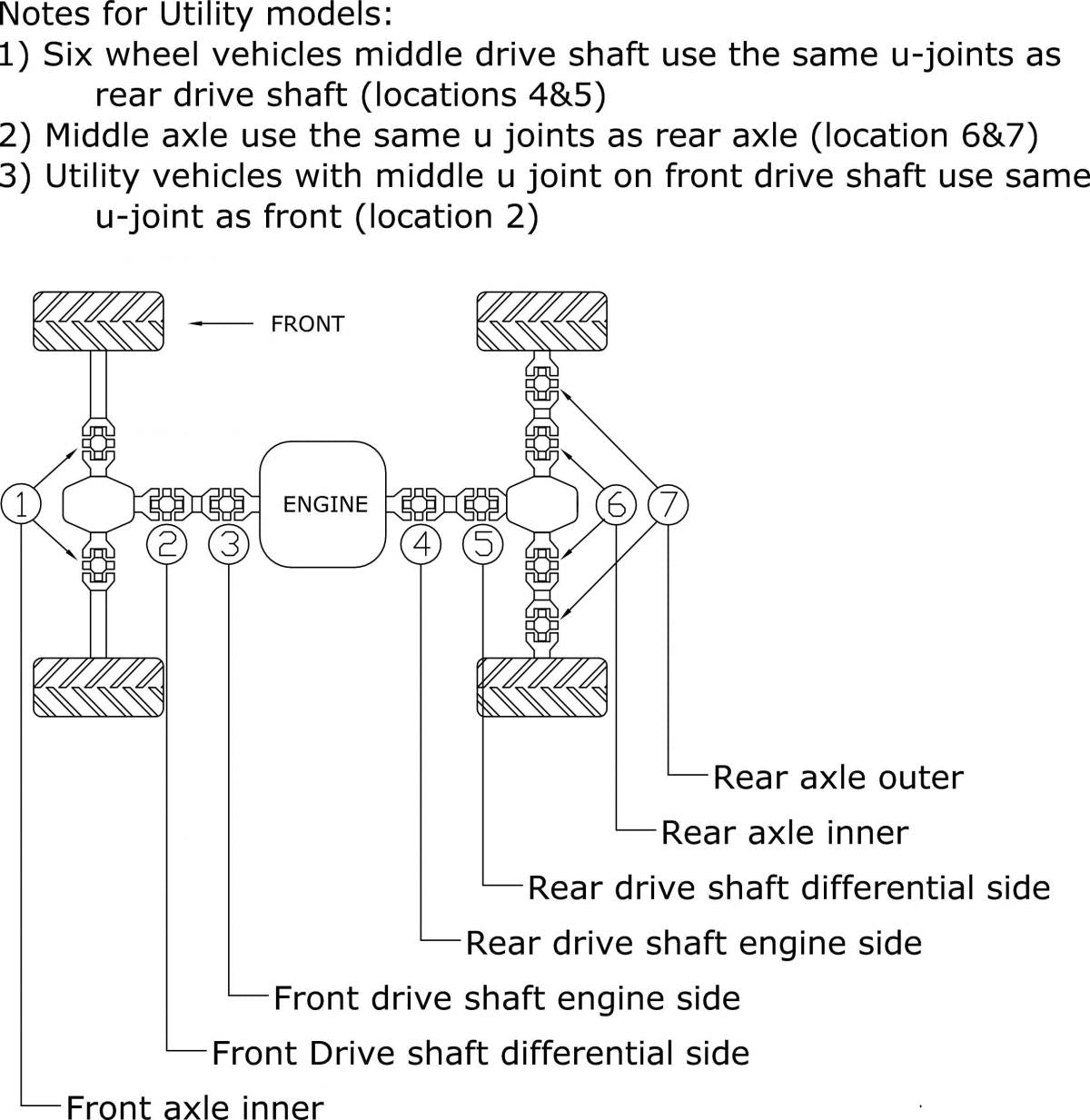

Compatible Models

Kawasaki:

U-Joint, Front Axle - Inner (Ref 1):

  • Mule 2510 4x4 (1993-1999)

U-Joint, Front Drive Shaft - Differential Side (Ref 2):

  • Teryx 4 4x4 (2012-2013)
  • Teryx 4 4x4 800 (2014-2018)
  • Teryx 4x4 800 (2014-2018)

U-Joint, Front Drive Shaft - Engine Side (Ref 3):

  • Mule PRO-DX (2016-2018)
  • Mule PRO-DXT (2016-2018)
  • Mule PRO-FX 800 (2015-2018)
  • Mule PRO-FXT 800 (2015-2018)
  • Teryx 4 4x4 (2012-2013)
  • Teryx 4 4x4 800 (2014-2018)
  • Teryx 4x4 800 (2014-2018)

U-Joint, Rear Axle - Inner (Ref 6):

  • Mule 2500 (1994-2000)
  • Mule 2510 4x4 (1993-2000)
  • Mule 2510 Diesel (2000-2002)
  • Mule 2520 (1993-2000)
  • Mule 3000 (2001-2008)
  • Mule 3010 4x4 (2001-2008)
  • Mule 3010 Diesel (2001-2008)
  • Mule 3020 (2001-2003)
  • Mule 4000 (2009-2018)
  • Mule 4010 4x4 (2009-2018)
  • Mule 4010 4x4 Diesel (2009-2013)

U-Joint, Rear Axle - Outer (Ref 7):

  • Mule 2500 (1994-2000)
  • Mule 2510 4x4 (1993-2000)
  • Mule 2510 Diesel (2000-2002)
  • Mule 2520 (1993-2000)
  • Mule 3000 (2001-2008)
  • Mule 3010 4x4 (2001-2008)
  • Mule 3010 Diesel (2001-2008)
  • Mule 3020 (2001-2003)
  • Mule 4000 (2009-2018)
  • Mule 4010 4x4 (2009-2018)
  • Mule 4010 4x4 Diesel (2009-2013)

Universal Joint Kawasaki, Allballs 19-1009 ATV704

Product form

Universal UV U-Joint Kits AllBalls 19-1009 Specifications: Diameter: 25mm Width: 45mm (with inside snap rings) Material: Cold forged from SCM-415... Read more

3 in stock 1-2 business days

£36.47 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    SKU: 17-3086_A
    Barcode: 723980402700

    • Free shipping on all orders above £75
    • No hassle returns within 30 days

    Description

    Universal UV U-Joint Kits AllBalls 19-1009

    Specifications:

    • Diameter: 25mm
    • Width: 45mm (with inside snap rings)
    • Material: Cold forged from SCM-415 steel

    Features:

    • Precision ground journals case-hardened to HRC58-61
    • Pre-greased with high-temperature Lithium Complex 3 grease
    • Zerk and grease channels in the bearing cup evenly distribute grease
    • Includes a cap plug to eliminate grease zerk for low-clearance applications

    Honda Yoke Assemblies:

    • Upgraded cross diameters from 17mm to 19mm
    • Stainless steel clamps and high-quality neoprene rubber boots for long life and abrasion resistance

    Compatible Models

    Kawasaki:

    U-Joint, Front Axle - Inner (Ref 1):

    • Mule 2510 4x4 (1993-1999)

    U-Joint, Front Drive Shaft - Differential Side (Ref 2):

    • Teryx 4 4x4 (2012-2013)
    • Teryx 4 4x4 800 (2014-2018)
    • Teryx 4x4 800 (2014-2018)

    U-Joint, Front Drive Shaft - Engine Side (Ref 3):

    • Mule PRO-DX (2016-2018)
    • Mule PRO-DXT (2016-2018)
    • Mule PRO-FX 800 (2015-2018)
    • Mule PRO-FXT 800 (2015-2018)
    • Teryx 4 4x4 (2012-2013)
    • Teryx 4 4x4 800 (2014-2018)
    • Teryx 4x4 800 (2014-2018)

    U-Joint, Rear Axle - Inner (Ref 6):

    • Mule 2500 (1994-2000)
    • Mule 2510 4x4 (1993-2000)
    • Mule 2510 Diesel (2000-2002)
    • Mule 2520 (1993-2000)
    • Mule 3000 (2001-2008)
    • Mule 3010 4x4 (2001-2008)
    • Mule 3010 Diesel (2001-2008)
    • Mule 3020 (2001-2003)
    • Mule 4000 (2009-2018)
    • Mule 4010 4x4 (2009-2018)
    • Mule 4010 4x4 Diesel (2009-2013)

    U-Joint, Rear Axle - Outer (Ref 7):

    • Mule 2500 (1994-2000)
    • Mule 2510 4x4 (1993-2000)
    • Mule 2510 Diesel (2000-2002)
    • Mule 2520 (1993-2000)
    • Mule 3000 (2001-2008)
    • Mule 3010 4x4 (2001-2008)
    • Mule 3010 Diesel (2001-2008)
    • Mule 3020 (2001-2003)
    • Mule 4000 (2009-2018)
    • Mule 4010 4x4 (2009-2018)
    • Mule 4010 4x4 Diesel (2009-2013)
