Description

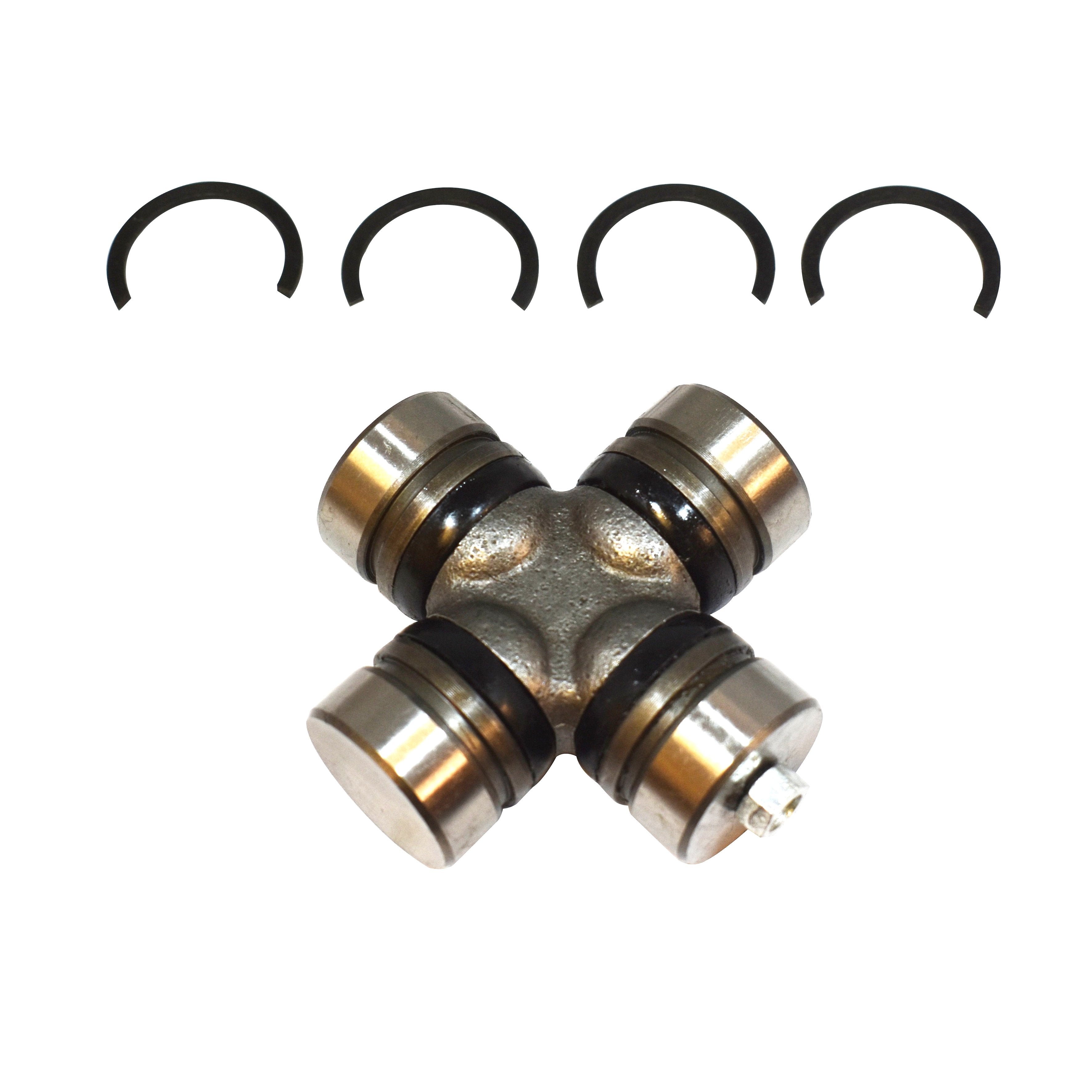

UNIVERSAL UV U-JOINT KITS
Manufacturer: BRONCO
Part Number: AT-08514

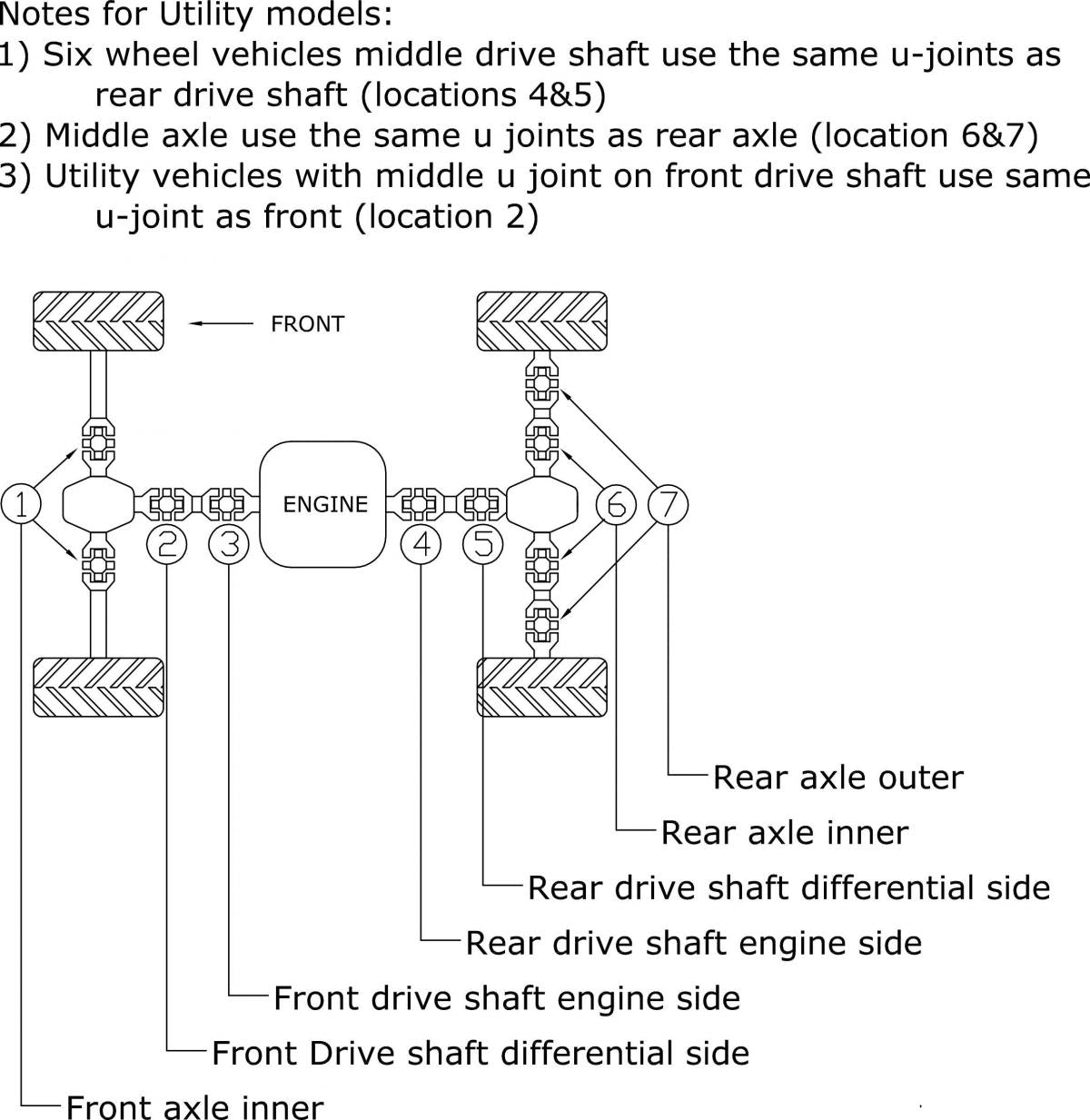

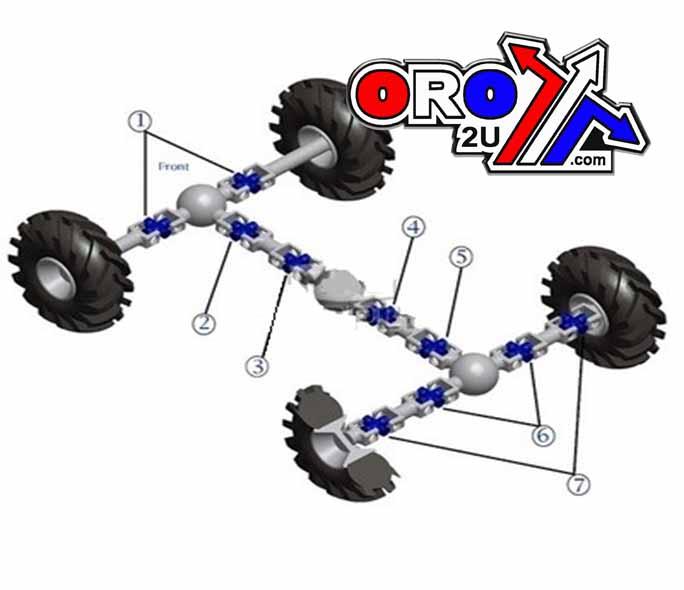

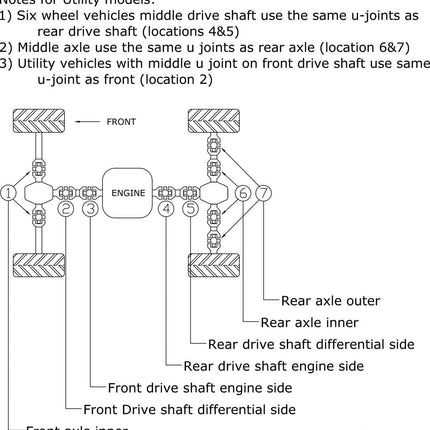

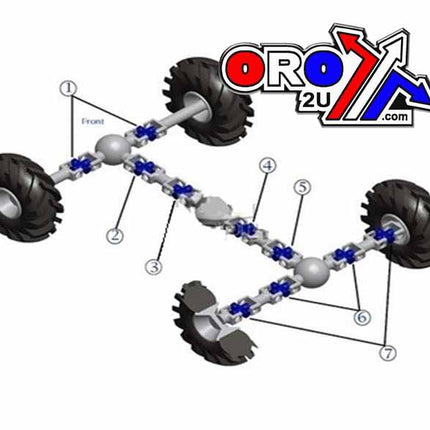

U-Joint, Front Axle-Inner (Ref 1)
Kawasaki:
- Mule 2510 4x4 (1993-1999)
U-Joint, Front Drive Shaft-Diff Side (Ref 2)
Kawasaki:
- TERYX 4 4x4 (2012-2013)
- TERYX 4 4x4 800 (2014-2018)
- TERYX 4x4 800 (2014-2018)
U-Joint, Front Drive Shaft-Eng Side (Ref 3)
Kawasaki:
- MULE PRO-DX (2016-2018)
- MULE PRO-DXT (2016-2018)
- MULE PRO-FX 800 (2015-2018)
- MULE PRO-FXT 800 (2015-2018)
- TERYX 4 4x4 (2012-2013)
- TERYX 4 4x4 800 (2014-2018)
- TERYX 4x4 800 (2014-2018)
U-Joint, Rear Axle, Inner (Ref 6)
Kawasaki:
- Mule 2500 (1994-2000)
- Mule 2510 4x4 (1993-2000)
- Mule 2510 Diesel (2000-2002)
- Mule 2520 (1993-2000)
- Mule 3000 (2001-2008)
- Mule 3010 4x4 (2001-2008)
- Mule 3010 Diesel (2001-2008)
- Mule 3020 (2001-2003)
- Mule 4000 (2009-2018)
- Mule 4010 4x4 (2009-2018)
- Mule 4010 4x4 Diesel (2009-2013)
U-Joint, Rear Axle, Outer (Ref 7)
Kawasaki:
- Mule 2500 (1994-2000)
- Mule 2510 4x4 (1993-2000)
- Mule 2510 Diesel (2000-2002)
- Mule 2520 (1993-2000)
- Mule 3000 (2001-2008)
- Mule 3010 4x4 (2001-2008)
- Mule 3010 Diesel (2001-2008)
- Mule 3020 (2001-2003)
- Mule 4000 (2009-2018)
- Mule 4010 4x4 (2009-2018)
- Mule 4010 4x4 Diesel (2009-2013)
Specifications:
- 25mm diameter / 45mm wide with inside snap rings
- U-Joints are cold forged from SCM-415 steel
- Precision ground journals are case hardened to HRC58-61
- Pre-greased with hi-temp Lithium Complex 3 grease
- Zerk and grease channels in bearing cup evenly distribute grease
- Includes cap plug to eliminate grease zerk for low clearance applications
- Honda yoke assemblies have upgraded cross diameters from 17mm to 19mm and feature stainless steel clamps and hi-quality neoprene rubber boots for long life and abrasion resistance.
Cross Reference Numbers Only:
Rear axle inner and outer only for the following models:
Kawasaki:
- KAF620C Mule 2500 (1994-2000)
- KAF620A Mule 2510 4x4 (1997-2000)
- KAF620B Mule 2520 (1993-2000)
- KAF620G Mule 3000 (2001-2008)
- KAF620E/H Mule 3010 4x4 (2001-2008)
- KAF620P Mule 4000 (2009-2012)
- KAF620R/S Mule 4010 4x4 (2009-2012)
- KAF950A Mule 2510 Diesel (2000-2002)
- KAF950B Mule 3010 Diesel (2003-2006)
- KAF950G Mule 4010 4x4 Diesel (2010-2012)
Front axle inner and Rear axle inner and outer for the following models:
Kawasaki:
- KAF620A Mule 2510 4x4 (1993)
