V 66-05 Honda Fourtrax Trx Atc Ct Rx 70 90 110 125 M Trail Sportrax

Description

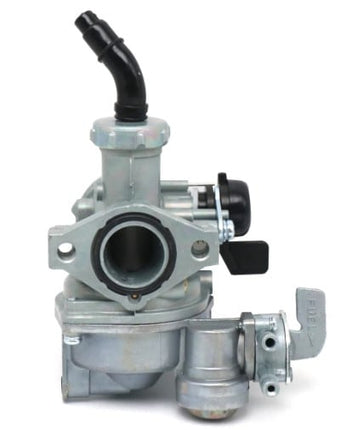

This PZ22 carburettor with manual choke is built from high-tech materials and manufactured to strict specifications, ensuring compatibility with a wide range of Honda engines. It offers a direct OEM replacement and supports reliable engine performance. Proper sizing and port locations must be confirmed using the reference image before purchasing.

Features:

  • Constructed from high-tech materials for reliability and performance
  • Manufactured to precise standards for dependable engine operation
  • Meets or exceeds OEM quality
  • Direct OEM replacement
  • Refer to product image before ordering to ensure correct fitment
  • Designed for value and consistent performance
  • Simple to install; professional installation recommended if unsure

Specifications:

  • Intake Inner Diameter: 7/8” (22mm)
  • Air Filter Mount Inner Diameter: 1-7/16” (36.5mm)
  • Air Filter Mount Outer Diameter: 1-5/8” (41mm)
  • Bolt Hole Spacing Diameter: 1-7/8” (48mm)
  • Petcock and choke located on the left side

Cross-Reference OEM Part Numbers:

  • 16010-459-711 (Gasket Set)
  • 16010-943-305 (Gasket Set)
  • 16012-459-004 (Needle Set, Jet)
  • 16013-883-005 (Float Set)
  • 16014-KN4-651 (Top Set)
  • 16015-126-852 (Chamber Set, Float)
  • 16016-459-711 (Screw Set A)
  • 16022-KG8-911
  • 16022-459-004 (Valve Set, Throttle)
  • 16028-GC8-004 (Screw Set B)
  • 16110-KN4-651 (Gasket, Top)
  • 16148-141-881
  • 16148-943-003 (Cap, Choke Dust)
  • 16155-883-005 (Valve, Float)
  • 99101-116-0700 (Jet, Main #70)
  • 99101-116-0720 (Jet, Main #72)
  • 99103-459-0380 (Jet, Slow #38)

Vehicle Fitments:

  • 1985-1986 Honda FourTrax 125 TRX125
  • 1976-1978 Honda ATC70
  • 1976-1978 Honda ATC90
  • 1979-1985 Honda ATC110
  • 1984-1985 Honda ATC125M
  • 1966-1986 Honda CT90 Trail
  • 1980-1981 Honda CT110 Trail
  • 1986 Honda CT110 Trail
  • 1993-2005 Honda RX90 Sportrax

V 66-05 Honda Fourtrax Trx Atc Ct Rx 70 90 110 125 M Trail Sportrax

Product form

This PZ22 carburettor with manual choke is built from high-tech materials and manufactured to strict specifications, ensuring compatibility with a... Read more

Out of stock

£0.00 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    SKU: 18-9983.AA2

    • Free shipping on all orders above £75
    • No hassle returns within 30 days

    Description

    This PZ22 carburettor with manual choke is built from high-tech materials and manufactured to strict specifications, ensuring compatibility with a wide range of Honda engines. It offers a direct OEM replacement and supports reliable engine performance. Proper sizing and port locations must be confirmed using the reference image before purchasing.

    Features:

    • Constructed from high-tech materials for reliability and performance
    • Manufactured to precise standards for dependable engine operation
    • Meets or exceeds OEM quality
    • Direct OEM replacement
    • Refer to product image before ordering to ensure correct fitment
    • Designed for value and consistent performance
    • Simple to install; professional installation recommended if unsure

    Specifications:

    • Intake Inner Diameter: 7/8” (22mm)
    • Air Filter Mount Inner Diameter: 1-7/16” (36.5mm)
    • Air Filter Mount Outer Diameter: 1-5/8” (41mm)
    • Bolt Hole Spacing Diameter: 1-7/8” (48mm)
    • Petcock and choke located on the left side

    Cross-Reference OEM Part Numbers:

    • 16010-459-711 (Gasket Set)
    • 16010-943-305 (Gasket Set)
    • 16012-459-004 (Needle Set, Jet)
    • 16013-883-005 (Float Set)
    • 16014-KN4-651 (Top Set)
    • 16015-126-852 (Chamber Set, Float)
    • 16016-459-711 (Screw Set A)
    • 16022-KG8-911
    • 16022-459-004 (Valve Set, Throttle)
    • 16028-GC8-004 (Screw Set B)
    • 16110-KN4-651 (Gasket, Top)
    • 16148-141-881
    • 16148-943-003 (Cap, Choke Dust)
    • 16155-883-005 (Valve, Float)
    • 99101-116-0700 (Jet, Main #70)
    • 99101-116-0720 (Jet, Main #72)
    • 99103-459-0380 (Jet, Slow #38)

    Vehicle Fitments:

    • 1985-1986 Honda FourTrax 125 TRX125
    • 1976-1978 Honda ATC70
    • 1976-1978 Honda ATC90
    • 1979-1985 Honda ATC110
    • 1984-1985 Honda ATC125M
    • 1966-1986 Honda CT90 Trail
    • 1980-1981 Honda CT110 Trail
    • 1986 Honda CT110 Trail
    • 1993-2005 Honda RX90 Sportrax
