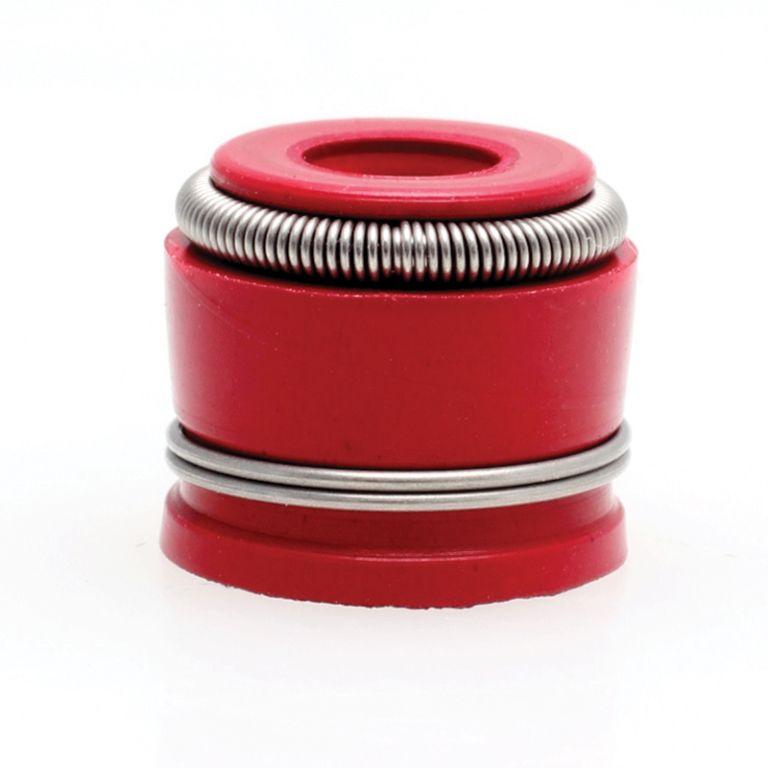

Name: Valve Stem Seal 5.0mm Kibblewhite 71015-100 Red Viton 09289-05011
Brand: Kibblewhite
SKU: 65-333.500.EACH
Price: 3.12 GBP
Availability: InStock

Valve Stem Seal 5.0mm Kibblewhite 71015-100 Red Viton 09289-05011

Kibblewhite
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

The KPMI® Red Viton® valve stem seal (Part No. 65-333.500.EACH) is a high-performance universal component designed for a variety of motorcycle and ATV applications. Manufactured from 100% Red Viton®, this seal is engineered to withstand extreme heat, corrosive combustion gases, and petroleum exposure while maintaining excellent sealing capabilities. It is the ideal choice for high-performance and racing environments where long-lasting durability and precise sealing are critical.

Features

Made from premium 100% Red Viton® for high heat and chemical resistance
Optimised for maximum valve lift and long service life
Prevents oil intrusion into the combustion chamber
Maintains elasticity and sealing under extreme conditions
Designed for applications with a 5.0mm valve stem and 0.340" guide diameter
Precision-engineered for reliable performance in racing and high-load applications
Supersedes Part No. 65-3707

Specifications

Material: Red Viton®
Stem Diameter: 5.0 mm
Guide Diameter (A): 0.340" ± 0.005"
Overall Length: 0.350"
Seal Outer Diameter: 0.405"
Measurement B: 0.303"
Measurement C: 0.125"
Measurement D: 0.230"
Quantity: Sold individually (also available in packages of 100)
OEM Reference Part Number: 09289-05011

Cross-Reference OEM Part Numbers

09289-05011

Vehicle Fitments

HONDA

XR50 2000–2003
CRF450R 2002–2008 (Exhaust Only)
CRF450R 2009–2013
CRF450X 2005–2013 (Exhaust Only)

KAWASAKI

KLX400 2001–2006
KFX400 2001–2006
ZX-10R 1988–1990
ZX-11 / ZRX 1100 / ZRX 1200 1999–2005
ZX-12R 2000–2005
ZX-14 2006–2011
Kawasaki PWC 2006–2019

SUZUKI

GS 750 E/ES/L/T 1980–1986 (5mm conversion)
GSX-R 750 1980–1992
GSX-R 1100 1986–1992
GS 1150 1984–1986 (5mm conversion)
GSX-1300R Hayabusa 1999–2019

Note
Use the provided diagram and specifications to confirm valve guide dimensions for a proper fit.

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
KAWASAKI	KX F 250	2004-2016
YAMAHA	YZ F 426	2000-2002
YAMAHA	WR F 426	2000-2002
SUZUKI	DR S 350	1990-1999
HONDA	CRF R 450	2002-2008
YAMAHA	YZ F 450	2003-2009
YAMAHA	YZ F 400	1998-2000
YAMAHA	WR F 400	1998-2000
SUZUKI	DR SE 350	1990-1999
SUZUKI	DR 250	1990-1999
HONDA	XR 50	2000-2003
HONDA	CRF R 250	2010-2015
SUZUKI	RM Z 450	2005-2015
YAMAHA	YFZ 450	2004-2009
KAWASAKI	KVF BRUTE FORCE 650	2005-2013
YAMAHA	YFZ R 450	2009-2019
SUZUKI	DR Z S 400	2000-2015
HONDA	CRF R 450	2009-2015
HONDA	CRF X 450	2005-2014
KAWASAKI	KLX 400	2001-2006
KAWASAKI	KFX 400	2001-2006
SUZUKI	DR Z E 400	2000-2015
KAWASAKI	KVF PRAIRIE 700	2005-2006
KAWASAKI	KVF BRUTE FORCE I 650	2006-2012
KAWASAKI	KVF BRUTE FORCE I 750	2005-2012
KAWASAKI	KRF 750	2008-2012
KAWASAKI	KFX 700	2005-2009
YAMAHA	YFZ X 450	2008-2011
YAMAHA	YFZ SE 450	2010-2019
YAMAHA	WR F 450	2003-2013
SUZUKI	LT Z 400	2000-2017
SUZUKI	DR Z SM 400	2000-2015
POLARIS	RZR XP 900	2011-2012

Valve Stem Seal 5.0mm Kibblewhite 71015-100 Red Viton 09289-05011

Kibblewhite
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

The KPMI® Red Viton® valve stem seal (Part No. 65-333.500.EACH) is a high-performance universal component designed for a variety of... Read more

51 in stock 1-2 business days

£3.12 Incl. VAT

Guaranteed secure & safe checkout.

SKU: 65-333.500.EACH

Free shipping on all orders above £75

No hassle returns within 30 days

Description

The KPMI® Red Viton® valve stem seal (Part No. 65-333.500.EACH) is a high-performance universal component designed for a variety of motorcycle and ATV applications. Manufactured from 100% Red Viton®, this seal is engineered to withstand extreme heat, corrosive combustion gases, and petroleum exposure while maintaining excellent sealing capabilities. It is the ideal choice for high-performance and racing environments where long-lasting durability and precise sealing are critical.

Features

Made from premium 100% Red Viton® for high heat and chemical resistance
Optimised for maximum valve lift and long service life
Prevents oil intrusion into the combustion chamber
Maintains elasticity and sealing under extreme conditions
Designed for applications with a 5.0mm valve stem and 0.340" guide diameter
Precision-engineered for reliable performance in racing and high-load applications
Supersedes Part No. 65-3707

Specifications

Material: Red Viton®
Stem Diameter: 5.0 mm
Guide Diameter (A): 0.340" ± 0.005"
Overall Length: 0.350"
Seal Outer Diameter: 0.405"
Measurement B: 0.303"
Measurement C: 0.125"
Measurement D: 0.230"
Quantity: Sold individually (also available in packages of 100)
OEM Reference Part Number: 09289-05011

Cross-Reference OEM Part Numbers

09289-05011

Vehicle Fitments

HONDA

XR50 2000–2003
CRF450R 2002–2008 (Exhaust Only)
CRF450R 2009–2013
CRF450X 2005–2013 (Exhaust Only)

KAWASAKI

KLX400 2001–2006
KFX400 2001–2006
ZX-10R 1988–1990
ZX-11 / ZRX 1100 / ZRX 1200 1999–2005
ZX-12R 2000–2005
ZX-14 2006–2011
Kawasaki PWC 2006–2019

SUZUKI

GS 750 E/ES/L/T 1980–1986 (5mm conversion)
GSX-R 750 1980–1992
GSX-R 1100 1986–1992
GS 1150 1984–1986 (5mm conversion)
GSX-1300R Hayabusa 1999–2019

Note
Use the provided diagram and specifications to confirm valve guide dimensions for a proper fit.

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
KAWASAKI	KX F 250	2004-2016
YAMAHA	YZ F 426	2000-2002
YAMAHA	WR F 426	2000-2002
SUZUKI	DR S 350	1990-1999
HONDA	CRF R 450	2002-2008
YAMAHA	YZ F 450	2003-2009
YAMAHA	YZ F 400	1998-2000
YAMAHA	WR F 400	1998-2000
SUZUKI	DR SE 350	1990-1999
SUZUKI	DR 250	1990-1999
HONDA	XR 50	2000-2003
HONDA	CRF R 250	2010-2015
SUZUKI	RM Z 450	2005-2015
YAMAHA	YFZ 450	2004-2009
KAWASAKI	KVF BRUTE FORCE 650	2005-2013
YAMAHA	YFZ R 450	2009-2019
SUZUKI	DR Z S 400	2000-2015
HONDA	CRF R 450	2009-2015
HONDA	CRF X 450	2005-2014
KAWASAKI	KLX 400	2001-2006
KAWASAKI	KFX 400	2001-2006
SUZUKI	DR Z E 400	2000-2015
KAWASAKI	KVF PRAIRIE 700	2005-2006
KAWASAKI	KVF BRUTE FORCE I 650	2006-2012
KAWASAKI	KVF BRUTE FORCE I 750	2005-2012
KAWASAKI	KRF 750	2008-2012
KAWASAKI	KFX 700	2005-2009
YAMAHA	YFZ X 450	2008-2011
YAMAHA	YFZ SE 450	2010-2019
YAMAHA	WR F 450	2003-2013
SUZUKI	LT Z 400	2000-2017
SUZUKI	DR Z SM 400	2000-2015
POLARIS	RZR XP 900	2011-2012
