Voltage Regulator 99-20 Yamaha Arctic Cat Can-am Honda Kawasaki Suzuki 4XY-81960-00-00

Description

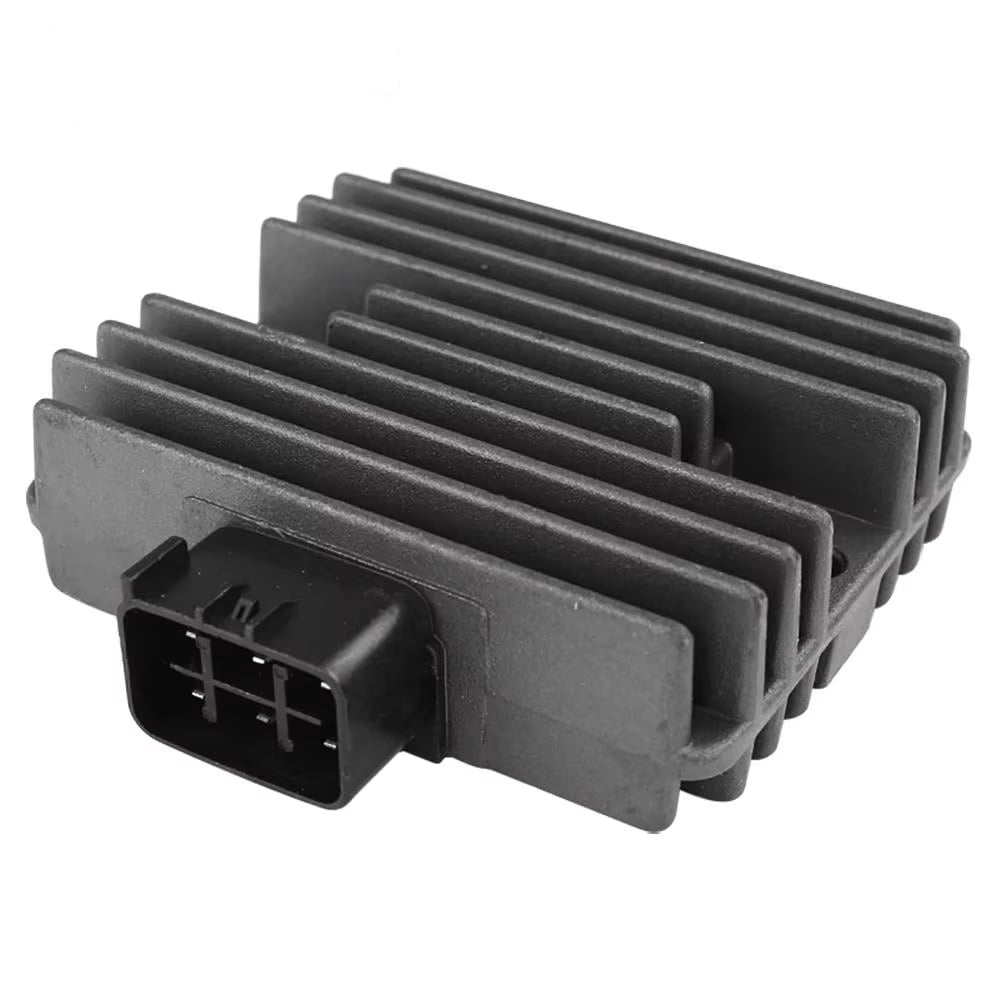

This voltage regulator is a three-phase, full-wave rectifier designed to provide stable voltage output and protect the electrical systems of various motorcycles, ATVs, scooters, and utility vehicles. It serves as a direct OEM replacement and is built to meet or exceed original equipment standards.

Features

  • Direct OEM replacement
  • Meets or exceeds OEM quality standards
  • Designed to handle increased power loads
  • All are made to OEM specifications and match the original equipment in appearance
  • All electrical parts are 100% fully factory tested before shipping
  • Please check the image before ordering to avoid mistakes
  • Note: No returns on electrical parts
  • Easy to install but if unsure please use a professional

Specifications

  • Voltage: 14V
  • Current: 25A
  • Connector: 6 Pin
  • Type: Three-phase full-wave rectifier ACx3-DC
  • Battery open circuit voltage: 14.5±0.5V
  • Height: 28 mm
  • Width: 80 mm
  • Length: 90 mm
  • Pitch: 67 mm

Cross-Reference OEM Part Numbers

  • 4XY-81960-00-00
  • 710001103
  • 5BN-81960-00-00
  • 32800-42F00
  • 21066-1127
  • 21066-0030
  • 0824-037
  • 0824-020

Vehicle Fitments

Yamaha:

  • Yamaha YFM450 Grizzly EPS 4WD (2011–2012)
  • Yamaha WR250X (2008–2011)
  • Yamaha WR250R (2009–2020)
  • Yamaha XVS1100 V-Star Classic (2003–2009)
  • Yamaha XVS1100 V-Star Custom (2003–2009)
  • Yamaha XVS1100 V-Star Midnight Custom (2005–2009)
  • Yamaha XVS1100 V-Star Silverado (2003–2009)
  • Yamaha XVZ1300 Royal Star Midnight Venture (2002–2008)
  • Yamaha XVZ1300 Royal Star Tour Deluxe (2005–2010)
  • Yamaha XVZ1300 Royal Star Venture (1999–2009)
  • Yamaha XVZ1300 Royal Star Venture MM Ltd (2000)
  • Yamaha Majesty YP400 (2005–2014)
  • Yamaha Morphous CP250 (2006–2008)
  • Yamaha TMax XP500 (2009–2011)
  • Yamaha YFM Grizzly 660 (2002–2008)
  • Yamaha YFM Raptor 700 (2006–2013)
  • Yamaha YFM Grizzly EPS 450 (2011–2014)
  • Yamaha YFZ R 450 / Limited Edition (2004, 2009–2013)
  • Yamaha YXR Rhino 450 / 660 (2004–2009)

Arctic Cat:

  • Arctic Cat H1 700 (2009–2011)
  • Arctic Cat H1 650 (2005–2006)
  • Arctic Cat H1 550 (2009–2011)
  • Arctic Cat FIS 700 (2006–2008)
  • Arctic Cat FIS H1 650 (2007–2008)
  • Arctic Cat GT 450 / 550 / 700 / 1000 (2012)
  • Arctic Cat Mud Pro 1000 (2010–2012)
  • Arctic Cat Mud Pro 650 (2010–2011)
  • Arctic Cat Mud Pro 700 (2009–2011)
  • Arctic Cat Prowler 700 / 550 / XTZ 1000 / 650 (2006–2011)
  • Arctic Cat TBX H1 650 (2007)
  • Arctic Cat TBX H1 700 (2010)
  • Arctic Cat TBX 650 (2009)
  • Arctic Cat TRV 450 / 1000 / 400 / 550 / 700 / 500 / 650 (2007–2015)
  • Arctic Cat Thundercat 950 (2008–2010)
  • Arctic Cat XR 500 (2015)
  • Arctic Cat XT 500 / 550 / 1000 (2013–2014)

Can-Am:

  • Can-Am Outlander 330 / 400 / 500 / 650 / 800 / 1000 (2003–2017)
  • Can-Am Outlander Max 800 (2008–2012)
  • Can-Am Renegade 500 / 800 / 1000 (2008–2015)

Honda:

  • Honda TRX FA / FGA 500 (2001–2004)

Kawasaki:

  • Kawasaki KAF Mule 3000 620 (to 2008)
  • Kawasaki KRF Teryx 750 (2008–2013)
  • Kawasaki KVF Brute Force 650 / 750 (2005–2013)

Suzuki:

  • Suzuki LT-A KingQuad 400 / 450 / 500 / 700 / 750 (2006–2014)
  • Suzuki LT-A Vinson 4WD 500 (2002–2007)
  • Suzuki LT-F KingQuad 400 (2008–2013)
  • Suzuki UH A 200 (2014–2017)

Voltage Regulator 99-20 Yamaha Arctic Cat Can-am Honda Kawasaki Suzuki 4XY-81960-00-00

Product form

This voltage regulator is a three-phase, full-wave rectifier designed to provide stable voltage output and protect the electrical systems of... Read more

9 in stock 1-2 business days

£56.34 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    SKU: 44-5862.A3

    • Free shipping on all orders above £75
    • No hassle returns within 30 days

    Description

    This voltage regulator is a three-phase, full-wave rectifier designed to provide stable voltage output and protect the electrical systems of various motorcycles, ATVs, scooters, and utility vehicles. It serves as a direct OEM replacement and is built to meet or exceed original equipment standards.

    Features

    • Direct OEM replacement
    • Meets or exceeds OEM quality standards
    • Designed to handle increased power loads
    • All are made to OEM specifications and match the original equipment in appearance
    • All electrical parts are 100% fully factory tested before shipping
    • Please check the image before ordering to avoid mistakes
    • Note: No returns on electrical parts
    • Easy to install but if unsure please use a professional

    Specifications

    • Voltage: 14V
    • Current: 25A
    • Connector: 6 Pin
    • Type: Three-phase full-wave rectifier ACx3-DC
    • Battery open circuit voltage: 14.5±0.5V
    • Height: 28 mm
    • Width: 80 mm
    • Length: 90 mm
    • Pitch: 67 mm

    Cross-Reference OEM Part Numbers

    • 4XY-81960-00-00
    • 710001103
    • 5BN-81960-00-00
    • 32800-42F00
    • 21066-1127
    • 21066-0030
    • 0824-037
    • 0824-020

    Vehicle Fitments

    Yamaha:

    • Yamaha YFM450 Grizzly EPS 4WD (2011–2012)
    • Yamaha WR250X (2008–2011)
    • Yamaha WR250R (2009–2020)
    • Yamaha XVS1100 V-Star Classic (2003–2009)
    • Yamaha XVS1100 V-Star Custom (2003–2009)
    • Yamaha XVS1100 V-Star Midnight Custom (2005–2009)
    • Yamaha XVS1100 V-Star Silverado (2003–2009)
    • Yamaha XVZ1300 Royal Star Midnight Venture (2002–2008)
    • Yamaha XVZ1300 Royal Star Tour Deluxe (2005–2010)
    • Yamaha XVZ1300 Royal Star Venture (1999–2009)
    • Yamaha XVZ1300 Royal Star Venture MM Ltd (2000)
    • Yamaha Majesty YP400 (2005–2014)
    • Yamaha Morphous CP250 (2006–2008)
    • Yamaha TMax XP500 (2009–2011)
    • Yamaha YFM Grizzly 660 (2002–2008)
    • Yamaha YFM Raptor 700 (2006–2013)
    • Yamaha YFM Grizzly EPS 450 (2011–2014)
    • Yamaha YFZ R 450 / Limited Edition (2004, 2009–2013)
    • Yamaha YXR Rhino 450 / 660 (2004–2009)

    Arctic Cat:

    • Arctic Cat H1 700 (2009–2011)
    • Arctic Cat H1 650 (2005–2006)
    • Arctic Cat H1 550 (2009–2011)
    • Arctic Cat FIS 700 (2006–2008)
    • Arctic Cat FIS H1 650 (2007–2008)
    • Arctic Cat GT 450 / 550 / 700 / 1000 (2012)
    • Arctic Cat Mud Pro 1000 (2010–2012)
    • Arctic Cat Mud Pro 650 (2010–2011)
    • Arctic Cat Mud Pro 700 (2009–2011)
    • Arctic Cat Prowler 700 / 550 / XTZ 1000 / 650 (2006–2011)
    • Arctic Cat TBX H1 650 (2007)
    • Arctic Cat TBX H1 700 (2010)
    • Arctic Cat TBX 650 (2009)
    • Arctic Cat TRV 450 / 1000 / 400 / 550 / 700 / 500 / 650 (2007–2015)
    • Arctic Cat Thundercat 950 (2008–2010)
    • Arctic Cat XR 500 (2015)
    • Arctic Cat XT 500 / 550 / 1000 (2013–2014)

    Can-Am:

    • Can-Am Outlander 330 / 400 / 500 / 650 / 800 / 1000 (2003–2017)
    • Can-Am Outlander Max 800 (2008–2012)
    • Can-Am Renegade 500 / 800 / 1000 (2008–2015)

    Honda:

    • Honda TRX FA / FGA 500 (2001–2004)

    Kawasaki:

    • Kawasaki KAF Mule 3000 620 (to 2008)
    • Kawasaki KRF Teryx 750 (2008–2013)
    • Kawasaki KVF Brute Force 650 / 750 (2005–2013)

    Suzuki:

    • Suzuki LT-A KingQuad 400 / 450 / 500 / 700 / 750 (2006–2014)
    • Suzuki LT-A Vinson 4WD 500 (2002–2007)
    • Suzuki LT-F KingQuad 400 (2008–2013)
    • Suzuki UH A 200 (2014–2017)
