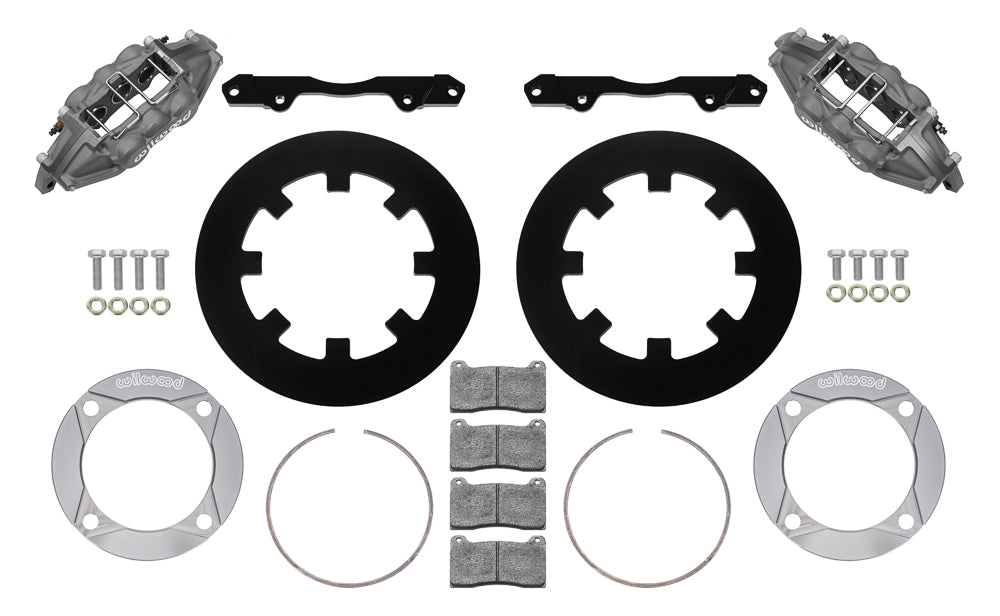

Wilwood Race Front Brake Kit Polaris Rzr 140-17044

Description

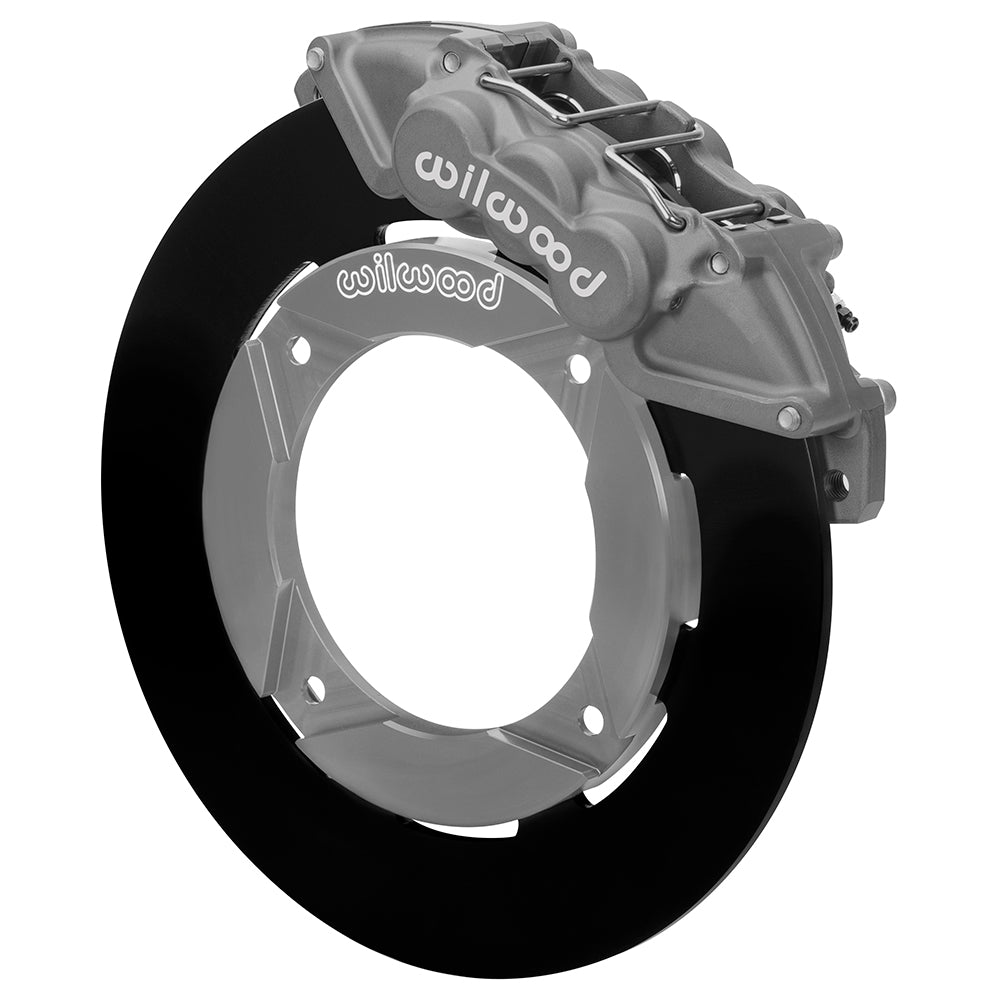

The Wilwood UTV6 Front Brake Kit (Race) is a performance front braking kit for compatible Polaris RZR side-by-side vehicles, designed to provide increased braking force, improved brake feel and greater brake torque for higher-powered UTV applications. The kit combines fixed-mount multi-piston calipers, BP-28 high-friction brake pads and larger floating rotors. Dynamically mounted rotors help reduce thermal stress and prevent piston knockback over rough terrain, while the forged aluminium differential-bore caliper design reduces deflection and promotes more uniform engagement.

Replacement Parts

Solid Rotor: 160-16515

Drilled Rotor: 160-16979

Disc Hat/Adapter: 300-16590

Snap Ring: 310-11775

Bleed Screw Kit: 220-0627

Brake Pads: 39-5039 (EBC & Wilwood options)

Features

  • Race-specification front UTV brake kit

  • Fixed-mount multi-piston caliper configuration

  • BP-28 high-friction brake pads

  • Floating rotor design for increased brake torque

  • Increased caliper clamping force

  • Differential-bore caliper design reduces deflection and promotes uniform engagement

  • Increased braking force and improved brake feel

  • Dynamically mounted rotors reduce thermal stress

  • Dynamic rotor mounting helps prevent piston knockback over rough terrain

  • Intended for higher-powered UTV applications

  • Designed for popular side-by-side machines

  • Part of a matched front and rear UTV Race brake kit range

Specifications

  • Spindle Type: Factory Disc Spindle

  • Mount Type: Lug

  • Caliper Type: 6 - Type III Anodize

  • Caliper Construction: Forged aluminium

  • Caliper Configuration: Differential-bore six-piston design

  • UTV Race kit range uses differential-bore four- and six-piston calipers

  • Rotor Diameter: 11.25

  • Minimum Wheel Diameter Required: 15

  • Rotor Material: High-friction steel

  • Rotor diameter is up to 20% greater than the corresponding standard configuration

  • Increased rotor thickness for reduced distortion

Cross-Reference OEM Part Numbers

  • Wilwood: 140-17044

Vehicle Fitments

  • Polaris RZR RS1 – 2018-2021 Base

  • Polaris RZR S 1000 EPS – 2020-2021 Base

  • Polaris RZR S4 1000 EPS – 2019-2020 Base

  • Polaris RZR XP 1000 – 2020-2021 Base

  • Polaris RZR XP 1000 EPS – 2014-2019 Base

  • Polaris RZR XP 1000 EPS Desert Edition – 2015 Base

  • Polaris RZR XP 1000 EPS DYNAMIX Edition – 2019 Base

  • Polaris RZR XP 1000 EPS Fox Edition – 2015 Base

  • Polaris RZR XP 1000 EPS Gold Matte Metallic LE – 2017 Base

  • Polaris RZR XP 1000 EPS High Lifter Edition – 2015-2019 Base

  • Polaris RZR XP 1000 EPS Ride Command Edition – 2018-2019 Base

  • Polaris RZR XP 1000 EPS Trails and Rock Edition – 2018-2019 Base

  • Polaris RZR XP 1000 EPS Velocity Blue LE – 2017 Base

  • Polaris RZR XP 1000 High Lifter – 2022 Base

  • Polaris RZR XP 1000 High Lifter Edition – 2020-2021 Base

  • Polaris RZR XP 1000 Limited Edition – 2020 Base

  • Polaris RZR XP 1000 Premium – 2020-2023 Base

  • Polaris RZR XP 1000 Sport – 2022-2023 Base

  • Polaris RZR XP 1000 Trails & Rocks – 2021-2022 Base

  • Polaris RZR XP 1000 Trails and Rock Edition – 2020 Base

  • Polaris RZR XP 1000 Ultimate – 2023 Base

  • Polaris RZR XP 4 1000 – 2020-2021 Base

  • Polaris RZR XP 4 1000 EPS – 2014-2019 Base

  • Polaris RZR XP 4 1000 EPS DYNAMIX Edition – 2019 Base

  • Polaris RZR XP 4 1000 EPS High Lifter Edition – 2017-2019 Base

  • Polaris RZR XP 4 1000 EPS Ride Command Edition – 2018-2019 Base

  • Polaris RZR XP 4 1000 High Lifter – 2022 Base

  • Polaris RZR XP 4 1000 High Lifter Edition – 2020-2021 Base

  • Polaris RZR XP 4 1000 Limited Edition – 2020 Base

  • Polaris RZR XP 4 1000 Premium – 2020-2023 Base

  • Polaris RZR XP 4 1000 Sport – 2022-2023 Base

  • Polaris RZR XP 4 1000 Ultimate – 2023 Base
